Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

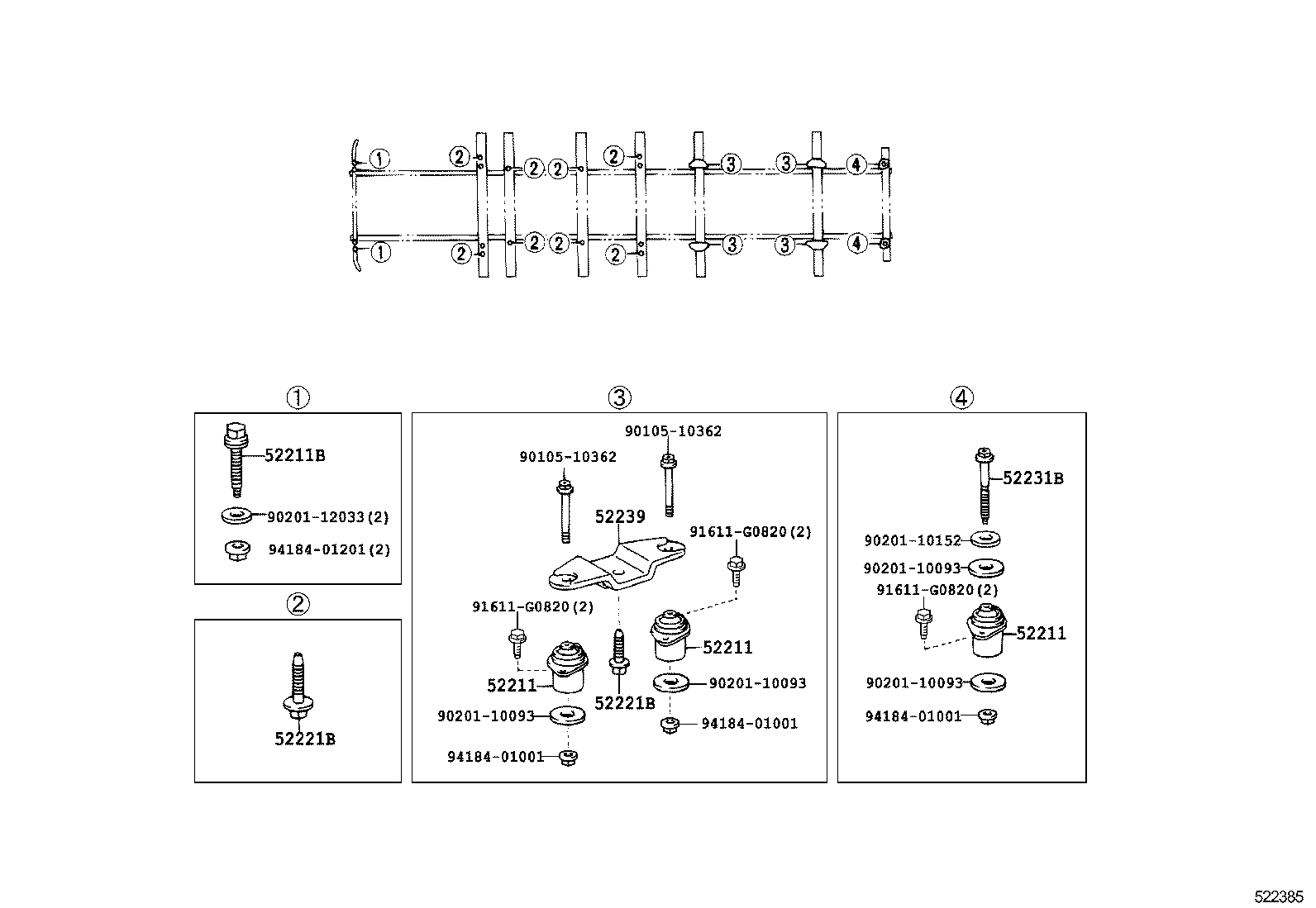

Cab Mounting & Body Mounting
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52211 | Cushion, Body Mounting, NO.1 Upper |
| 52211B | Bolt(FOR BODY MOUNTING NO.1 CUSHION) |
| 52221B | Bolt(FOR BODY MOUNT NO.2 CUSHION) |
| 52231B | Bolt(FOR BODY MOUNT NO.3 CUSHION) |
| 52239 | Plate, Body Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
