Front Bumper & Bumper Stay

7 part groups · 2 illustrations

Illustrations

Figure 520685A

520685A 2000-12 → 2007-01

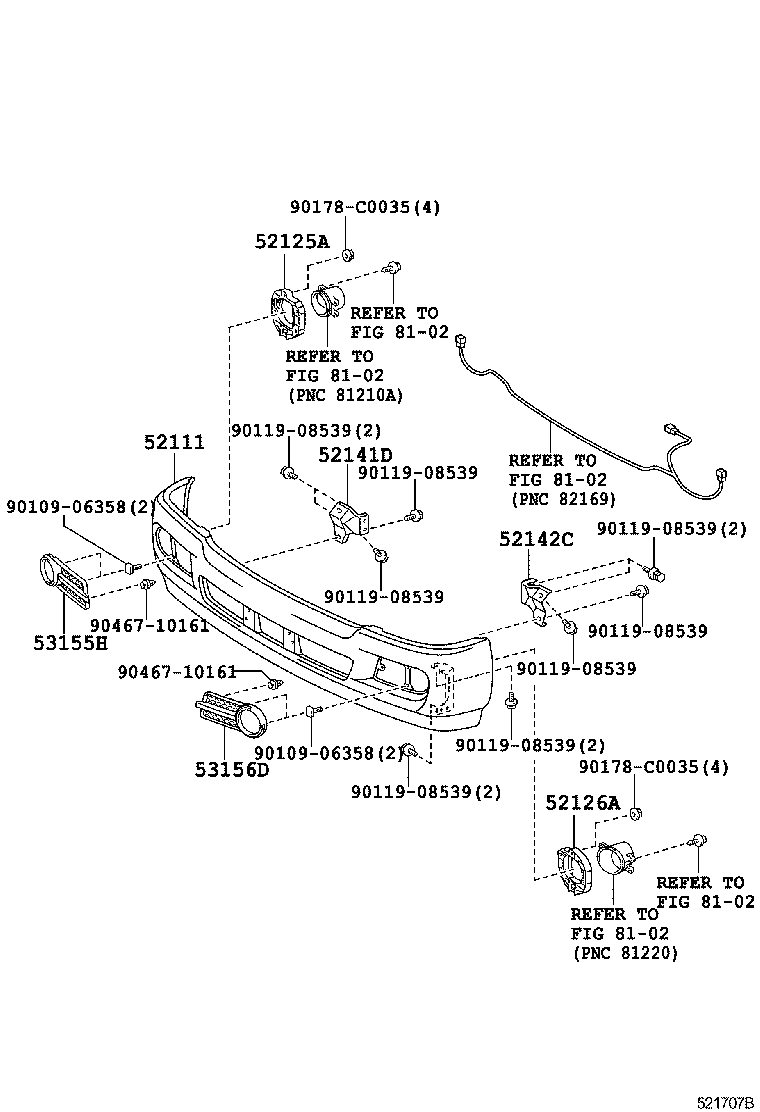

Figure 521707B

521707B 2007-01 → —

Part groups

PNC	Description
52111	Bumper Assy, Front
52125A	Bracket, Fog Lamp Mounting, RH
52126A	Bracket, Fog Lamp Mounting, LH
52141D	Stay, Front Bumper, RH
52142C	Stay, Front Bumper, LH
53155H	Bezel, Headlamp, Outer RH
53156D	Bezel, Headlamp, Outer LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
