Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

84 part groups · 5 illustrations

Illustrations

581307C 2000-12 → 2003-10

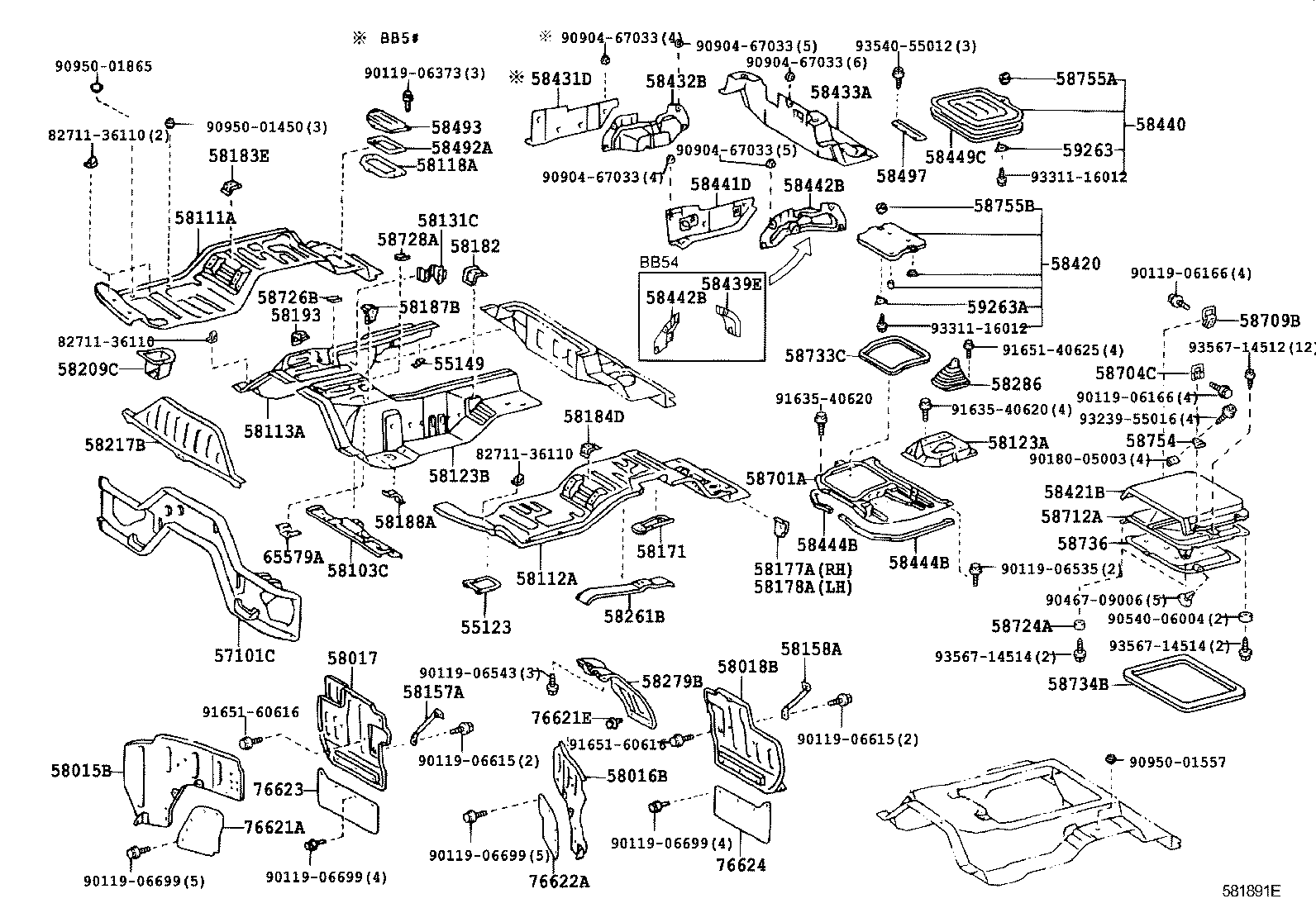

581891E 2003-10 → 2004-11

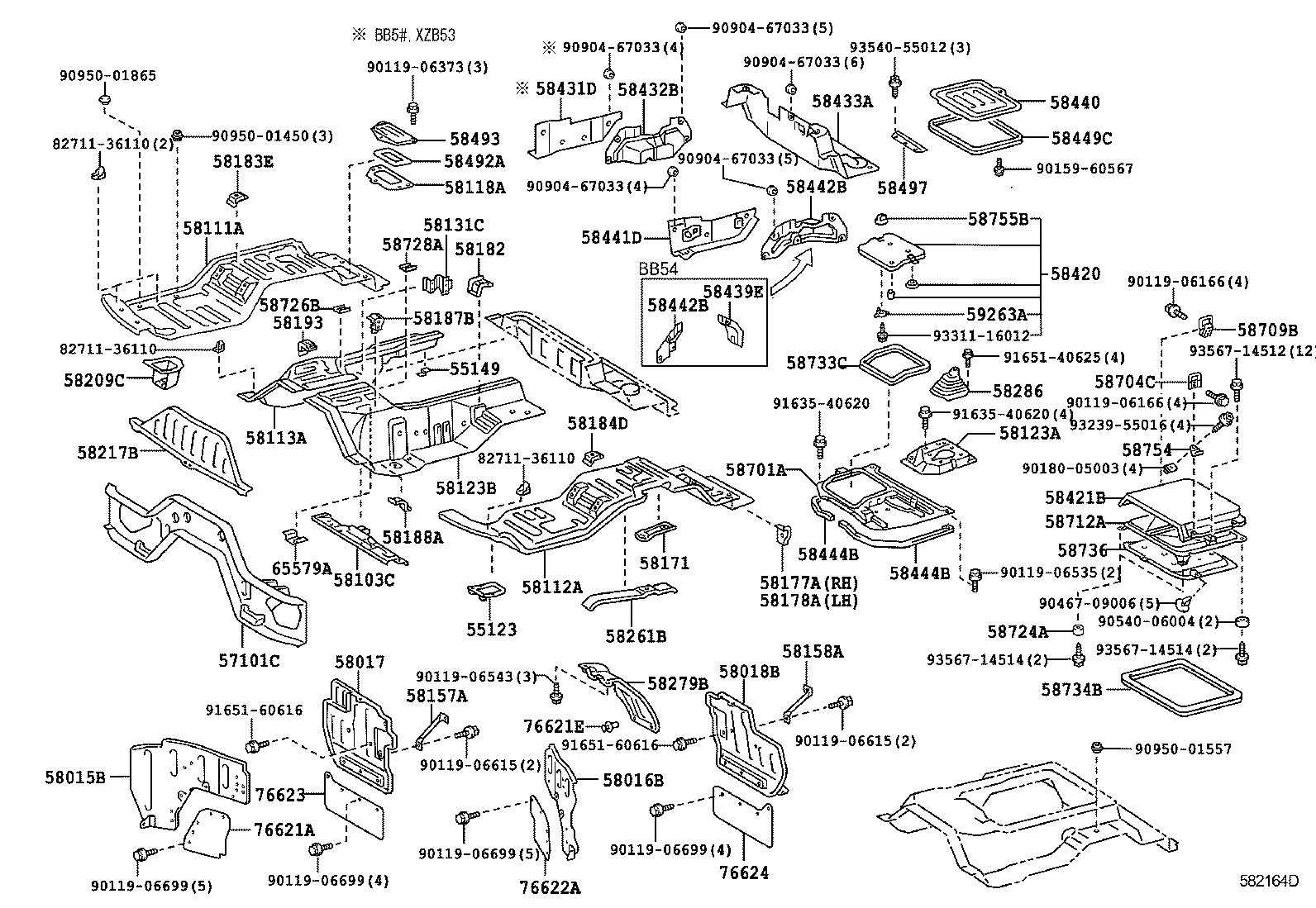

582164D 2004-11 → 2008-09

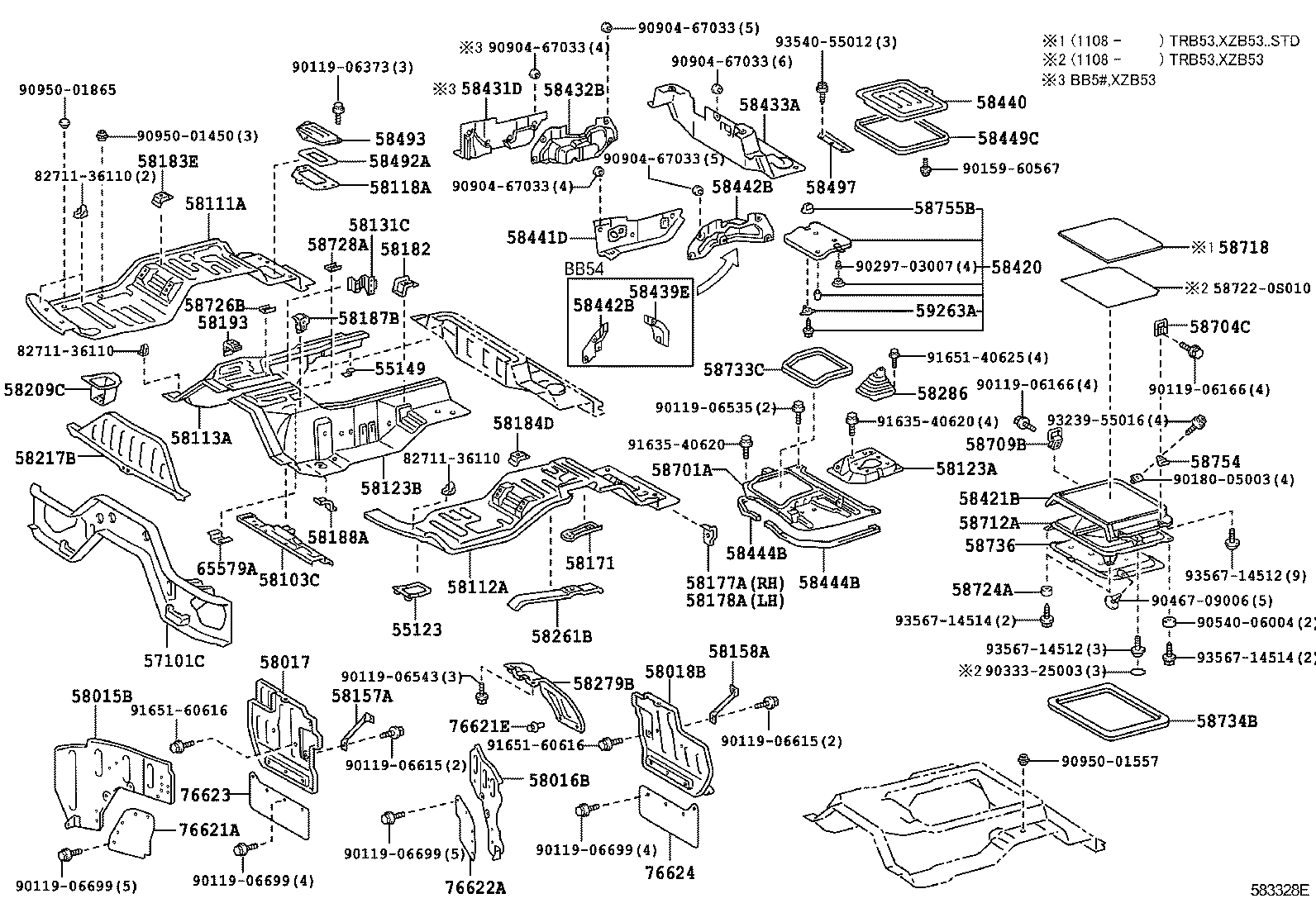

583328E 2008-09 → —

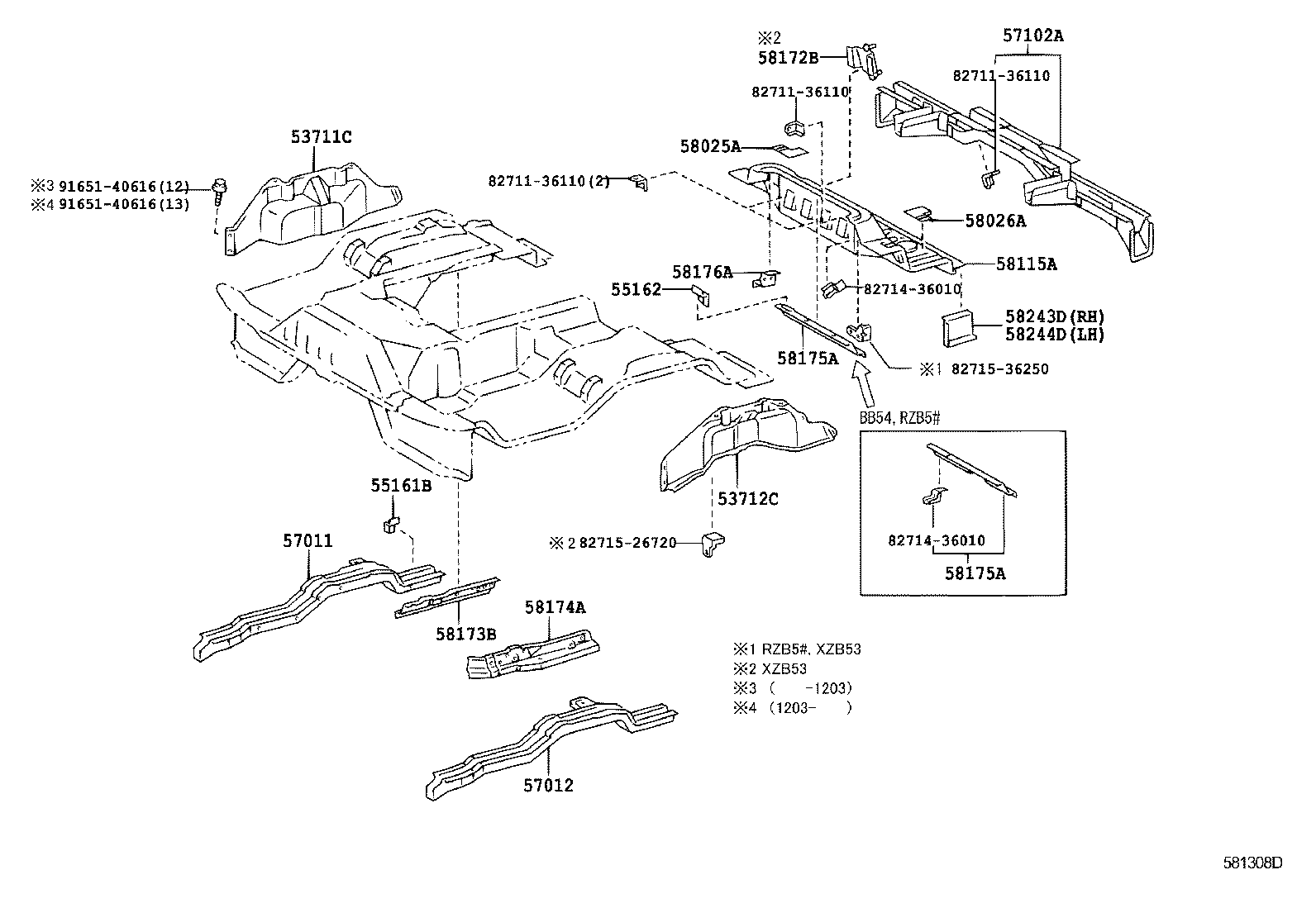

581308D 2000-12 → —

Part groups

PNC	Description
53711C	Apron, Front Fender, RH
53712C	Apron, Front Fender, LH
55123	Reinforcement, Steering Support
55149	Bracket, Dash Wiring Harness
55161B	Bracket, Heater Mounting, RH
55162	Bracket, Heater Mounting, LH
57011	Member Sub-assy, Floor, RH
57012	Menber Sub-assy
57101C	Crossmember Sub-assy, Floor, NO.1
57102A	Crossmenber Sub-assy, Floor, NO.2
58015B	Panel Sub-assy, Front Floor Housing, Front RH
58016B	Panel Sub-assy, Front Floor Housing, Front LH
58017	Panel Sub-assy, Front Floor Housing, Rear RH
58018B	Panel Sub-assy, Front Floor Housing, Rear LH
58025A	Panel Sub-assy, Floor Side Rail, FR RH
58026A	Panel Sub-assy, Floor Side Rail, FR LH
58103C	Reinforcement Sub-assy, Front Floor, Front
58111A	Pan, Front Floor, RH
58112A	Panel, Front Floor, LH
58113A	Panel, Front Floor, Center
58115A	Reinforcement, Front Floor Panel
58118A	Retainer, Engine Service Hole
58123A	Support, Shift & Select Lever
58123B	Panel, Front Floor, Center LH
58131C	Bracket, Reserve Tank Service Hole Cover
58157A	Stay, Front Floor Housing, Rear RH
58158A	Stay, Front Floor Housing, Rear LH
58171	Reinforcement, Parking Brake Base
58172B	Bracket, Computer Mounting, NO.3
58173B	Angle, Front Floor Side, RH
58174A	Angle Sub-assy, Front Floor Side, LH
58175A	Reinforcement, Parking Brake Base, NO.1
58176A	Plate, Rear Seat Setting Nut
58177A	Extension, Front Floor Panel, RH
58178A	Extension, Front Floor Panel, LH
58182	Bracket, Front Seat Inside Mounting, Front LH
58183E	Bracket, Front Seat Mounting, Outside
58184D	Bracket, Front Seat Mounting, Outside
58187B	Bracket, Accelerator Pedal Rod
58188A	Bracket, Accelerator Pedal Stopper
58193	Bracket, Instrument Panel Brace Mounting
58209C	Cover Sub-assy, Heater Air Intake
58217B	Plate, Front Floor
58243D	Panel, Floor Side, Rear RH
58244D	Panel, Floor Side, Rear LH
58261B	Reinforcement, Front Seat, Front LH
58279B	Cover, Parking Brake Cable, LH
58286	Boot, Shift & Select Lever, NO.1
58420	Cover Assy, Engine Service Hole, NO.2
58421B	Cover, Engine Service Hole Main
58431D	Silencer, Engine Room Side, Front RH
58432B	Silencer, Engine Room Side, Rear RH
58433A	Silencer, Engine Room Side End
58439E	Silencer, Front Floor Side, D
58440	Cover Assy, Battery Service Hole
58441D	Silencer, Enging Room Side, Front LH
58442B	Silencer, Enging Room Side, Rear LH
58444B	Packing, Engine Sub Cover
58449C	Weatherstrip, Battery Service Cover
58492A	Packing, Relay Block Hole Cover
58493	Retainer, Engine Cover, NO.3
58497	Plate, Battery Service Hole Cover Lock
58701A	Panel Sub-assy, Engine Service Cover, Front
58704C	Hook Sub-assy, Engine Service Cover Catch, Rear
58709B	Catch Sub-assy, Engine Service Cover
58712A	Panel, Engine Service Cover, Rear
58718	Mat, Engine Service Cover, Rear
58724A	Cushion, Engine Service Cover, NO.2
58726B	Plate, Engine Service Cover, Front Upper
58728A	Plate, Engine Service Cover, NO.2
58733C	Weatherstrip, Engine Service Cover, Front
58734B	Weatherstrip, Engine Service Cover, Rear
58736	Silencer, Engine Service Cover, Rear
58754	Plate, Engine Service Cover Catch
58755A	Handle, Engine Service Cover Catch
58755B	Handle, Engine Service Cover Catch
59263	Hook, Engine Cover Lock
59263A	Hook, Engine Cover Lock
65579A	Bracket, Heater Pipe
76621A	Mudguard, Front Body, Front RH
76621E	Clip(FOR FRONT FENDER MUDGUARD)
76622A	Mudguard, Front Body, Front LH
76623	Mudguard, Front Body, Rear RH
76624	Mudguard, Front Body, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
