Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

14 part groups · 5 illustrations

Illustrations

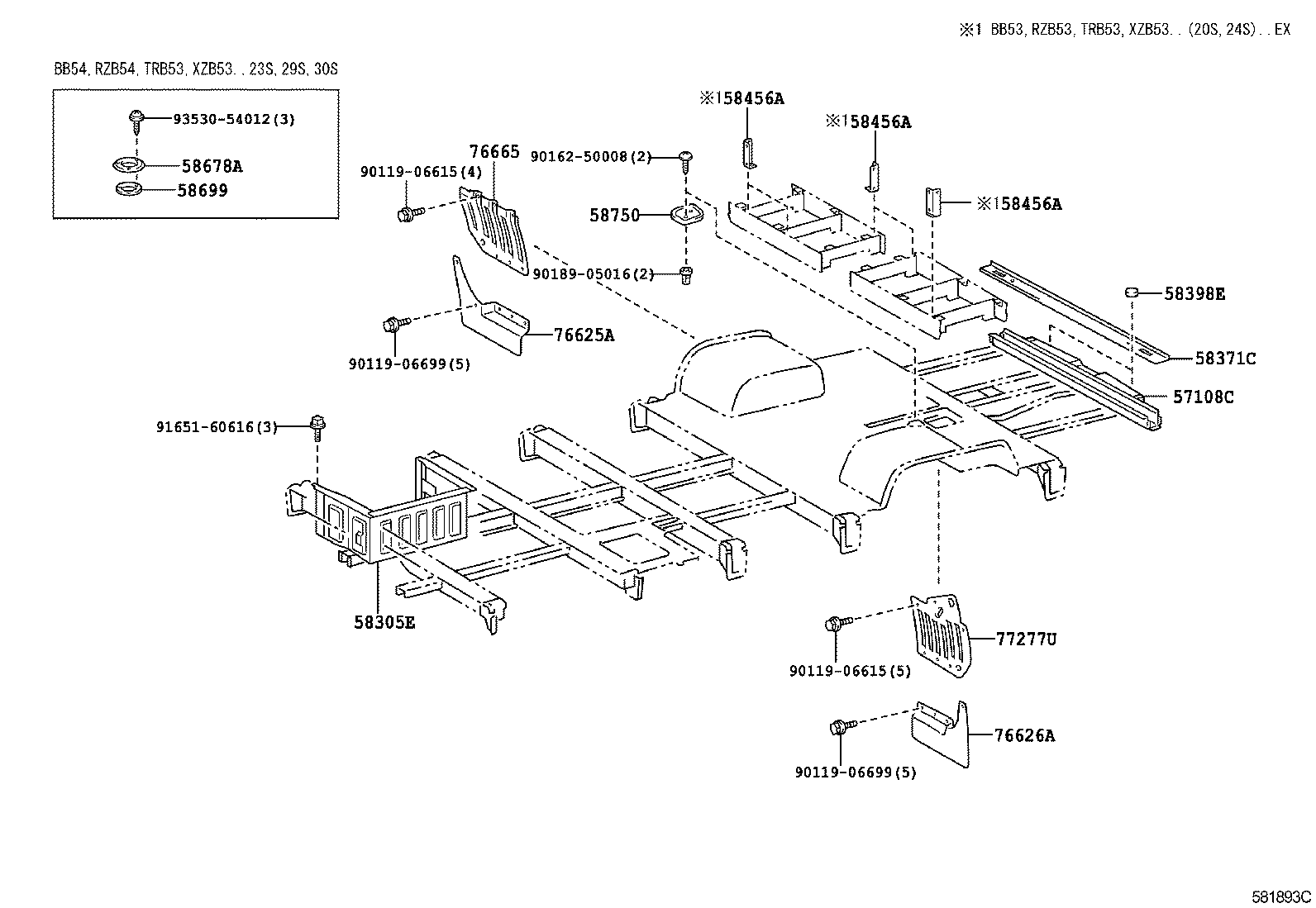

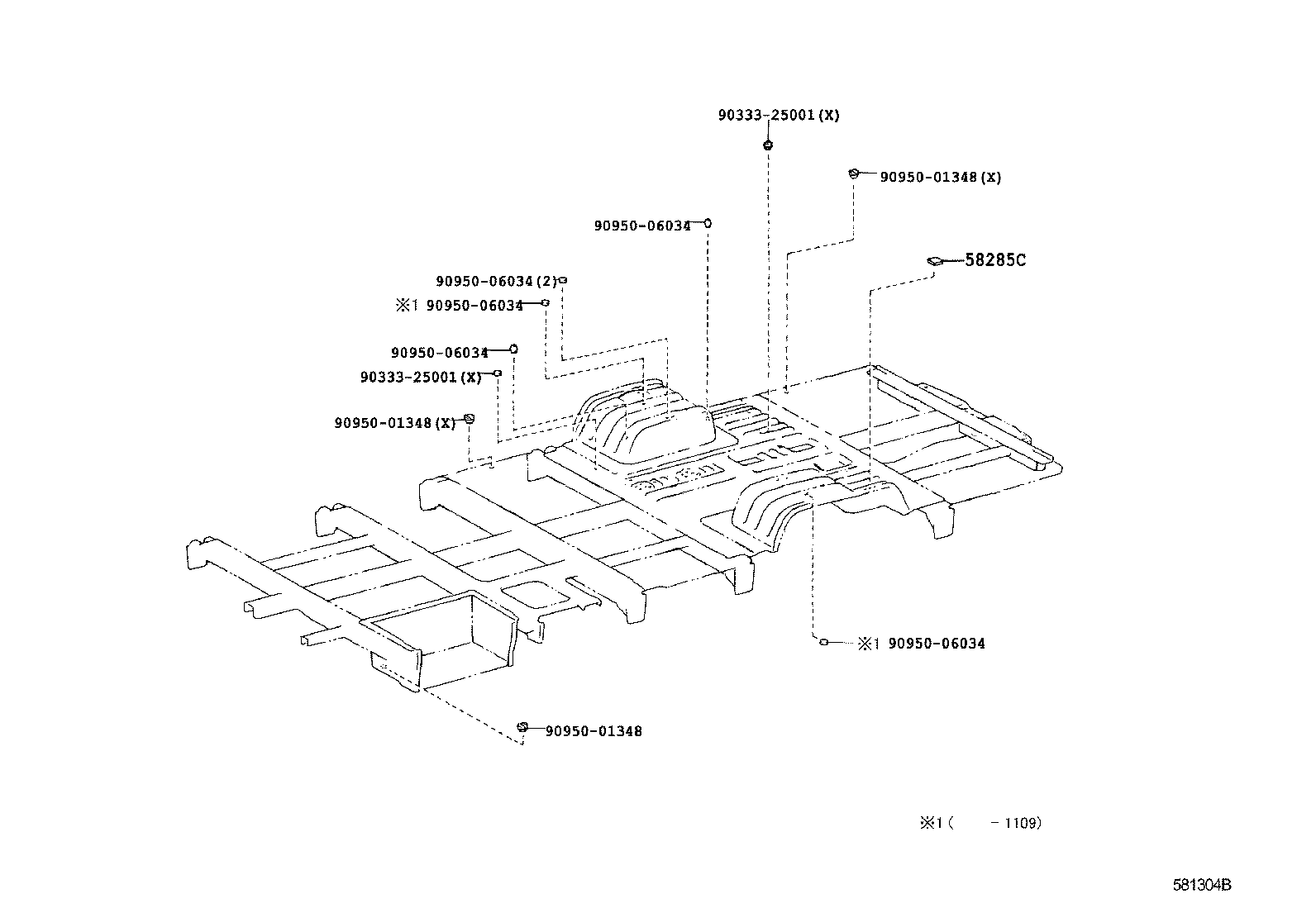

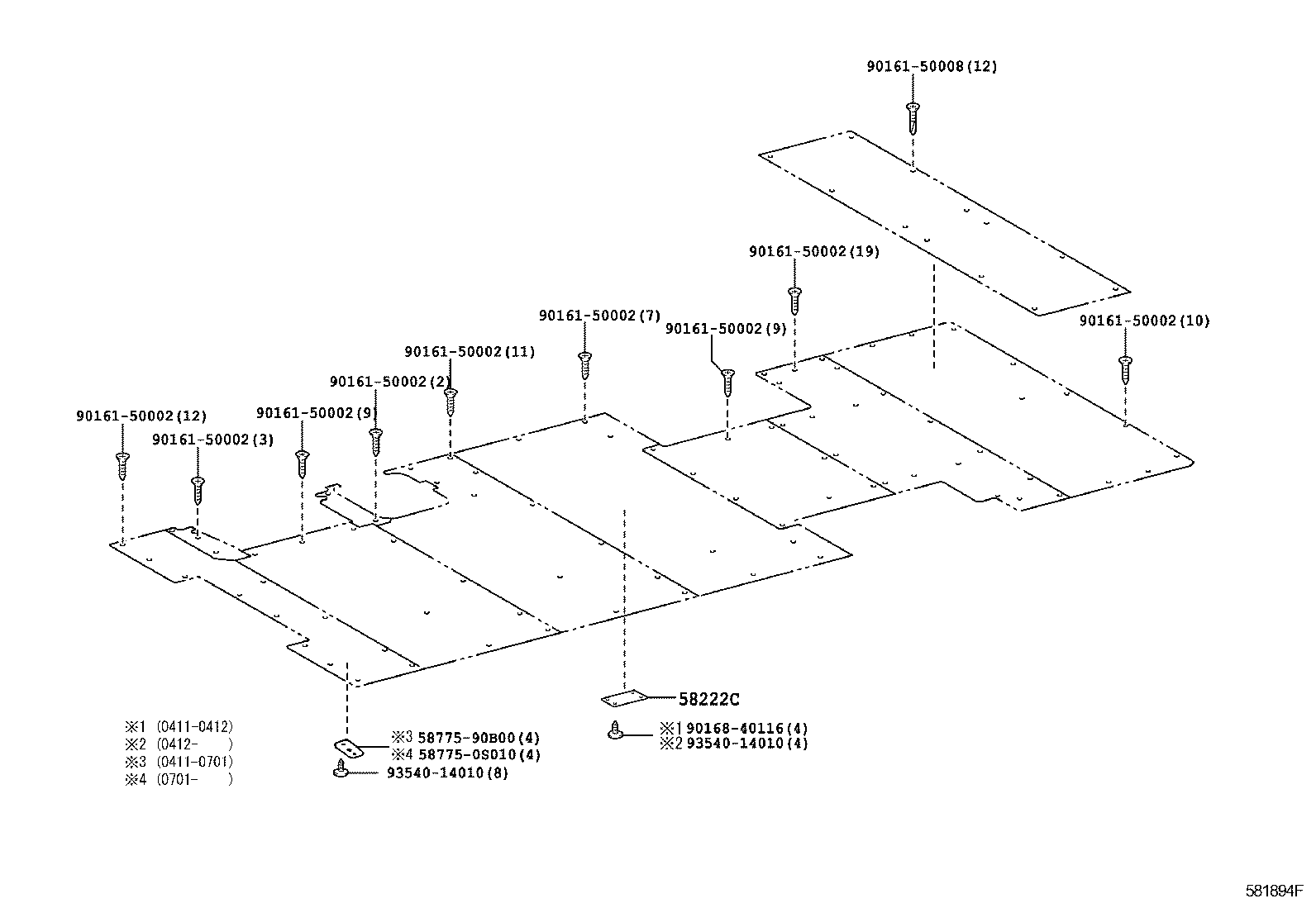

Figure 581303A 581303A 2000-12 → 2003-10 Figure 581305 581305 2000-12 → 2003-10 Figure 581893C 581893C 2003-10 → — Figure 581894F 581894F 2003-10 → — Figure 581304B 581304B 2000-12 → —

Part groups

PNCDescription
57108C Crossmember Sub-assy, Floor, NO.8
58222C Insulator, Center Floor Heat, NO.1 Lower
58285C Cover, Rear Floor Hole
58305E Panel Sub-assy, Center Door Step
58371C Panel, Body Lower Back, Upper
58398E Cover, Floor Under, NO.1
58456A Panel, Rear Floor Board, NO.2 A
58678A Plate, Rear Floor Mat Drip
58699 Packing, Rear Floor Mat Drip
58750 Cover Assy, Fuel Tank Inspection Hole
76625A Mudguard, Rear Body, RH
76626A Mudguard, Rear Body, LH
76665 Brace, Rear Mudguard
77277U Protector, Fuel Tank Filler Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
