Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

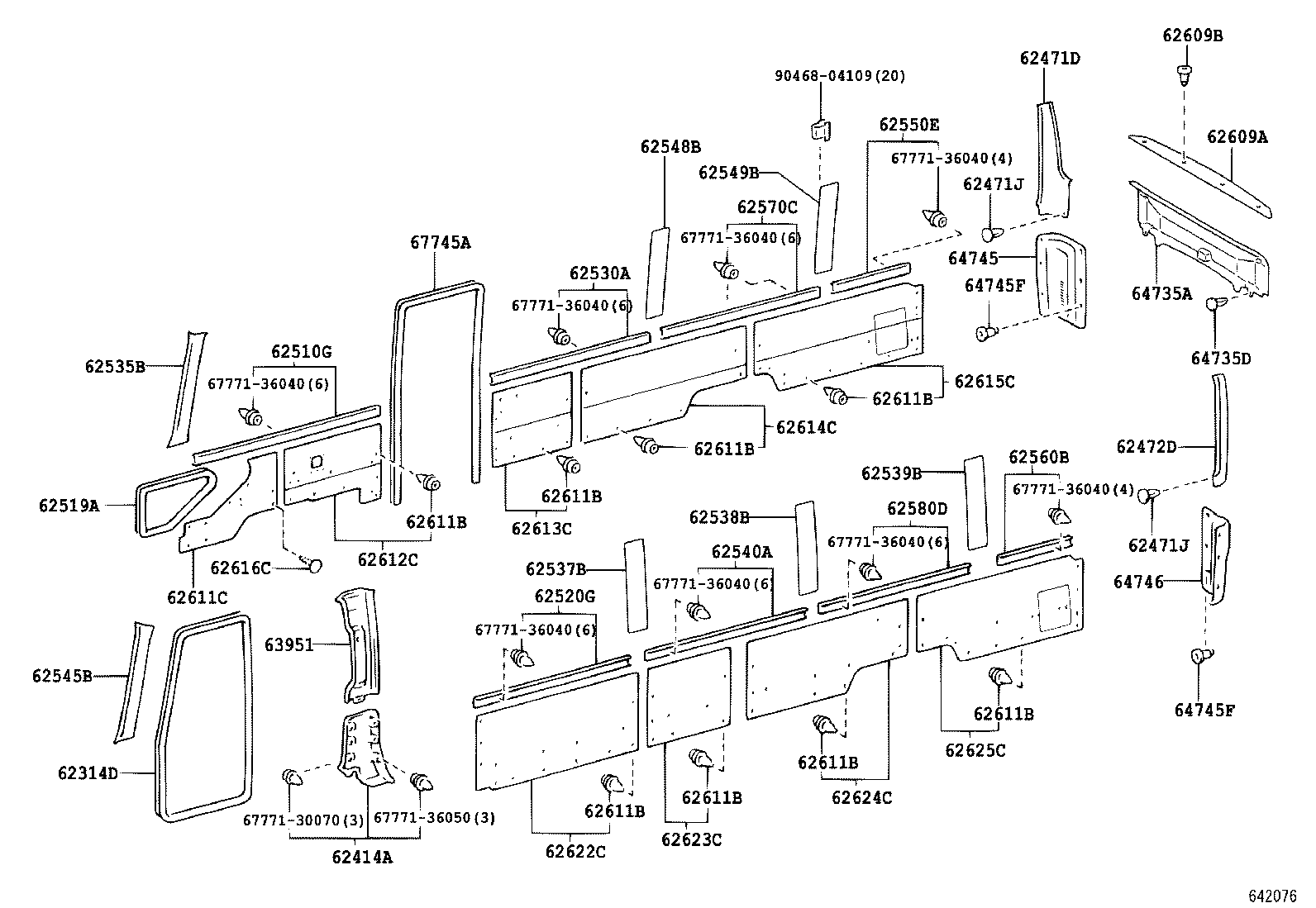

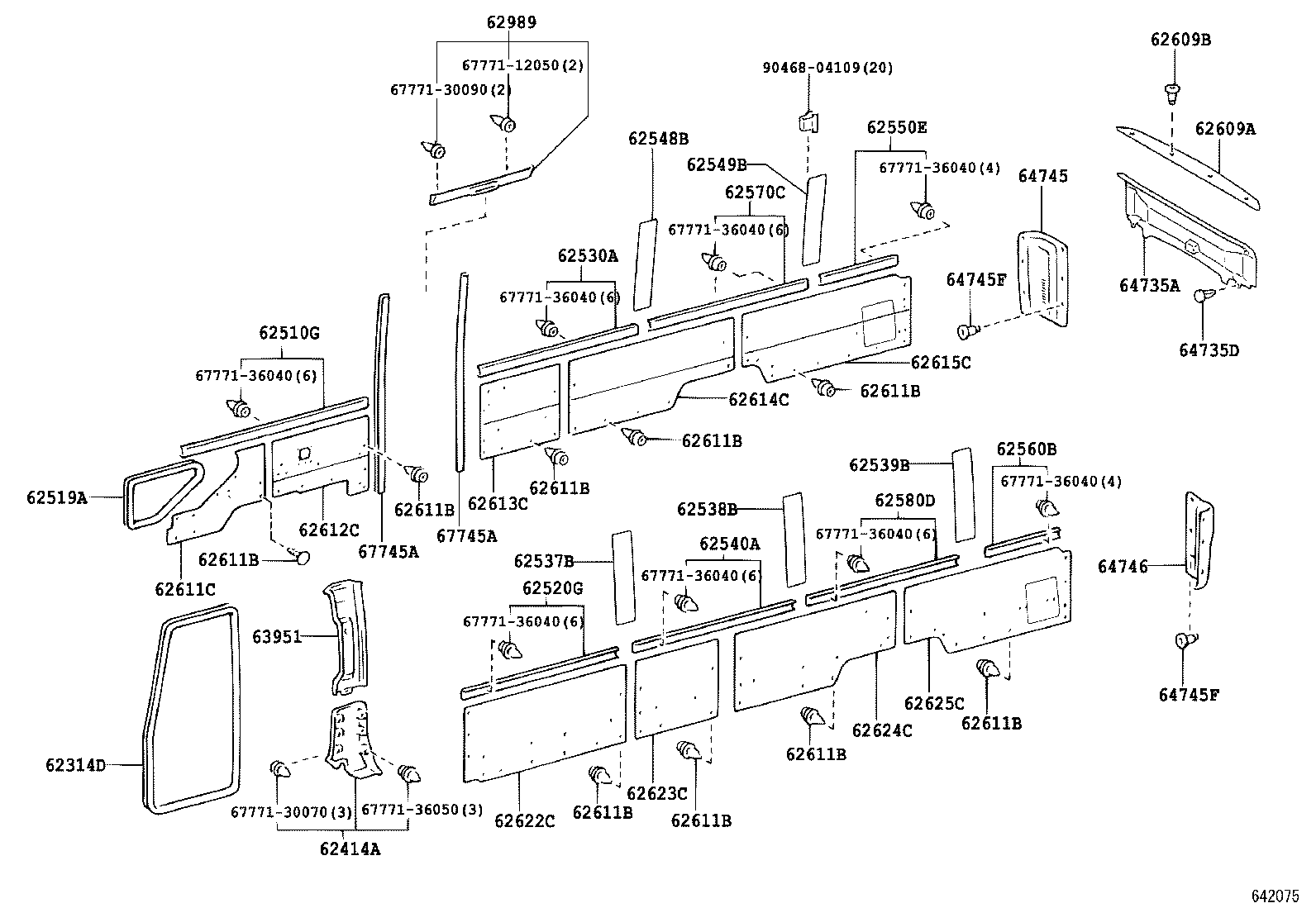

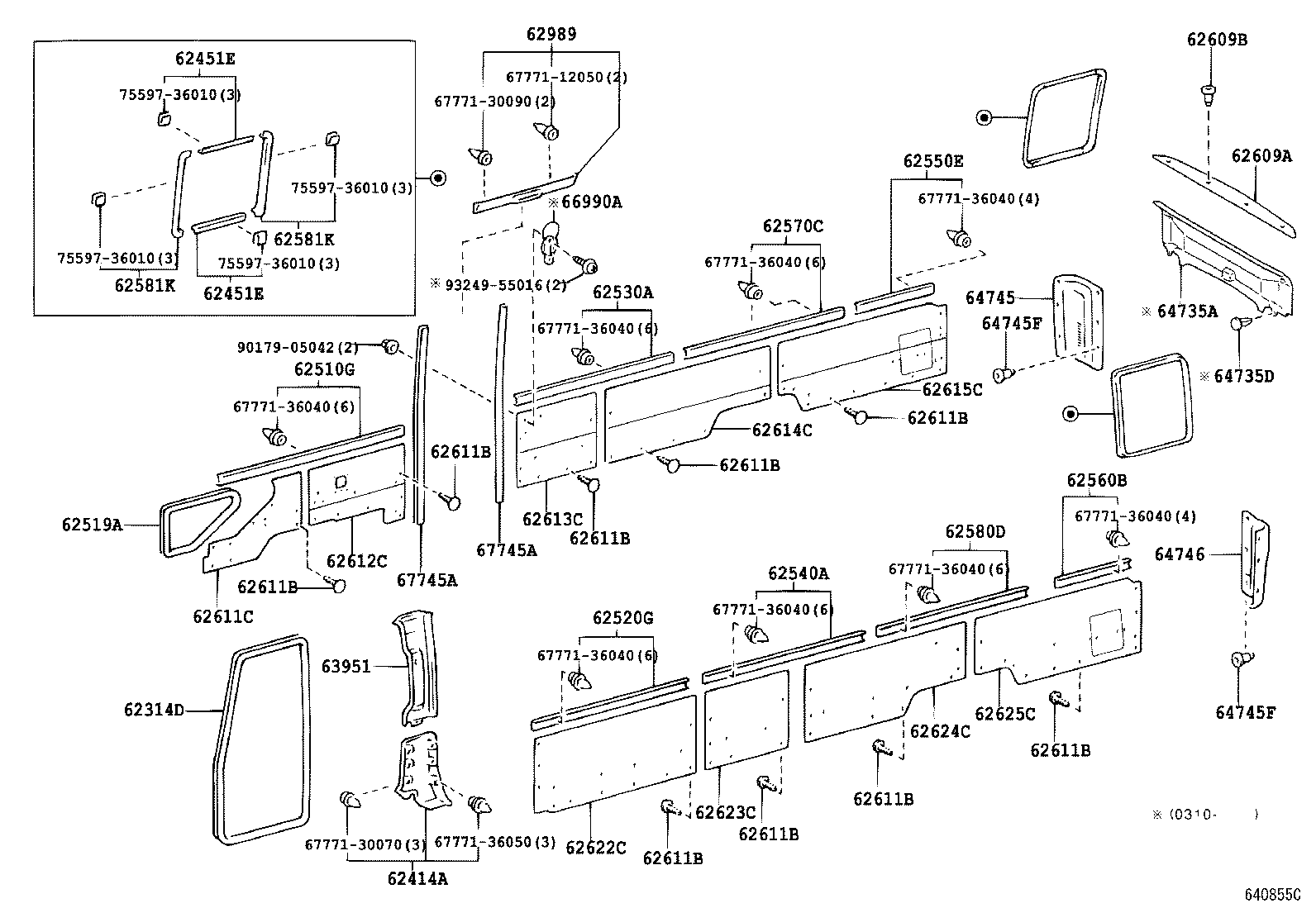

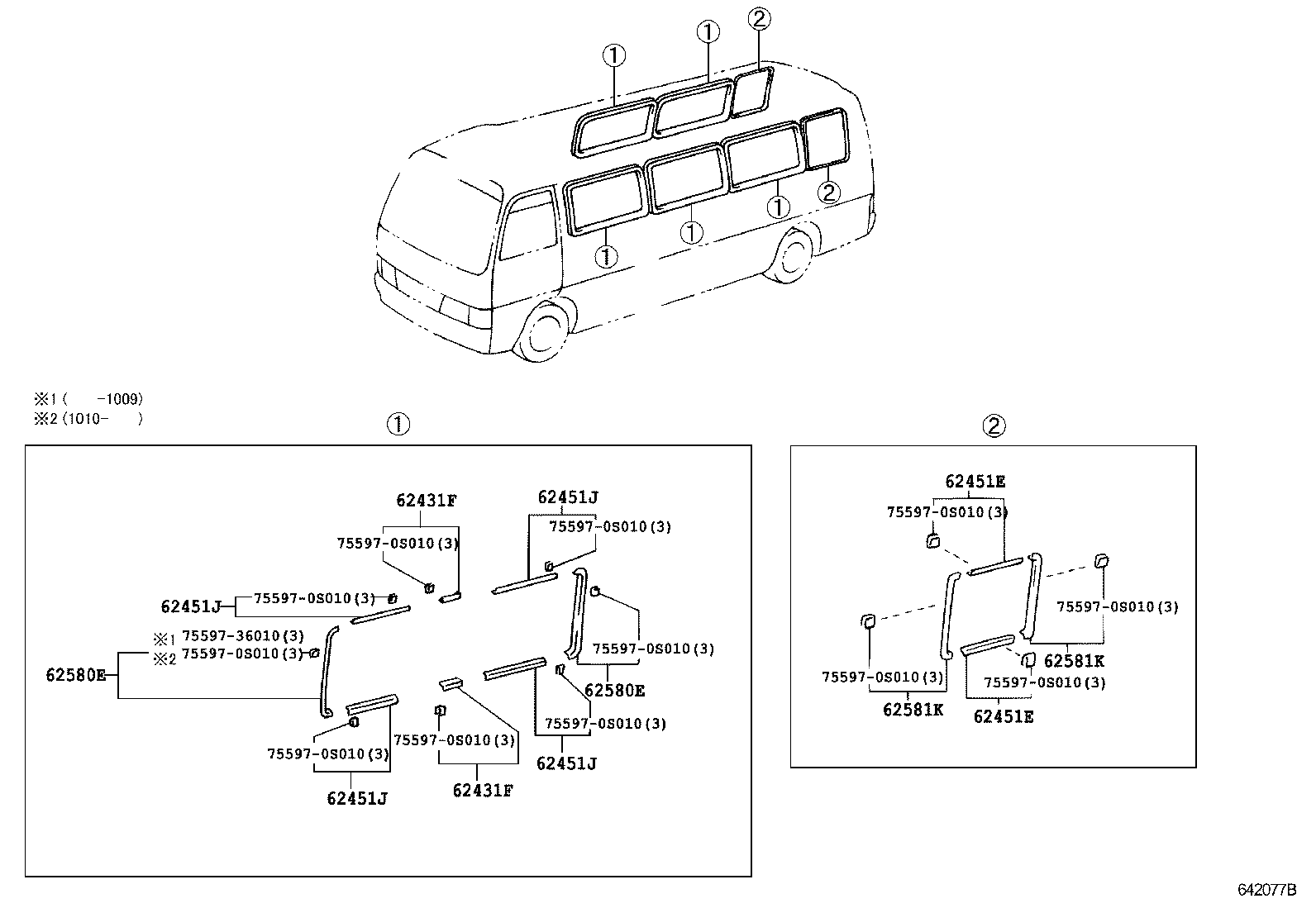

Inside Trim Board
48 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 62314D | Trim, Front Door Opening, LH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62431F | Garnish, Roof Side Rail |
| 62451E | Garnish, Roof Side Rail, Rear |
| 62451J | Garnish, Roof Side Rail |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62510G | Trim Assy, Side NO.1, RH |
| 62519A | Trim, Side Lower Window |
| 62520G | Trim Assy, Side NO.1, LH |
| 62530A | Trim Assy, Side NO.2, RH |
| 62535B | Garnish, Pillar NO.1, RH |
| 62537B | Garnish, Pillar NO.3, RH |
| 62538B | Garnish, Pillar NO.4, RH |
| 62539B | Garnish, Pillar NO.5, RH |
| 62540A | Trim Assy, Side NO.2, LH |
| 62545B | Garnish, Pillar NO.1, LH |
| 62548B | Garnish, Pillar NO.4, LH |
| 62549B | Garnish, Pillar NO.5, LH |
| 62550E | Trim Assy, Side NO.3, RH |
| 62560B | Trim Assy, Side, NO.3 LH |
| 62570C | Trim Assy, Side NO.4 |
| 62580D | Trim Assy, Side NO.4 LH |
| 62580E | Garnish, Rear Window Side |
| 62581K | Garnish, Rear Window Side |
| 62609A | Board Sub-assy, Luggage Partition |
| 62609B | Clip (FOR LUGGAGE PARTITION BOARD) |
| 62611B | Clip (FOR SIDE TRIM BOARD) |
| 62611C | Board, Side Trim NO.1, RH |
| 62612C | Board, Side Trim NO.2, RH |
| 62613C | Board, Side Trim NO.3, RH |
| 62614C | Board, Side Trim NO.4, RH |
| 62615C | Board, Side Trim NO.5, RH |
| 62616C | Clip |
| 62622C | Board, Side Trim NO.2, LH |
| 62623C | Board, Side Trim NO.3, LH |
| 62624C | Board, Side Trim NO.4, LH |
| 62625C | Board, Side Trim NO.5, LH |
| 62989 | Cover, Center Door Lock |
| 63951 | Cover, Cooler Pipe |
| 64735A | Garnish, Center Back Rail Inner |
| 64735D | Clip(FOR CENTER BACK RAIL INNER GARNISH) |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64745F | Retainer, Door Trim |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 66990A | Holder Assy, Cup |
| 67745A | Moulding, Center Door Trim |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
