Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

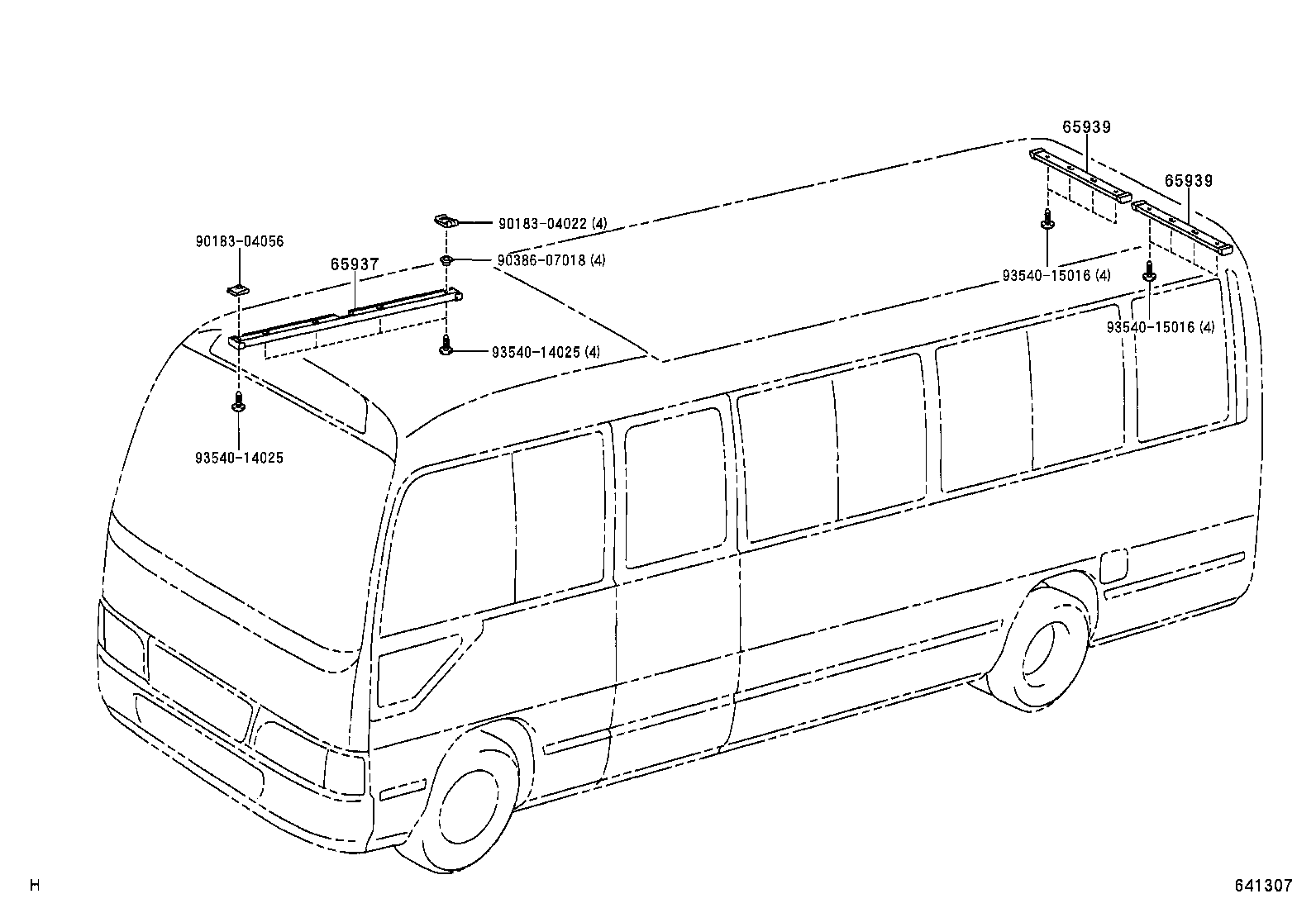

Room Curtain & Room Rack
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63075 | Cover Sub-assy, Room Rack |
| 63402B | Frame Sub-assy, Room Rack |
| 63435A | Frame, Room Rack, NO.1 |
| 63435E | Frame, Room Rack, NO.1 |
| 63437E | Frame, Room Rack, NO.3 |
| 63476 | Stay, Room Rack |
| 63476A | Stay, Room Rack |
| 63725 | Plate, Room Rack Cover, Front |
| 63726 | Plate, Room Rack Cover, Rear |
| 65937 | Rail, Curtain, NO.2 |
| 65939 | Rail, Curtain, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
