Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

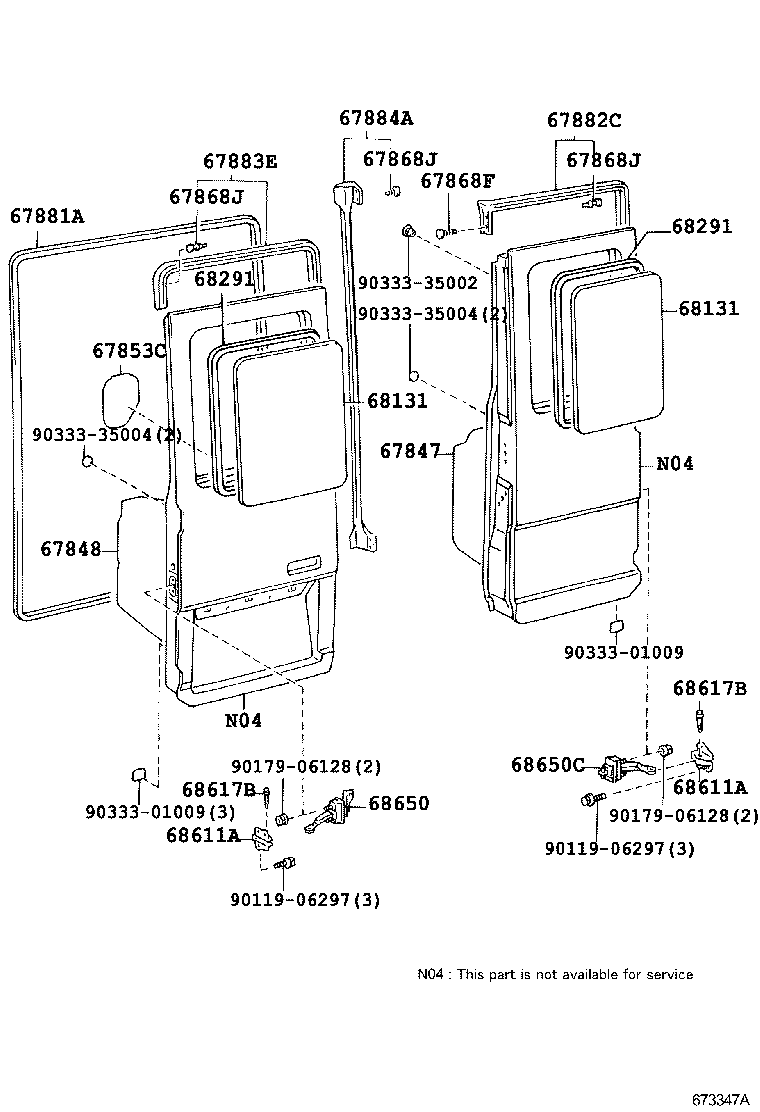

Back Door Panel & Glass
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67005 | Panel Sub-assy, Back Door |
| 67115 | Panel, Back Door, Outer |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67847 | Cover, Back Door Service Hole, RH |
| 67848 | Cover, Back Door Service Hole, LH |
| 67853C | Cover, Back Door Service Hole, NO.3 |
| 67868F | Retainer, Door Weatherstrip, LH |
| 67868J | Retainer, Door Weatherstrip |
| 67881A | Weatherstrip, Back Door |
| 67882C | Weatherstrip, Back Door, NO.2 |
| 67883E | Weatherstrip, Back Door, NO.3 |
| 67884A | Weatherstrip, Back Door, Center |
| 68131 | Glass, Back Door |
| 68291 | Weatherstrip, Back Door Glass |
| 68611A | Base, Back Door Check |
| 68617B | Pin, Back Door Check |
| 68650 | Check Assy, Back Door |
| 68650C | Check Assy, Back Door, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
