Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

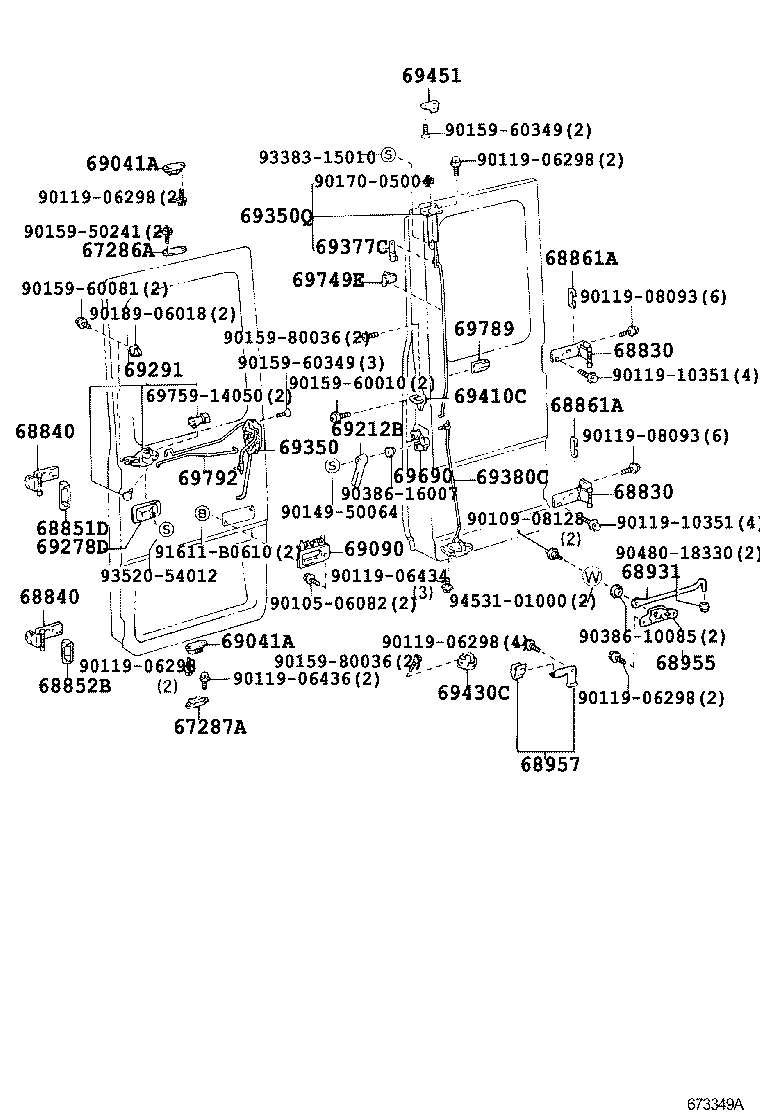

Back Door Lock & Hinge
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67286A | Anti-rattle, Back Door, Upper |
| 67287A | Anti-rattle, Back Door, Lower |
| 68830 | Hinge Assy, Back Door, RH |
| 68840 | Hinge Assy, Back Door, LH |
| 68851D | Cover, Back Door Hinge, Upper |
| 68852B | Cover, Back Door Hinge, Lower |
| 68861A | Pad, Back Door Hinge |
| 68931 | Stay, Back Door, NO.1 |
| 68955 | Bracket, Back Door Stay |
| 68957 | Bracket, Back Door Stay |
| 68961 | Bolt, Back Door Stay |
| 68970 | Stay Assy, Back Door, RH |
| 69041A | Stopper Sub-assy, Back Door, Upper |
| 69090 | Handle Assy, Back Door, Outside |
| 69212B | Handle, Back Door Inside |
| 69278D | Bezel, Door Inside Handle, LH |
| 69291 | Handle Assy, Back Door Inside |
| 69350 | Lock Assy, Back Door |
| 69350Q | Lock Assy, Back Door, Upper |
| 69377C | Snap, Door Lock Control Rod |
| 69380C | Lock Assy, Back Door, Lower |
| 69410C | Plate Assy, Back Door Lock Striker |
| 69430C | Striker Assy, Back Door Lock |
| 69451 | Striker, Back Door Upper Lock |
| 69690 | Control Assy, Back Door Remote |
| 69749E | Clamp, Back Door Lock Link |
| 69789 | Silencer, Back Door Lock Control Link |
| 69792 | Link, Back Door Lock Locking |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
