Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

18 part groups · 4 illustrations

Illustrations

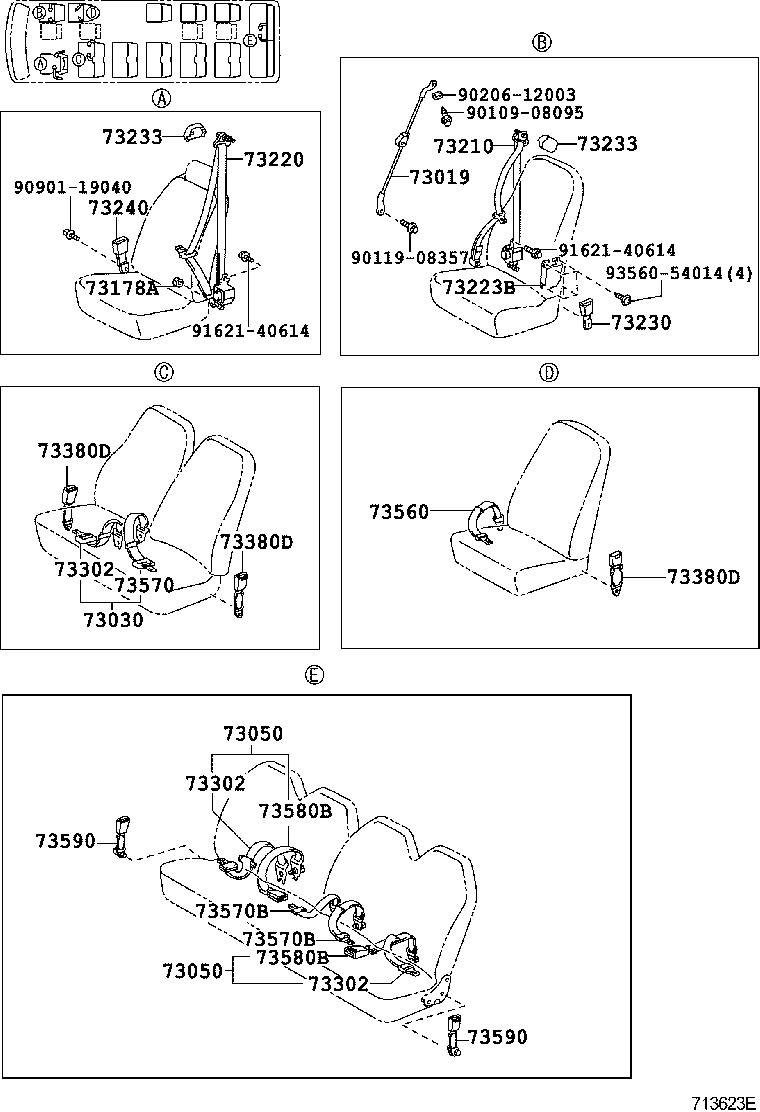

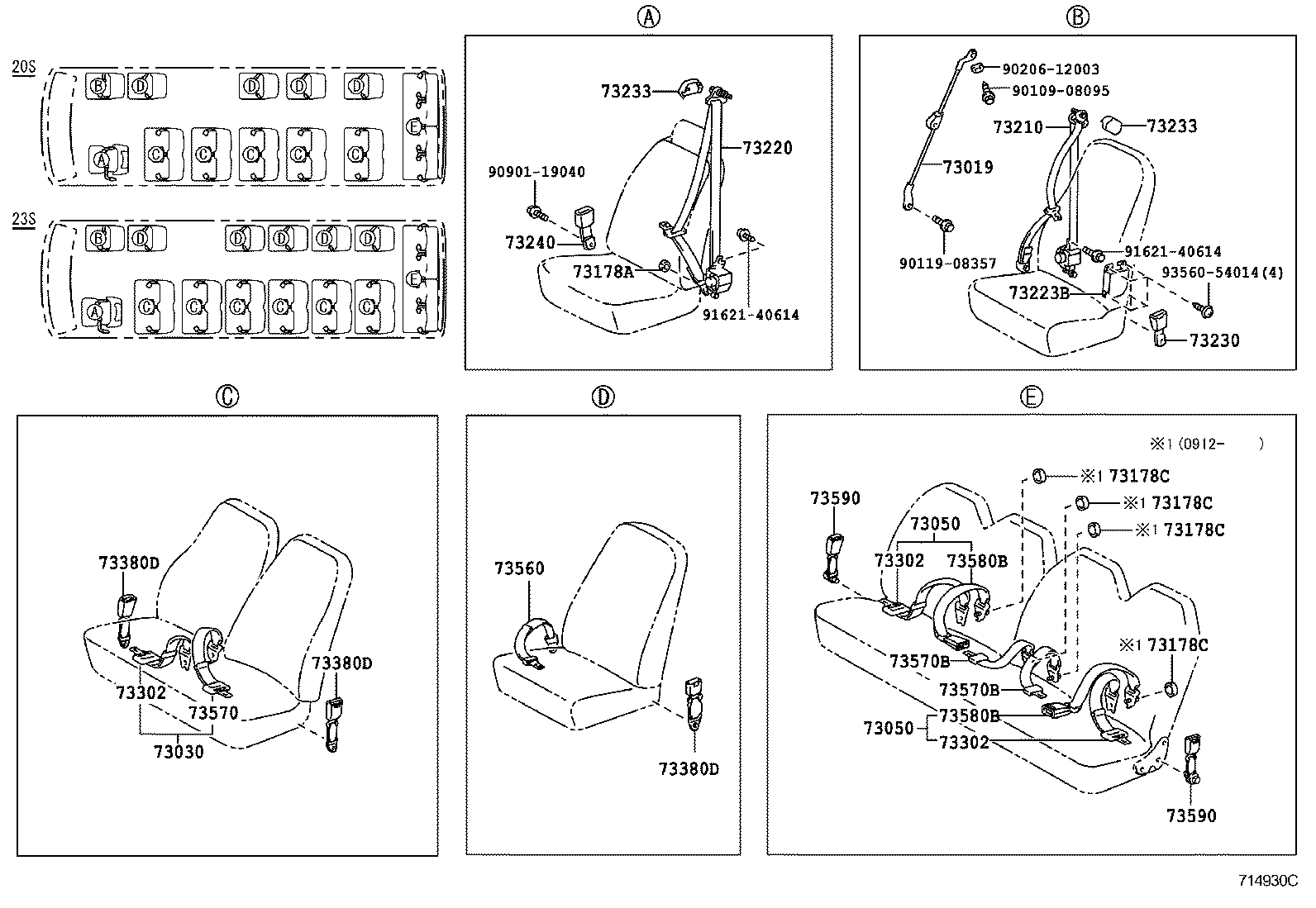

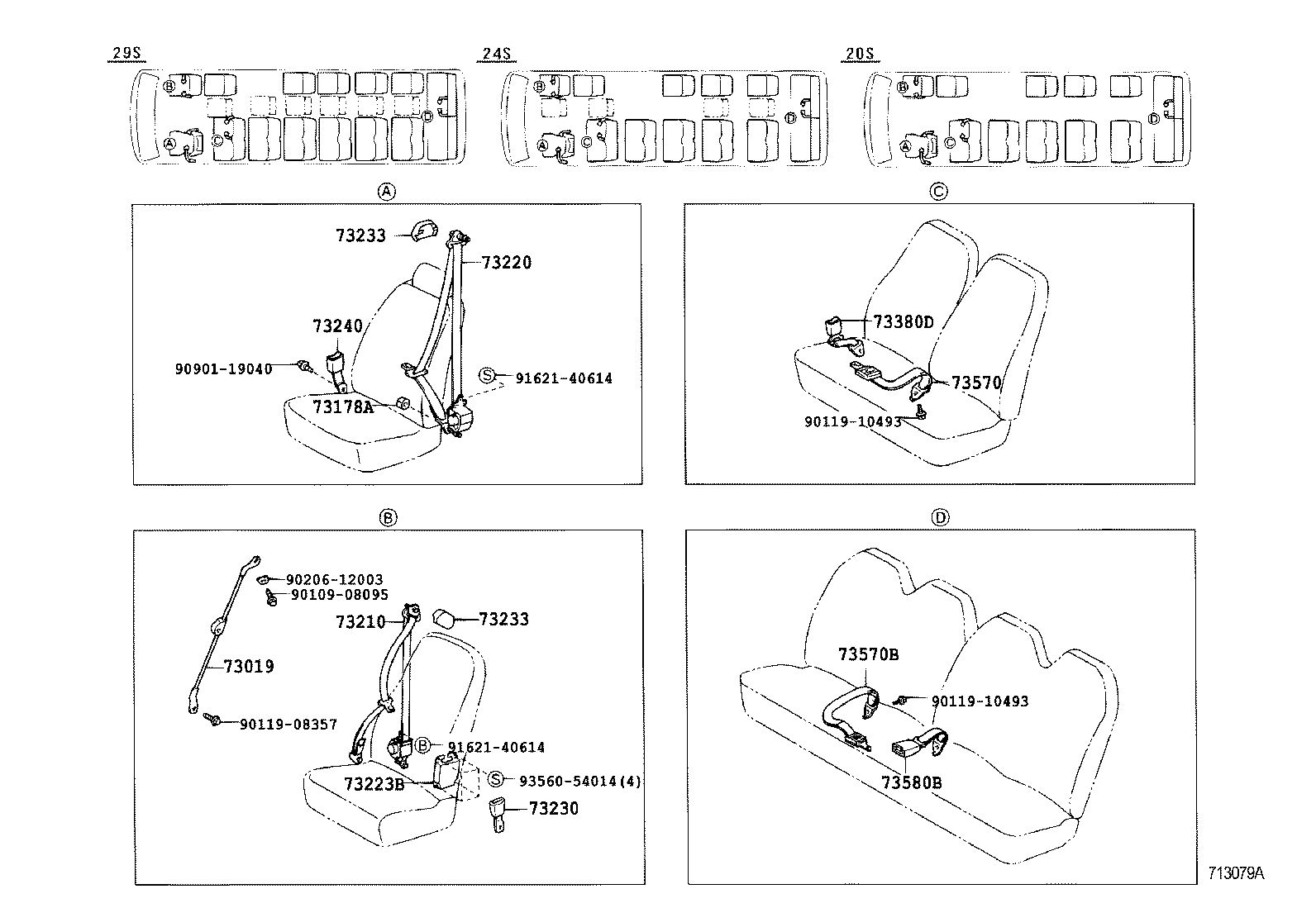

Figure 711937A 711937A 2000-12 → 2003-10 Figure 713079A 713079A 2003-10 → 2004-11 Figure 713623E 713623E 2004-11 → 2007-01 Figure 714930C 714930C 2007-01 → —

Part groups

PNCDescription
73019 Shaft Sub-assy, Seat Belt
73030 Belt Assy, NO.1 Seat Lap, Center W/Inner RH
73050 Belt Assy, Rear NO.2 Seat Lap, Center W/Inner RH
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73302 Belt Sub-assy, Rear Seat Outer
73380D Belt Assy, Rear Seat, Inner
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73570B Belt Assy, Rear Seat, Outer
73580B Belt Assy, Rear Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
