Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

10 part groups · 2 illustrations

Illustrations

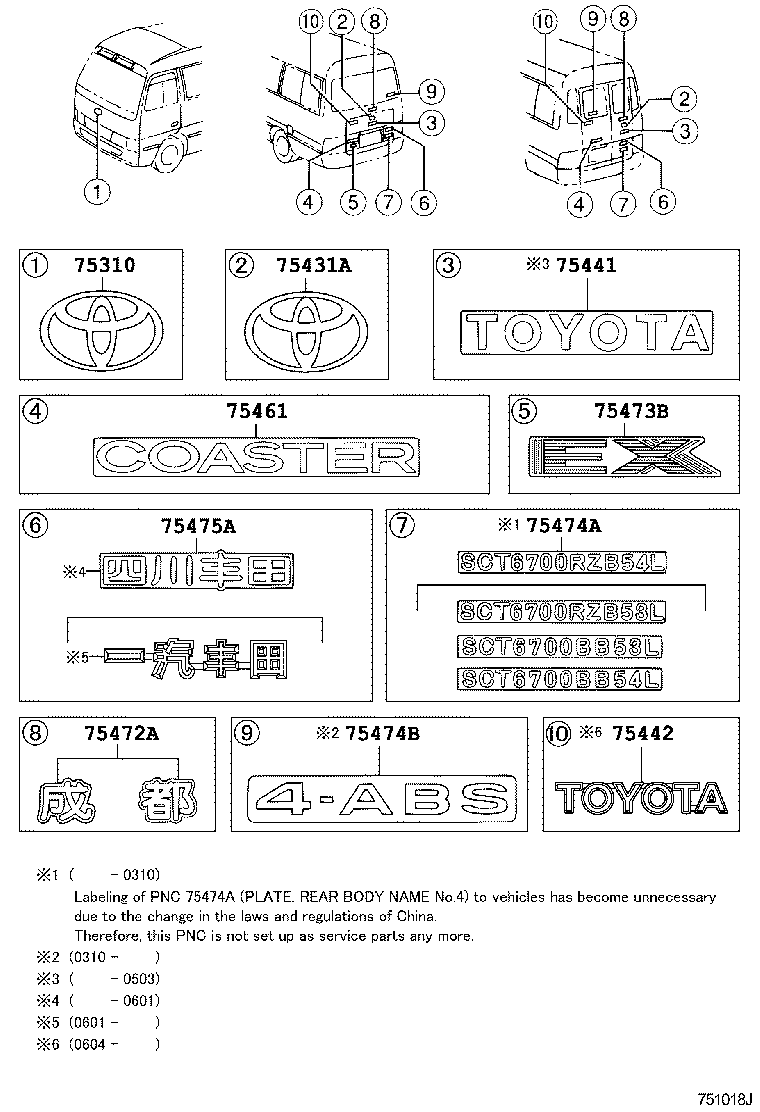

Figure 750846A 750846A 2000-12 → 2001-08 Figure 751018J 751018J 2001-08 → —

Part groups

PNCDescription
75310 Plate Assy, Front Panel
75431A Emblem, Back Door, NO.1
75441 Plate, Rear Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75472A Plate, Rear Body Name, NO.2
75473B Plate, Rear Body Name, NO.3
75474A Plate, Rear Body Name, NO.4
75474B Plate, Rear Body Name, NO.4
75475A Plate, Rear Body Name, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
