Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

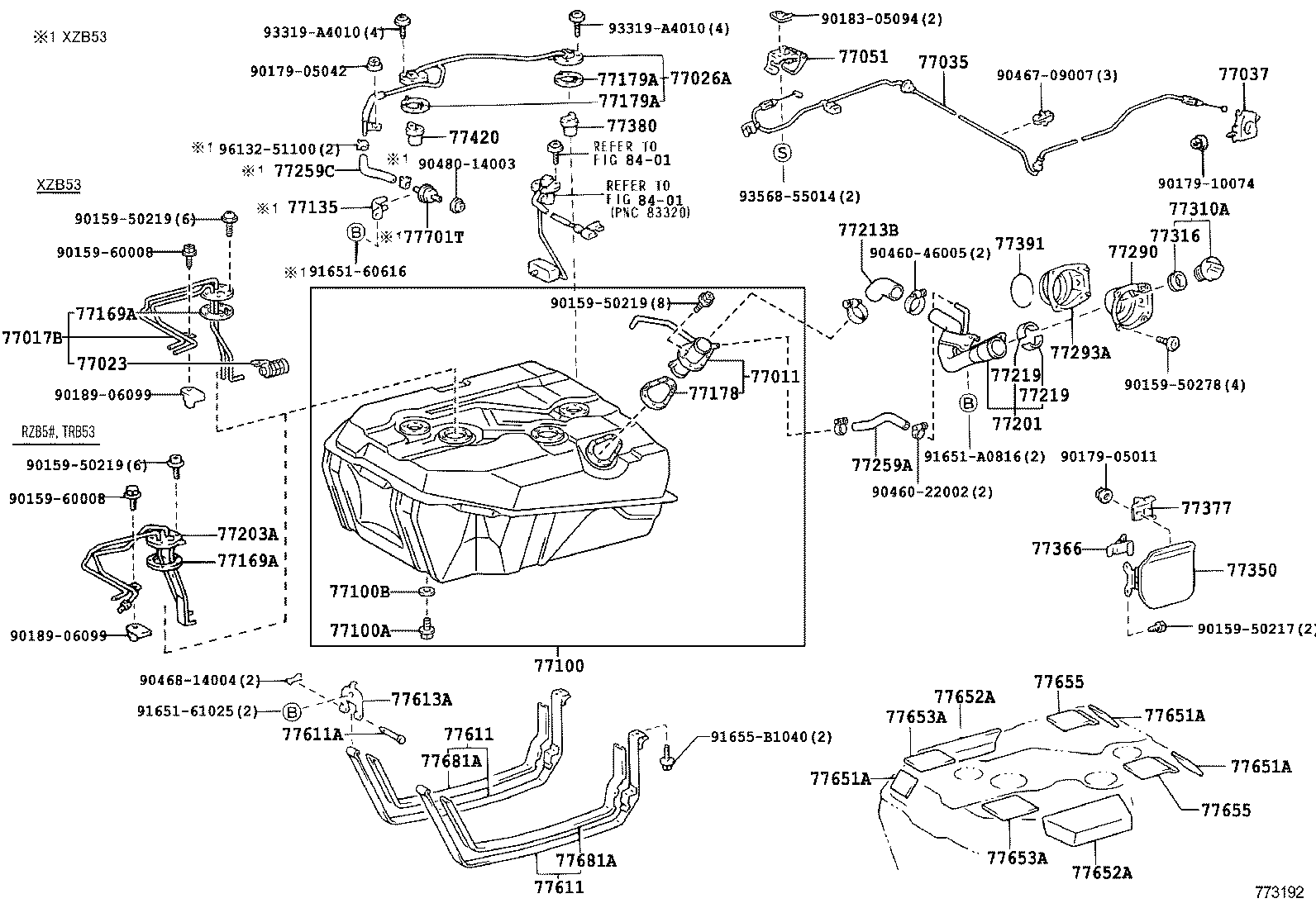

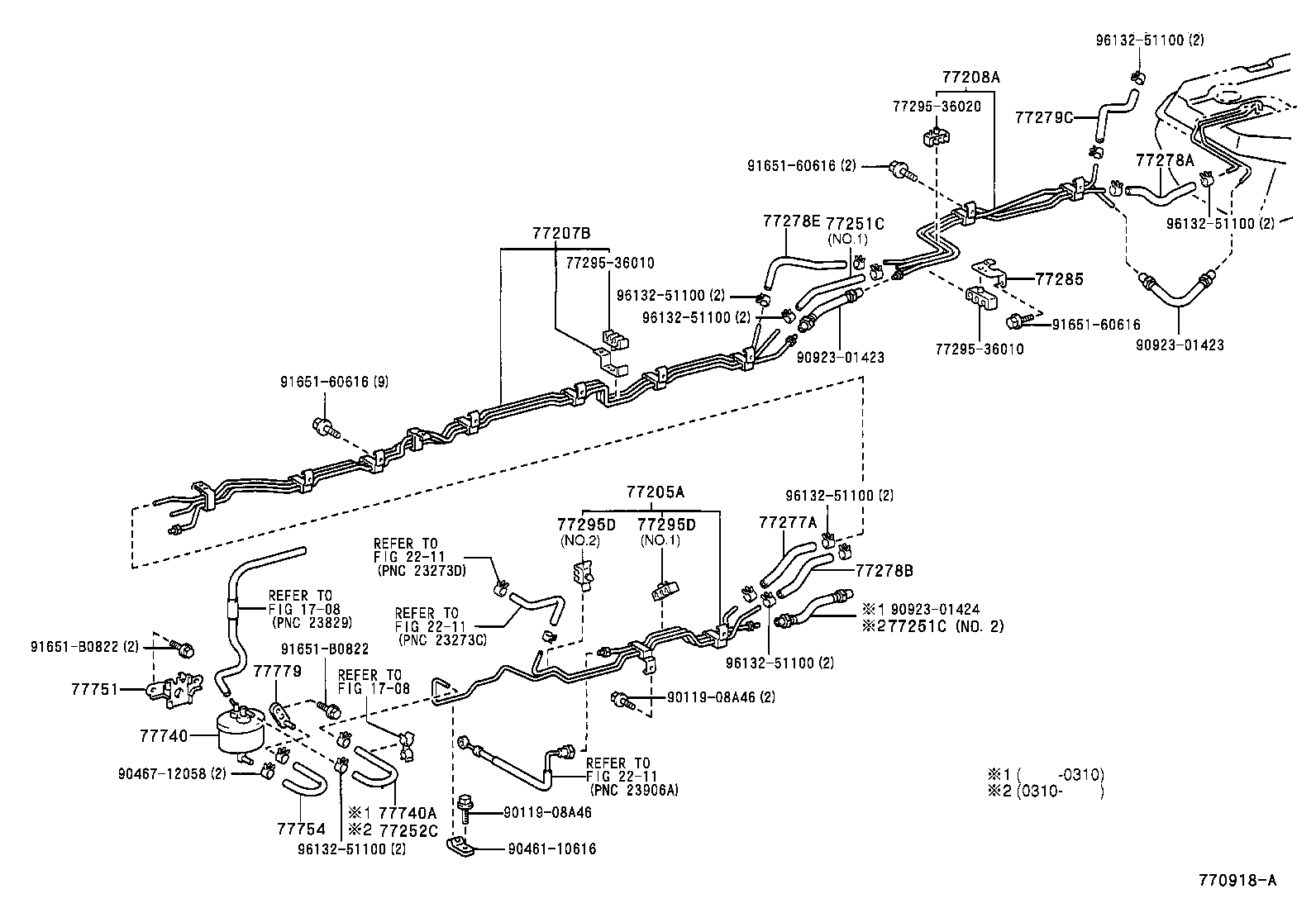

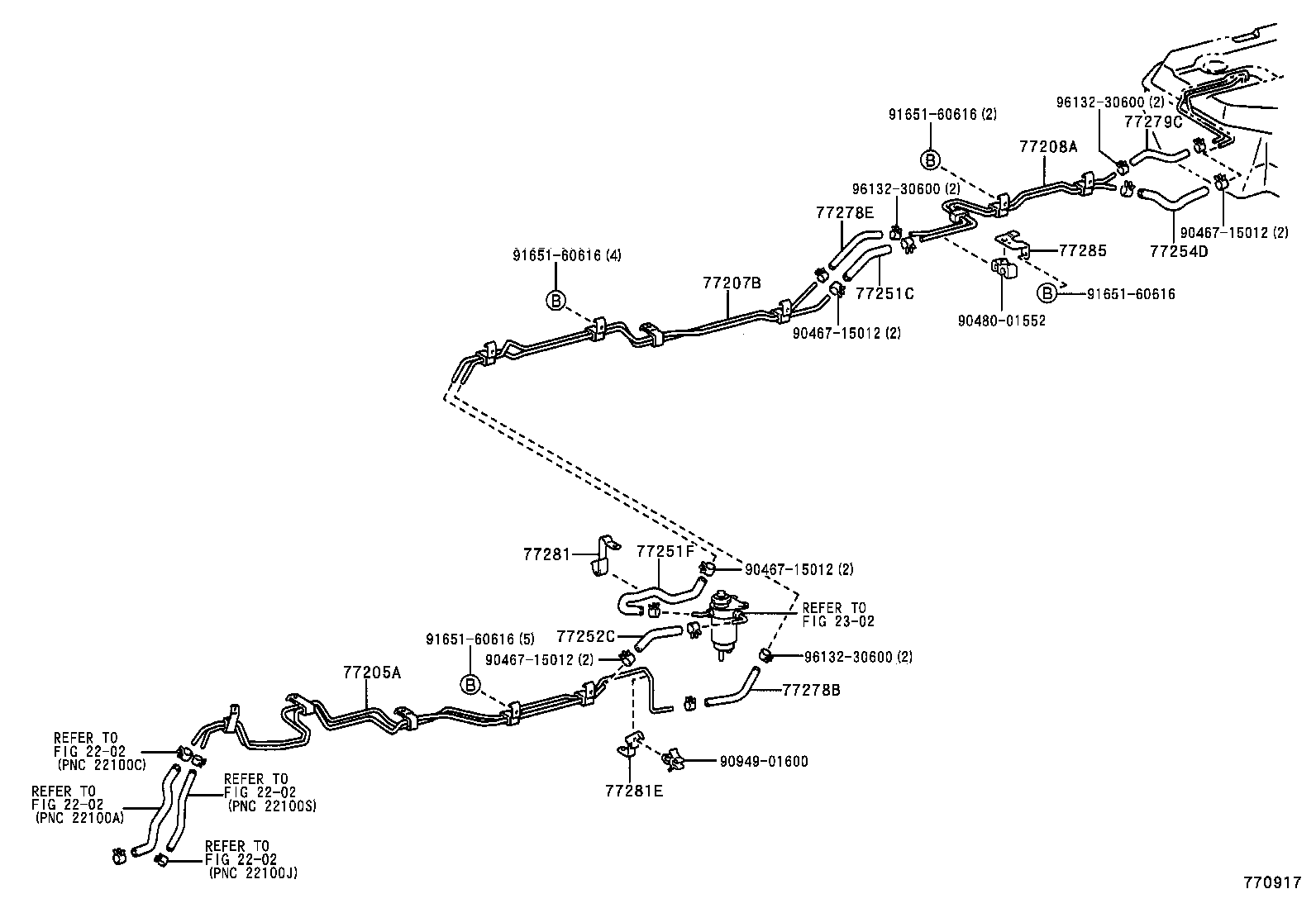

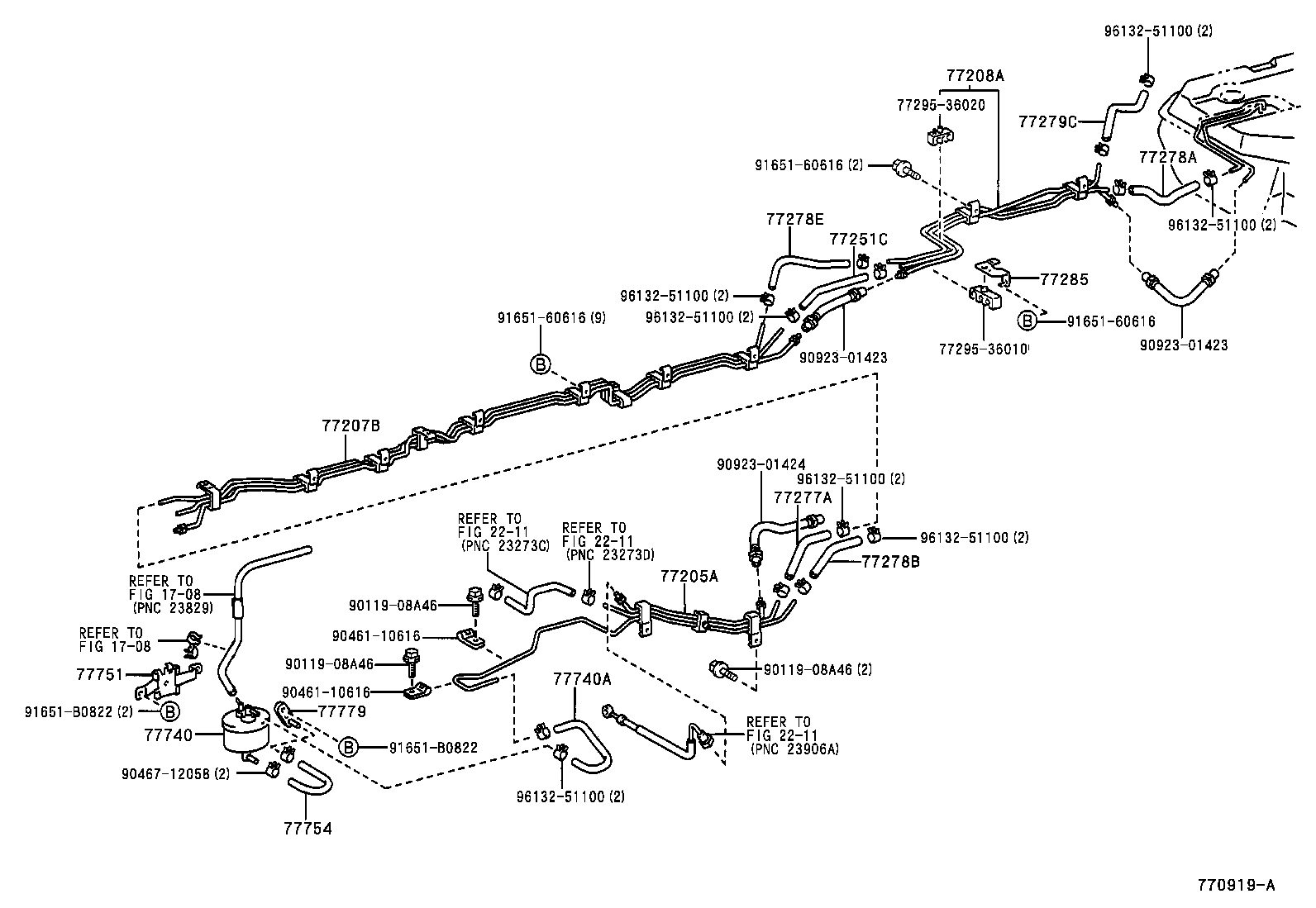

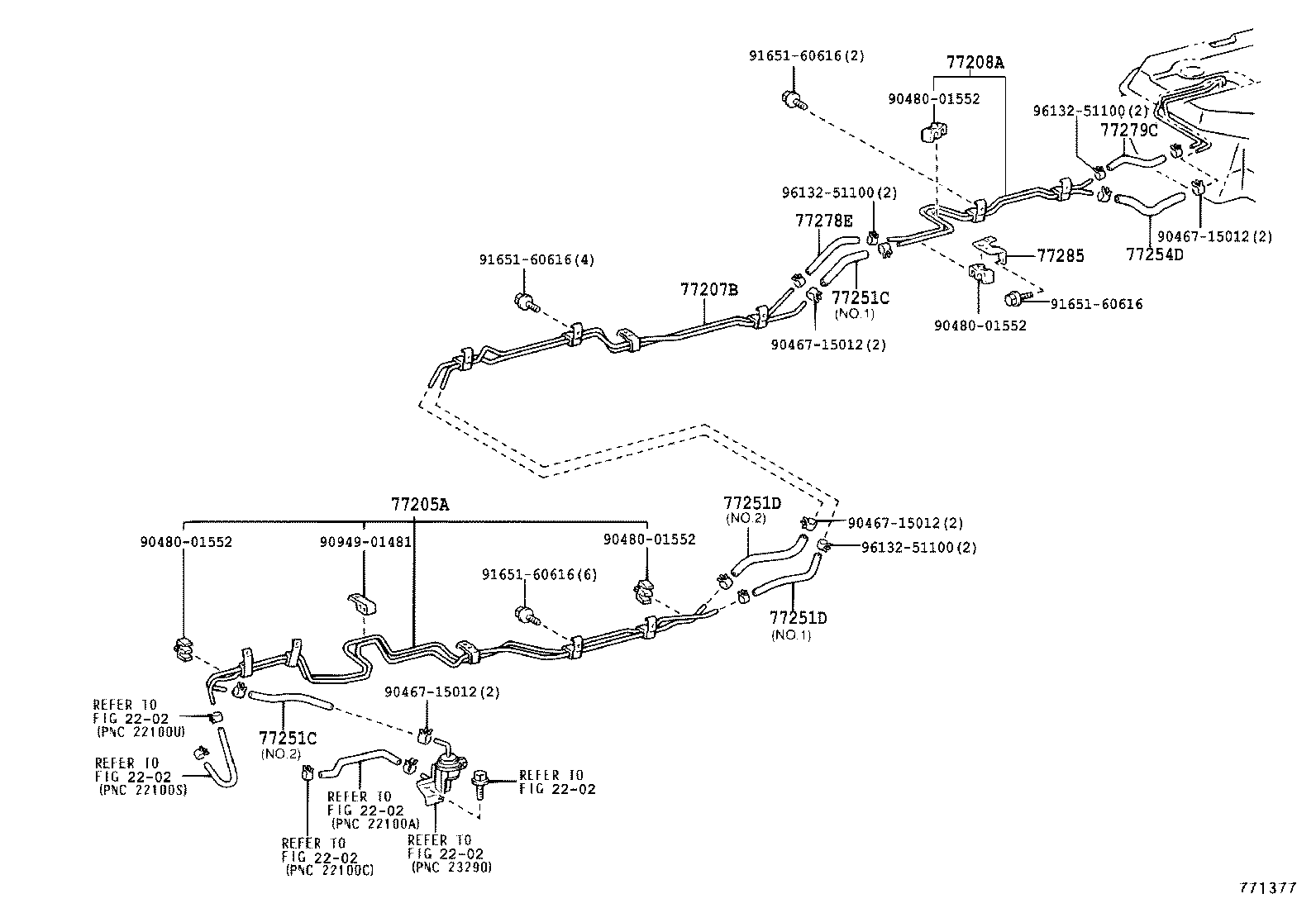

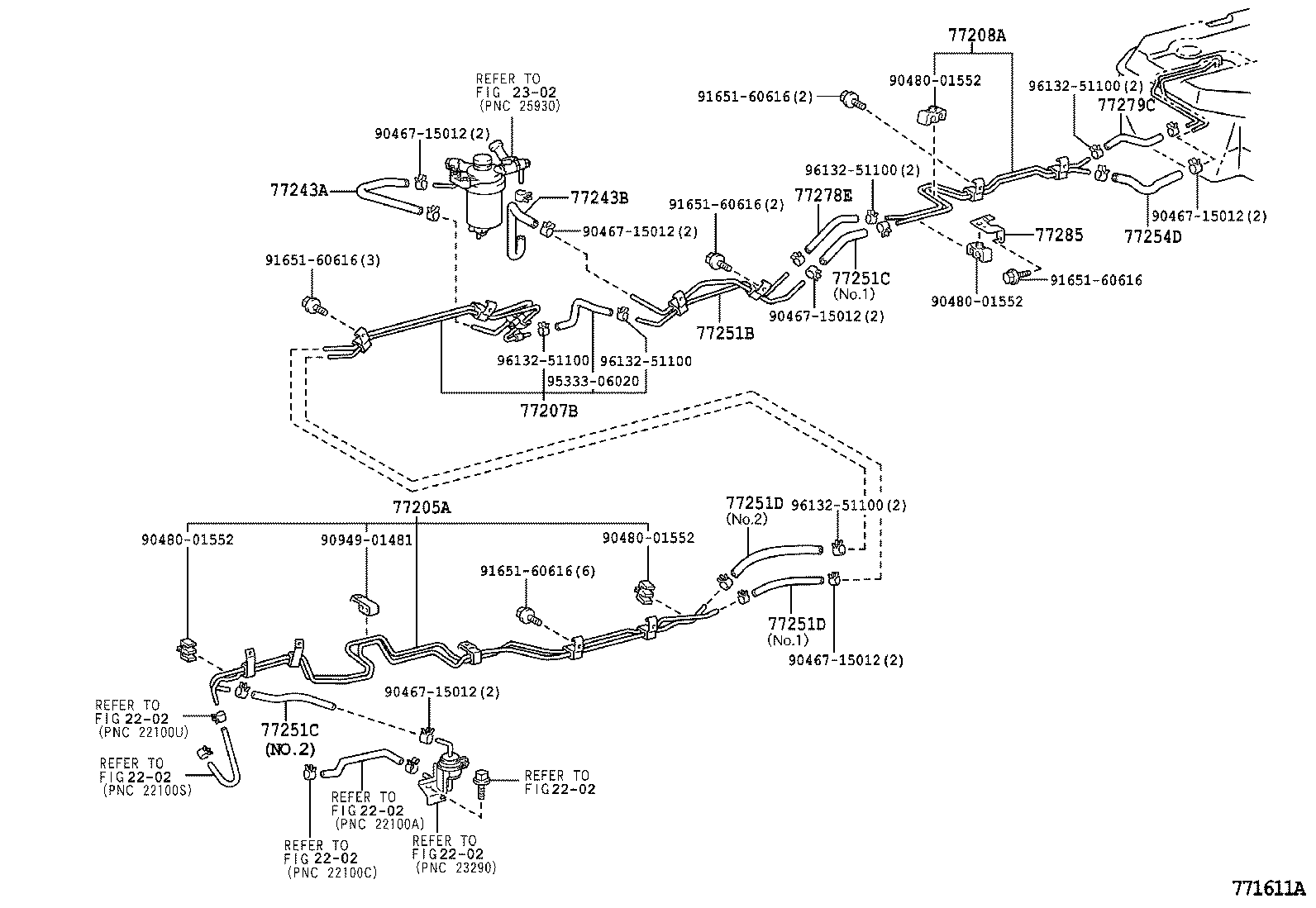

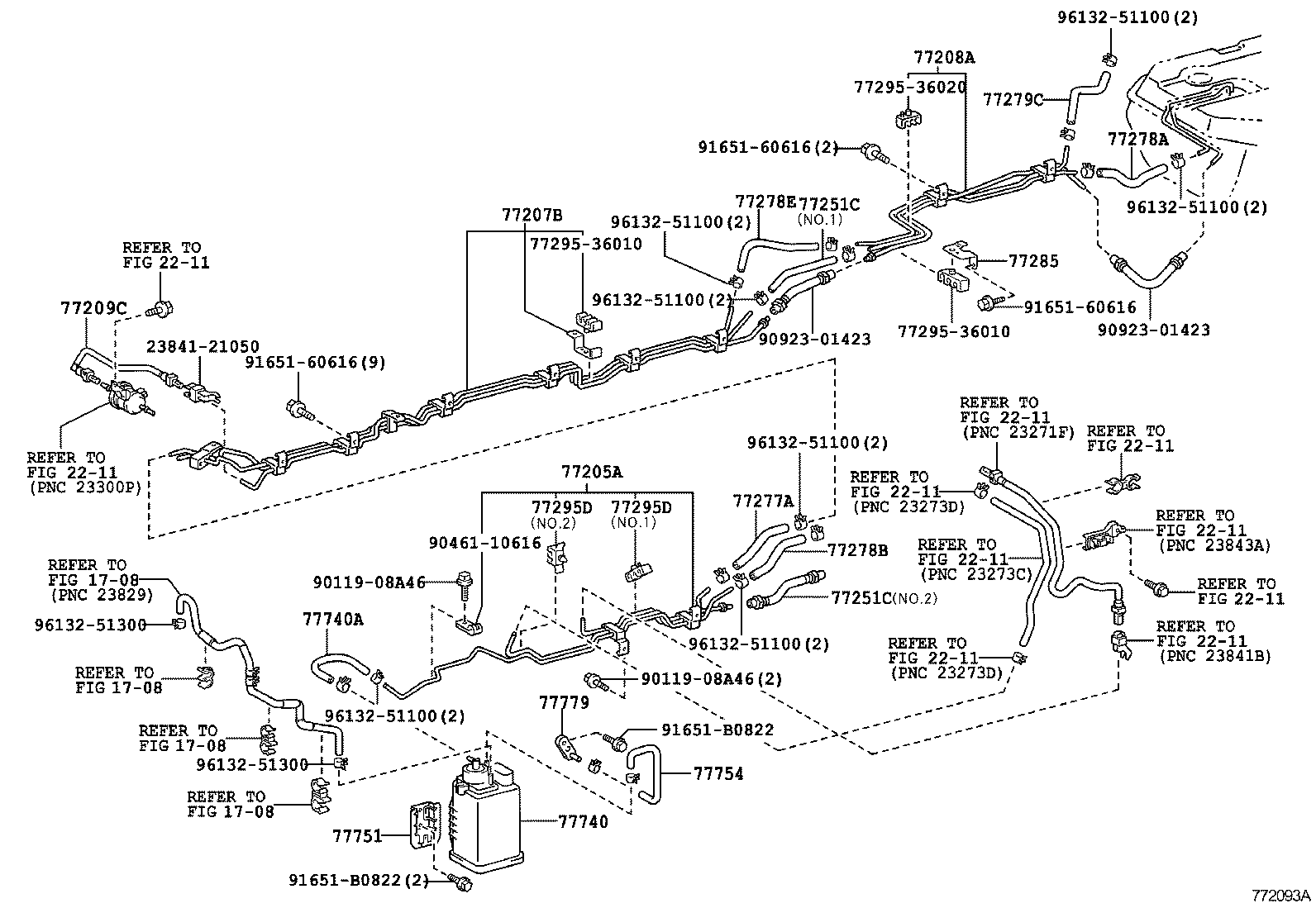

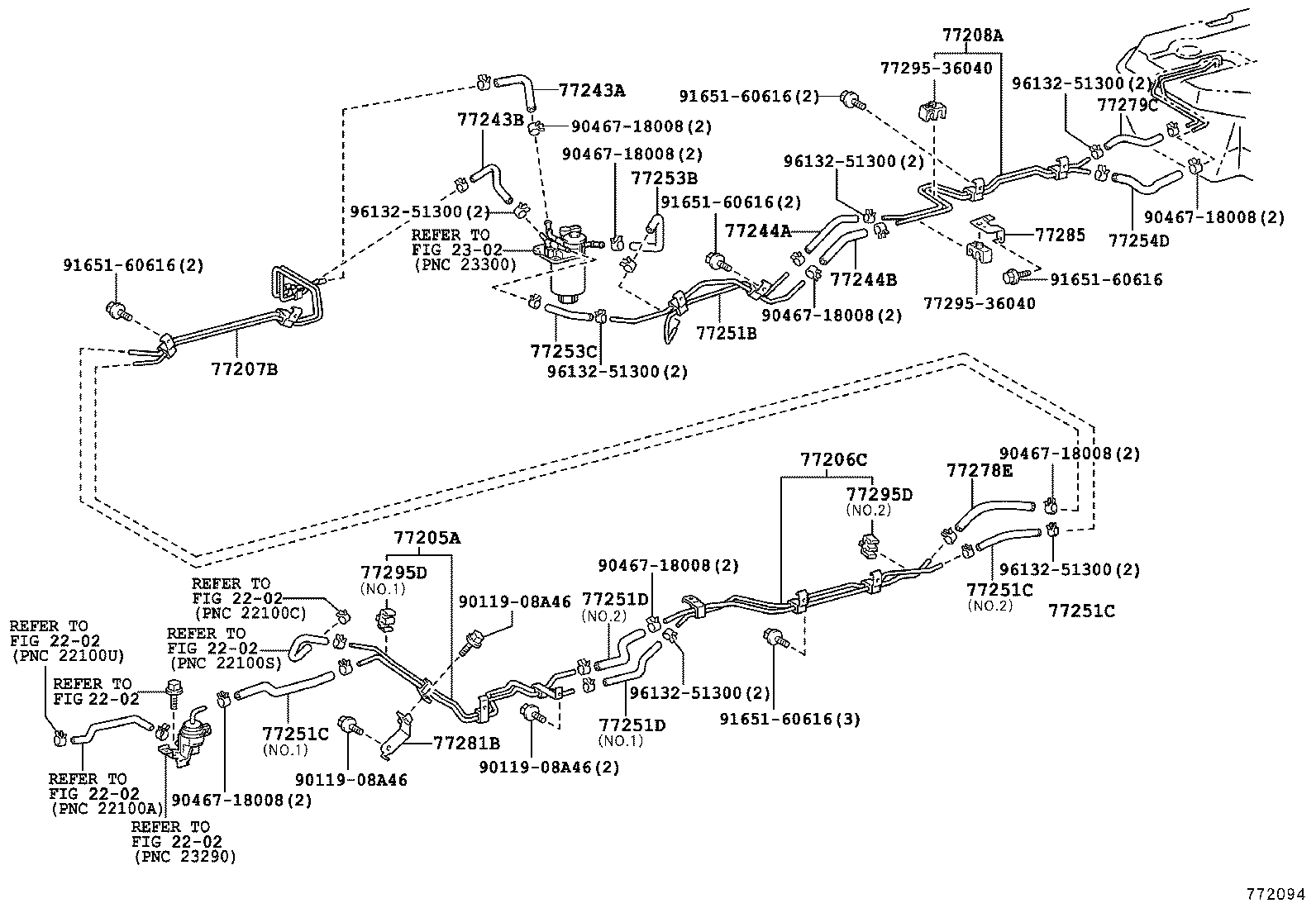

Fuel Tank & Tube
71 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77051 | Lever Sub-assy, Fuel Lid Open |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77205A | Tube Sub-assy, Fuel Main |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77207B | Tube Sub-assy, Fuel Main, NO.3 |
| 77208A | Tube Sub-assy, Fuel Main, NO.4 |
| 77209C | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77243A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3) |
| 77243B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3) |
| 77244A | Hose, Fuel, N0.1 (FOR MAIN TUBE, N0.4) |
| 77244B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.4) |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77251F | Hose, Fuel |
| 77252C | Hose, Fuel, NO.2(FOR FUEL MAIN NO.2 TUBE) |
| 77253B | Hose, Fuel, NO.1(FOR FUEL MAIN NO.3 TUBE) |
| 77253C | Hose, Fuel, NO.2(FOR FUEL MAIN NO.3 TUBE) |
| 77254D | Hose, Fuel |
| 77259A | Hose, Fuel(FOR BREATHER TUBE) |
| 77259C | Hose, Fuel |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77278A | Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2) |
| 77278B | Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2) |
| 77278E | Hose, Fuel |
| 77279C | Hose, Fuel |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77281B | Clamp, Fuel Hose(FOR REAR FUEL MAIN) |
| 77281E | Bracket, Fuel Main Tube, NO.1 |
| 77285 | Bracket, Fuel Tube |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77295D | Grommet, Fuel Tube |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77420 | Valve Assy, Fuel Cut Off, NO.2 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77613A | Bracket, Fuel Tank Band, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77655 | Cushion, Fuel Tank, NO.3 |
| 77681A | Seat, Fuel Tank Band |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77779 | Tube, Charcoal Canister Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
