Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

14 part groups · 6 illustrations

Illustrations

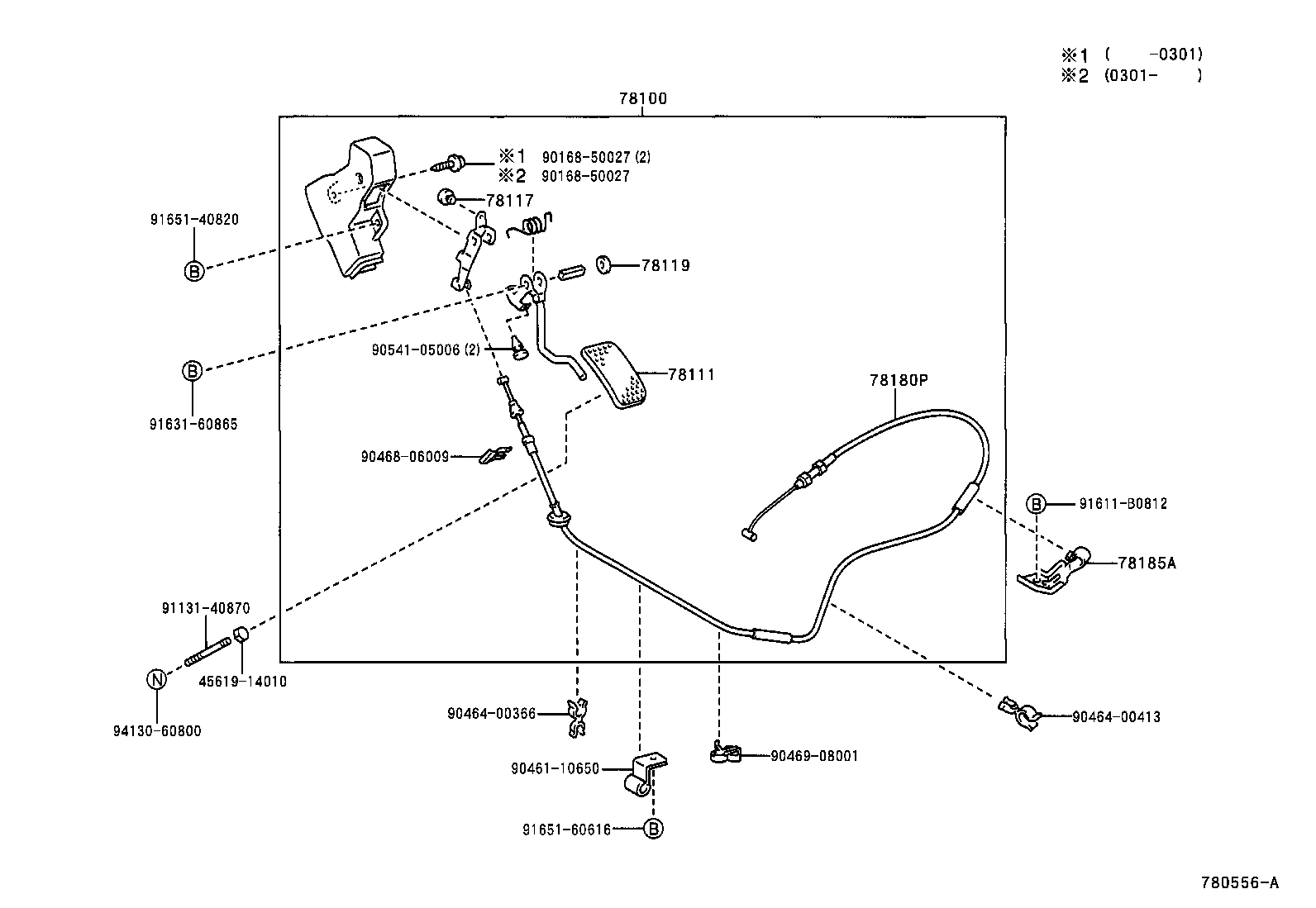

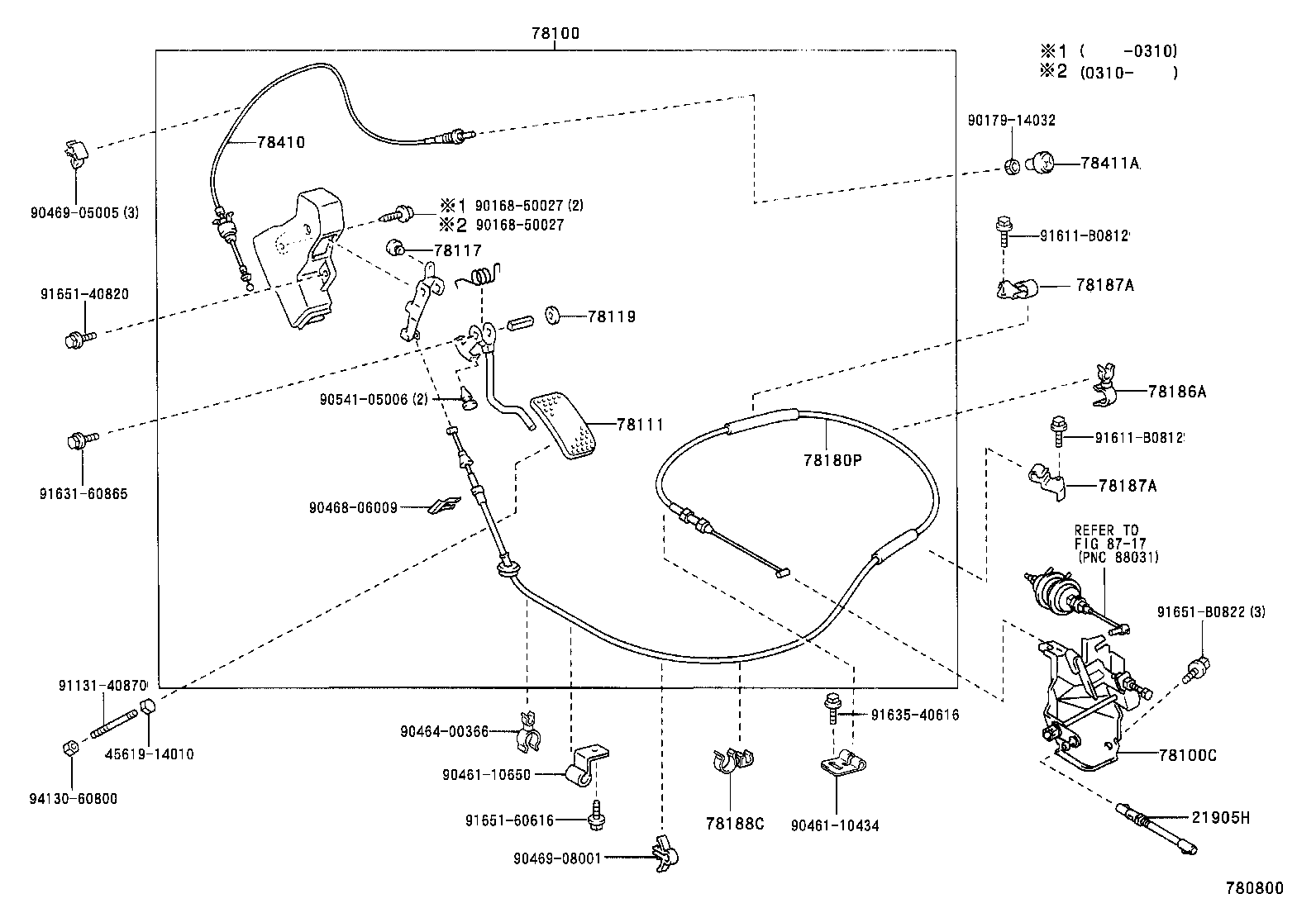

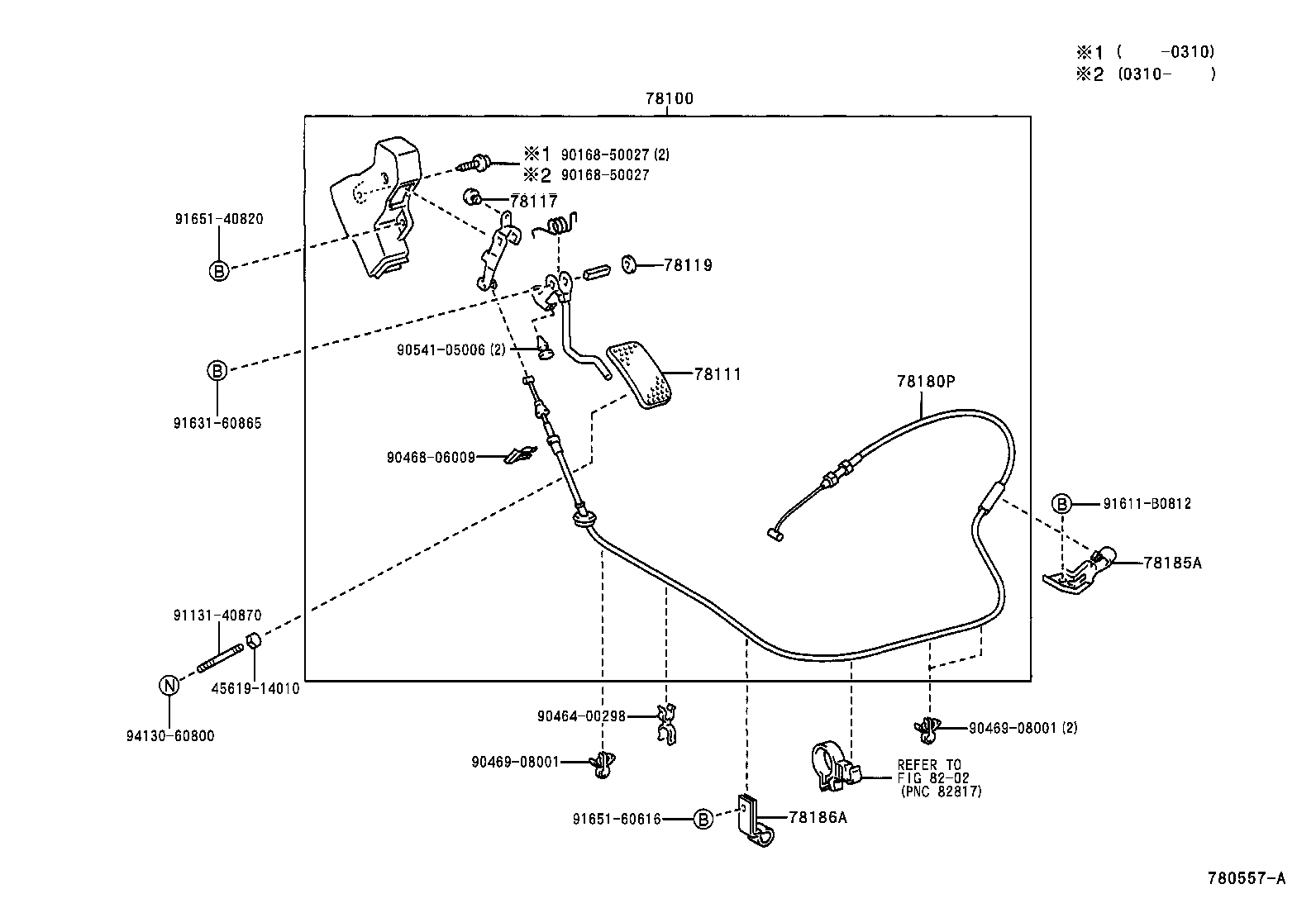

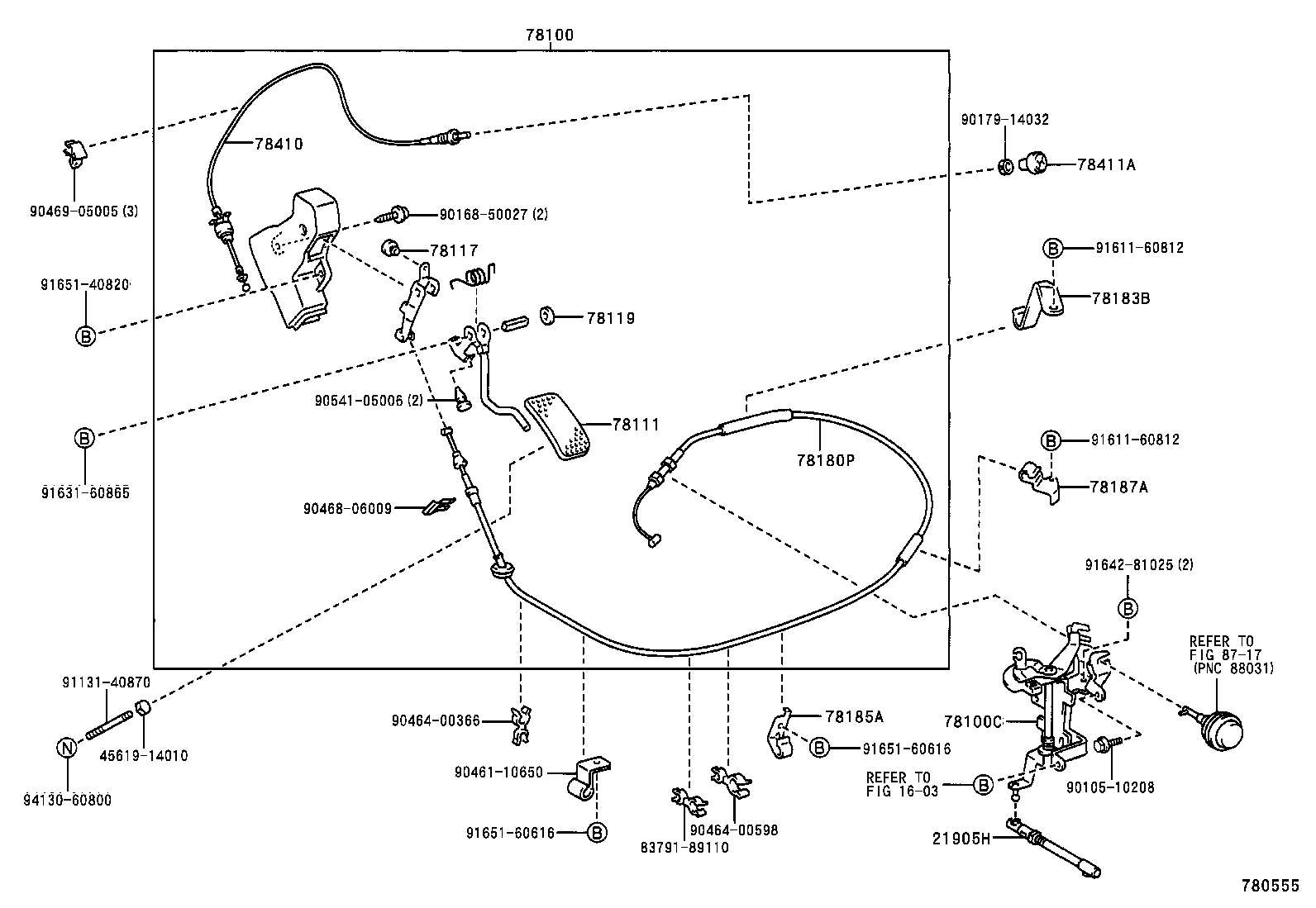

Figure 780554 780554 2000-12 → 2003-10 Figure 780555 780555 2000-12 → 2003-10 Figure 780556A 780556A 2000-12 → 2007-01 Figure 780557A 780557A 2000-12 → 2007-01 Figure 780800 780800 2003-10 → 2007-01 Figure 781138A 781138A 2007-01 → —

Part groups

PNCDescription
21905H Rod Sub-assy, Accelerator Connecting
78100 Link Assy, Accelerator
78100C Link Assy, Accelerator, NO.2
78111 Pedal, Accelerator
78117 Cushion (FOR ACCELERATOR ROD)
78119 Stopper, Accelerator Pedal Rod
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186A Clamp, Accelerator Control Cable, NO.3
78187A Clamp, Accelerator Control Cable, NO.4
78188C Clamp, Accelerator Control Cable, NO.5
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
