Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

50 part groups · 29 illustrations

Illustrations

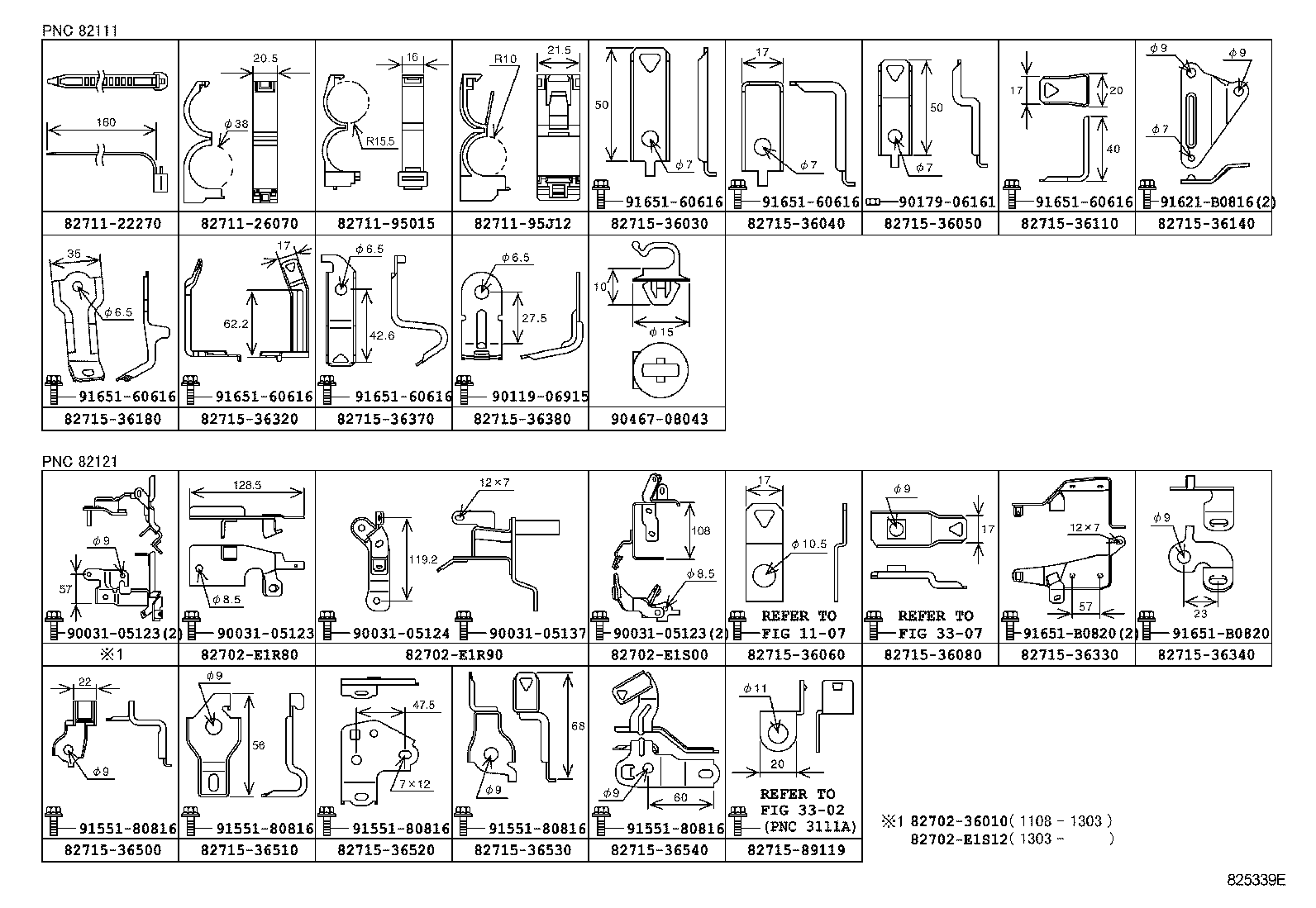

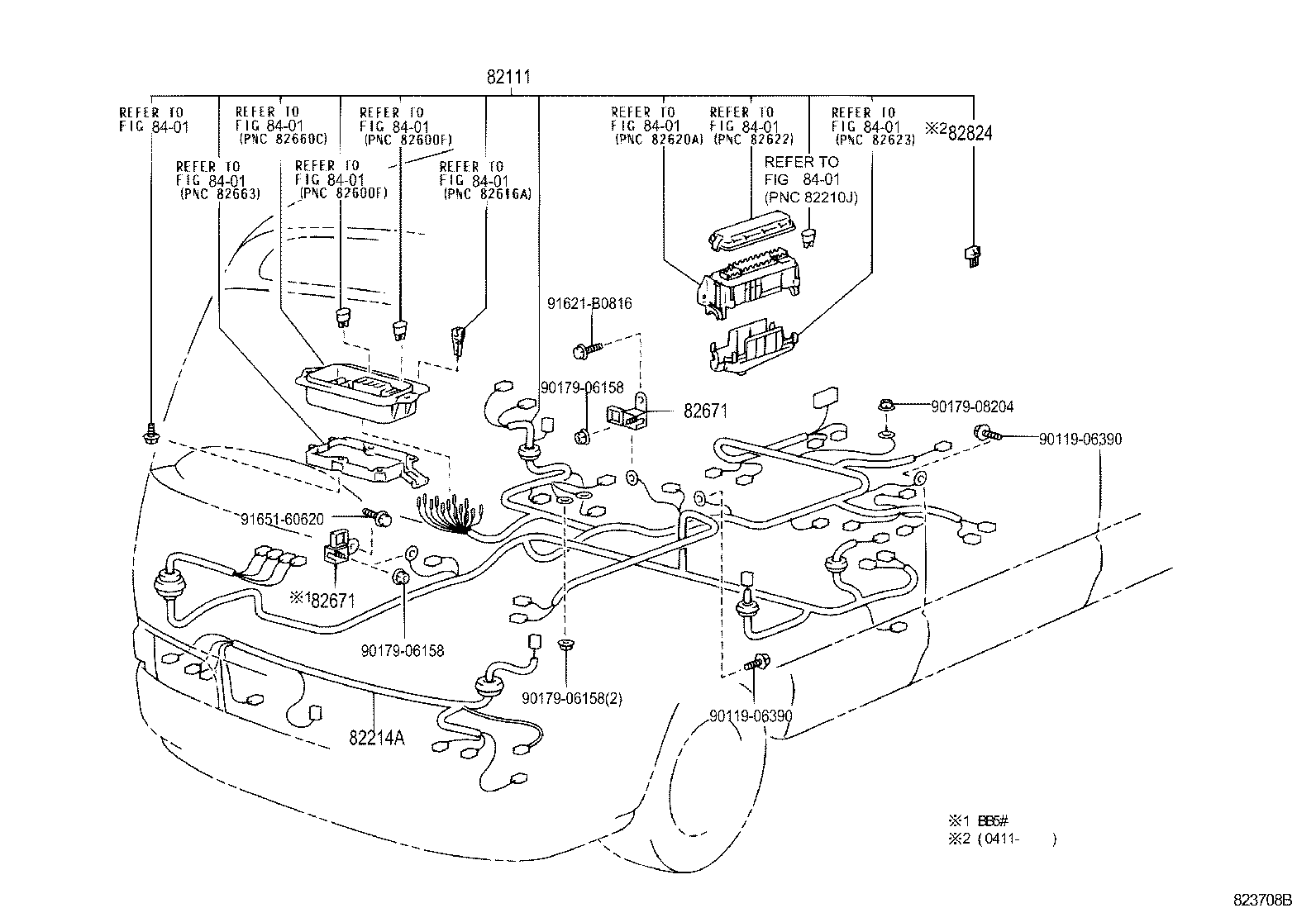

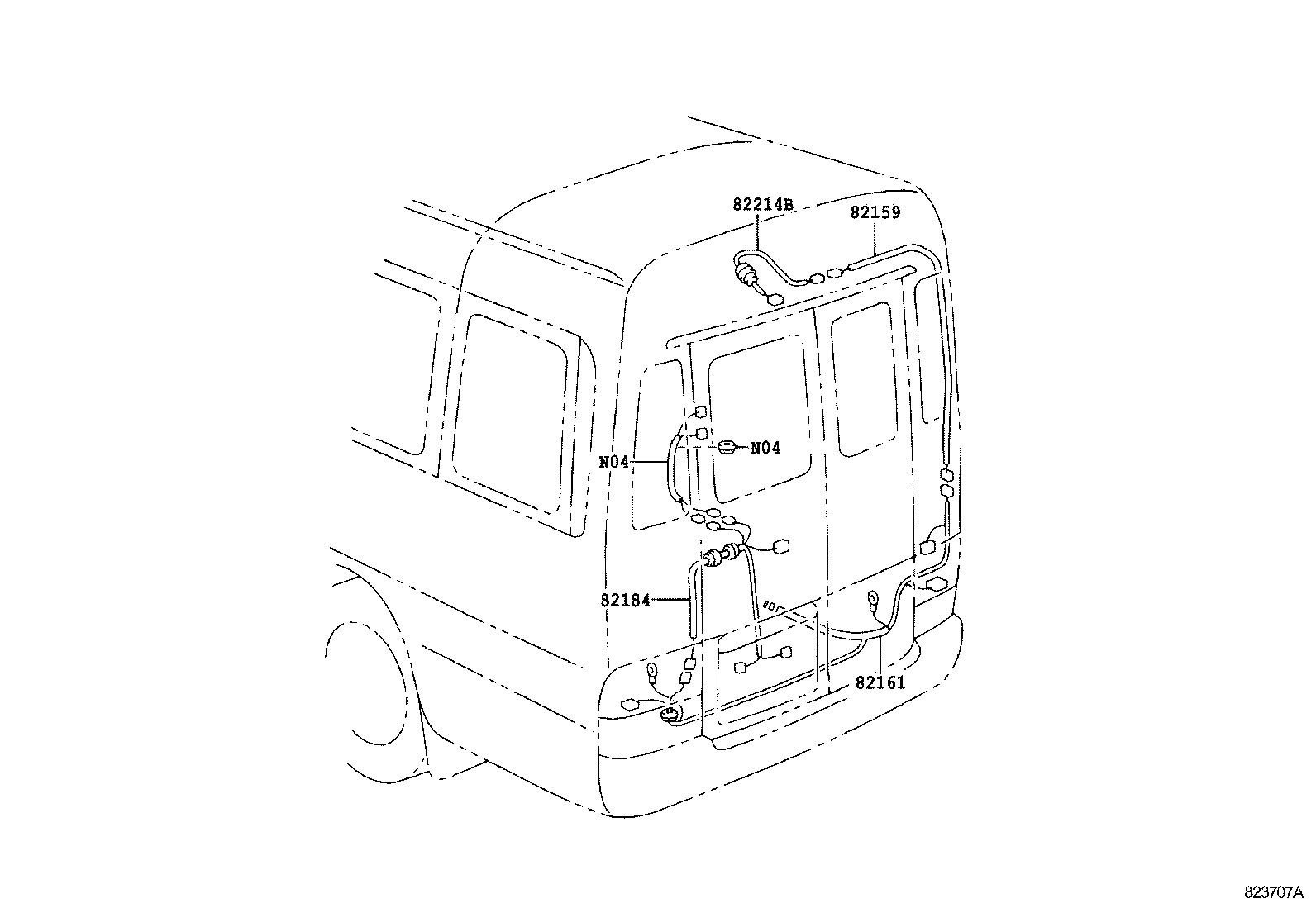

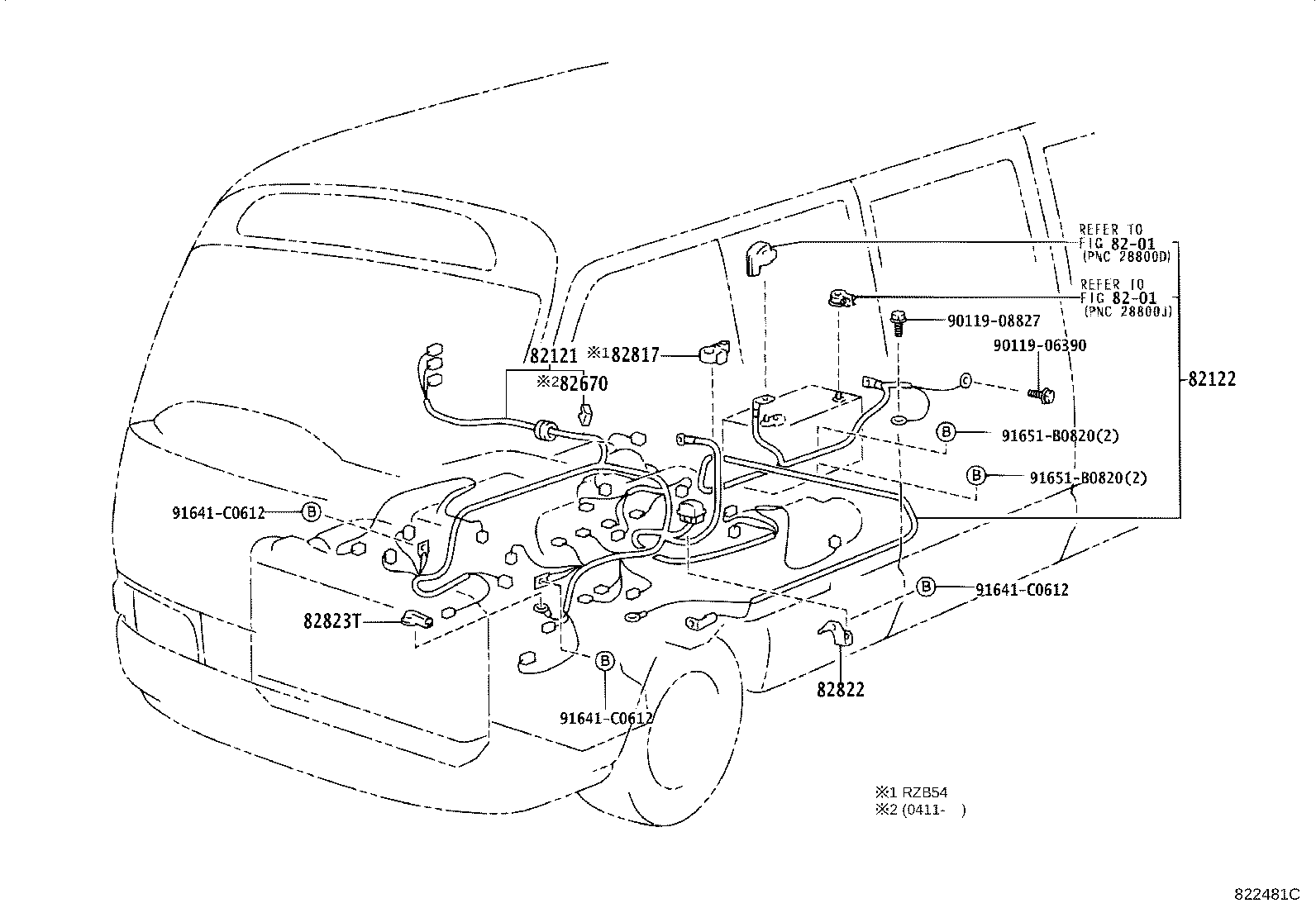

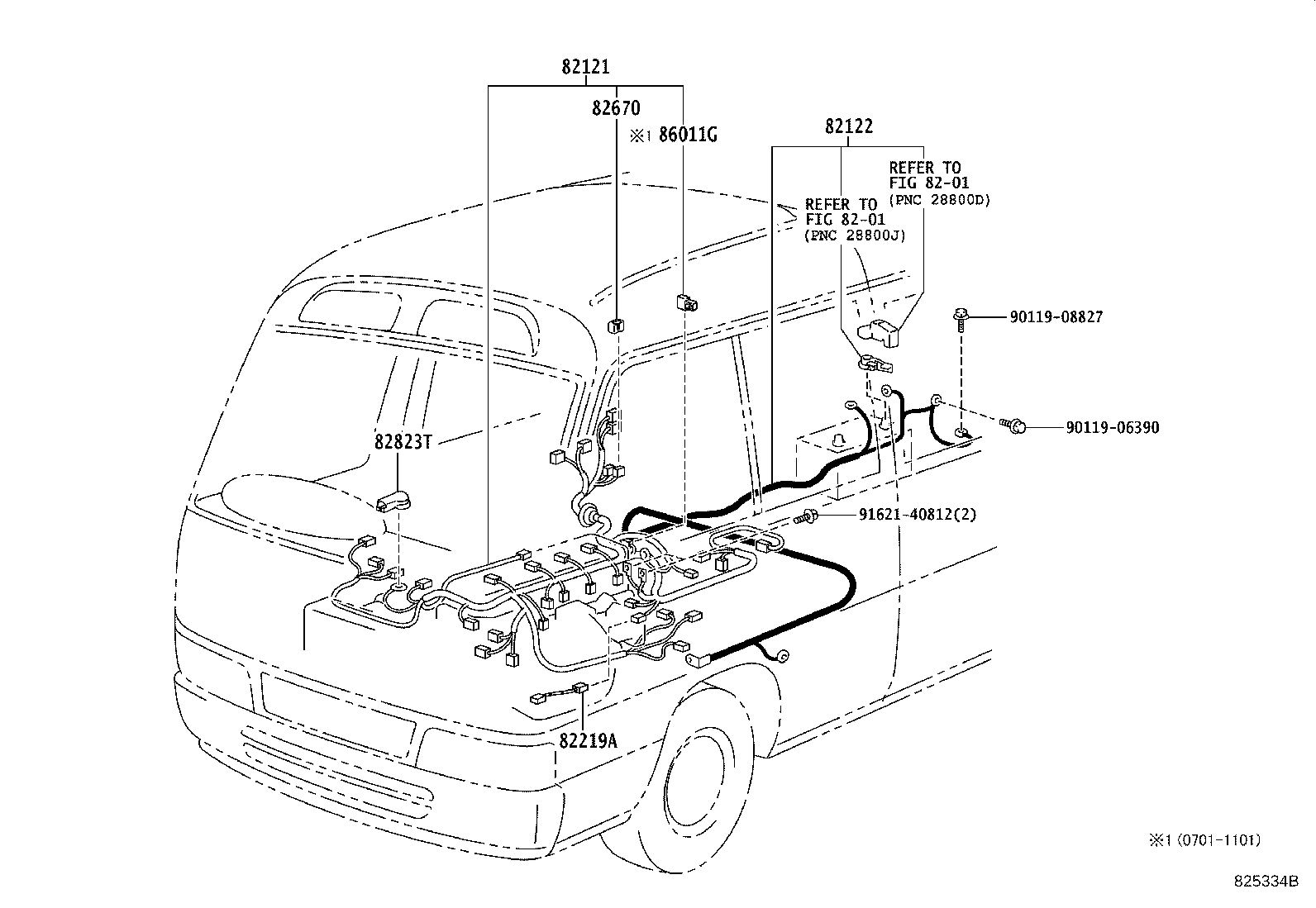

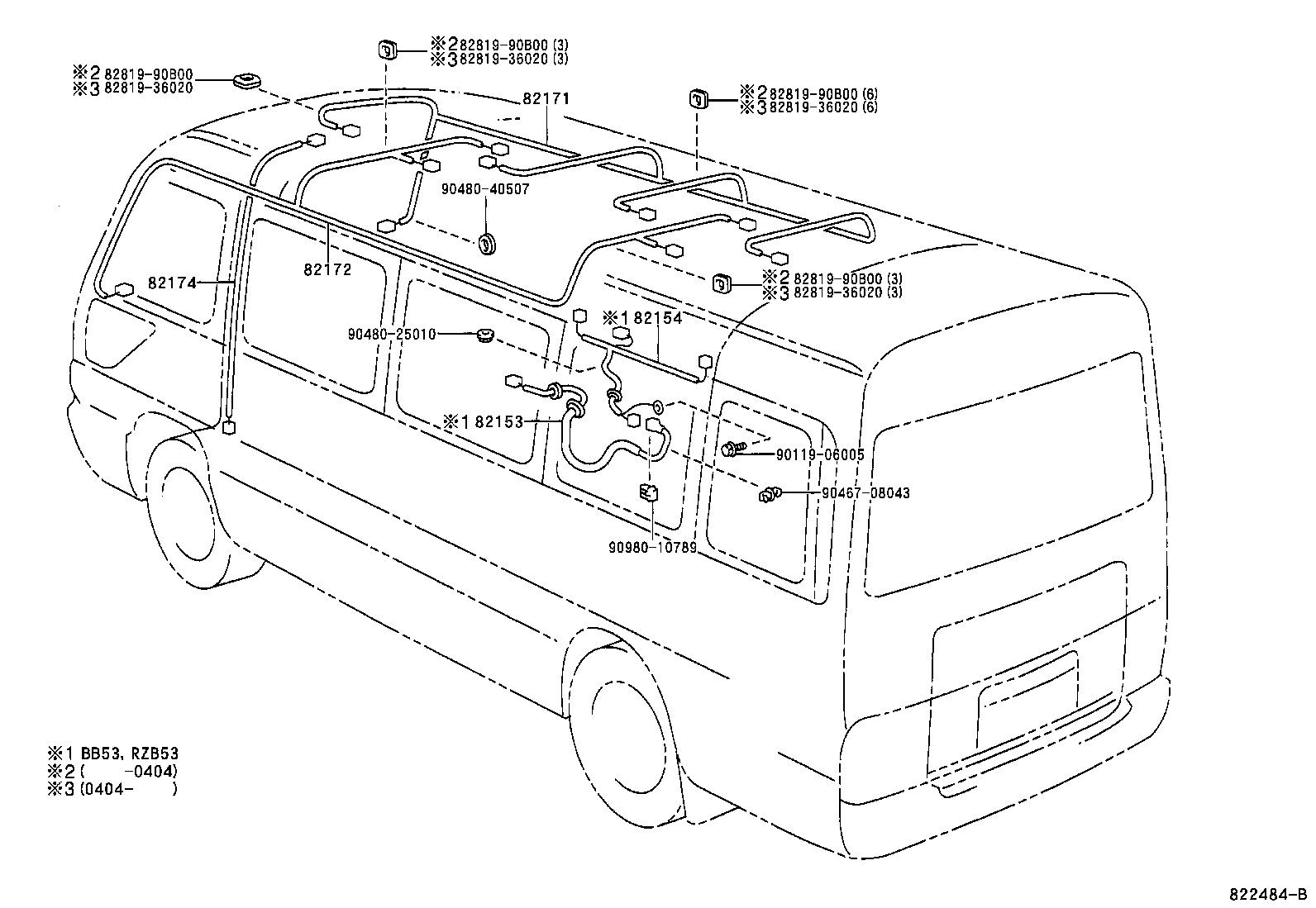

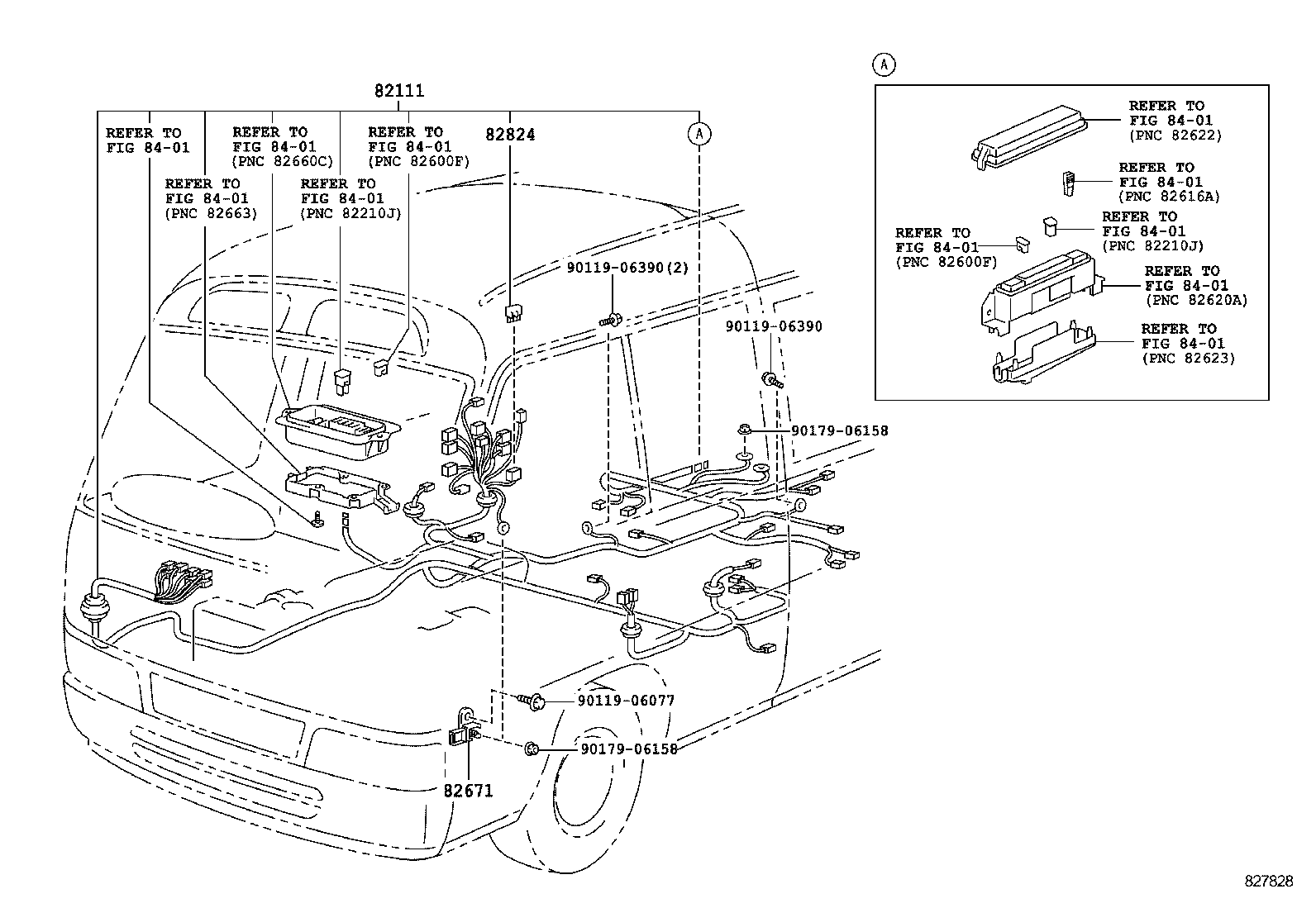

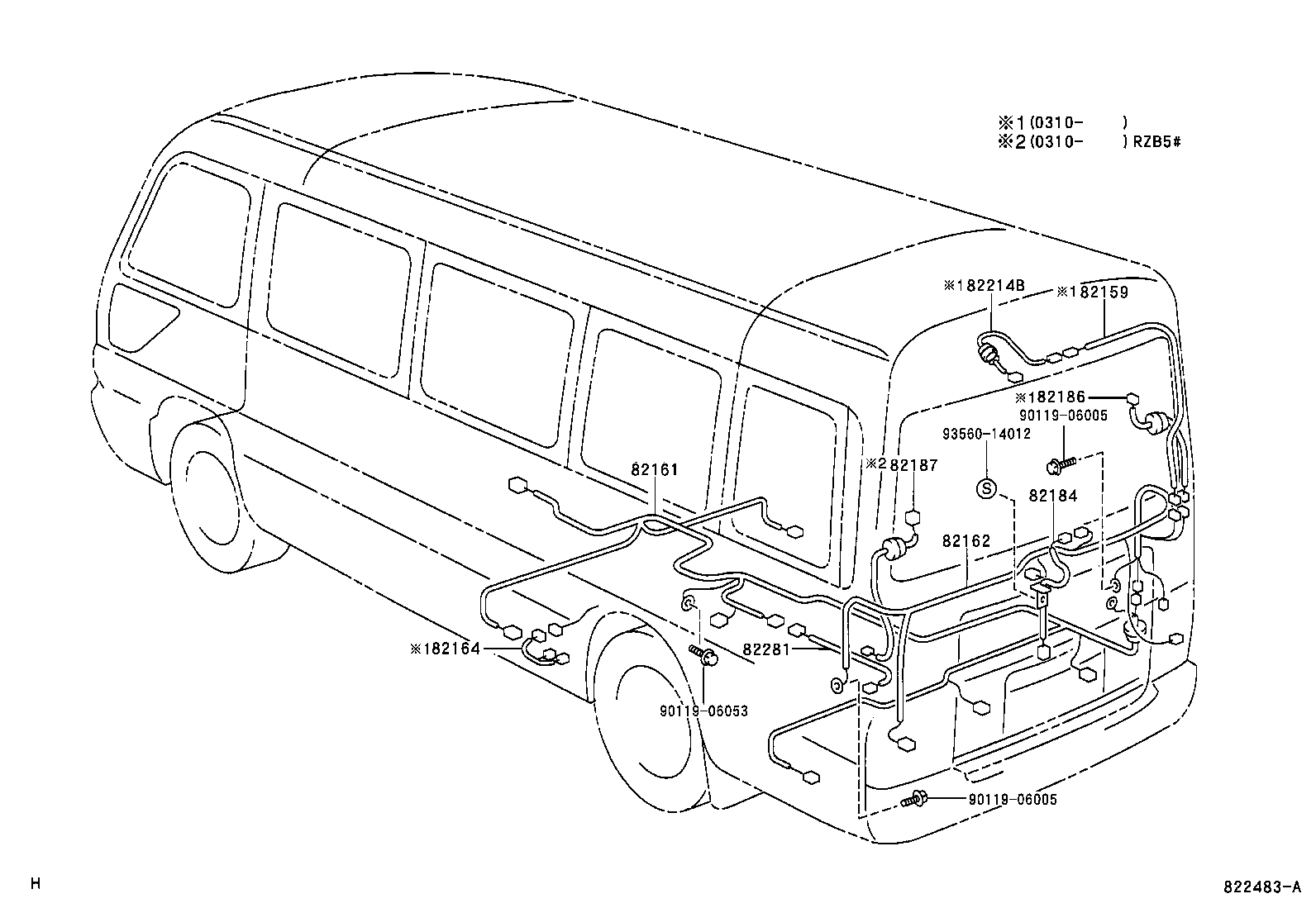

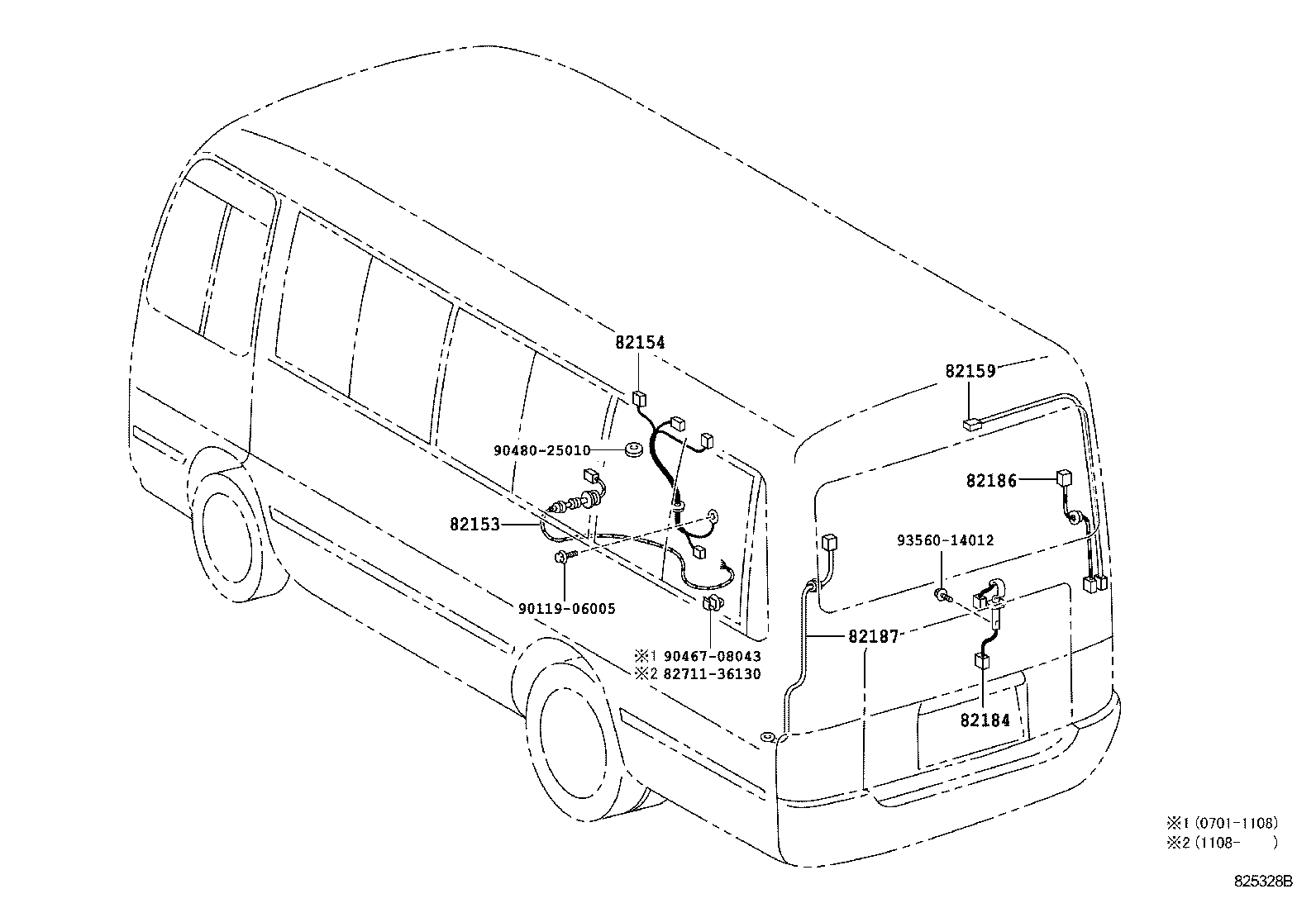

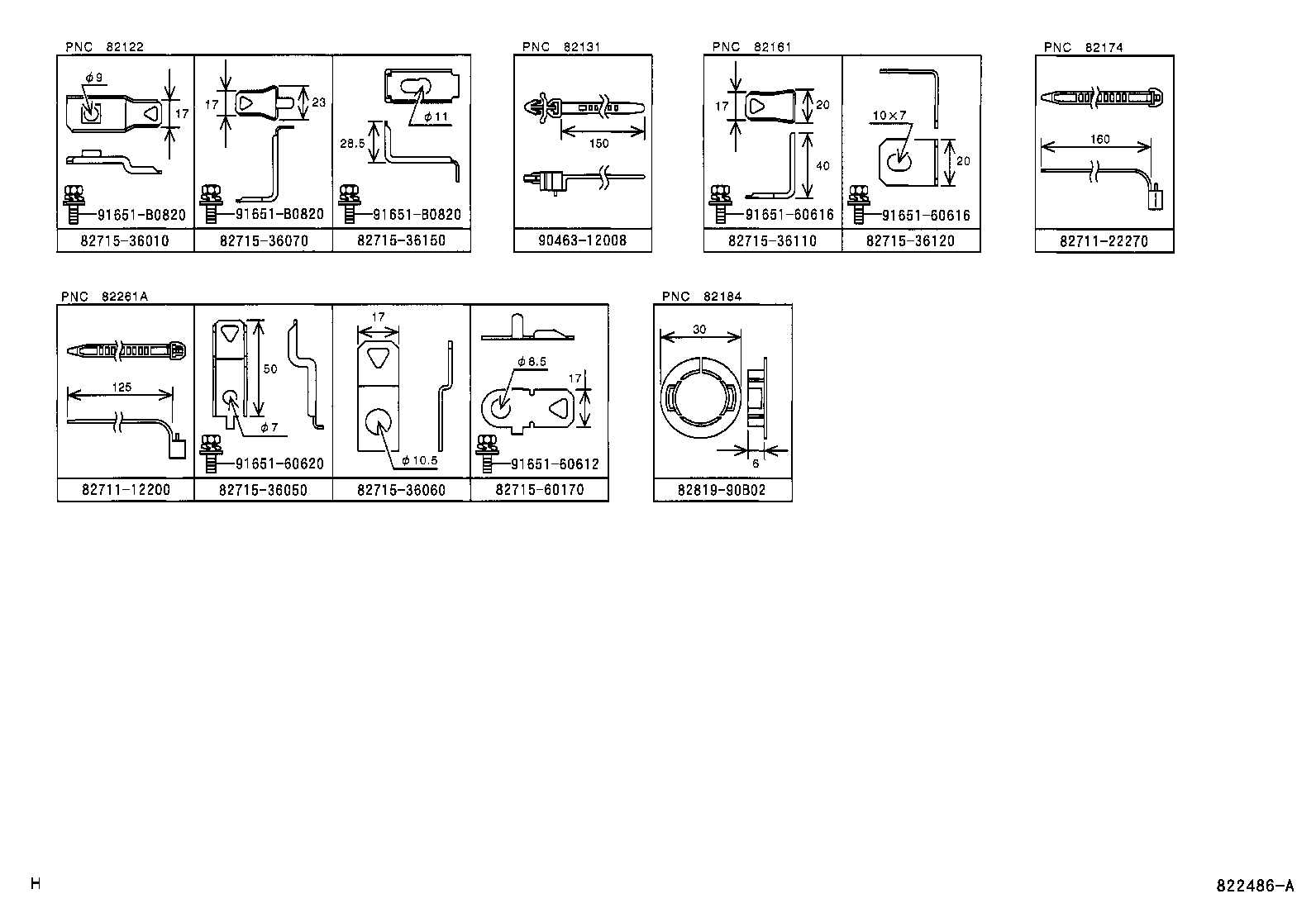

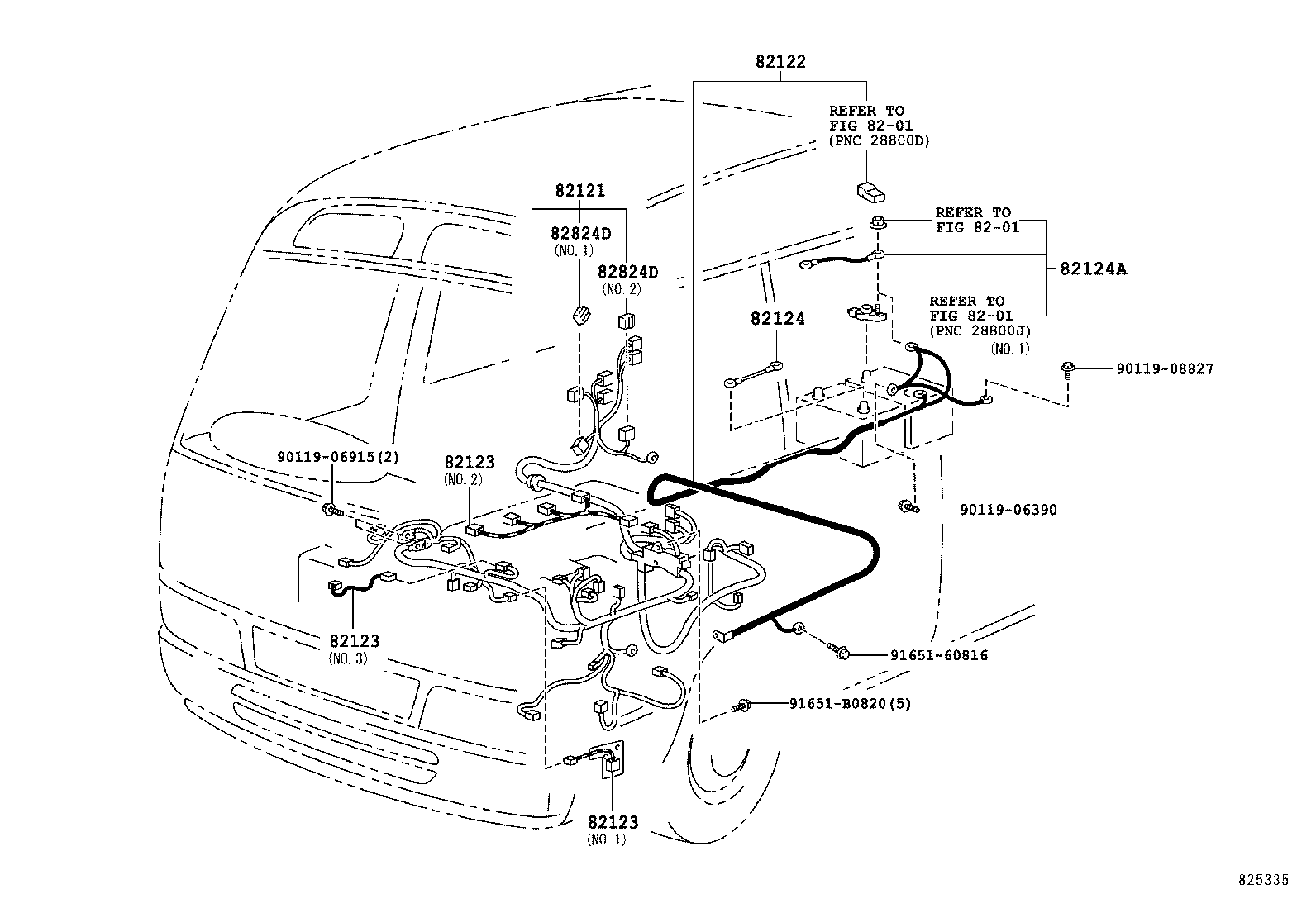

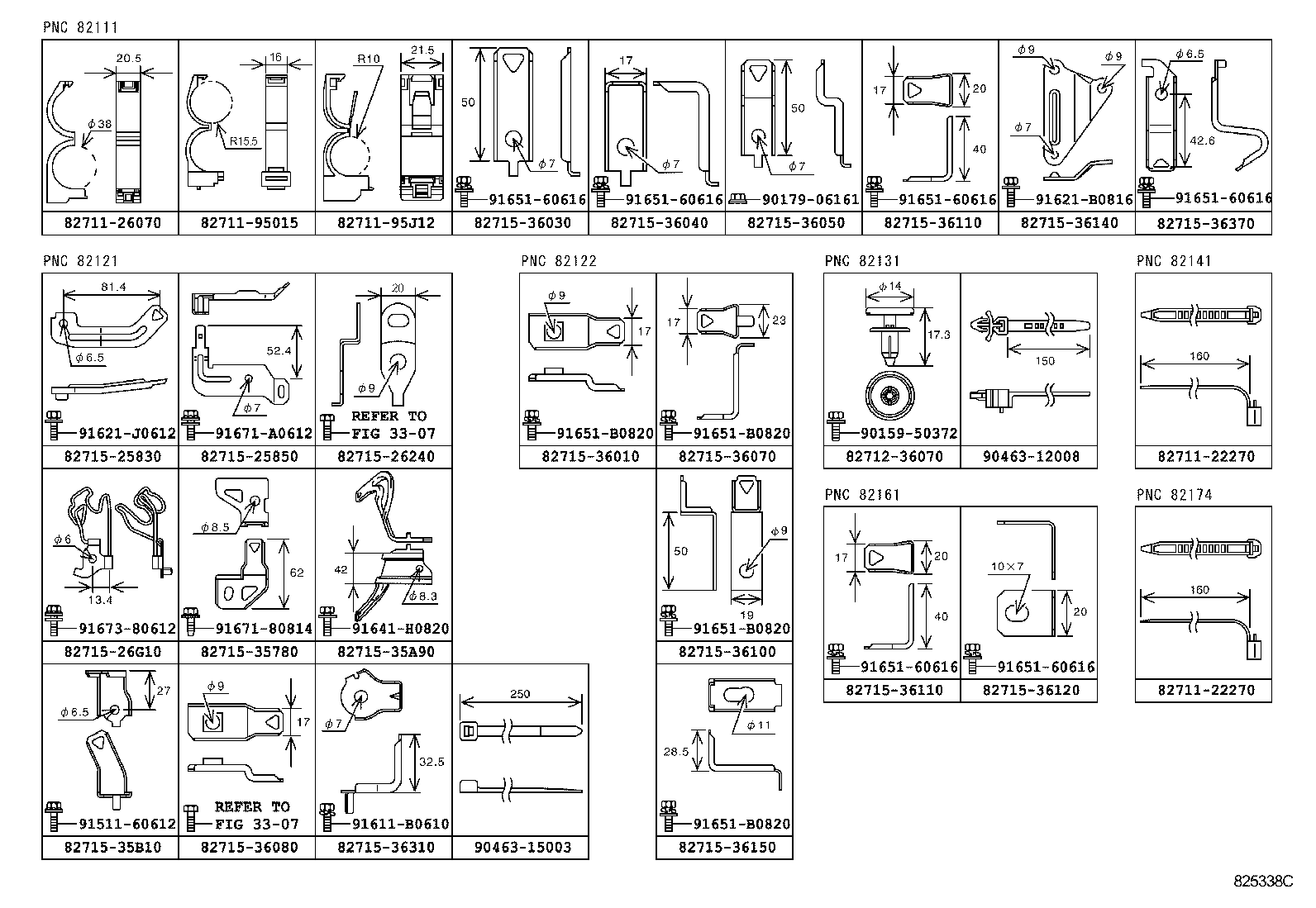

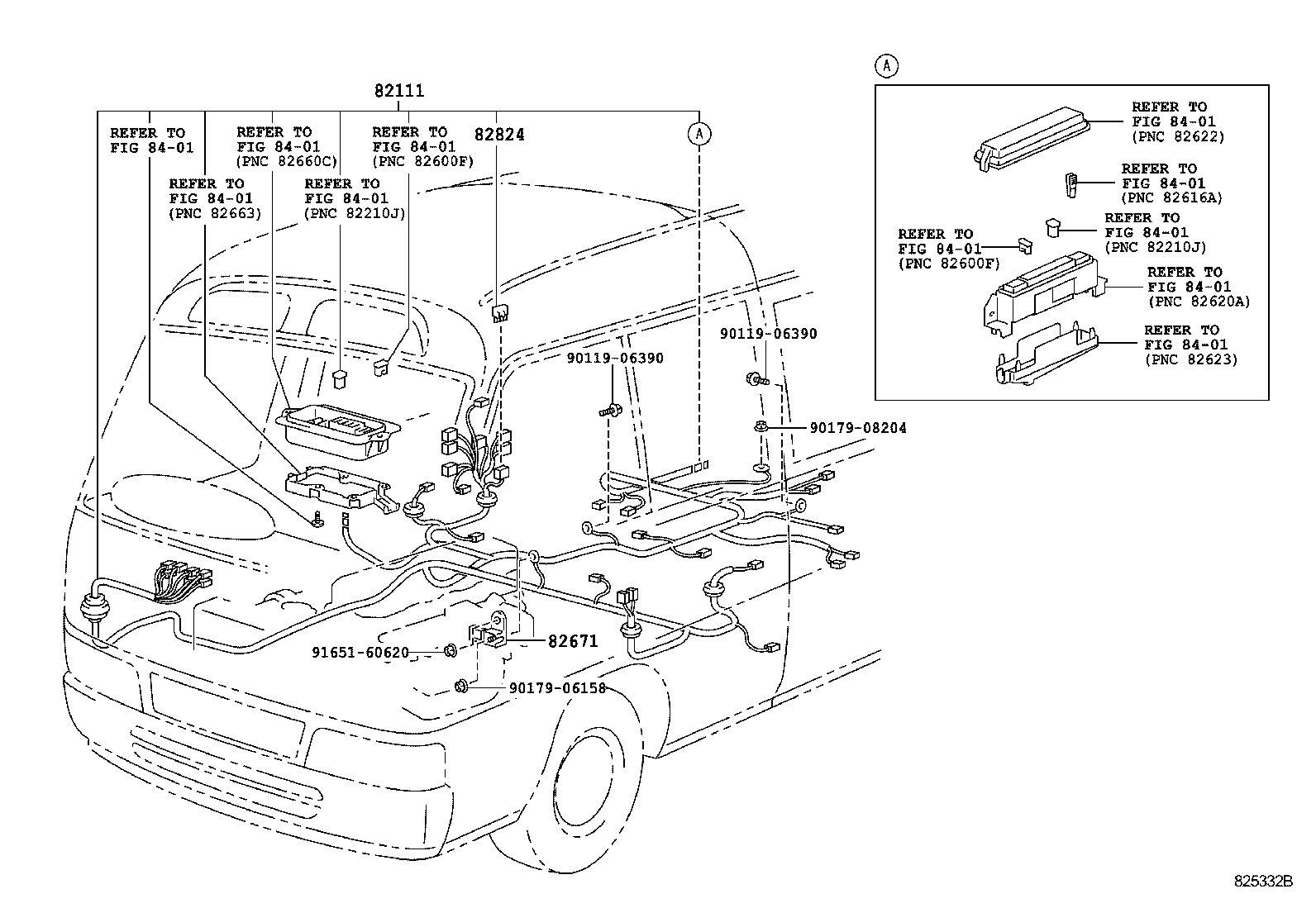

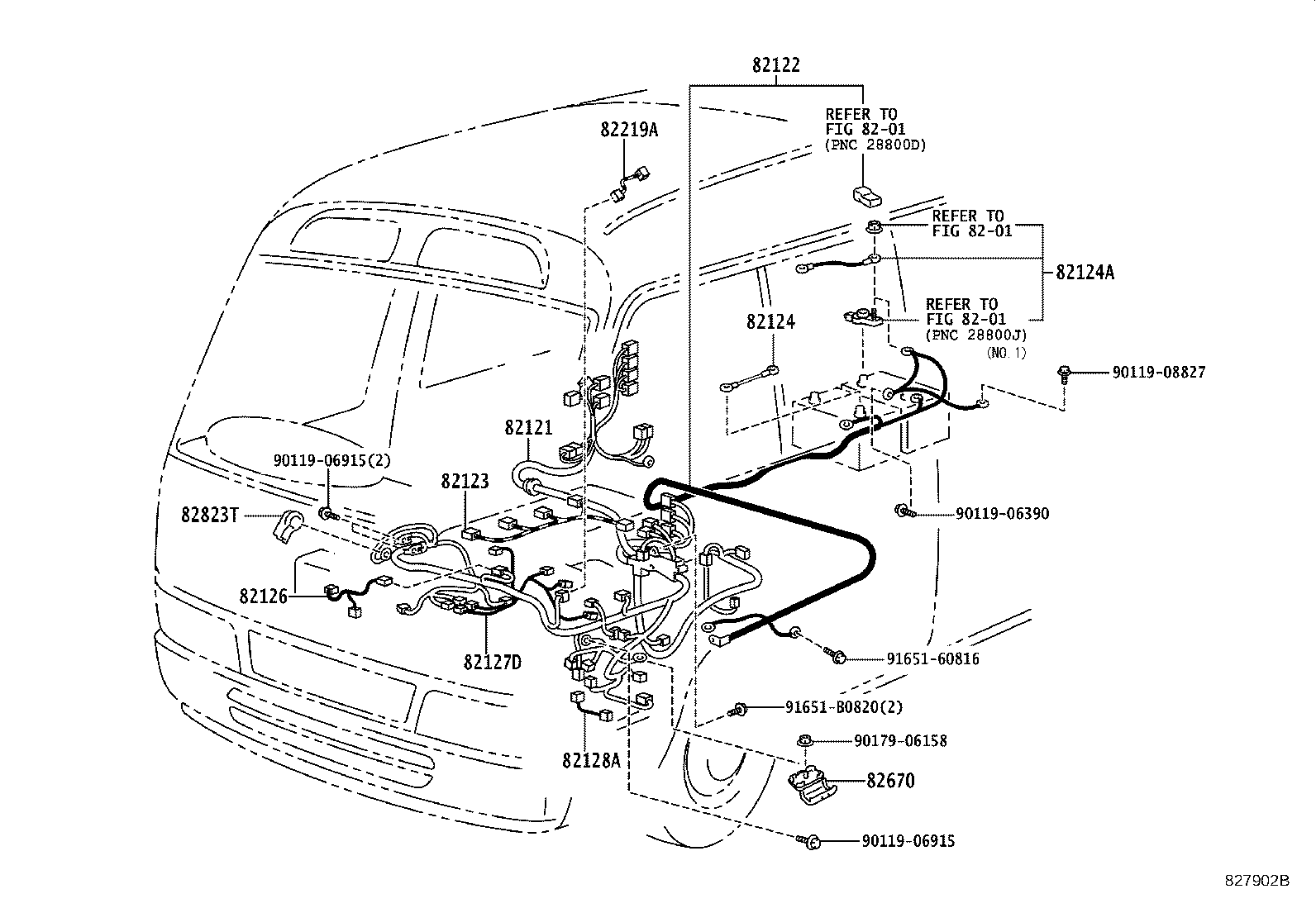

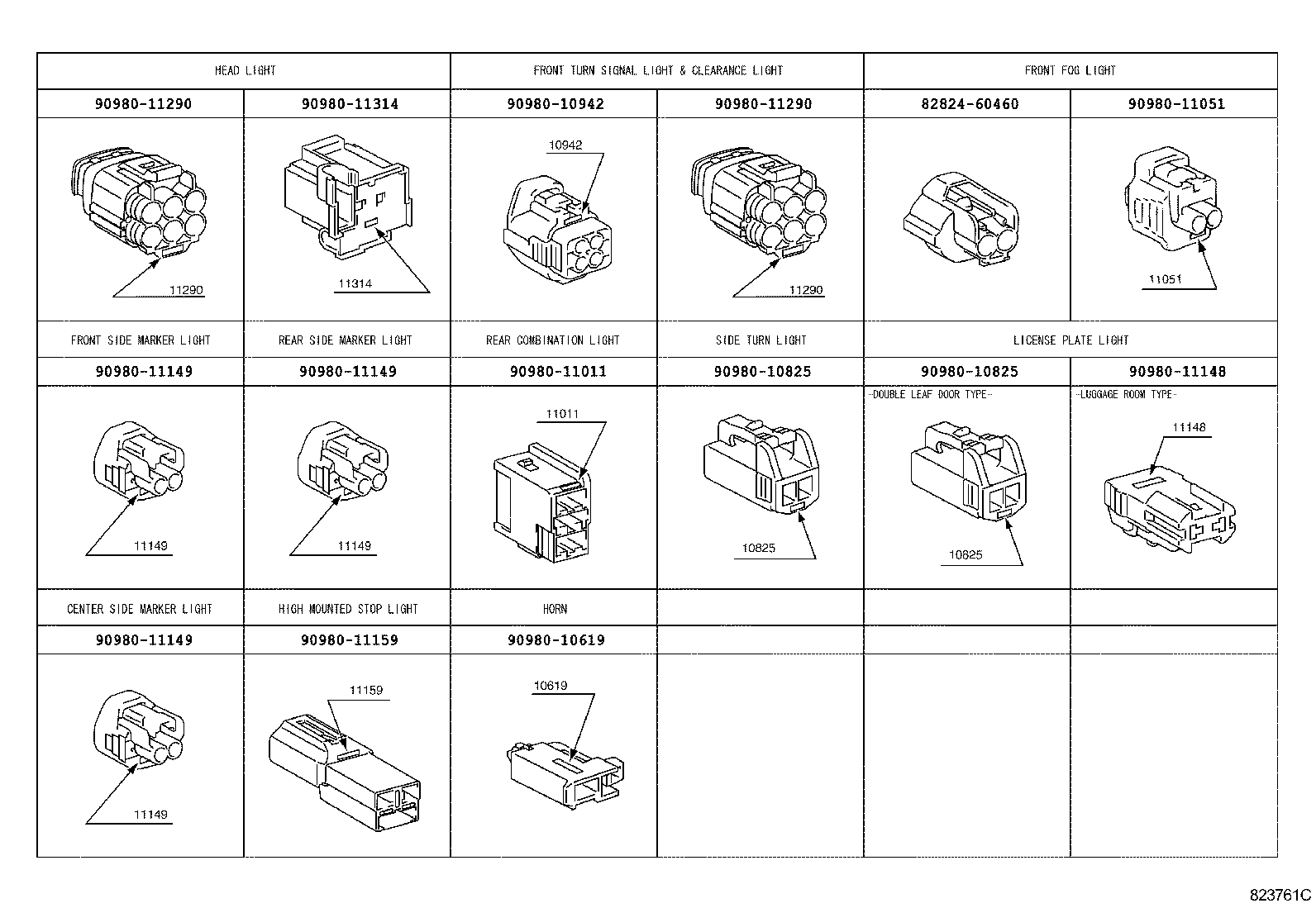

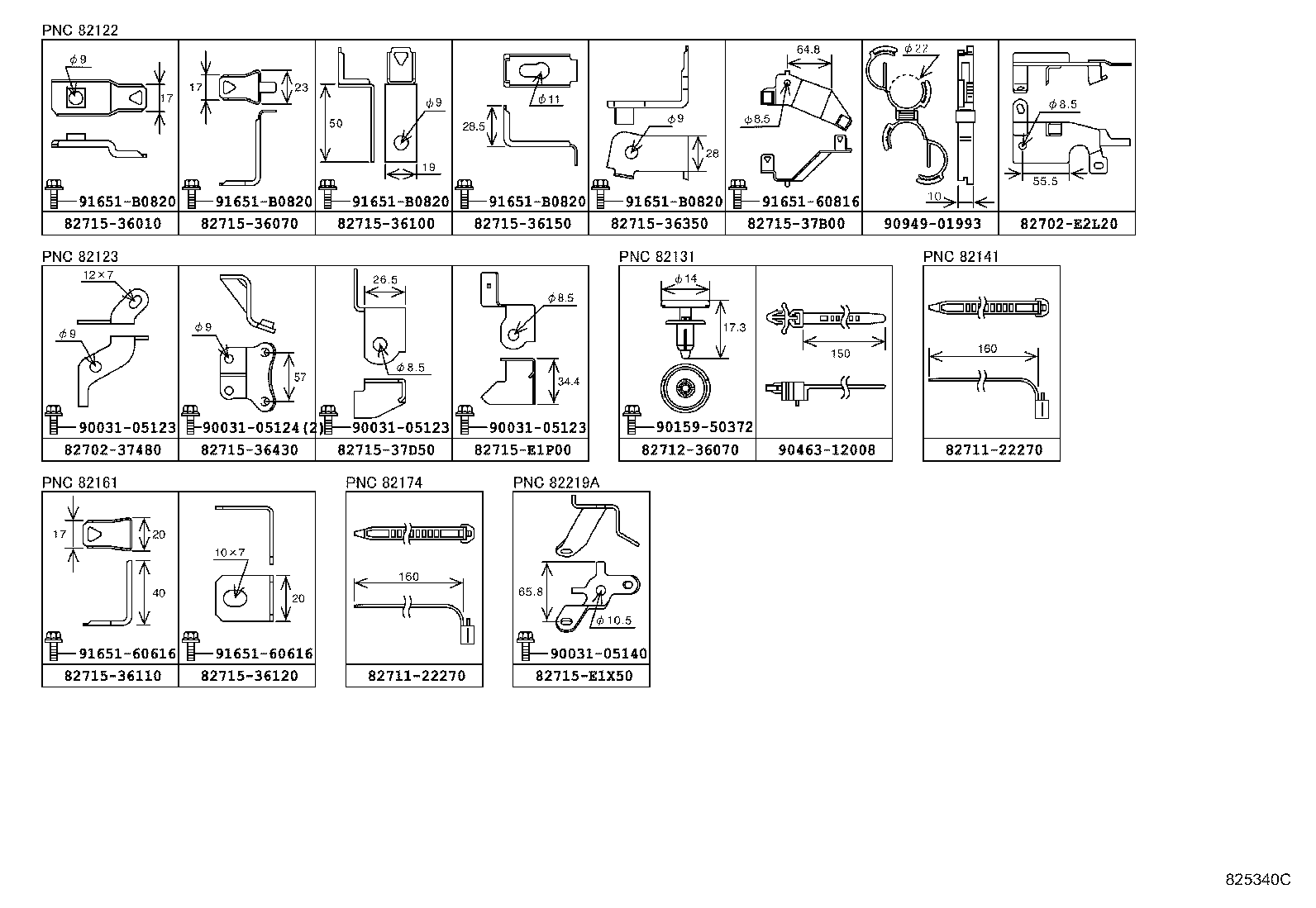

Figure 822479A 822479A 2000-12 → 2003-10 Figure 823708B 823708B 2003-10 → 2007-01 Figure 825332B 825332B 2007-01 → — Figure 825333C 825333C 2007-01 → 2011-08 Figure 827828 827828 2011-08 → — Figure 822480D 822480D 2000-12 → 2003-10 Figure 823709C 823709C 2003-10 → 2007-01 Figure 822481C 822481C 2000-12 → 2007-01 Figure 825334B 825334B 2007-01 → — Figure 825335 825335 2007-01 → 2011-08 Figure 827902B 827902B 2011-08 → — Figure 822482C 822482C 2000-12 → 2007-01 Figure 825327A 825327A 2007-01 → — Figure 822483A 822483A 2000-12 → 2007-01 Figure 823707A 823707A 2003-10 → 2007-01 Figure 823707A 823707A 2004-11 → 2007-01 Figure 825328B 825328B 2007-01 → — Figure 825329B 825329B 2007-01 → 2011-08 Figure 825329B 825329B 2011-08 → — Figure 822484B 822484B 2000-12 → 2007-01 Figure 825330A 825330A 2007-01 → — Figure 822485A 822485A 2000-12 → 2007-01 Figure 822486A 822486A 2000-12 → 2007-01 Figure 825338C 825338C 2007-01 → — Figure 825339E 825339E 2007-01 → — Figure 825340C 825340C 2007-01 → — Figure 822487B 822487B 2000-12 → 2007-01 Figure 825336 825336 2007-01 → — Figure 823761C 823761C 2003-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2

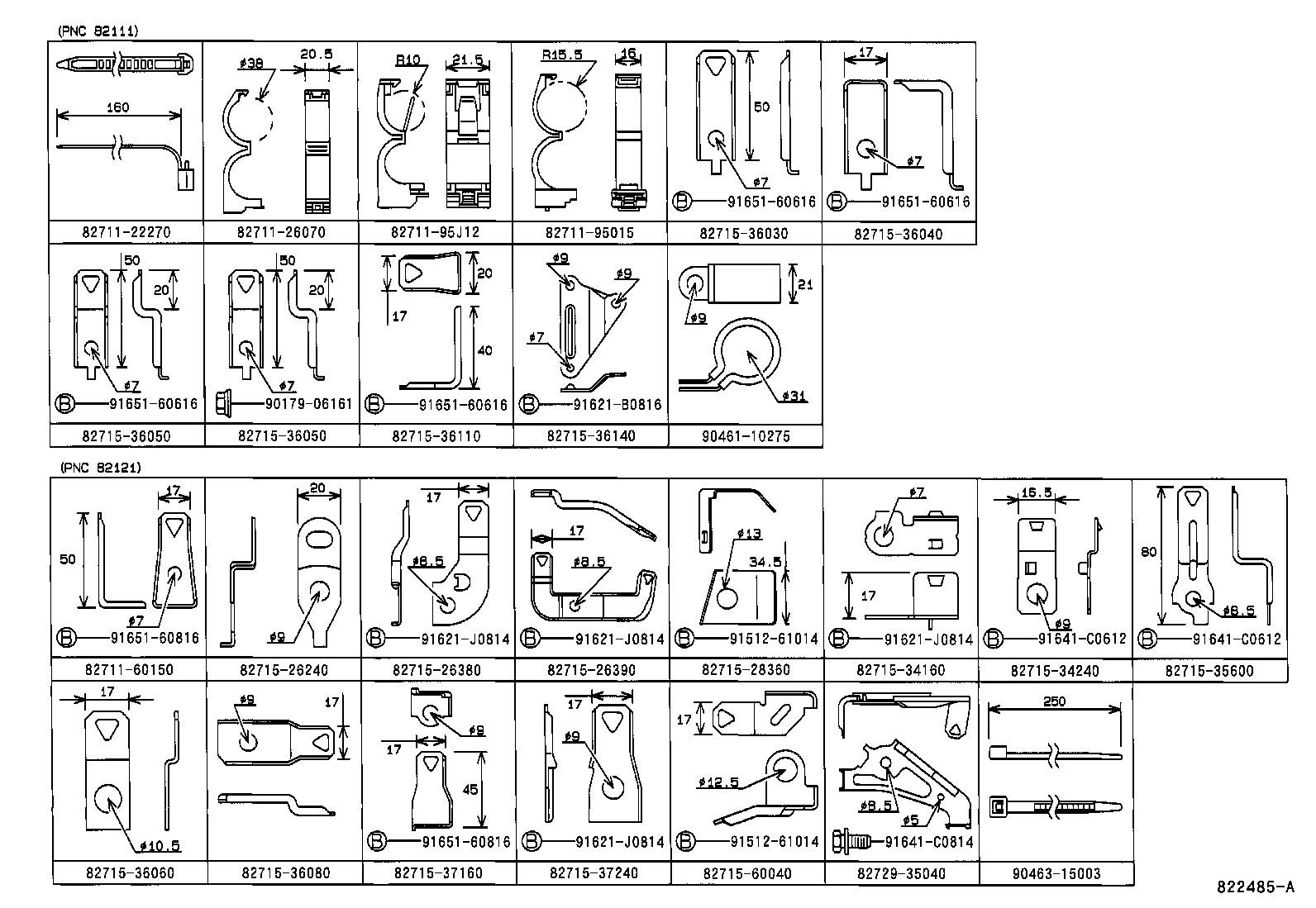

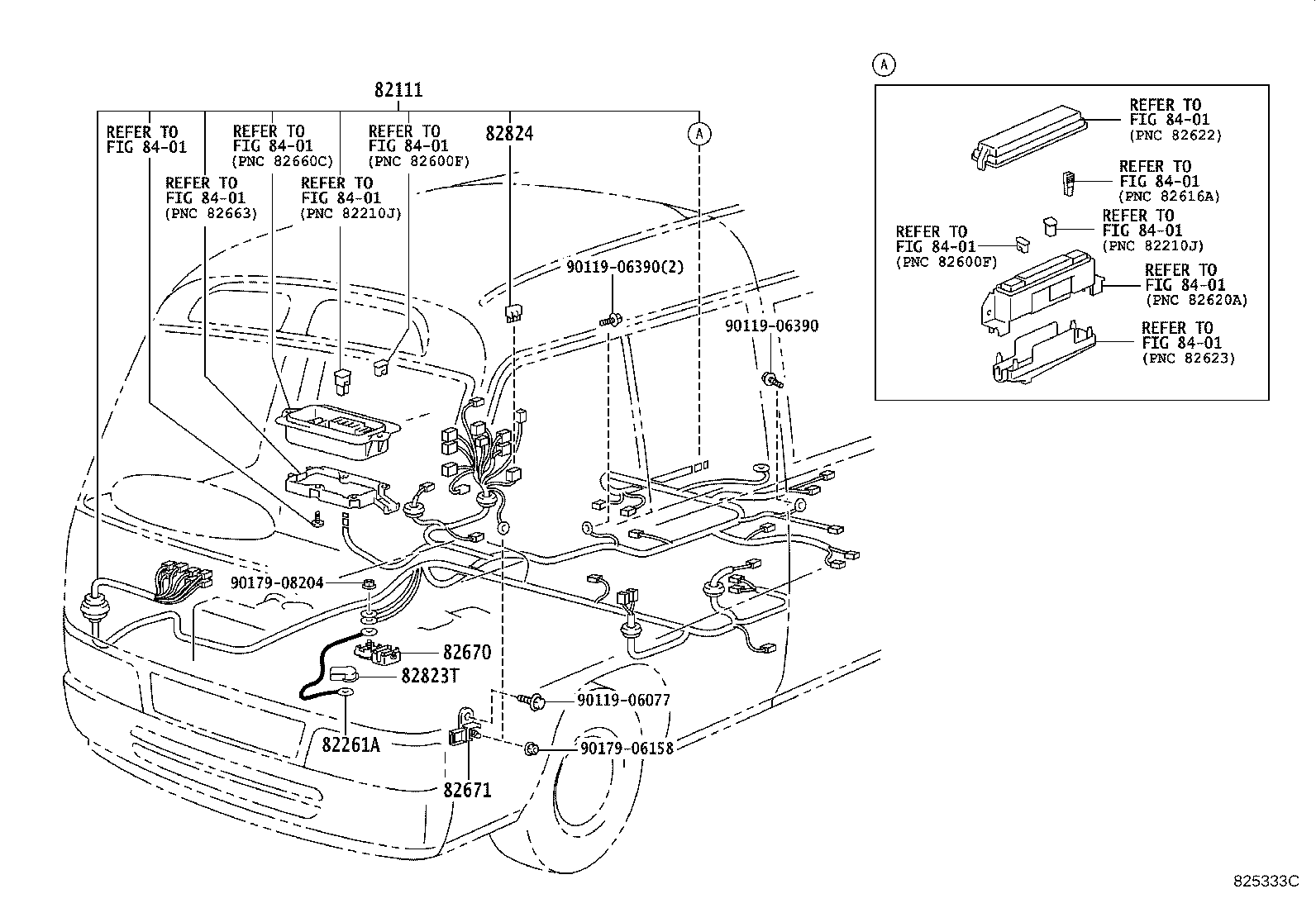

82111 Wire, Engine Room Main
82121 Wire, Engine

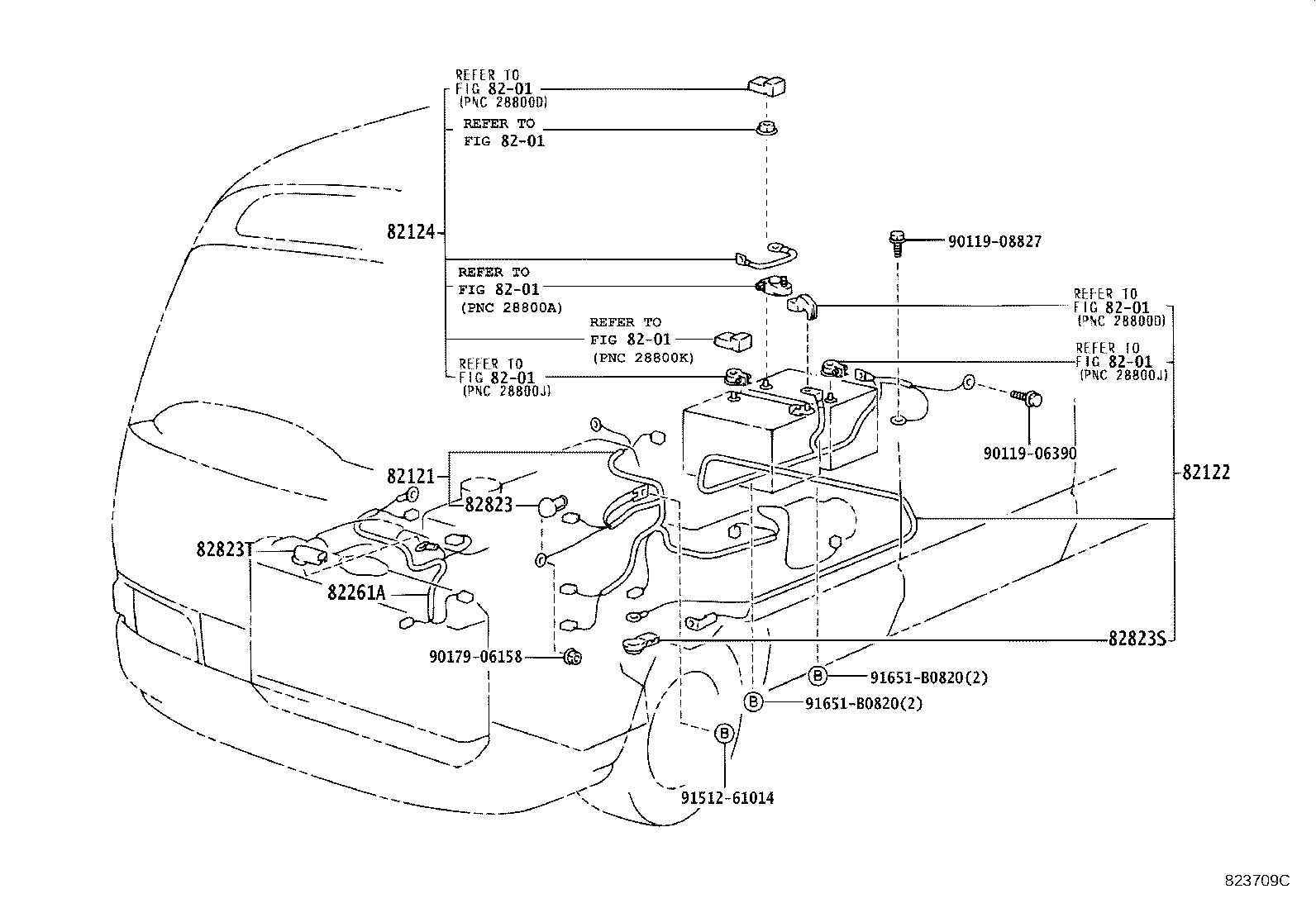

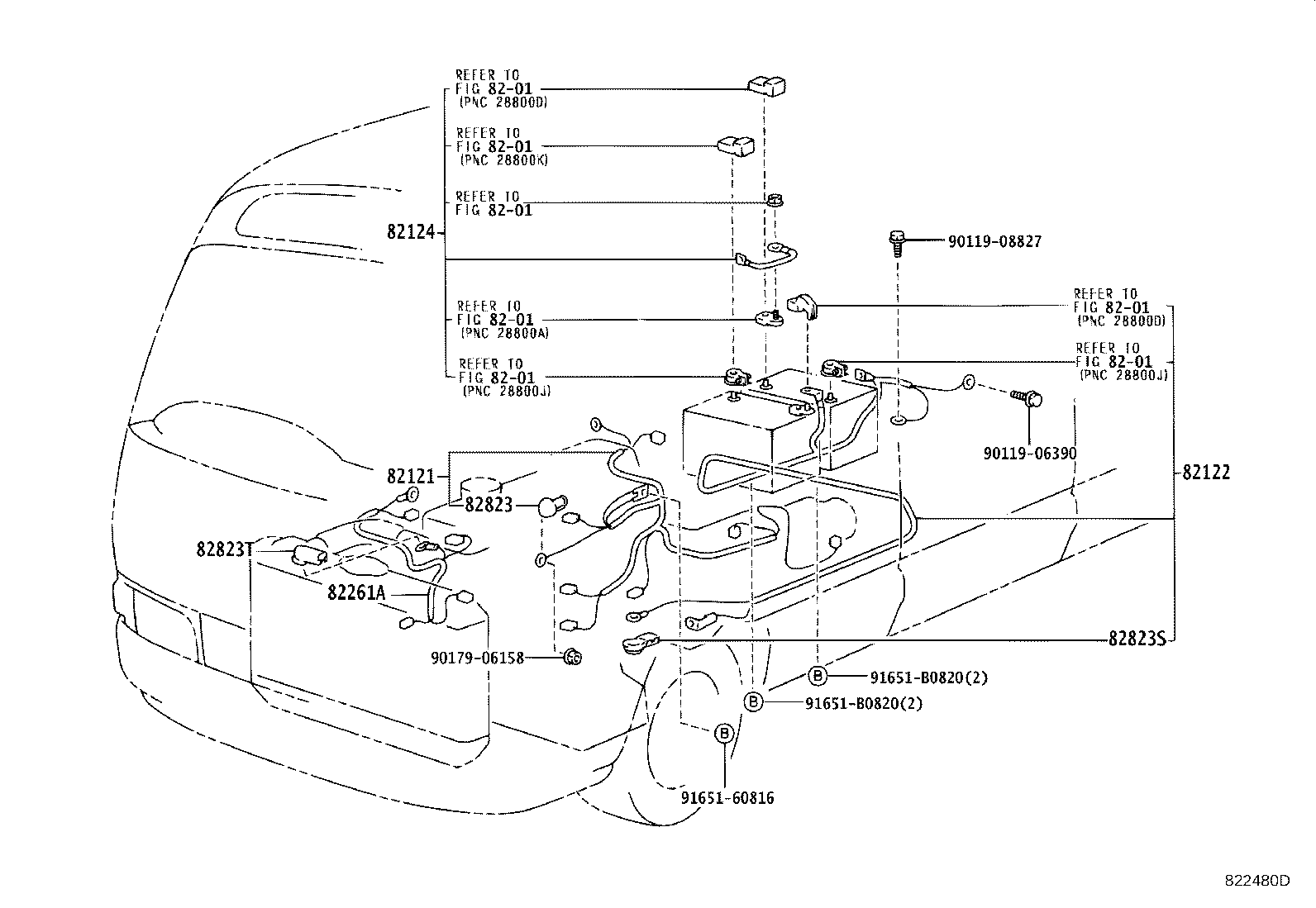

82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82131 Wire, Cowl

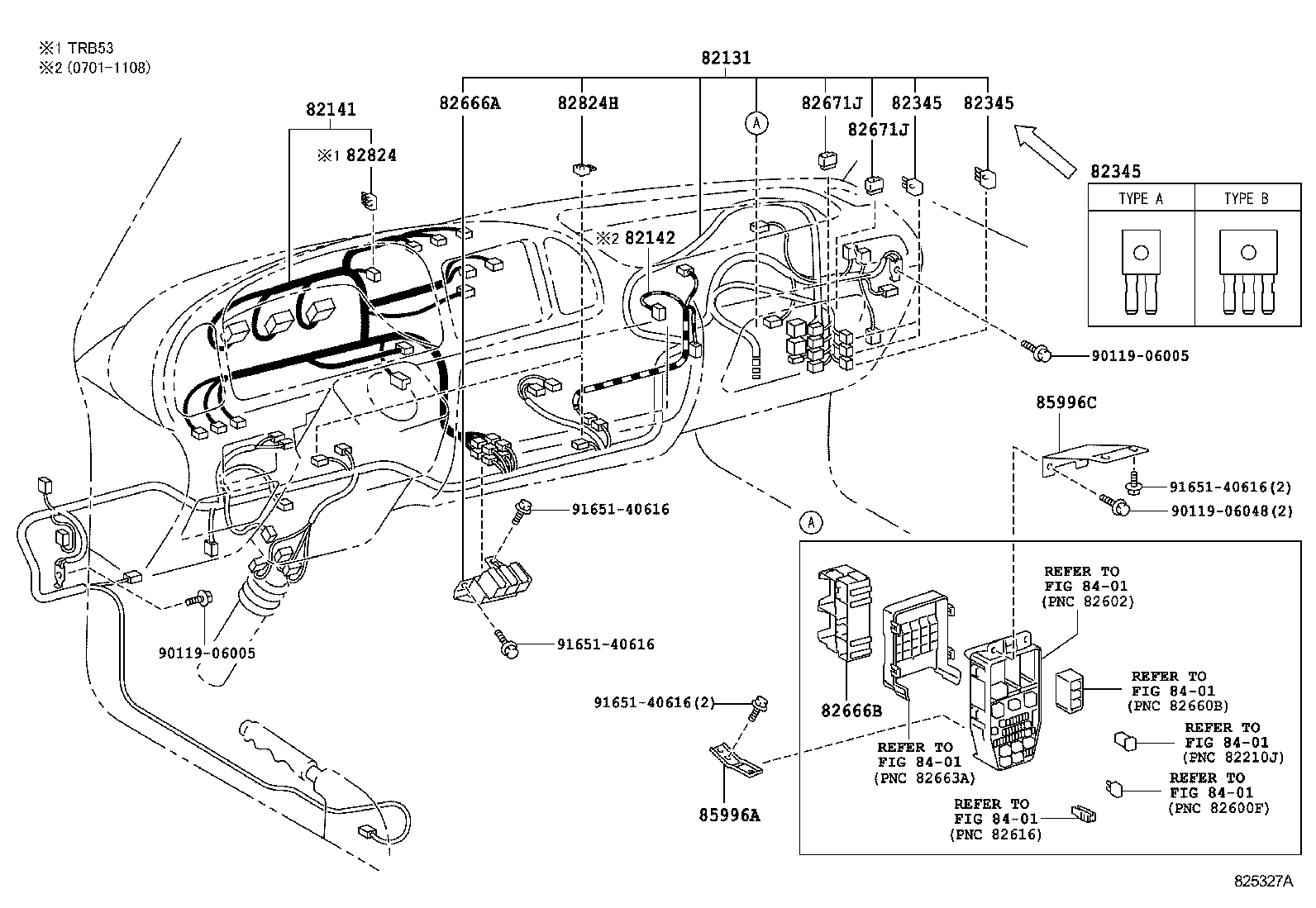

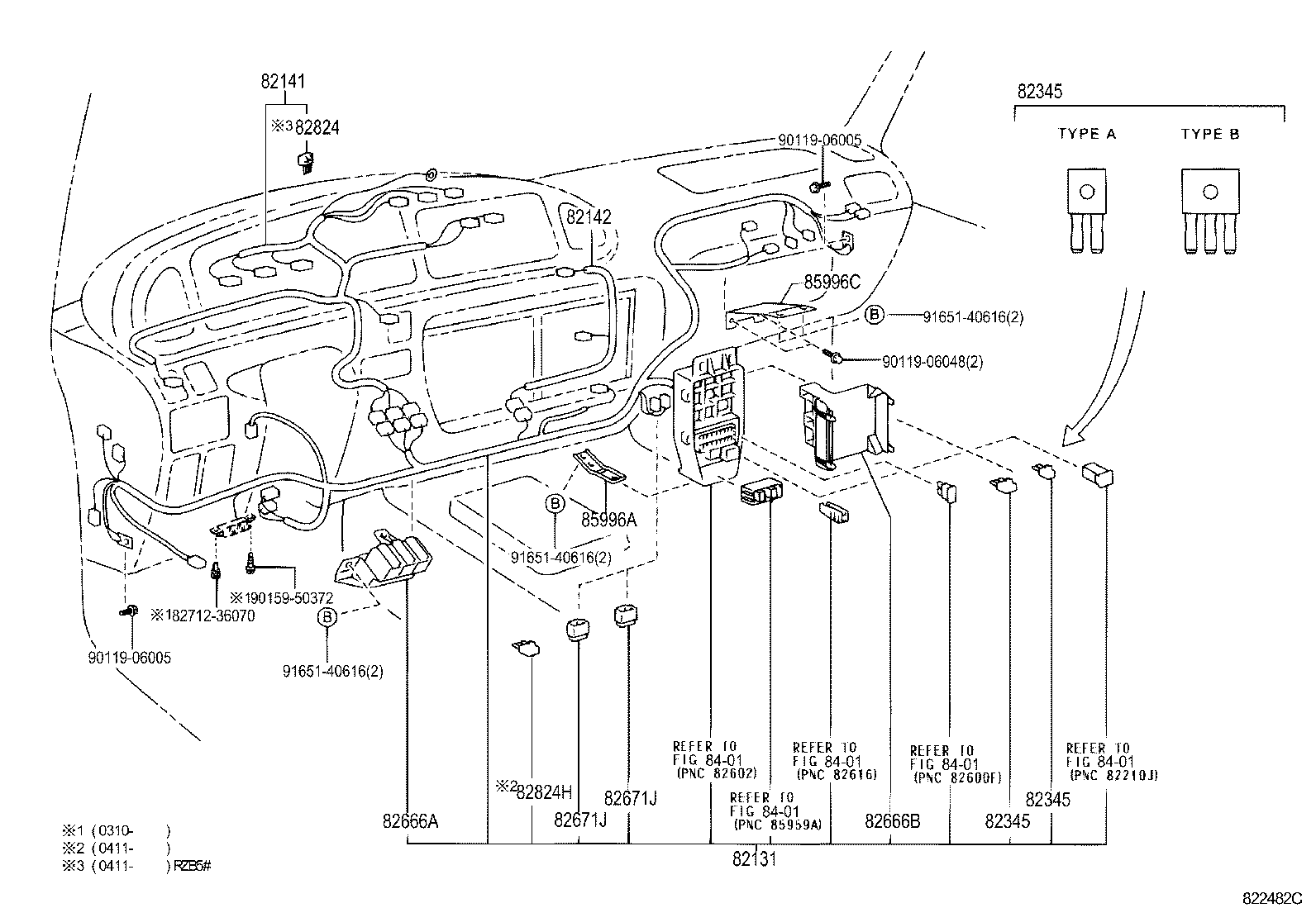

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2

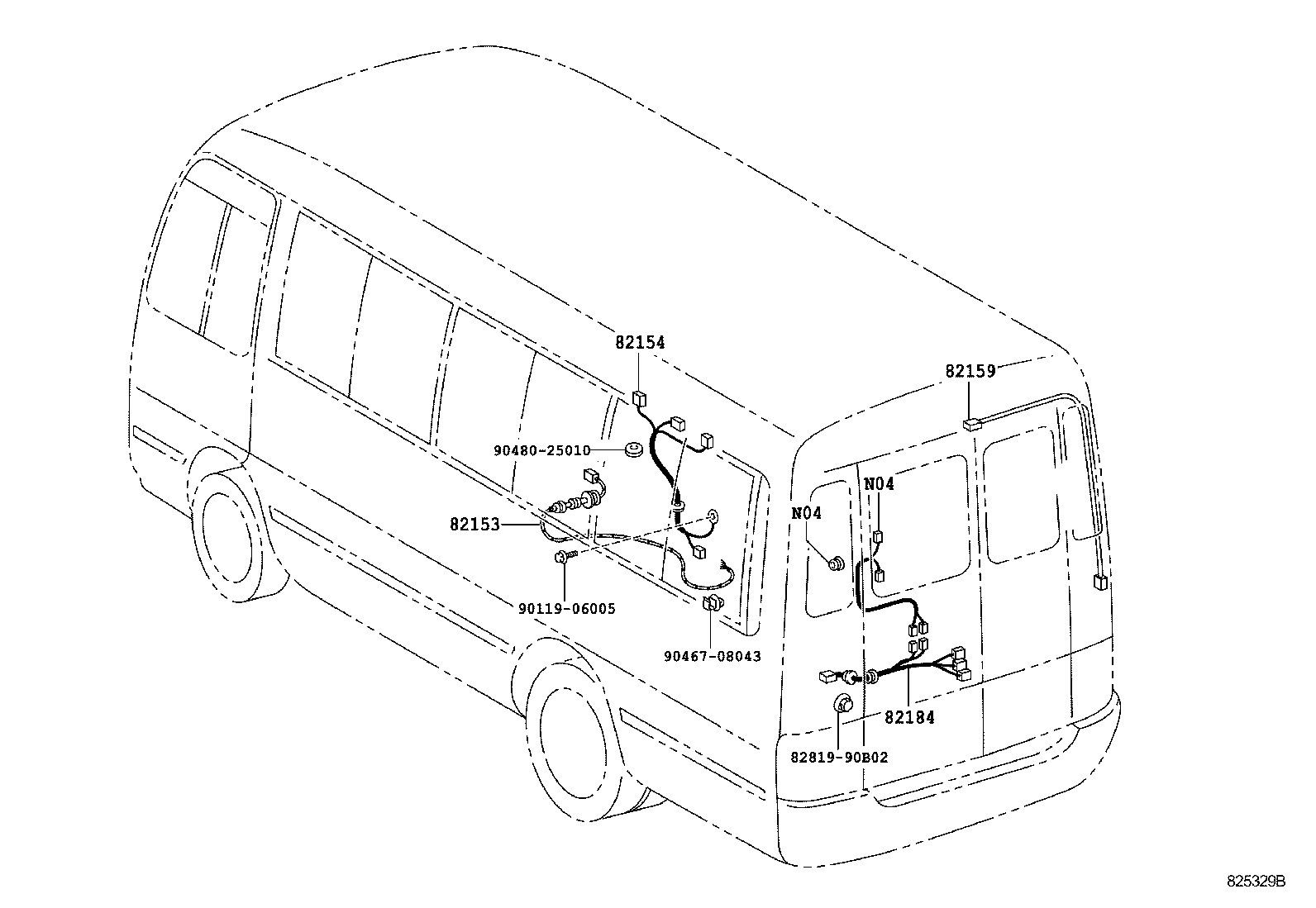

82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82159 Wire, Pillar, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82174 Wire, Roof, NO.4
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2

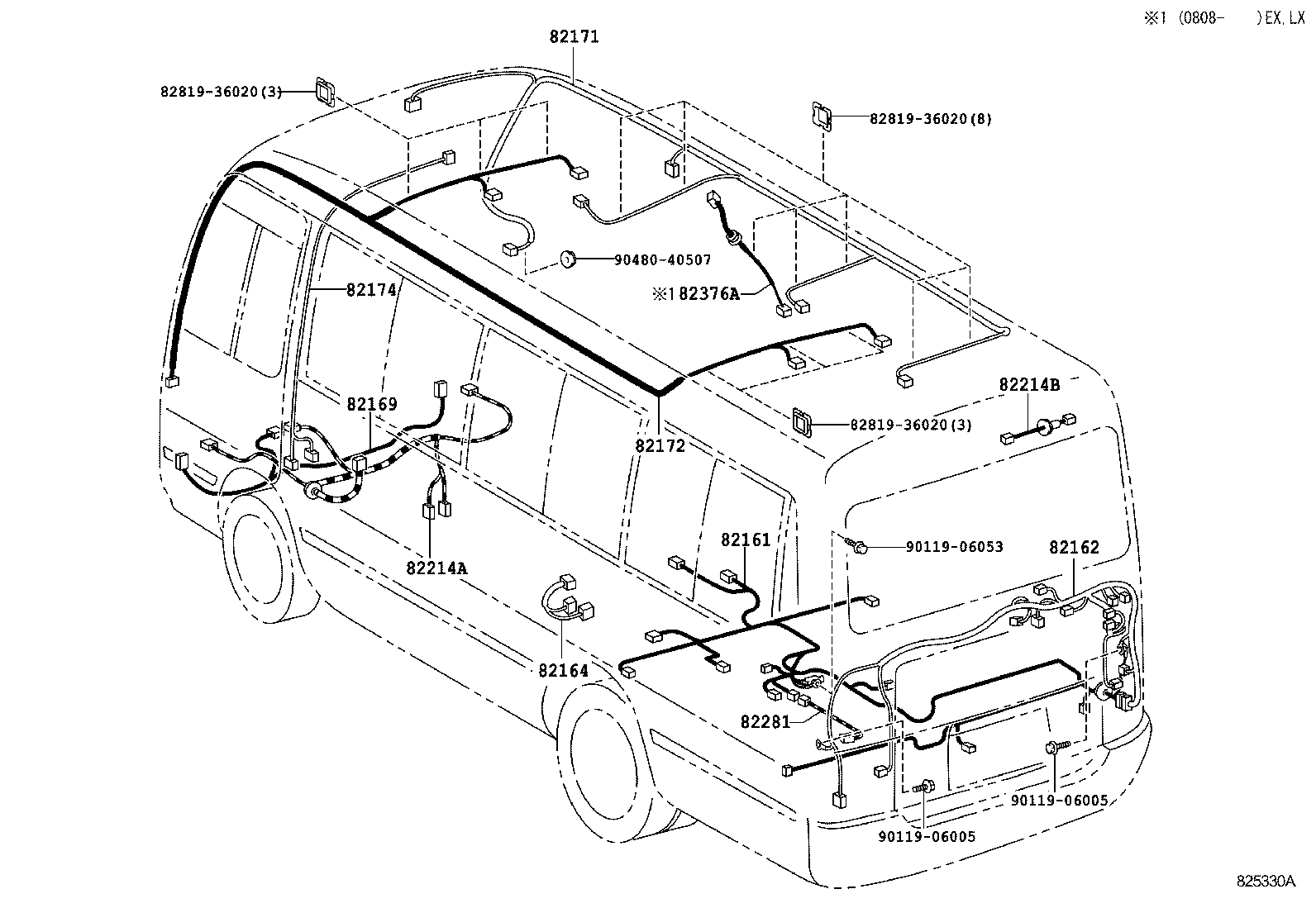

82214A Wire, Lamp
82214B Wire, Lamp, Rear
82219A Wire, Sensor
82261A Wire, Alternator
82281 Wire, Gage
82345 Diode
82376A Wire, Auto Fan
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82671J Block, Junction, NO.2
82817 Protector, Wiring Harness, NO.1
82822 Bracket,Connector Block
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824H Connector, Wiring Harness
85996A Bracket, Relay, NO.2
85996C Bracket, Relay
86011G Condenser
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
