Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

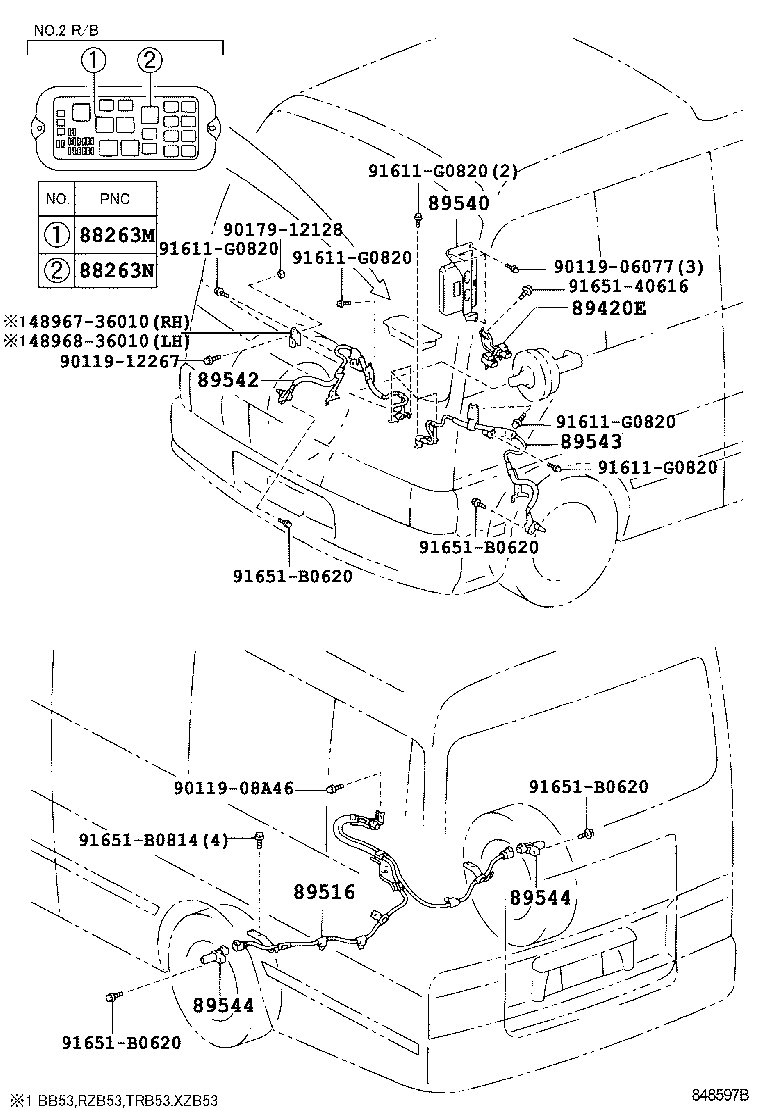

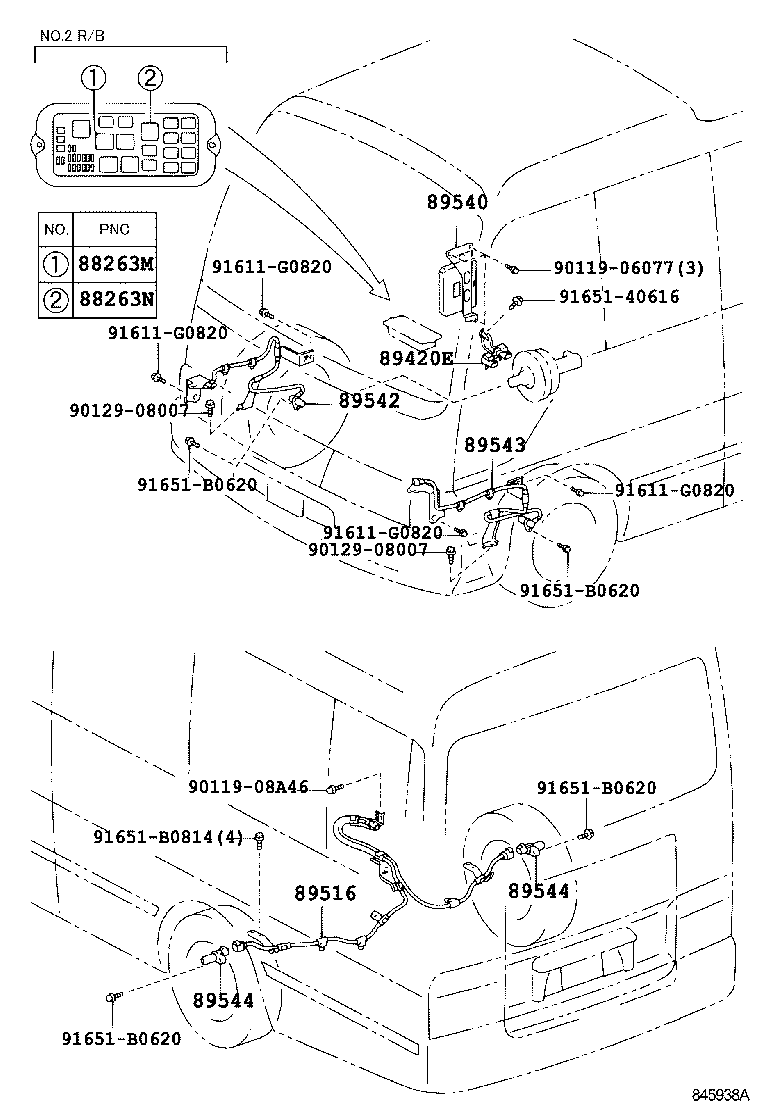

Abs & Vsc
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88263M | Relay, Abs Solenoid |
| 88263N | Relay, Abs Motor |
| 88266B | Clamp, Skid Control Sensor, NO.1 |
| 89420E | Sensor Assy, Vacuum |
| 89516 | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
