Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01
Radio Receiver & Amplifier & Condenser

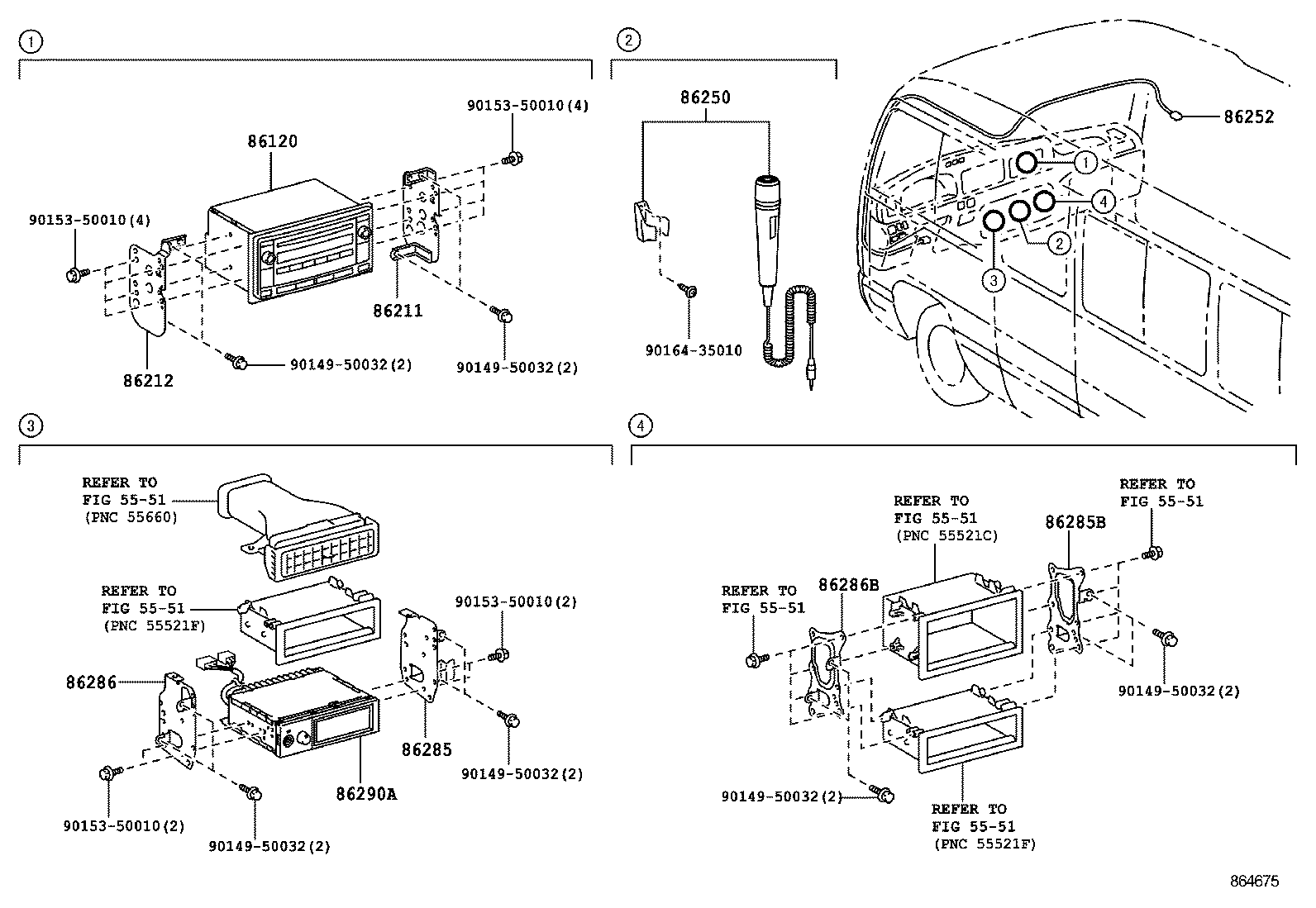

12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86120 | Receiver Assy, Radio |
| 86206 | Converter Sub-assy, Voltage |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86245 | Bracket, Voltage Converter |
| 86250 | Microphone Assy, Amplifier |
| 86252 | Code, Microphone, NO.1 |
| 86285 | Bracket, Amplifier, NO.1 |
| 86285B | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
| 86286B | Bracket, Amplifier, NO.2 |
| 86290A | Amplifier Assy, Microphone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
