Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

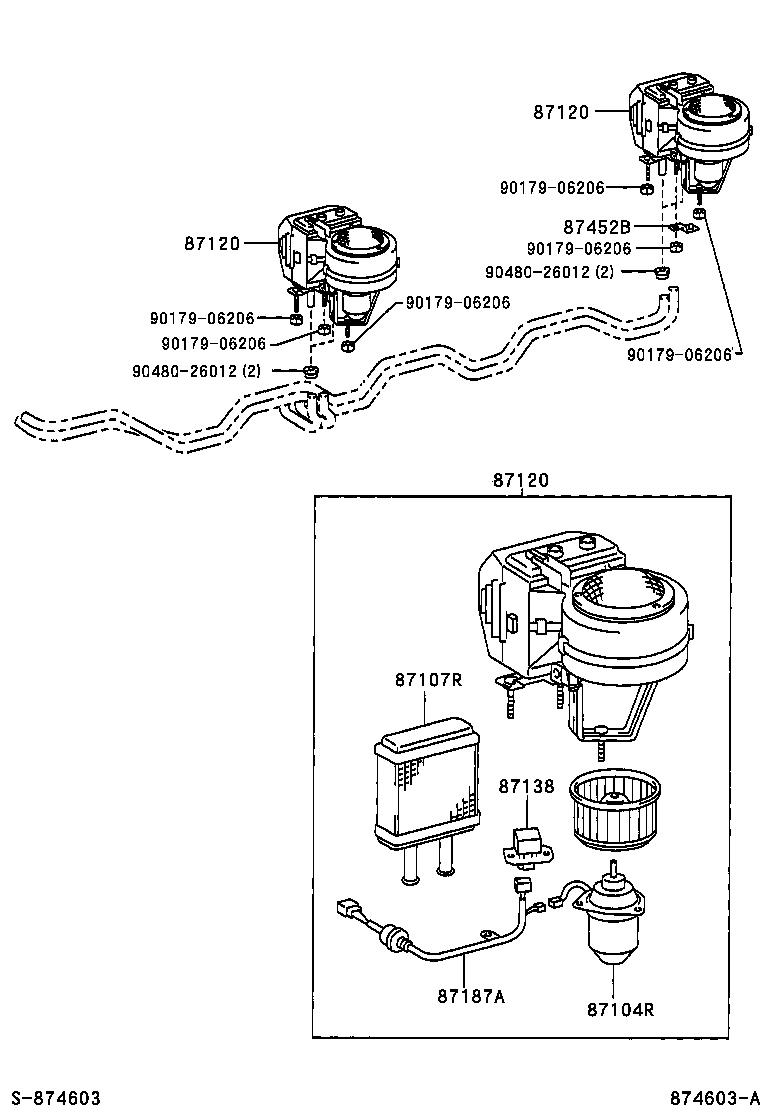

Heating & Air Conditioning - Heater Unit & Blower
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87110 | Heater Assy |
| 87120 | Heater Assy, Rear |
| 87138 | Resistor, Heater Blower |
| 87174A | Guide, Air Heater |
| 87187A | Wire, Blower Motor Lead |
| 87211E | Duct, Air |
| 87211F | Duct, Air |
| 87248Q | Pipe, Front Heater Radiator Water |
| 87452A | Bracket, Heater, Front |
| 87452B | Bracket, Heater, Rear |
| 87452C | Bracket, Front Heater, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
