Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

34 part groups · 18 illustrations

Illustrations

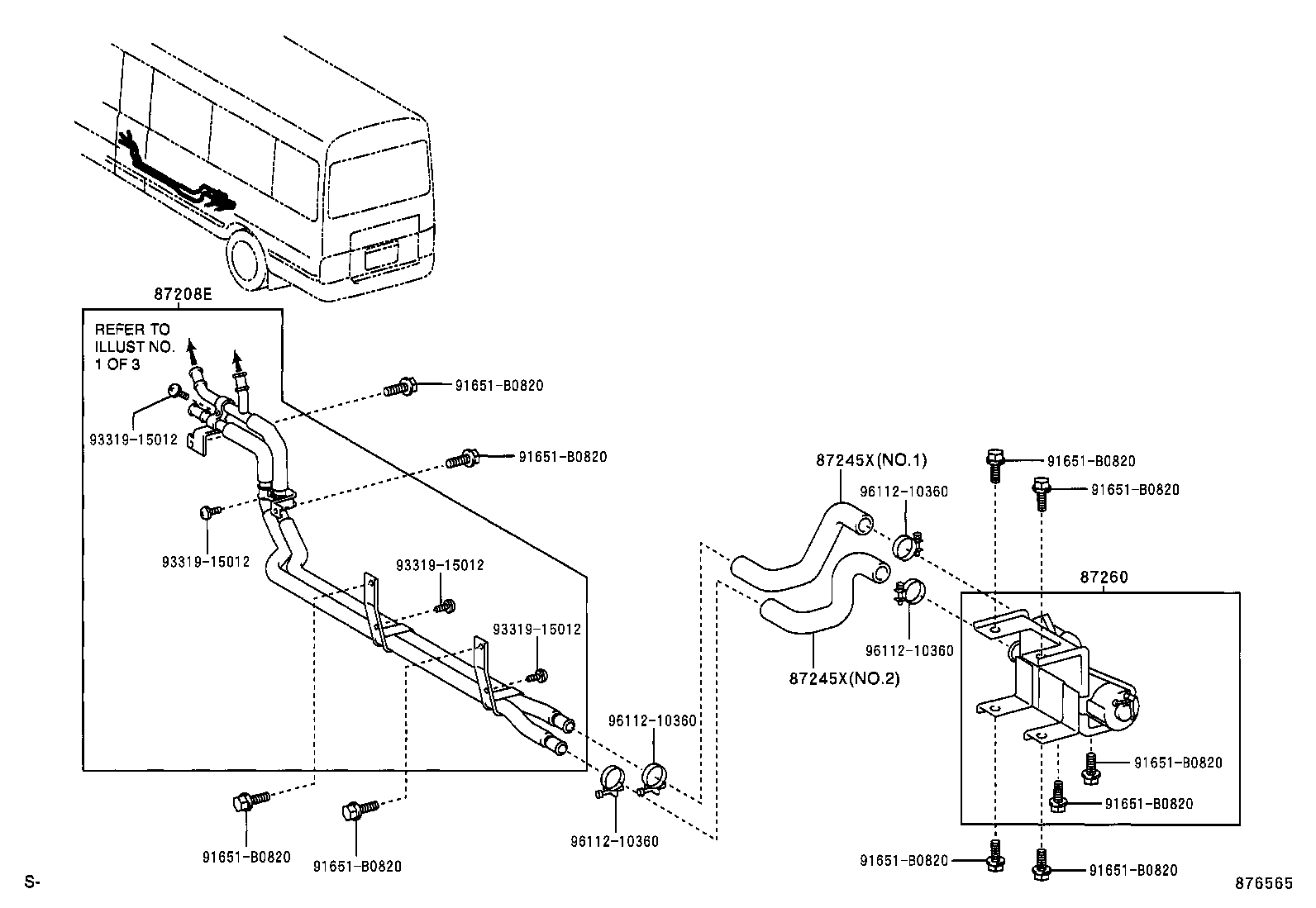

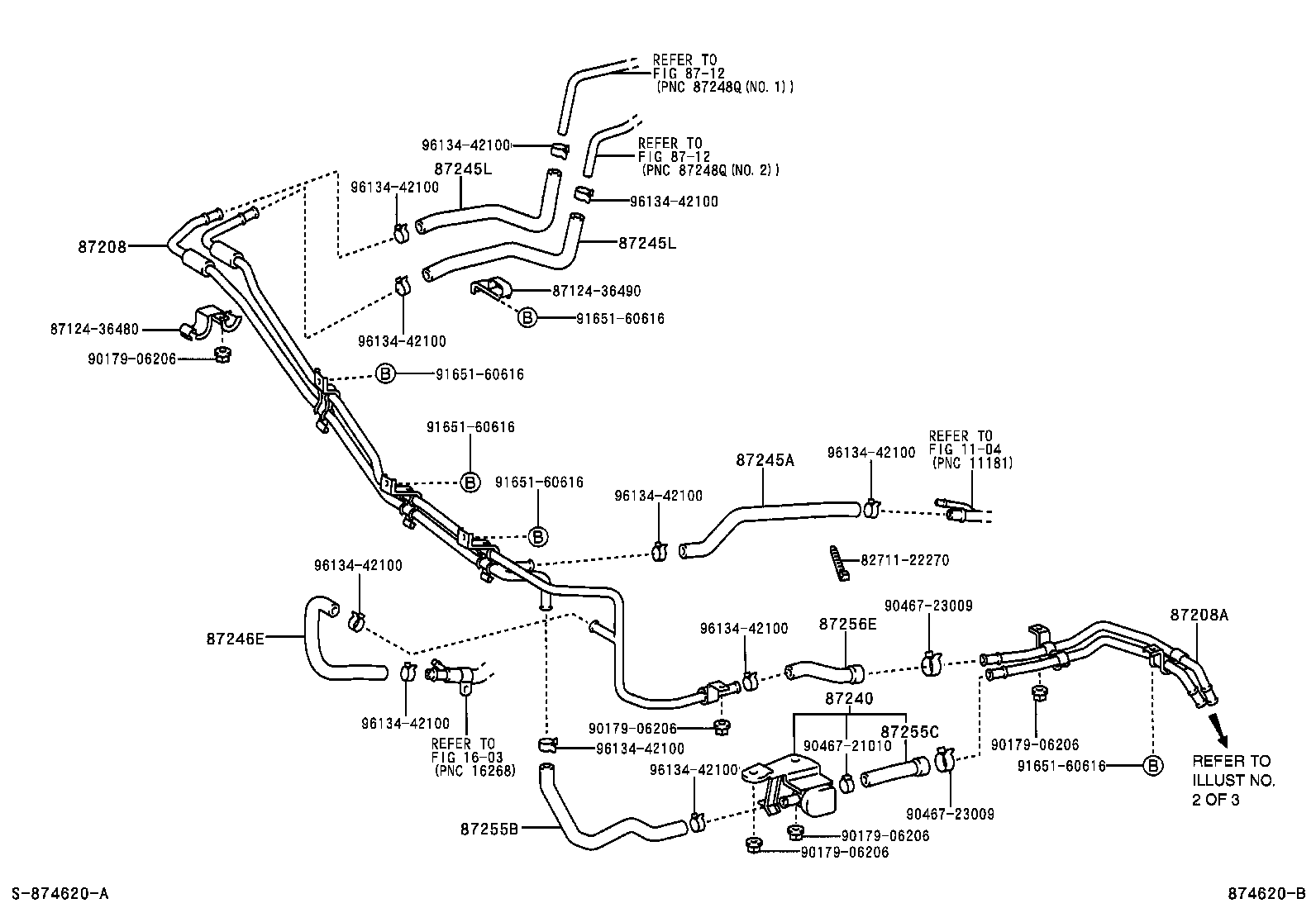

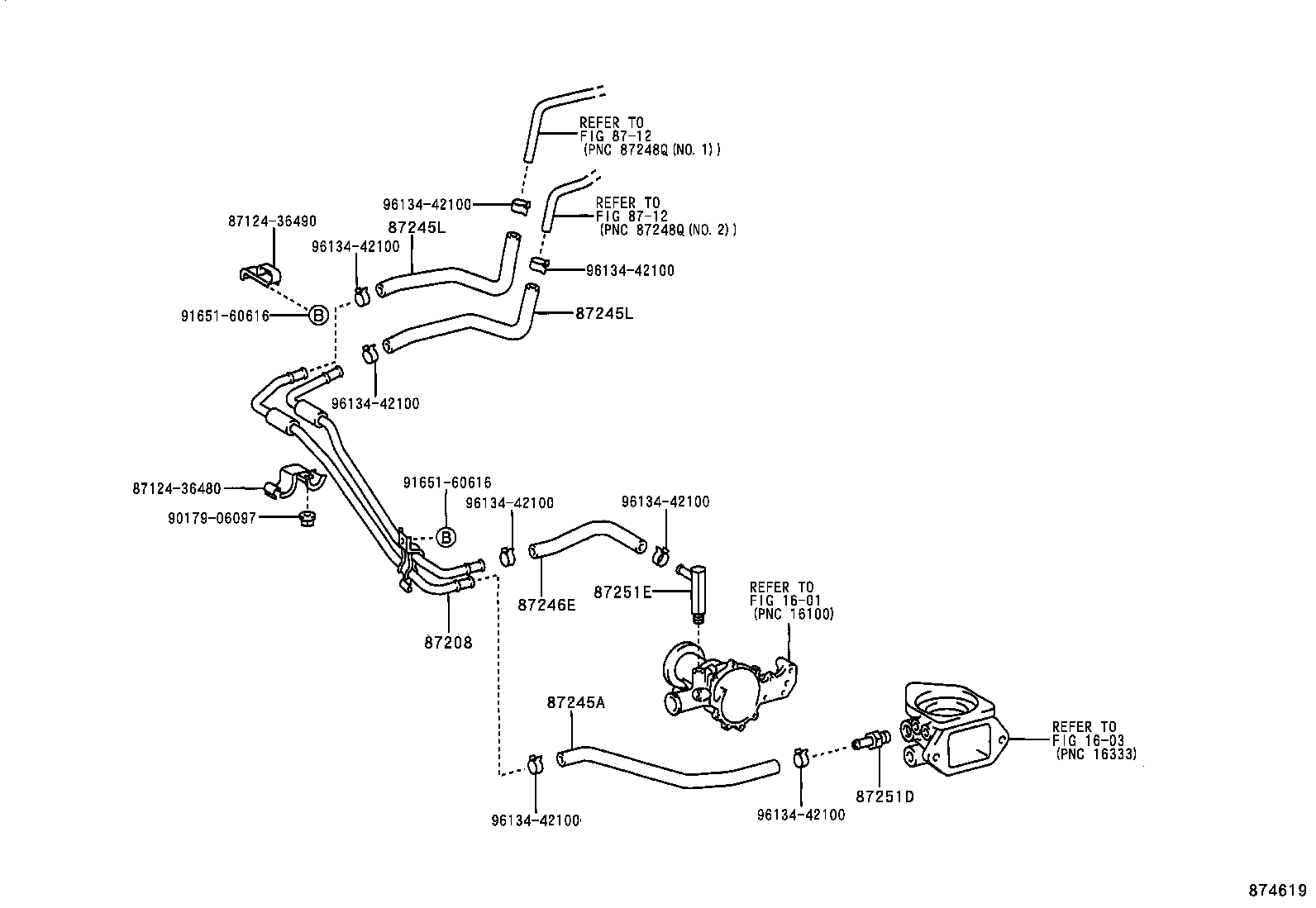

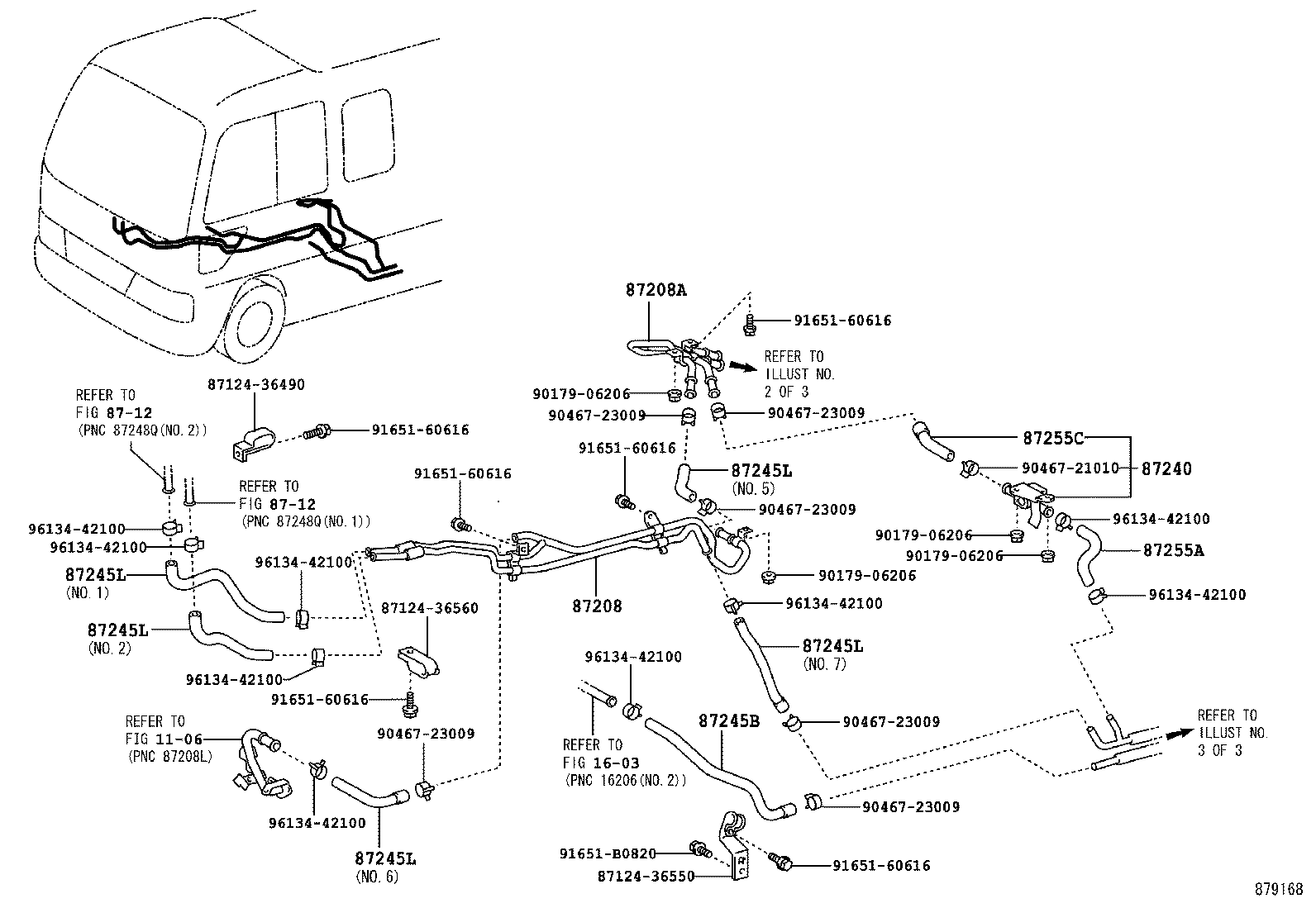

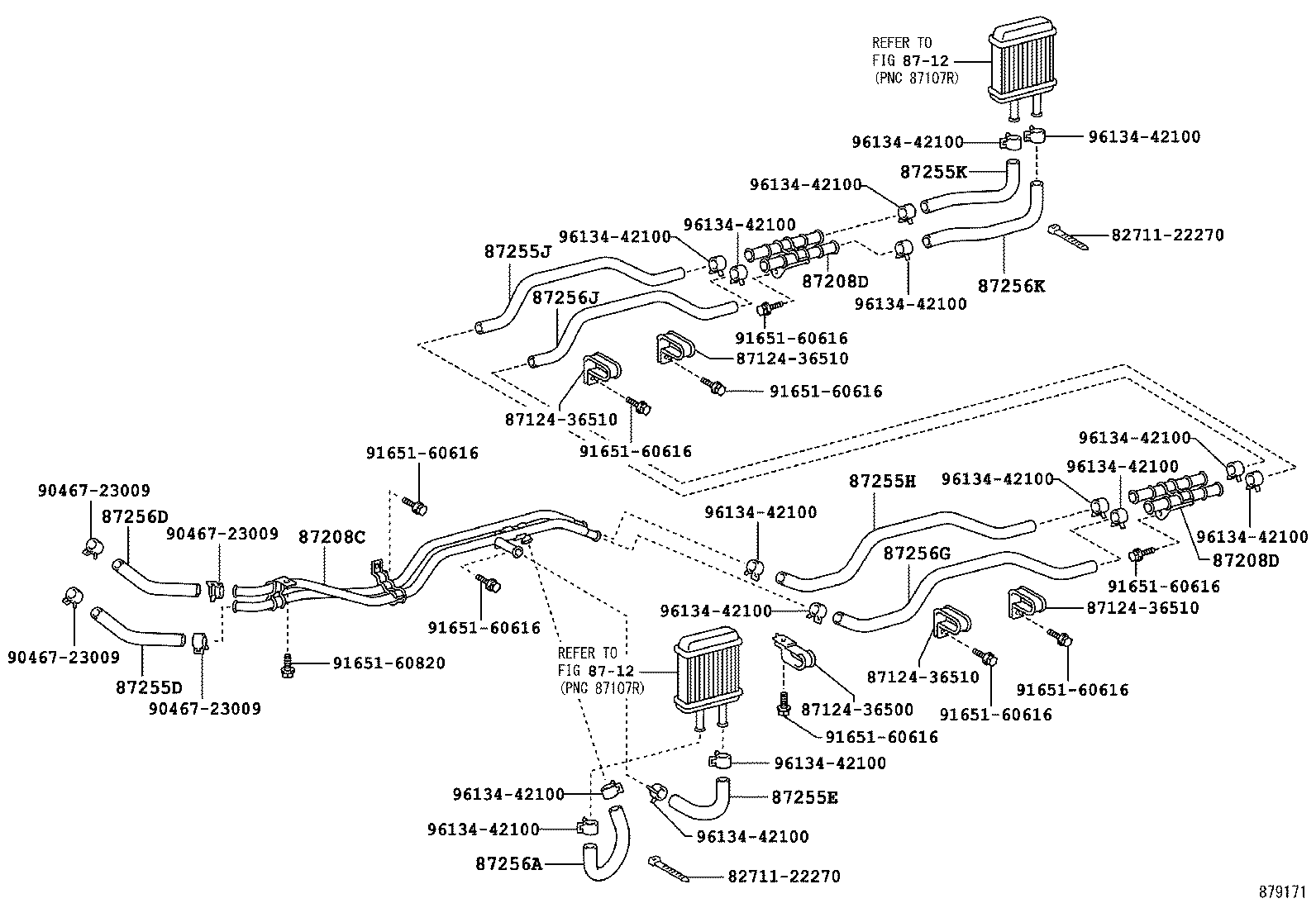

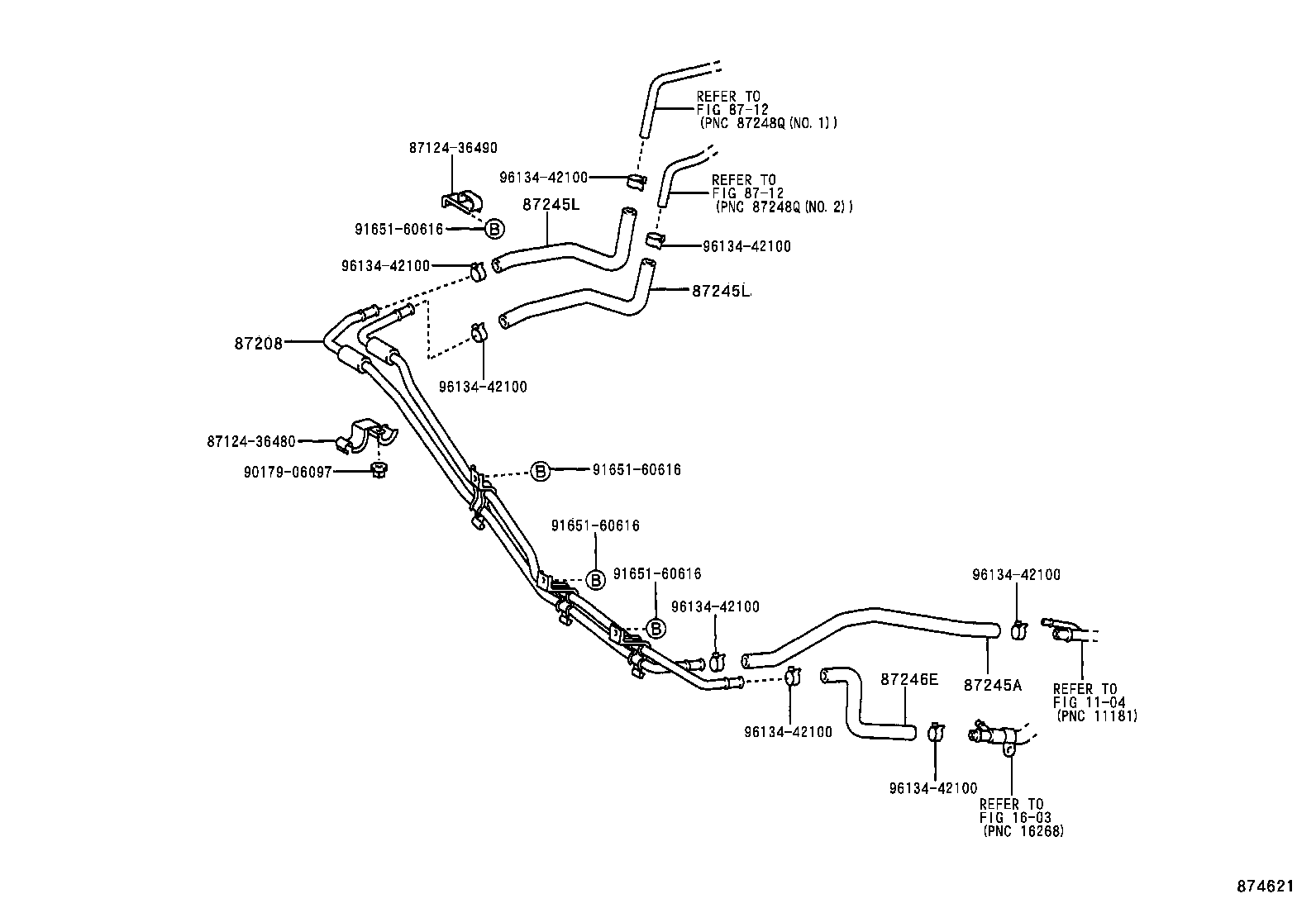

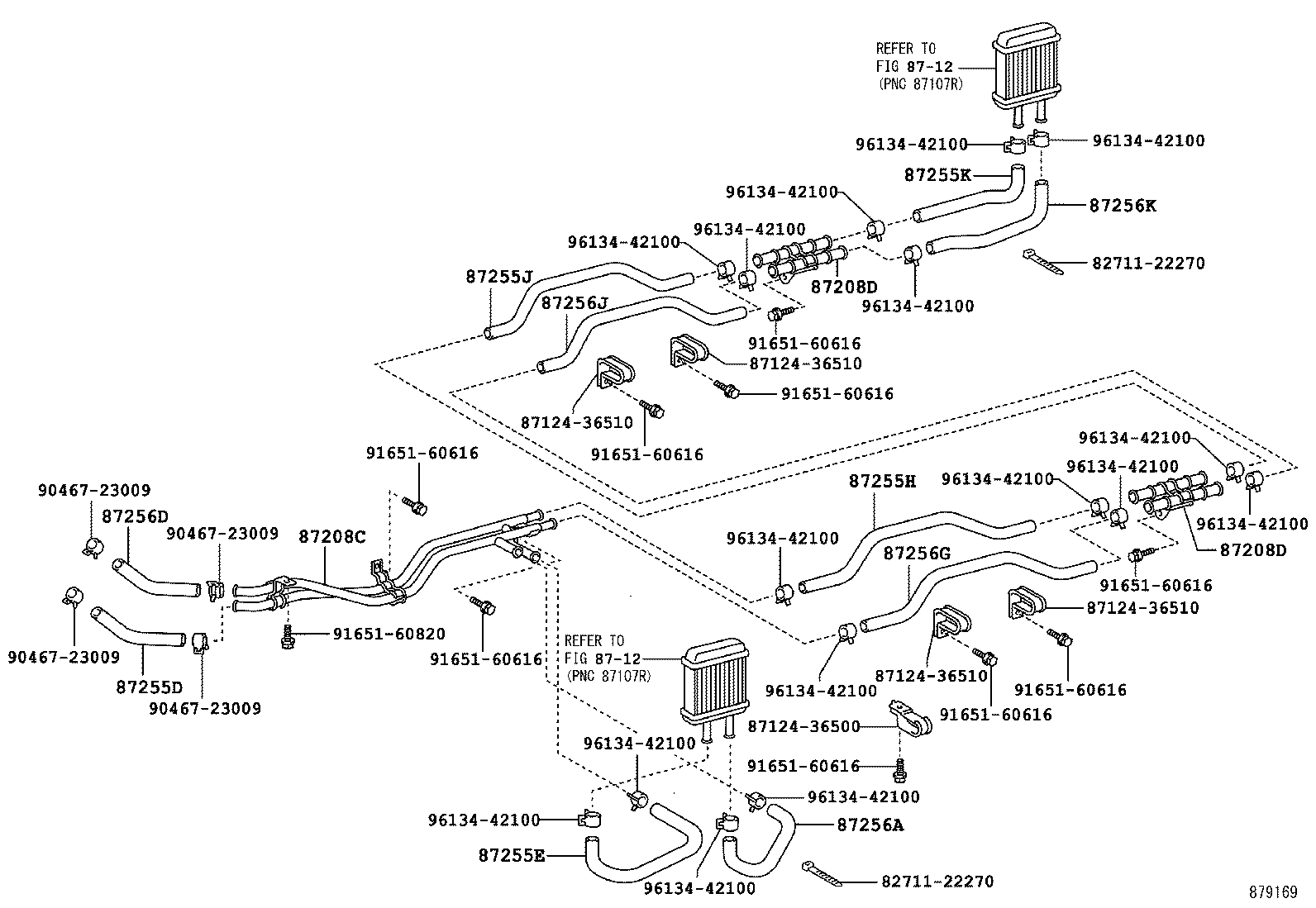

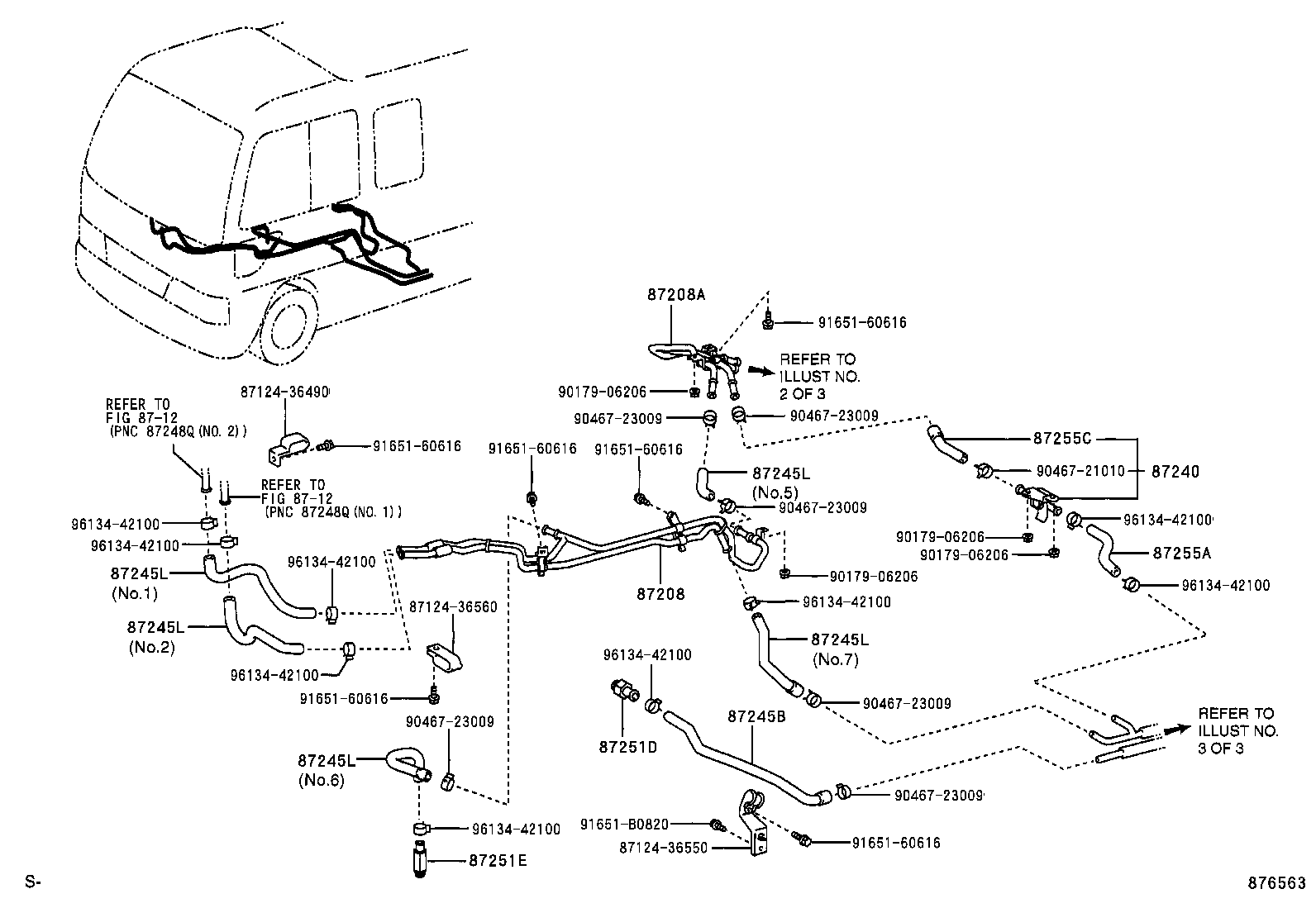

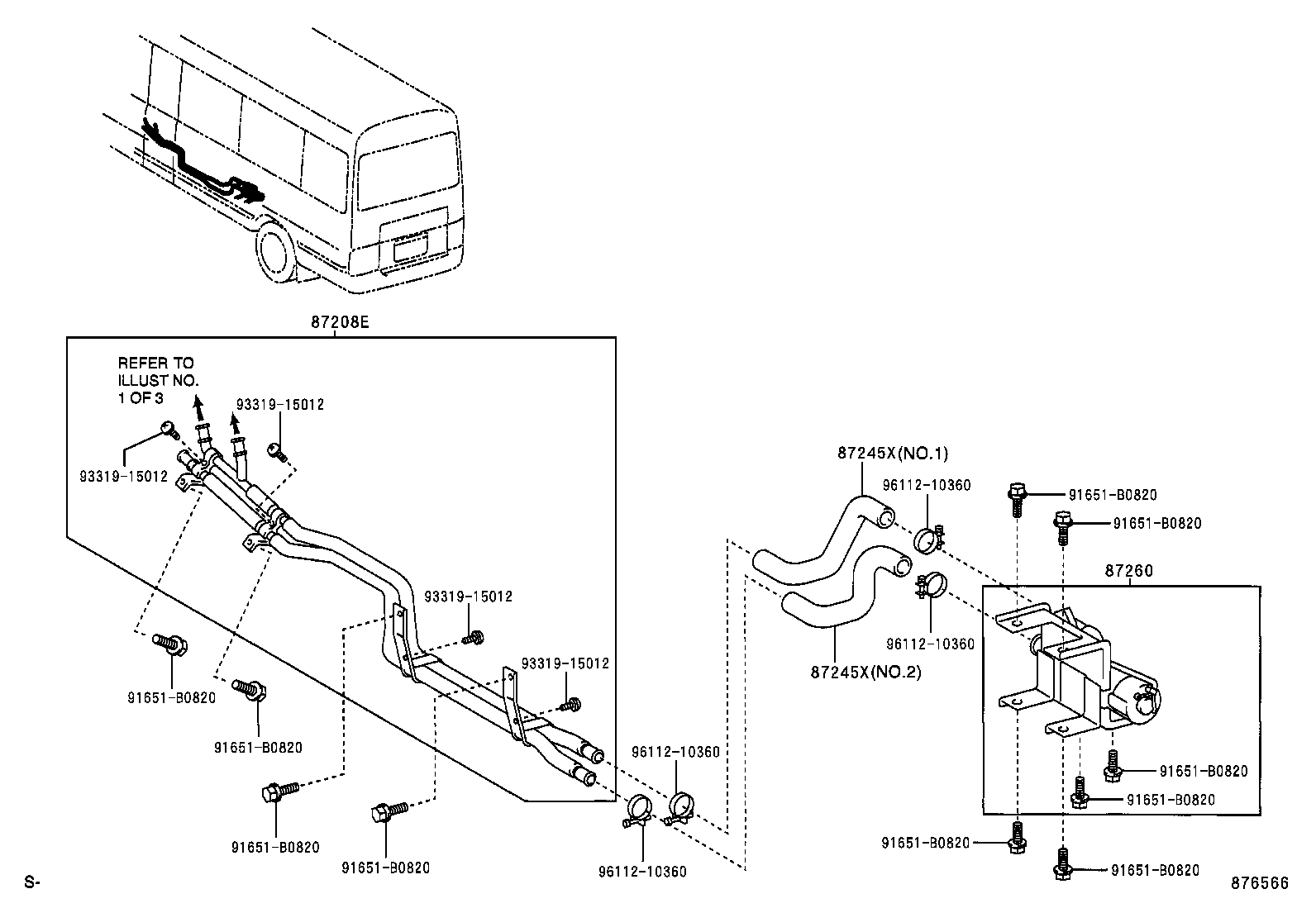

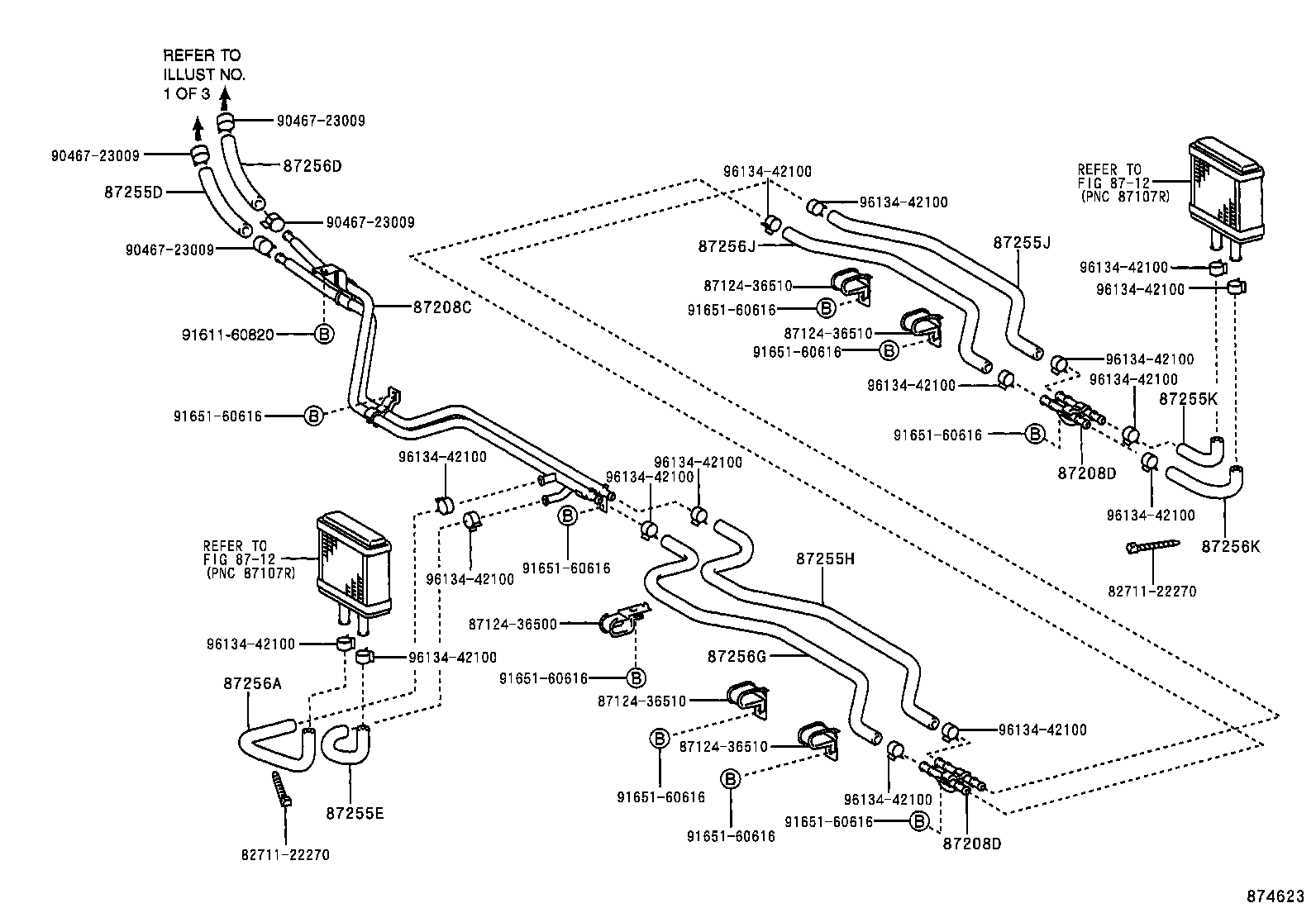

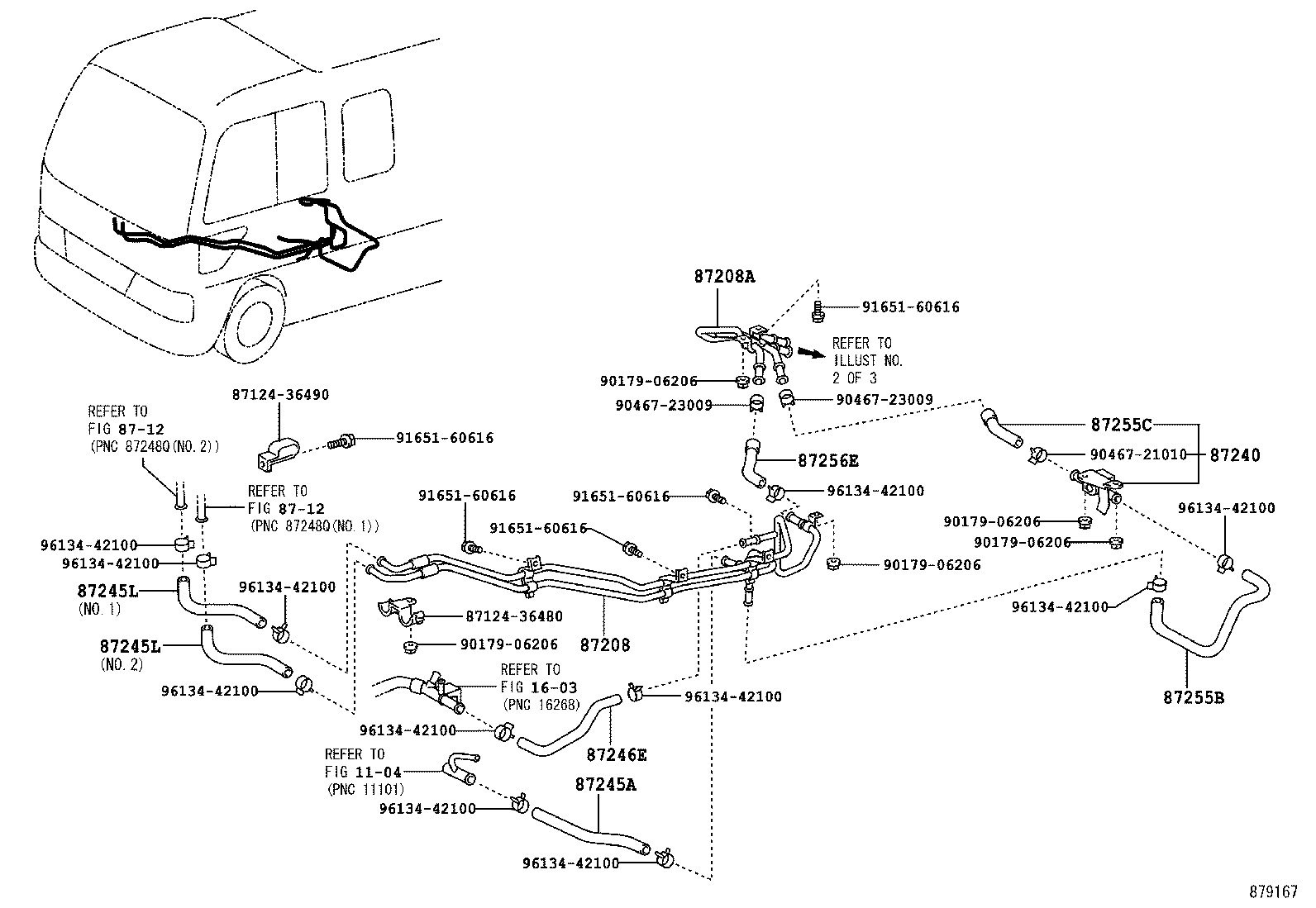

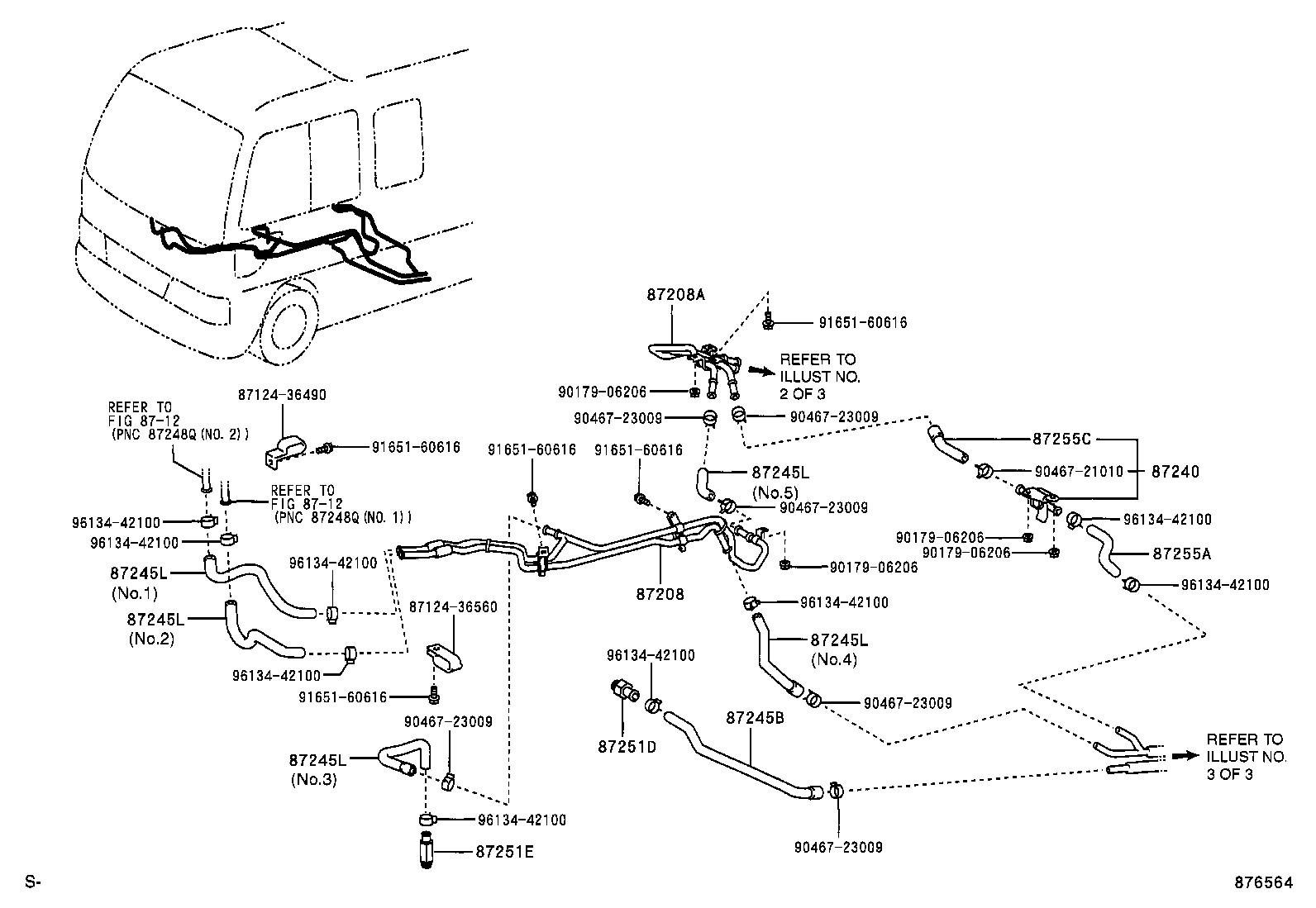

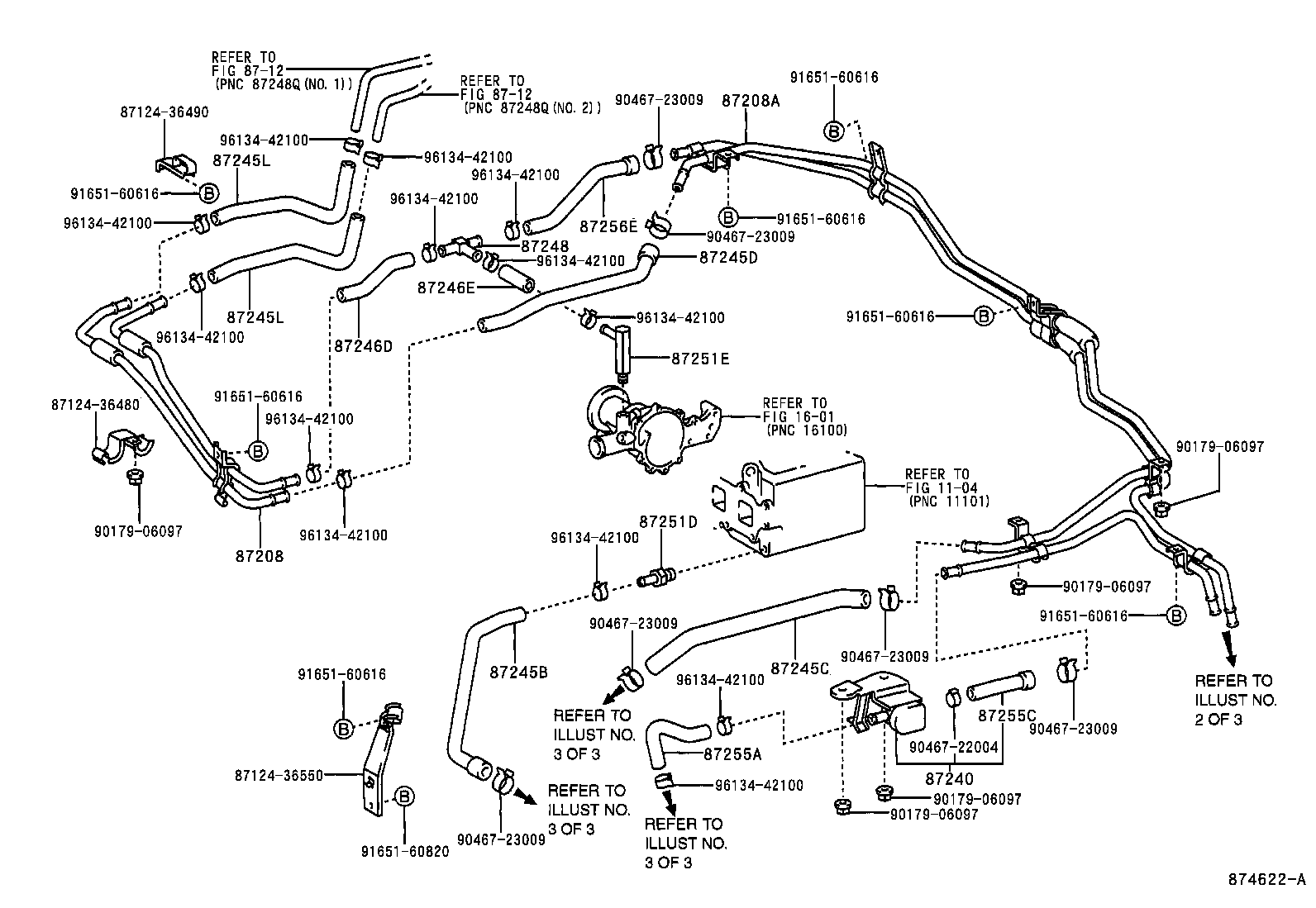

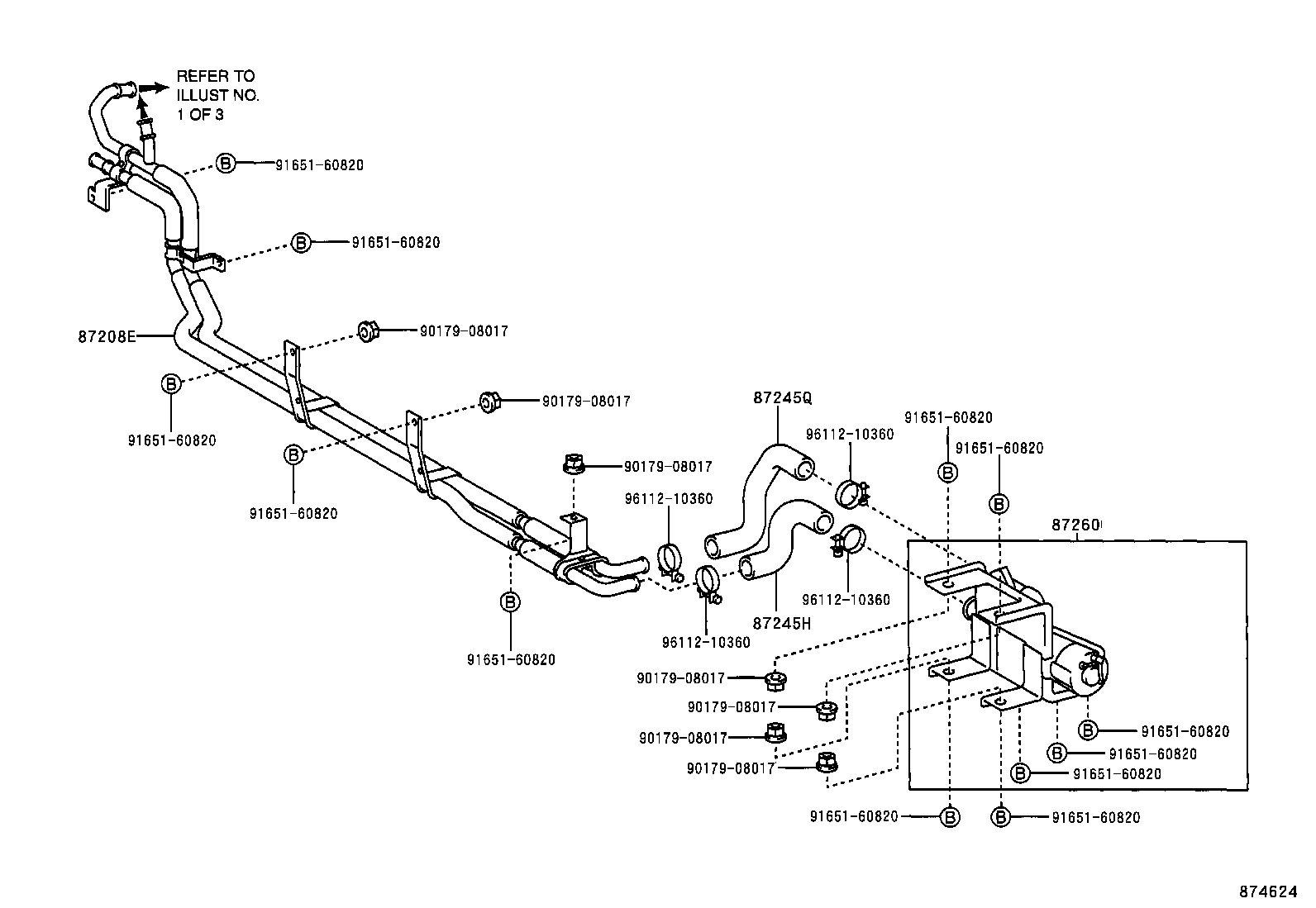

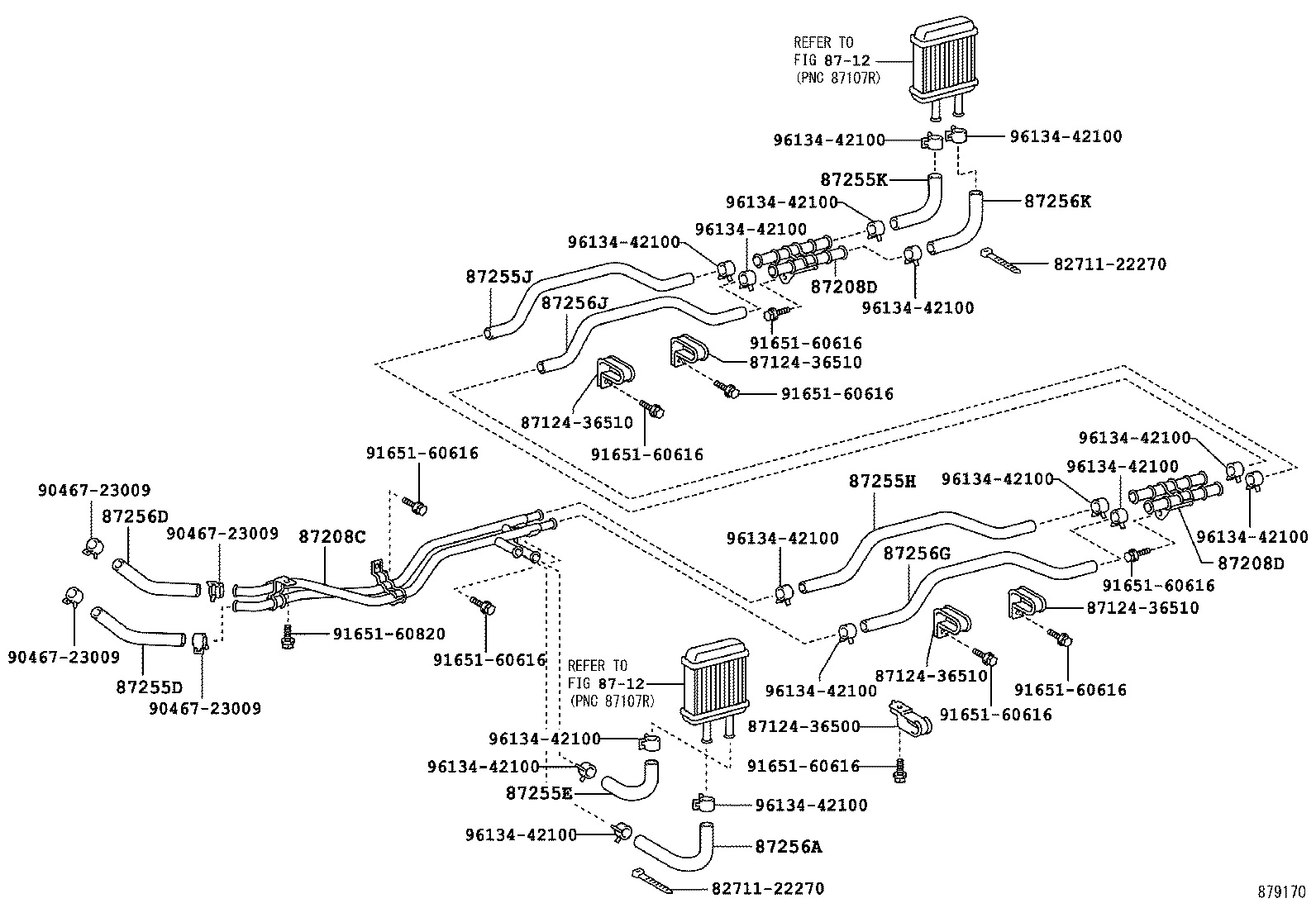

Figure 874618 874618 2000-12 → 2003-10 Figure 874619 874619 2000-12 → 2003-10 Figure 874622A 874622A 2000-12 → 2003-10 Figure 874621 874621 2000-12 → 2003-10 Figure 874620B 874620B 2000-12 → 2007-01 Figure 876563 876563 2003-10 → 2007-01 Figure 876564 876564 2003-10 → 2007-01 Figure 879167 879167 2007-01 → — Figure 879168 879168 2007-01 → — Figure 874623 874623 2000-12 → 2003-10 Figure 879169 879169 2003-10 → 2004-11 Figure 879170 879170 2003-10 → 2007-01 Figure 879170 879170 2007-01 → — Figure 879171 879171 2007-01 → — Figure 874624 874624 2000-12 → 2003-10 Figure 876565 876565 2003-10 → 2007-01 Figure 876565 876565 2007-01 → — Figure 876566 876566 2003-10 → 2007-01

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87208E Pipe Sub-assy, Heater Water, E
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245H Hose, Heater Water, Inlet H
87245L Hose, Heater Water, L
87245Q Hose, Heater Water, Inlet Q
87245X Hose, Heater Water
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87248 Pipe Sub-assy, Water
87251D Joint, Water, NO.1
87251E Joint, Water, NO.2
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87255H Hose, Heater Water Inlet, H
87255J Hose, Heater Water Inlet, J
87255K Hose, Rear Heater Water Inlet, K
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256D Hose, Rear Heater Water Outlet, D
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87256G Hose, Rear Heater Water Outlet, G
87256J Hose, Rear Heater Water Outlrt, J
87256K Hose, Rear Heater Water Outlet, K
87260 Pump Assy, Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
