Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01
Heating & Air Conditioning - Compressor
9 part groups · 4 illustrations
Part groups

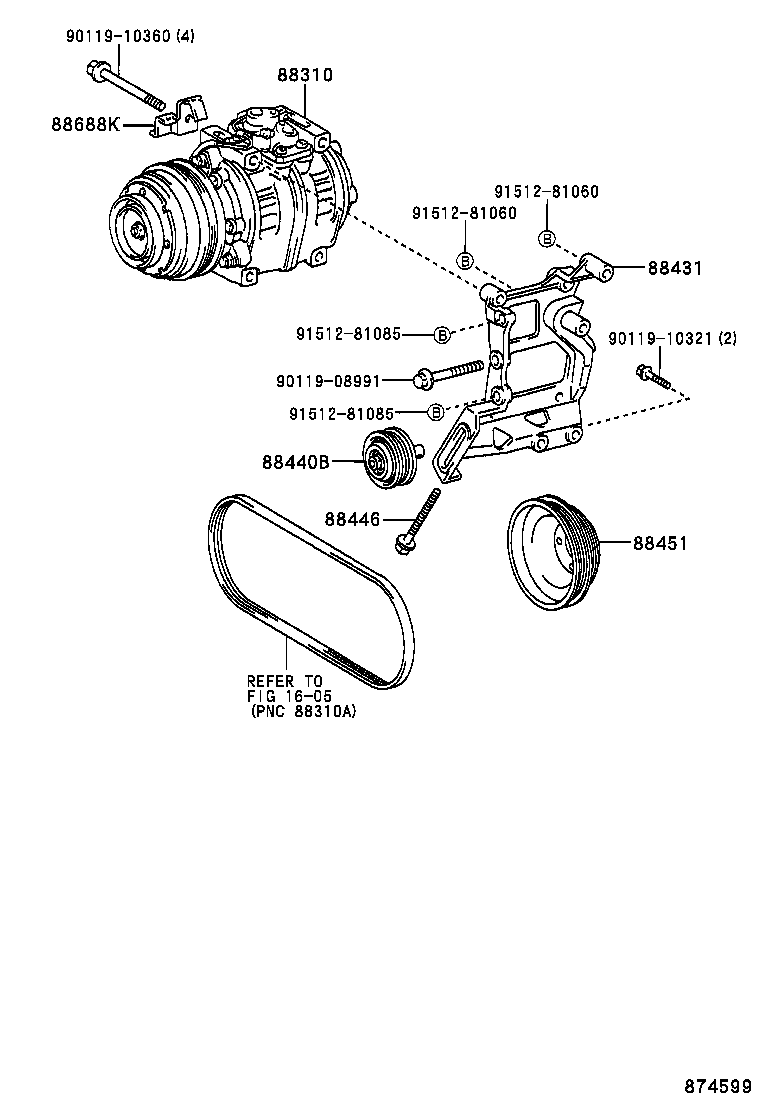

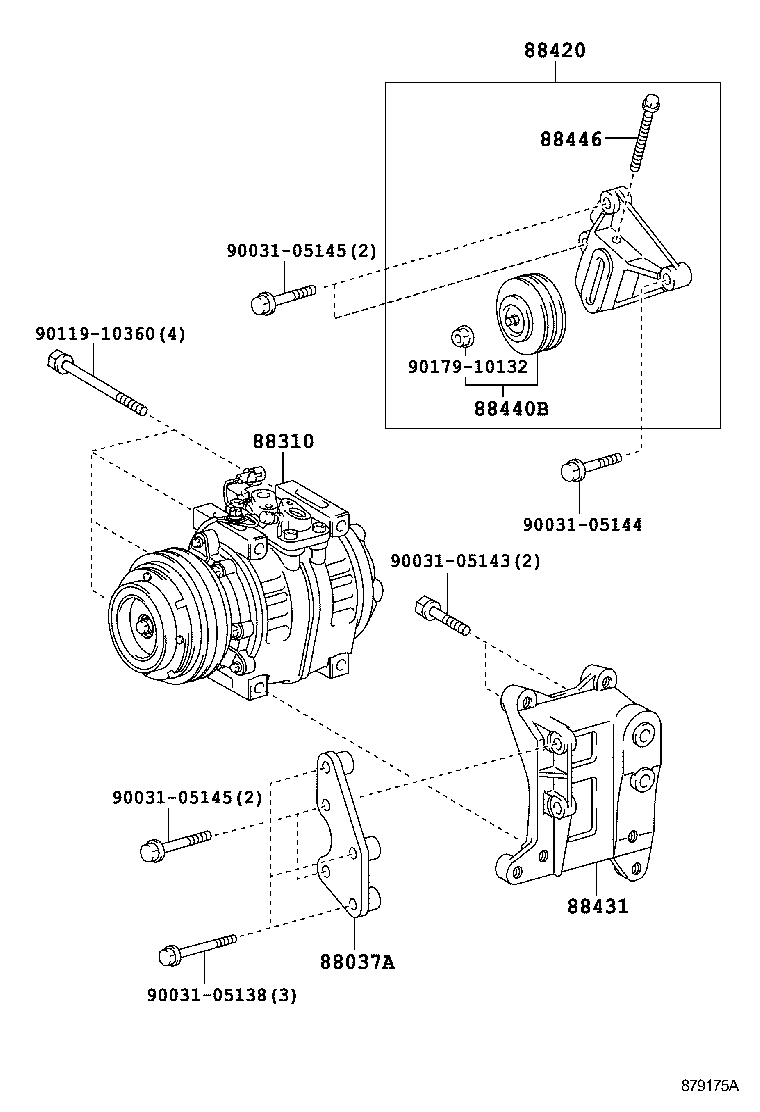

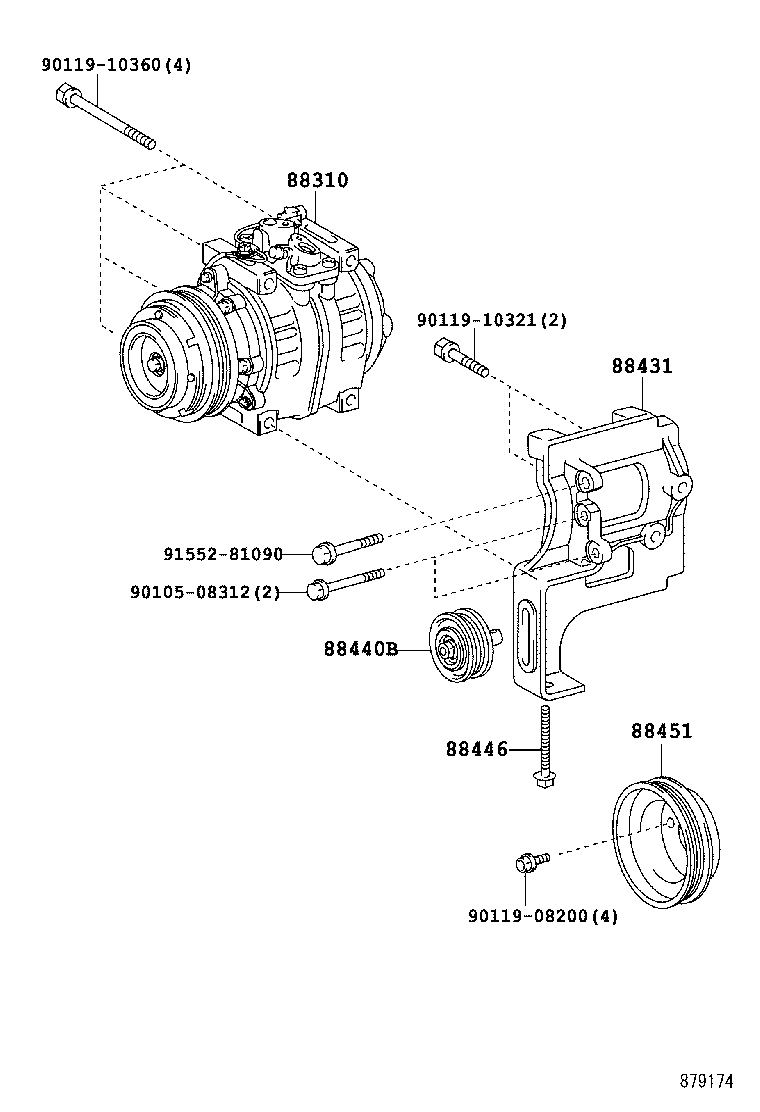

| PNC | Description |
|---|---|
| 88037A | Bracket Set,Compressor Mounting |
| 88310 | Compressor Assy, W/Pulley |
| 88420 | Pulley Assy, Idle, W/Bracket |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88444 | Bracket, Idle Pulley |
| 88446 | Bolt, Idle Pulley |
| 88451 | Pulley, Crankshaft |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
