Toyota Coaster (CHINA)
2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General
Discontinued model
Data version 2020-07

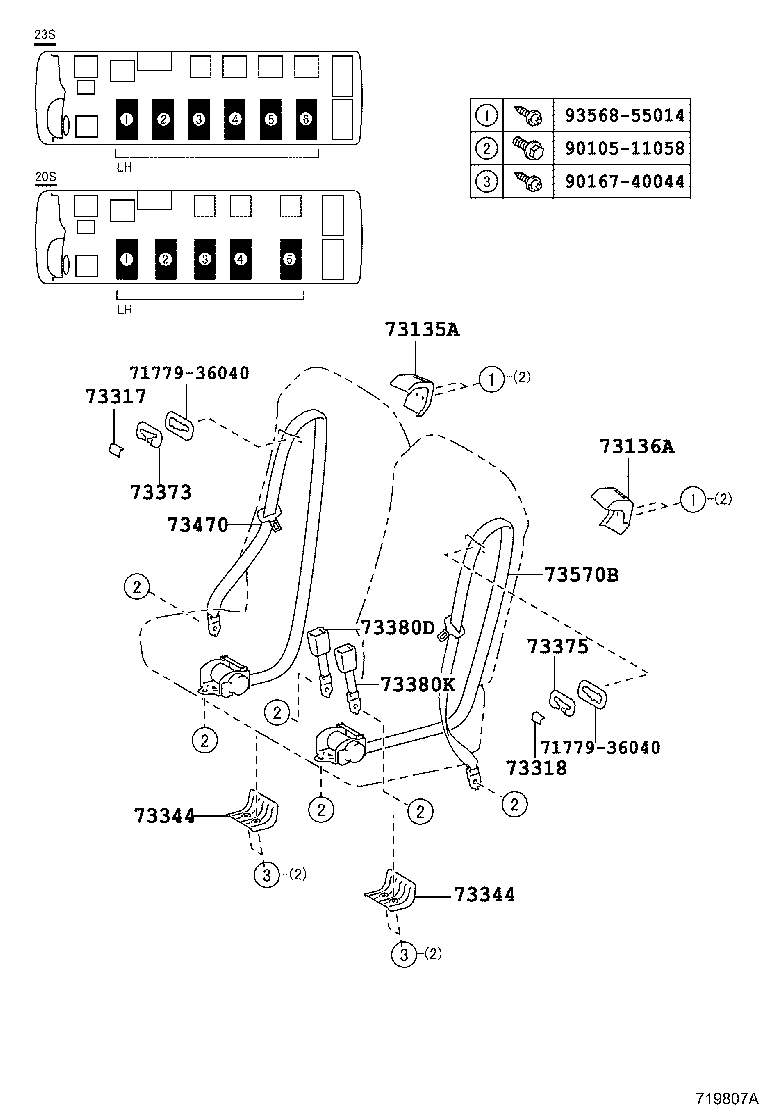

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73135A — Cover, Shoulder Belt Anchor, RH | ||||
| 73137-36010 note |
Cover, Shoulder Belt Anchor, RH
2015-07 → 2018-01
ended
|
GRB53 EX | — | |
| 73137-36010 |
Cover, Shoulder Belt Anchor, RH
2015-07 → 2018-01
ended
|
GRB53,TRB53 20S CBU | — | |
| 73137-36010 |
Cover, Shoulder Belt Anchor, RH
2015-07 → 2018-01
ended
|
GRB53 23S | — | |
| 73137-36010 |
Cover, Shoulder Belt Anchor, RH
2018-01 → 2024-12
ended
|
GRB53 23S | — | |
| 73137-36010 |
Cover, Shoulder Belt Anchor, RH
2018-01 → —
|
GRB53,TRB53 20S CBU | — | |
| 73137-36010 note |
Cover, Shoulder Belt Anchor, RH
2020-01 → —
|
GRB53 EX | — | |
| 73136A — Cover, Shoulder Belt Anchor, LH | ||||
| 73138-36010 |
Cover, Shoulder Belt Anchor, LH
2015-07 → 2018-01
ended
|
GRB53,TRB53 20S CBU | — | |
| 73138-36010 note |
Cover, Shoulder Belt Anchor, LH
2015-07 → 2018-01
ended
|
GRB53 EX | — | |
| 73138-36010 |
Cover, Shoulder Belt Anchor, LH
2015-07 → 2018-01
ended
|
GRB53 23S | — | |
| 73138-36010 |
Cover, Shoulder Belt Anchor, LH
2018-01 → —
|
GRB53,TRB53 20S CBU | — | |
| 73138-36010 note |
Cover, Shoulder Belt Anchor, LH
2020-01 → —
|
GRB53 EX | — | |
| 73138-36010 |
Cover, Shoulder Belt Anchor, LH
2018-01 → 2024-12
ended
|
GRB53 23S | — | |
| 73317 — Cap, Rear Seat Belt, RH | ||||
| 73178-36060-E0 note |
Cap, Rear Seat Belt, RH
2015-07 → 2018-01
ended
|
GRB53,TRB53 20S CBU | — | |
| 73178-36060-E0 note |
Cap, Rear Seat Belt, RH
2015-07 → 2018-01
ended
|
GRB53 EX | — | |
| 73178-36060-E0 note |
Cap, Rear Seat Belt, RH
2015-07 → 2018-01
ended
|
GRB53 23S | — | |
| 73178-36060-E0 note |
Cap, Rear Seat Belt, RH
2018-01 → 2024-12
ended
|
GRB53 23S | — | |
| 73178-36060-E0 note |
Cap, Rear Seat Belt, RH
2018-01 → —
|
GRB53,TRB53 20S CBU | — | |
| 73178-36060-E0 note |
Cap, Rear Seat Belt, RH
2020-01 → —
|
GRB53 EX | — | |
| 73318 — Cap, Rear Seat Belt, LH | ||||
| 73179-36010-E0 note |
Cap, Rear Seat Belt, LH
2015-07 → 2018-01
ended
|
GRB53 23S | — | |
| 73179-36010-E0 note |
Cap, Rear Seat Belt, LH
2015-07 → 2018-01
ended
|
GRB53 EX | — | |
| 73179-36010-E0 note |
Cap, Rear Seat Belt, LH
2015-07 → 2018-01
ended
|
GRB53,TRB53 20S CBU | — | |
| 73179-36010-E0 note |
Cap, Rear Seat Belt, LH
2018-01 → —
|
GRB53,TRB53 20S CBU | — | |
| 73179-36010-E0 note |
Cap, Rear Seat Belt, LH
2020-01 → —
|
GRB53 EX | — | |
| 73179-36010-E0 note |
Cap, Rear Seat Belt, LH
2018-01 → 2024-12
ended
|
GRB53 23S | — | |
| 73344 — Guide, Rear Seat Shoulder Belt, LH | ||||
| 73343-36010-E0 note |
Guide, Rear Seat Shoulder Belt, LH
2015-07 → 2018-01
ended
|
GRB53,TRB53 20S CBU | — | |
| 73343-36010-E0 note |
Guide, Rear Seat Shoulder Belt, LH
2015-07 → 2018-01
ended
|
GRB53 EX | — | |
| 73343-36010-E0 note |
Guide, Rear Seat Shoulder Belt, LH
2015-07 → 2018-01
ended
|
GRB53 23S | — | |
| 73343-36010-E0 note |
Guide, Rear Seat Shoulder Belt, LH
2018-01 → 2024-12
ended
|
GRB53 23S | — | |
| 73343-36010-E0 note |
Guide, Rear Seat Shoulder Belt, LH
2018-01 → —
|
GRB53,TRB53 20S CBU | — | |
| 73343-36010-E0 note |
Guide, Rear Seat Shoulder Belt, LH
2020-01 → —
|
GRB53 EX | — | |
| 73373 — Cover, Rear Seat Shoulder Belt | ||||
| 73373-36050-E0 note |
Cover, Rear Seat Shoulder Belt
2015-07 → 2018-01
ended
|
GRB53,TRB53 20S CBU | — | |
| 73373-36050-E0 note |
Cover, Rear Seat Shoulder Belt
2015-07 → 2018-01
ended
|
GRB53 23S | — | |
| 73373-36050-E0 note |
Cover, Rear Seat Shoulder Belt
2015-07 → 2018-01
ended
|
GRB53 EX | — | |
| 73373-36050-E0 note |
Cover, Rear Seat Shoulder Belt
2018-01 → 2024-12
ended
|
GRB53 23S | — | |
| 73373-36050-E0 note |
Cover, Rear Seat Shoulder Belt
2018-01 → —
|
GRB53,TRB53 20S CBU | — | |
| 73373-36050-E0 note |
Cover, Rear Seat Shoulder Belt
2020-01 → —
|
GRB53 EX | — | |
| 73375 — Cover, Rear Seat Shoulder Belt, LH | ||||
| 73375-36050-E0 note |
Cover, Rear Seat Shoulder Belt, LH
2015-07 → 2018-01
ended
|
GRB53,TRB53 20S CBU | — | |
| 73375-36050-E0 note |
Cover, Rear Seat Shoulder Belt, LH
2015-07 → 2018-01
ended
|
GRB53 EX | — | |
| 73375-36050-E0 note |
Cover, Rear Seat Shoulder Belt, LH
2015-07 → 2018-01
ended
|
GRB53 23S | — | |
| 73375-36050-E0 note |
Cover, Rear Seat Shoulder Belt, LH
2024-12 → —
|
GRB53 23S STD | — | |
| 73375-36050-E0 note |
Cover, Rear Seat Shoulder Belt, LH
2018-01 → 2024-12
ended
|
GRB53 23S | — | |
| 73375-36050-E0 note |
Cover, Rear Seat Shoulder Belt, LH
2018-01 → —
|
GRB53,TRB53 20S CBU | — | |
| 73375-36050-E0 note |
Cover, Rear Seat Shoulder Belt, LH
2020-01 → —
|
GRB53 EX | — | |
| 73380D — Belt Assy, Rear Seat, Inner | ||||
| 73380-0S020-A0 note |
Belt Assy, Rear Seat, Inner
2013-01 → 2015-07
ended
|
GRB53,XZB53 EX | — | |
| 73380-0S020-A0 note |
Belt Assy, Rear Seat, Inner
2013-01 → 2015-07
ended
|
GRB53,TRB53,XZB53 23S | — | |
| 73380-0S020-A0 note |
Belt Assy, Rear Seat, Inner
2013-01 → 2015-07
ended
|
GRB53,TRB53,XZB53 20S CBU | — | |
| 73380-0S040-A1 note |
Belt Assy, Rear Seat, Inner
2015-07 → 2018-01
ended
|
GRB53,TRB53 20S CBU | — | |
| 73380-0S040-A1 note |
Belt Assy, Rear Seat, Inner
2015-07 → 2018-01
ended
|
GRB53 EX | — | |
| 73380-0S040-A1 note |
Belt Assy, Rear Seat, Inner
2015-07 → 2018-01
ended
|
GRB53 23S | — | |
| 73380-0S040-A1 note |
Belt Assy, Rear Seat, Inner
2024-12 → —
|
GRB53 23S STD | — | |
| 73380-0S040-A1 note |
Belt Assy, Rear Seat, Inner
2020-01 → —
|
GRB53 EX | — | |
| 73380-0S040-A1 note |
Belt Assy, Rear Seat, Inner
2018-01 → —
|
GRB53,TRB53 20S CBU | — | |
| 73380-0S040-A1 note |
Belt Assy, Rear Seat, Inner
2018-01 → 2024-12
ended
|
GRB53 23S | — | |
| 73380K — Belt Assy, Rear Seat 3 Point Type, Inner, LH | ||||
| 73380-0S030-A1 note |
Belt Assy, Rear Seat 3 Point Type, Inner, LH
2015-07 → 2018-01
ended
|
GRB53,TRB53 20S CBU | — | |
| 73380-0S030-A1 note |
Belt Assy, Rear Seat 3 Point Type, Inner, LH
2015-07 → 2018-01
ended
|
GRB53 EX | — | |
| 73380-0S030-A1 note |
Belt Assy, Rear Seat 3 Point Type, Inner, LH
2015-07 → 2018-01
ended
|
GRB53 23S | — | |
| 73380-0S030-A1 note |
Belt Assy, Rear Seat 3 Point Type, Inner, LH
2018-01 → 2024-12
ended
|
GRB53 23S | — | |
| 73380-0S030-A1 note |
Belt Assy, Rear Seat 3 Point Type, Inner, LH
2018-01 → —
|
GRB53,TRB53 20S CBU | — | |
| 73380-0S030-A1 note |
Belt Assy, Rear Seat 3 Point Type, Inner, LH
2020-01 → —
|
GRB53 EX | — | |
| 73470 — Belt Assy, Rear Seat, Outer | ||||
| 73360-0S020-A0 note |
Belt Assy, Rear Seat, Outer
2015-07 → 2018-01
ended
|
GRB53 23S | — | |
| 73360-0S020-A0 note |
Belt Assy, Rear Seat, Outer
2015-07 → 2018-01
ended
|
GRB53 EX | — | |
| 73360-0S020-A0 note |
Belt Assy, Rear Seat, Outer
2015-07 → 2018-01
ended
|
GRB53,TRB53 20S CBU | — | |
| 73360-0S020-A0 note |
Belt Assy, Rear Seat, Outer
2018-01 → 2021-06
ended
|
GRB53,TRB53 20S CBU | — | |
| 73360-0S020-A0 note |
Belt Assy, Rear Seat, Outer
2018-01 → 2021-06
ended
|
GRB53 23S | — | |
| 73360-0S020-A0 note |
Belt Assy, Rear Seat, Outer
2020-01 → 2021-06
ended
|
GRB53 EX | — | |
| 73360-0S040-A0 note |
Belt Assy, Rear Seat, Outer
2021-06 → 2024-12
ended
|
GRB53 23S | — | |
| 73360-0S040-A0 note |
Belt Assy, Rear Seat, Outer
2021-06 → —
|
GRB53 20S CBU | — | |
| 73360-0S040-A0 note |
Belt Assy, Rear Seat, Outer
2021-06 → —
|
GRB53 EX | — | |
| 73570B — Belt Assy, Rear Seat, Outer | ||||
| 73040-0S010-A0 note |
Belt Assy, Rear Seat, Outer
2013-01 → 2015-07
ended
|
GRB53,TRB53,XZB53 CBU | — | |
| 73040-0S010-A0 note |
Belt Assy, Rear Seat, Outer
2013-01 → 2015-07
ended
|
GRB53,XZB53 EX | — | |
| 73350-0S010-A0 note |
Belt Assy, Rear Seat, Outer
2015-07 → 2018-01
ended
|
GRB53,TRB53 20S CBU | — | |
| 73350-0S010-A0 note |
Belt Assy, Rear Seat, Outer
2015-07 → 2018-01
ended
|
GRB53 23S | — | |
| 73350-0S010-A0 note |
Belt Assy, Rear Seat, Outer
2015-07 → 2018-01
ended
|
GRB53 EX | — | |
| 73350-0S010-A0 note |
Belt Assy, Rear Seat, Outer
2018-01 → 2021-06
ended
|
GRB53,TRB53 20S CBU | — | |
| 73350-0S010-A0 note |
Belt Assy, Rear Seat, Outer
2018-01 → 2021-06
ended
|
GRB53 23S | — | |
| 73350-0S010-A0 note |
Belt Assy, Rear Seat, Outer
2020-01 → 2021-06
ended
|
GRB53 EX | — | |
| 73350-0S050-A0 note |
Belt Assy, Rear Seat, Outer
2021-06 → 2024-12
ended
|
GRB53 23S | — | |
| 73350-0S050-A0 note |
Belt Assy, Rear Seat, Outer
2021-06 → —
|
GRB53 20S CBU | — | |
| 73350-0S050-A0 note |
Belt Assy, Rear Seat, Outer
2021-06 → —
|
GRB53 EX | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
