Toyota Coaster (CHINA)
2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General
Discontinued model
Data version 2020-07
Standard Tool
14 part groups · 2 illustrations

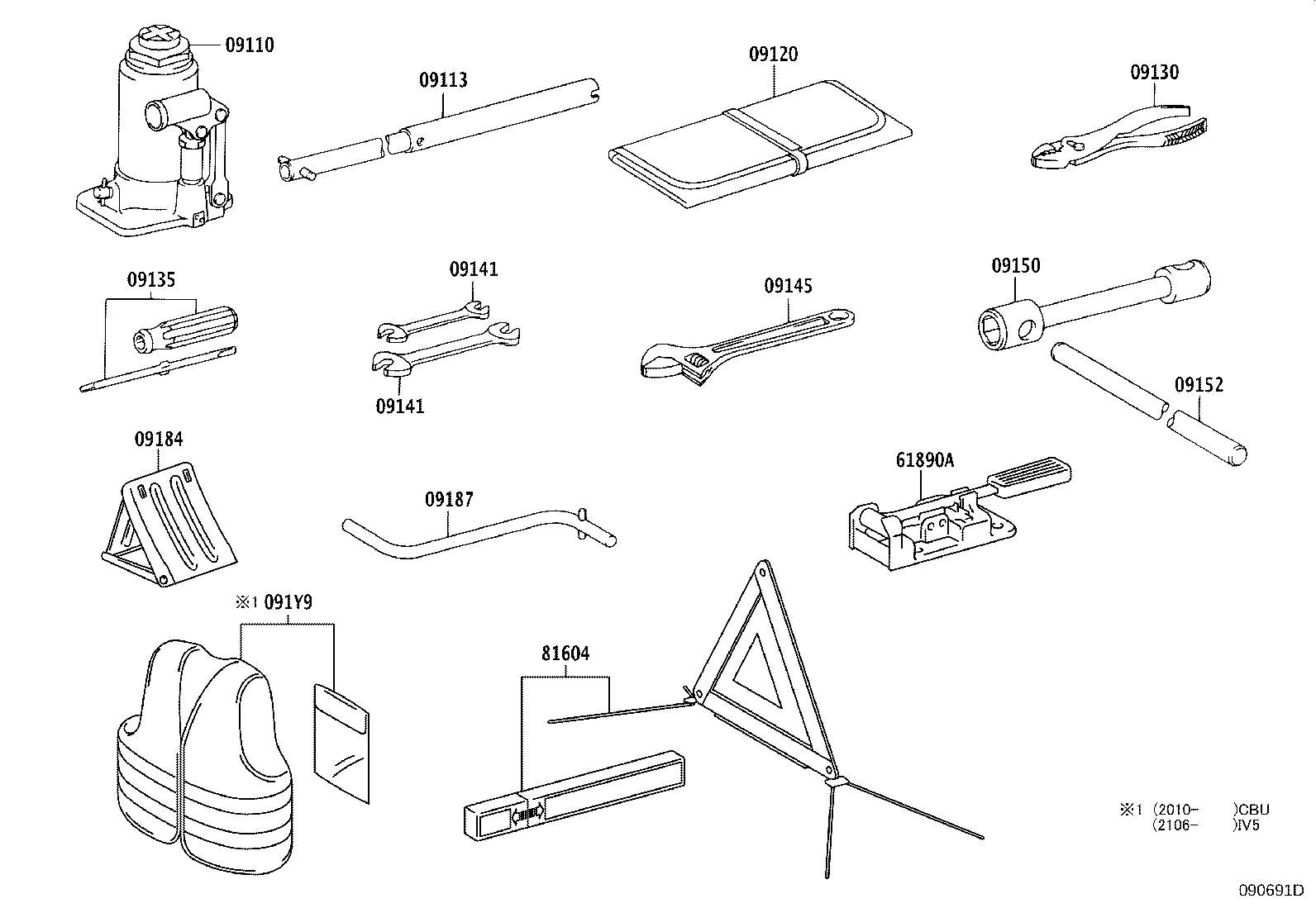

Part groups
| PNC | Description |
|---|---|
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09120 | Bag, Tool |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09141 | Spanner |
| 09145 | Wrench, Monkey |
| 09150 | Wrench, Hub Nut Box |
| 09152 | Handle, Hub Nut Box Wrench |
| 09184 | Stopper, Wheel |
| 09187 | Handle, Spare Wheel Carrier |
| 091Y9 | Jacket, W/Reflector |
| 61890A | Hammer Assy, Back Window Glass |
| 81604 | Reflector Set, Triangle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
