Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

25 part groups · 5 illustrations

Illustrations

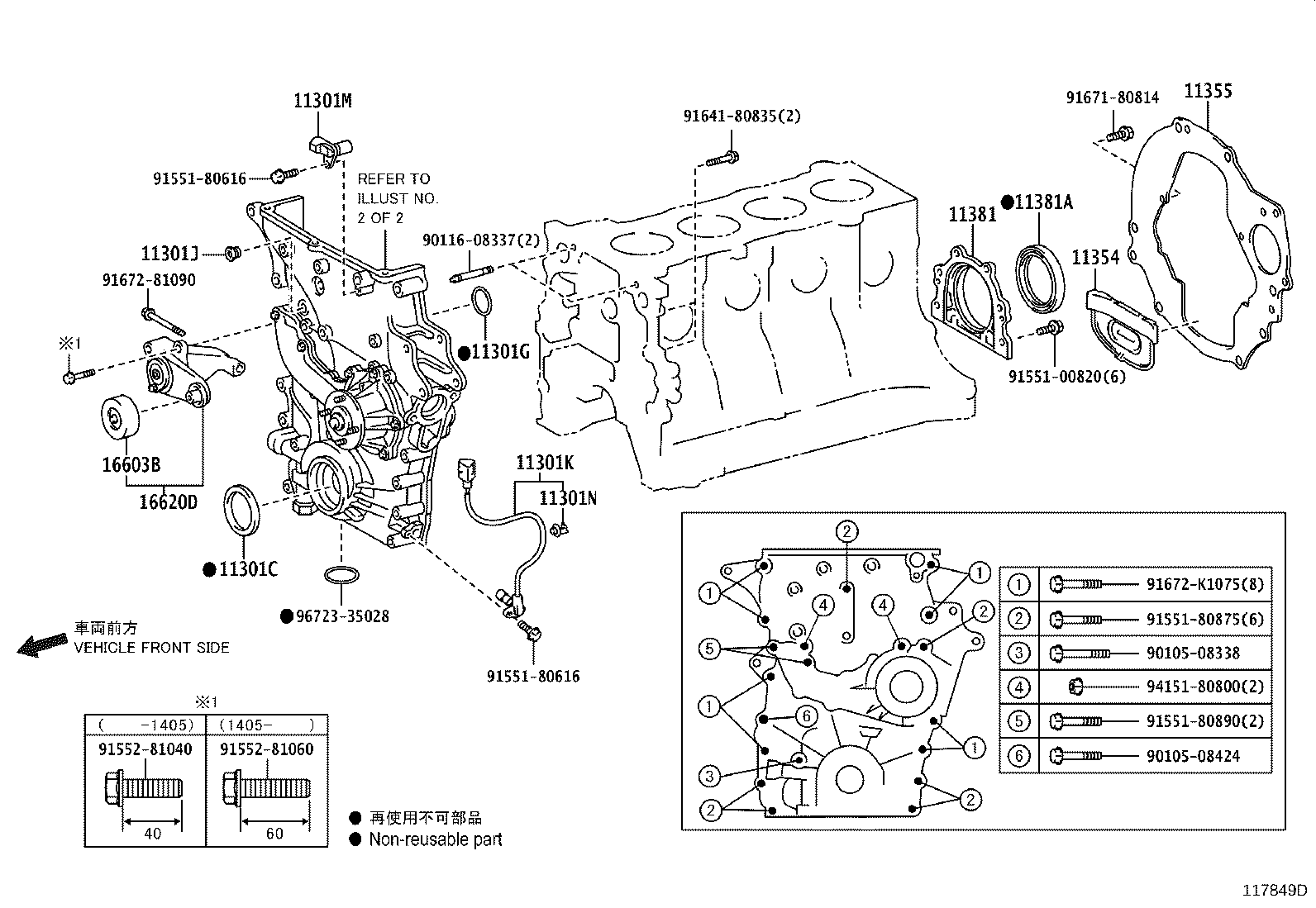

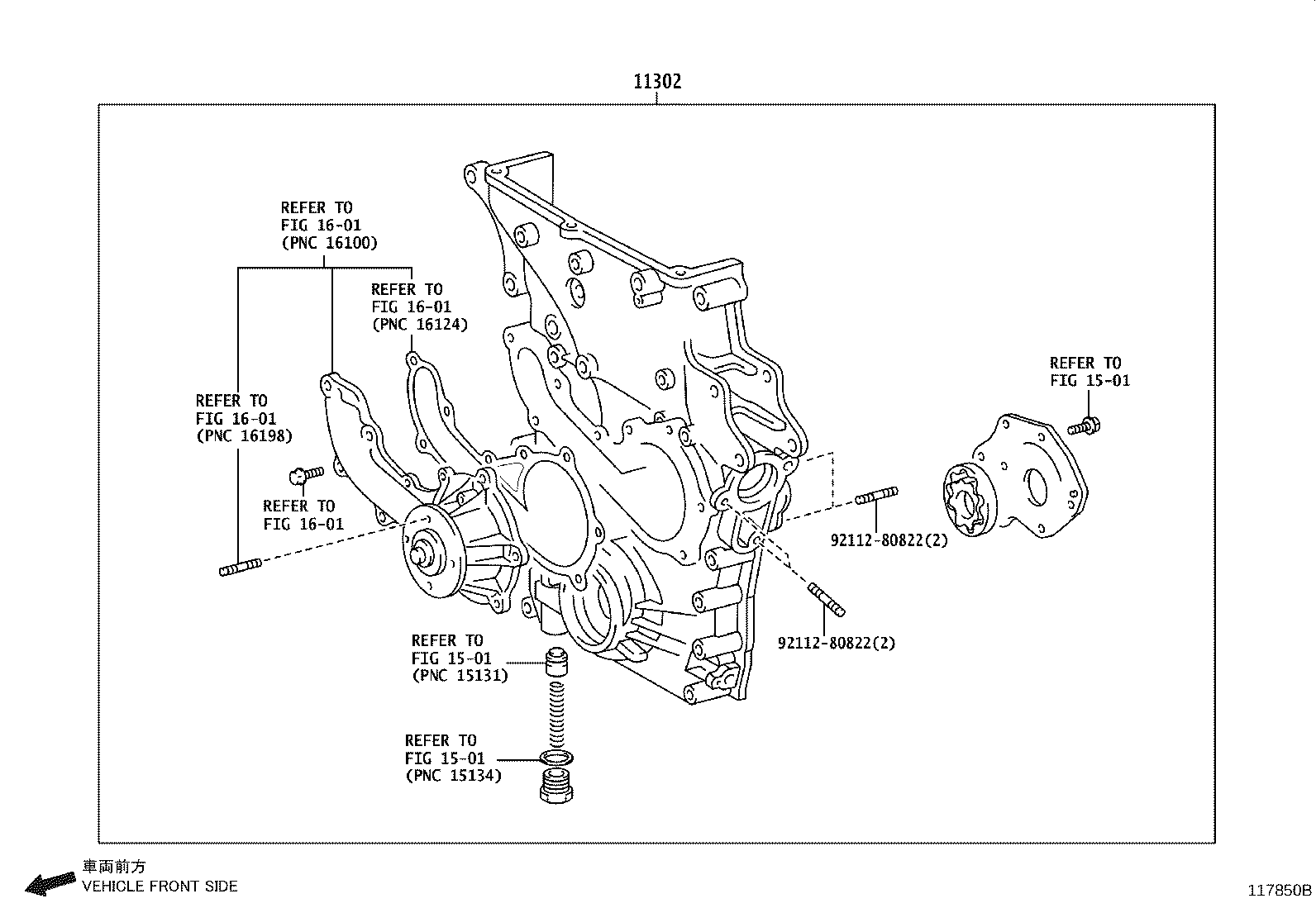

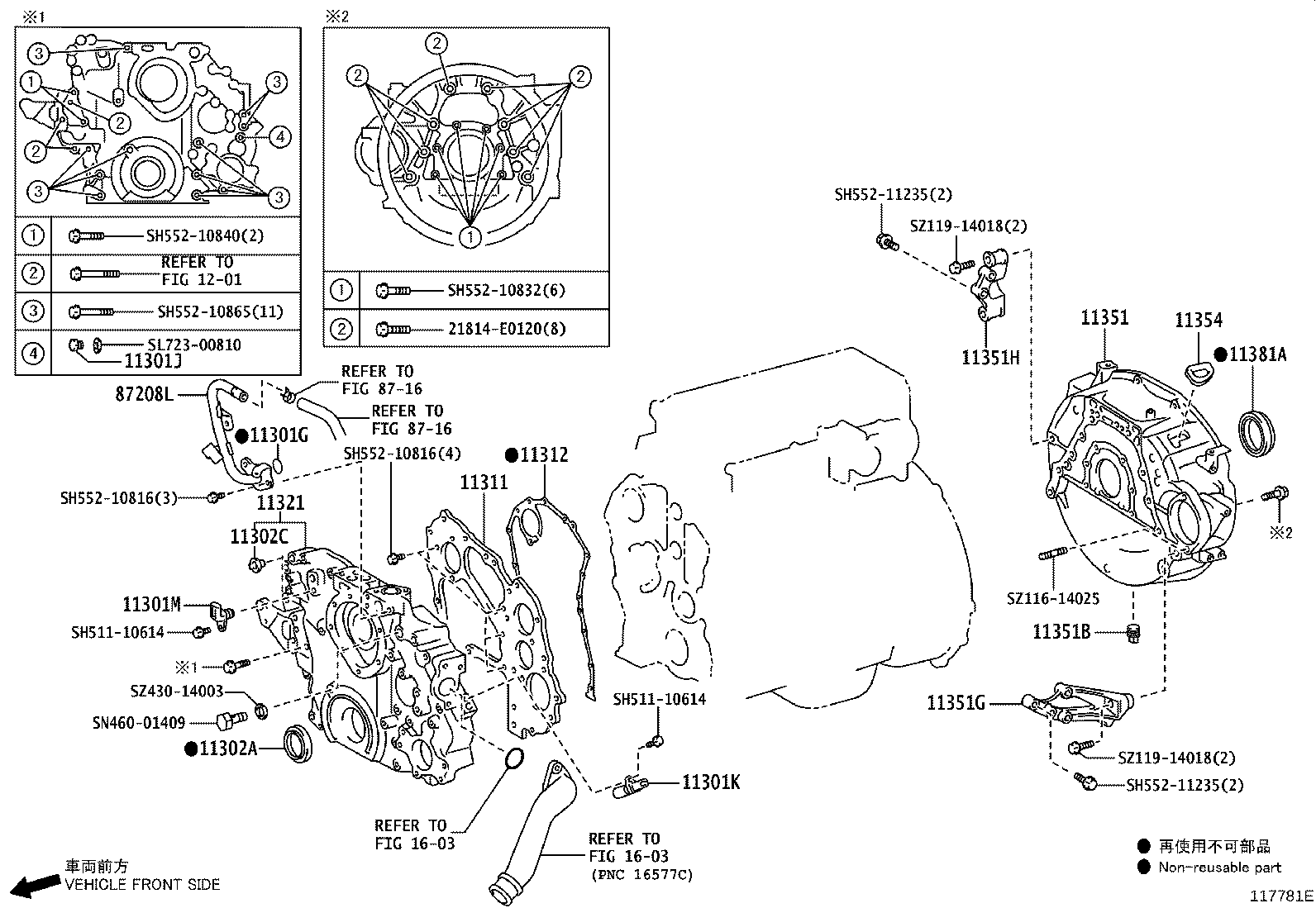

Figure 117816F 117816F 2013-01 → — Figure 117849D 117849D 2013-01 → 2014-08 Figure 119203E 119203E 2014-08 → — Figure 117850B 117850B 2013-01 → — Figure 117781E 117781E 2014-03 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301M Sensor, Cam Position
11301N Clamp
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302C Spacer(FOR TIMING GEAR COVER)
11311 Plate, Front End
11312 Gasket, Front End Plate
11321 Case, Timing Gear
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11351 Housing, Flywheel
11351B Plug, Hole(FOR FLYWHEEL HOUSING)
11351G Stay, LH(FOR FLYWHEEL HOUSING)
11351H Stay, RH(FOR FLYWHEEL HOUSING)
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
16603B Pulley Sub-assy, Idler
16620D Tensioner Assy, V-ribbed Belt
87208L Pipe Sub-assy, Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
