Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 3 illustrations

Illustrations

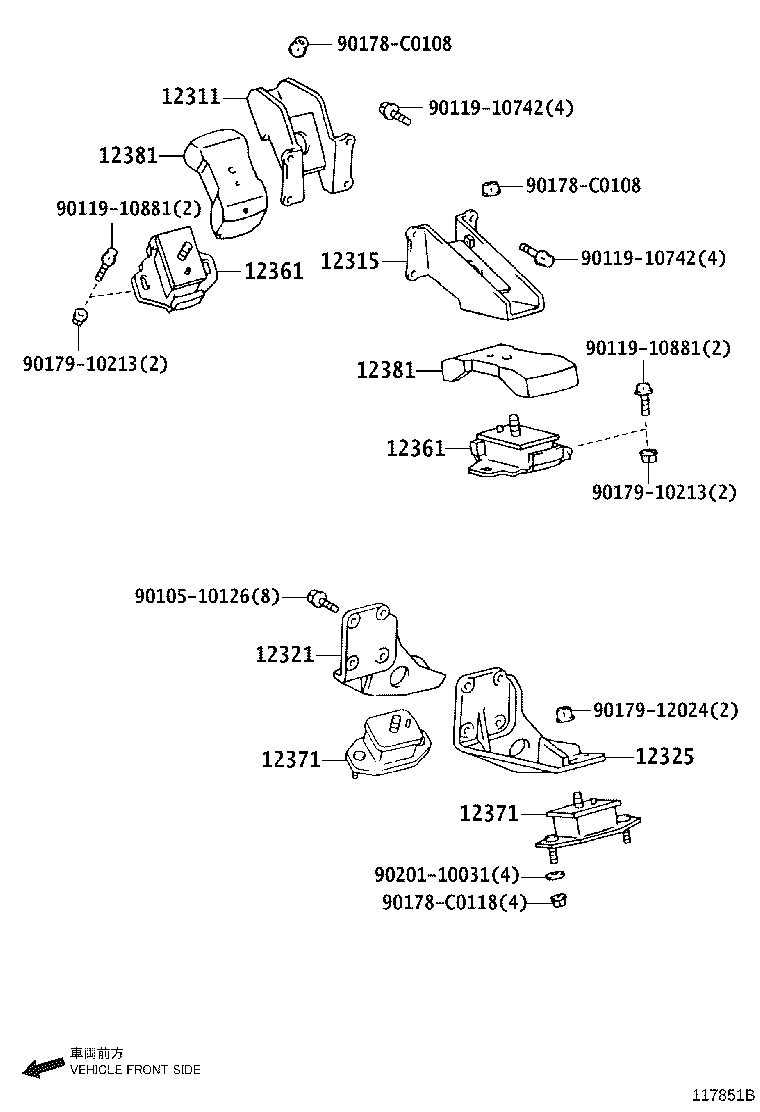

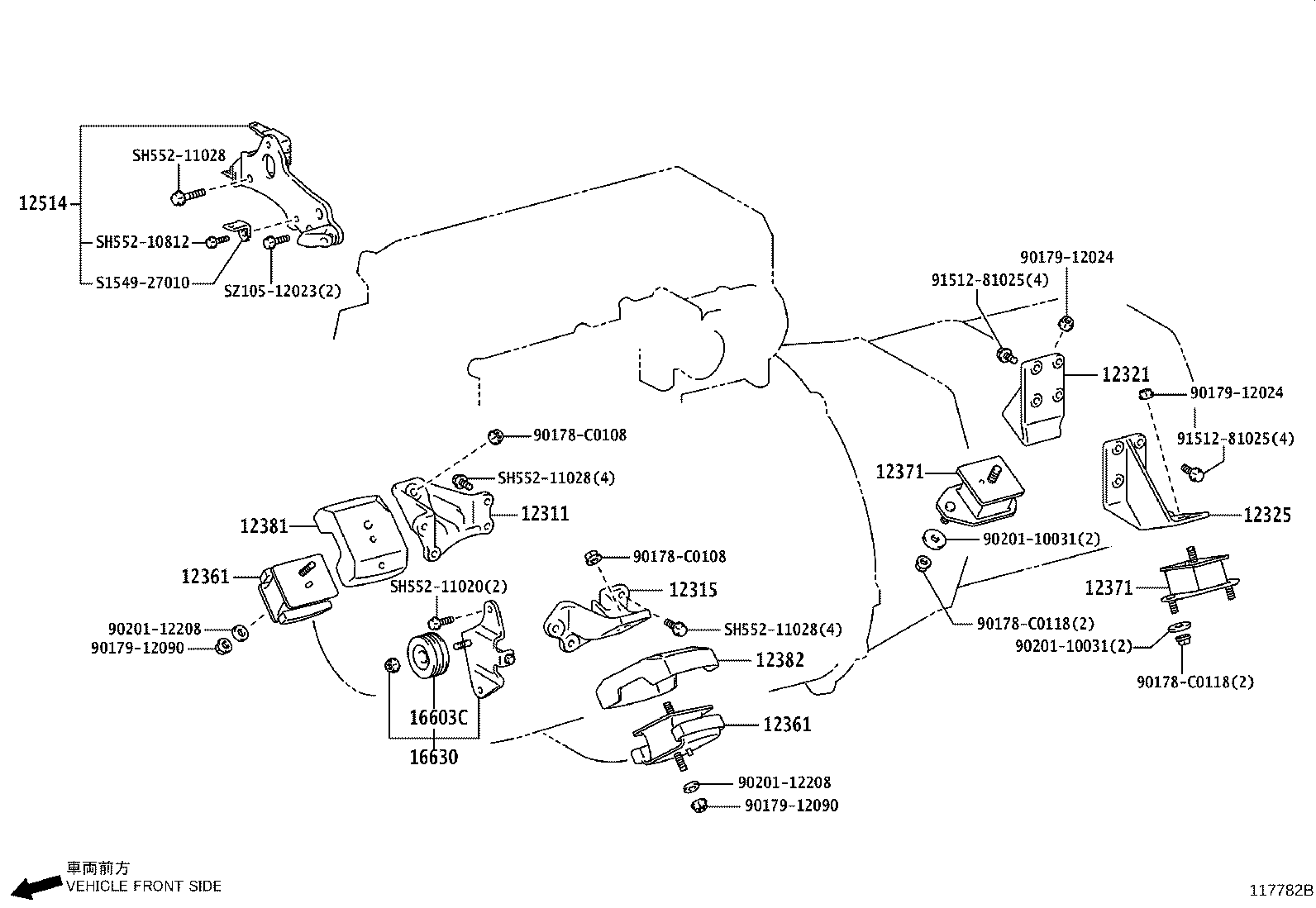

Figure 117864B 117864B 2013-01 → — Figure 117851B 117851B 2013-01 → — Figure 117782B 117782B 2014-03 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12514 Bar, Alternator Belt Adjusting
16603C Pulley Sub-assy, Idler
16630 Pulley Assy, Idler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
