Toyota Coaster (CHINA)
2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General
Discontinued model
Data version 2020-07

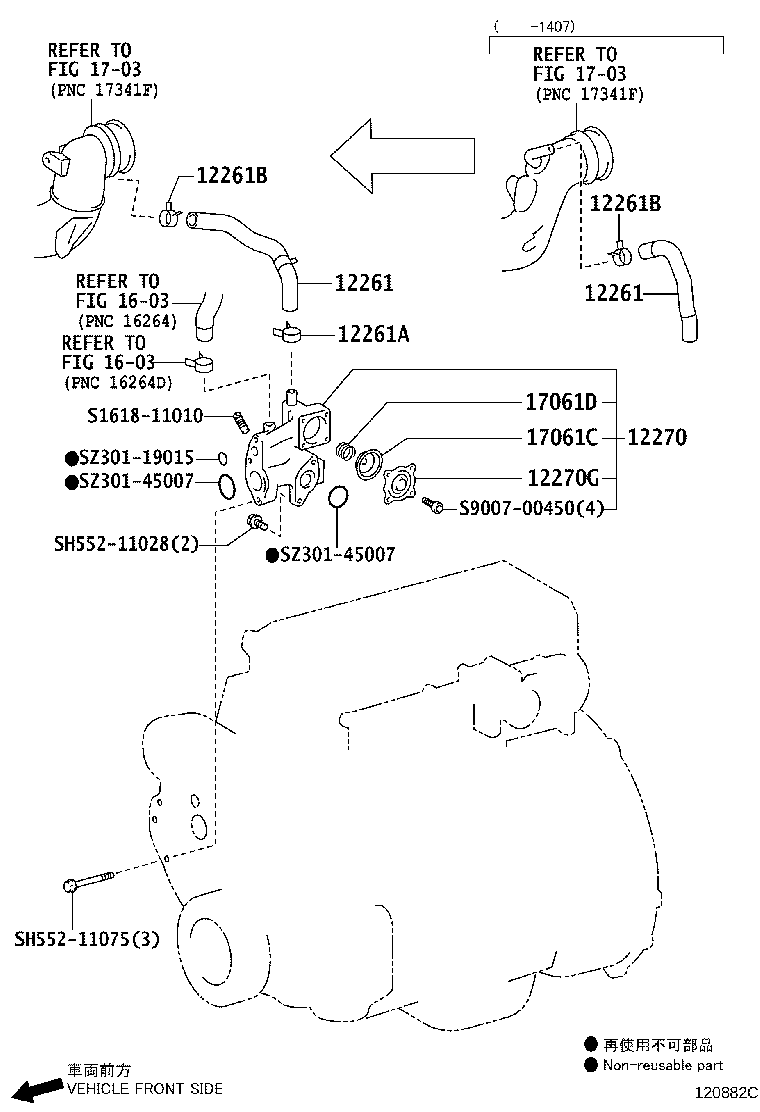

Ventilation Hose
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12229 | Pipe, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12261B | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12262D | Clip(FOR VENTILATION HOSE NO.2) |
| 12263 | Hose, Ventilation, NO.3 |
| 12263A | Clip(FOR VENTILATION HOSE) |
| 12270 | Separator Assy, Oil |
| 12270G | Cover |
| 17061C | Diaphragm Sub-assy |
| 17061D | Spring L |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
