Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

37 part groups · 3 illustrations

Illustrations

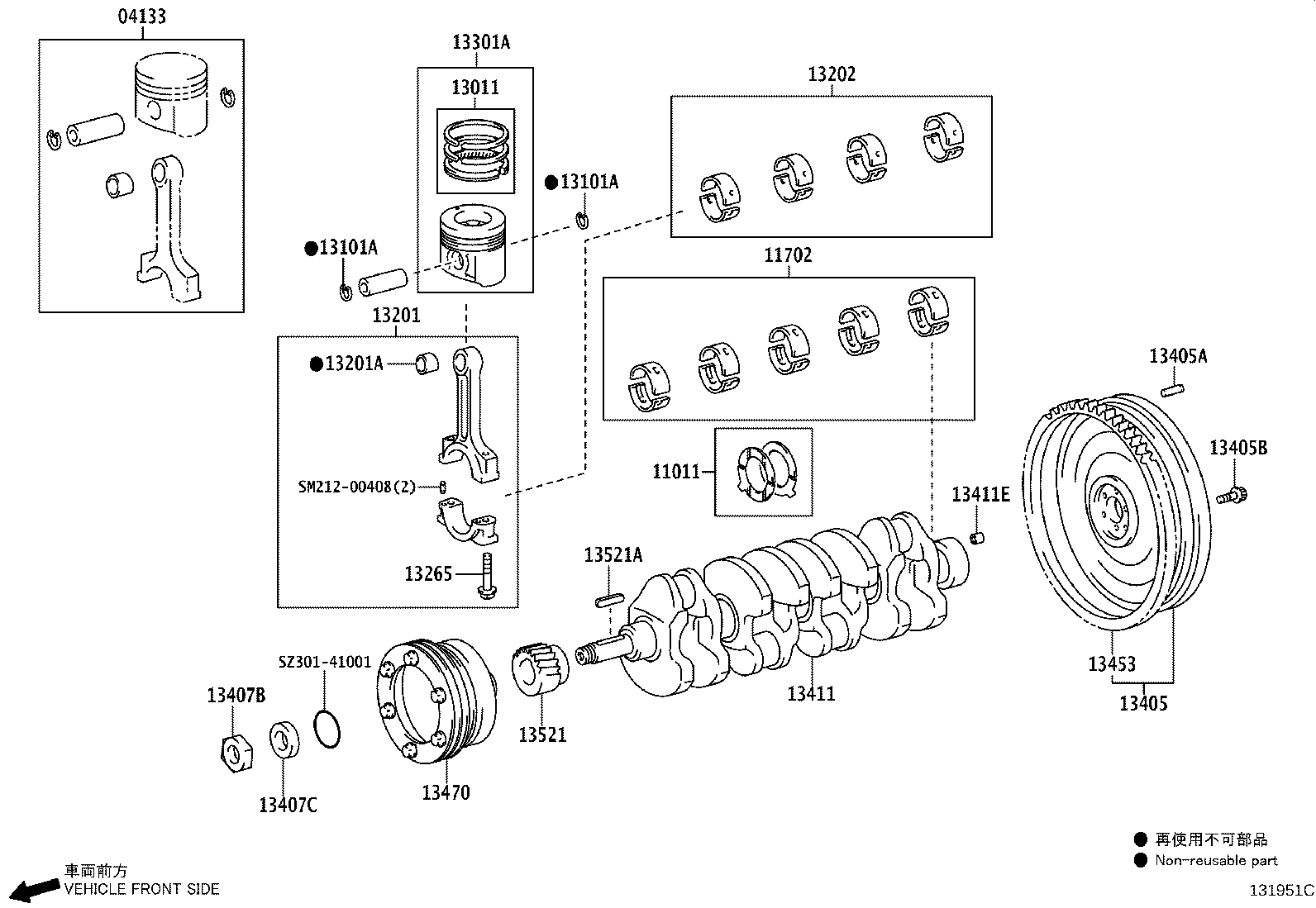

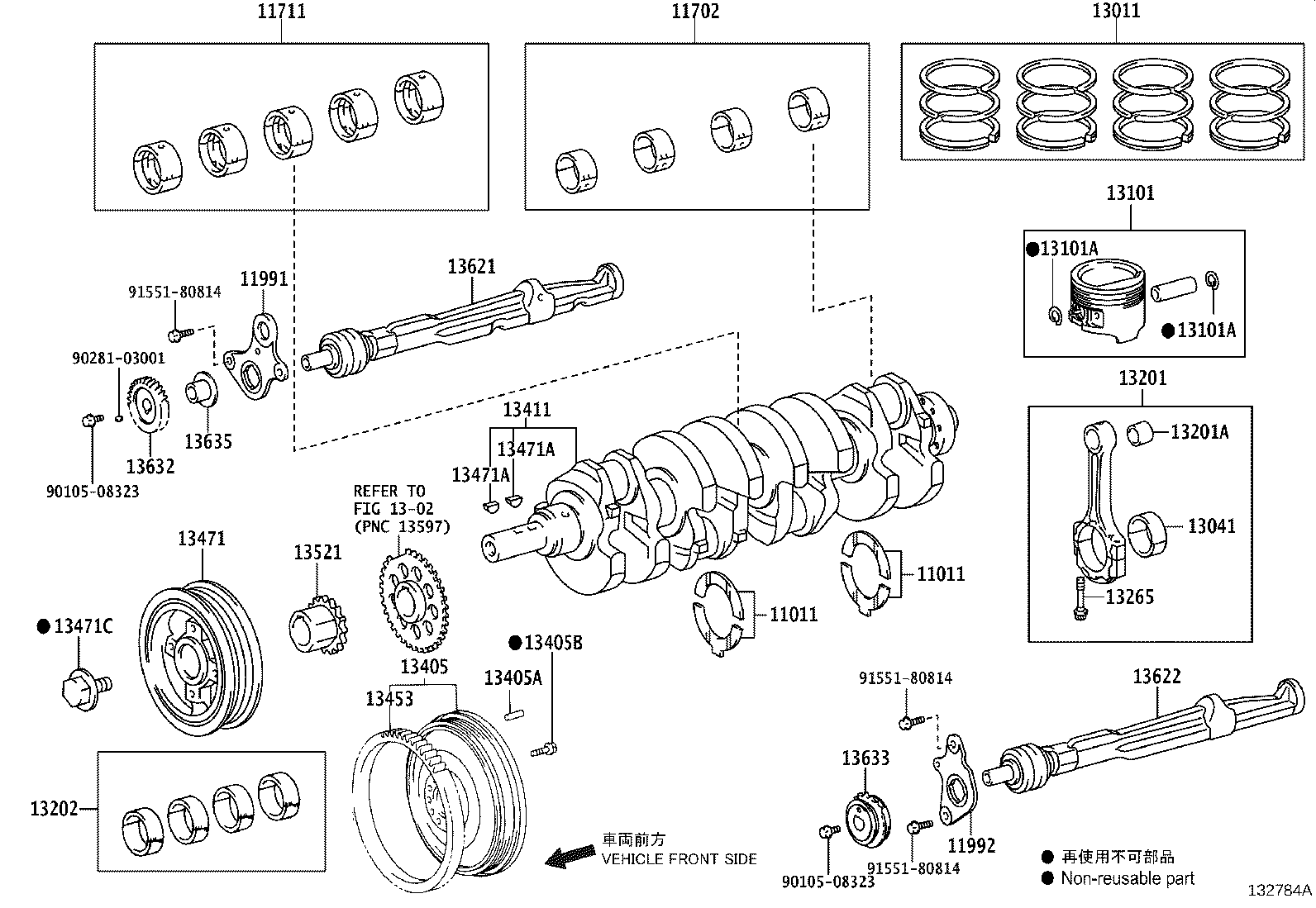

Figure 131964B 131964B 2013-01 → — Figure 132784A 132784A 2013-01 → — Figure 131951C 131951C 2014-03 → —

Part groups

PNCDescription
04133 Pin Kit, Piston
11011 Washer Set, Crankshaft Thrust
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
11991 Washer, Balanceshaft Thrust
11992 Washer, Balanceshaft Thrust, NO.2
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13202 Bearing Set, Connecting Rod
13265 Bolt, Connecting Rod
13301A Piston Set, W/Piston Ring
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting
13407B Nut, Hexagon(FOR CRANKSHAFT DAMPER)
13407C Spacer(FOR CRANKSHAFT DAMPER)
13411 Crankshaft
13411E Collar(FOR CRANKSHAFT)
13453 Gear, Flywheel Ring
13470 Pulley Assy, Crankshaft
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13581 Shaft, Idle Gear, NO.1
13582 Shaft, Idle Gear, NO.2
13621 Balanceshaft, NO.1
13622 Balanceshaft, NO.2
13632 Gear, Balanceshaft Driven, NO.1
13633 Gear, Balanceshaft Driven, NO.2
13635 Spacer, Balanceshaft Thrust
88451A Pully,Crankshaft
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
