Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

13 part groups · 3 illustrations

Illustrations

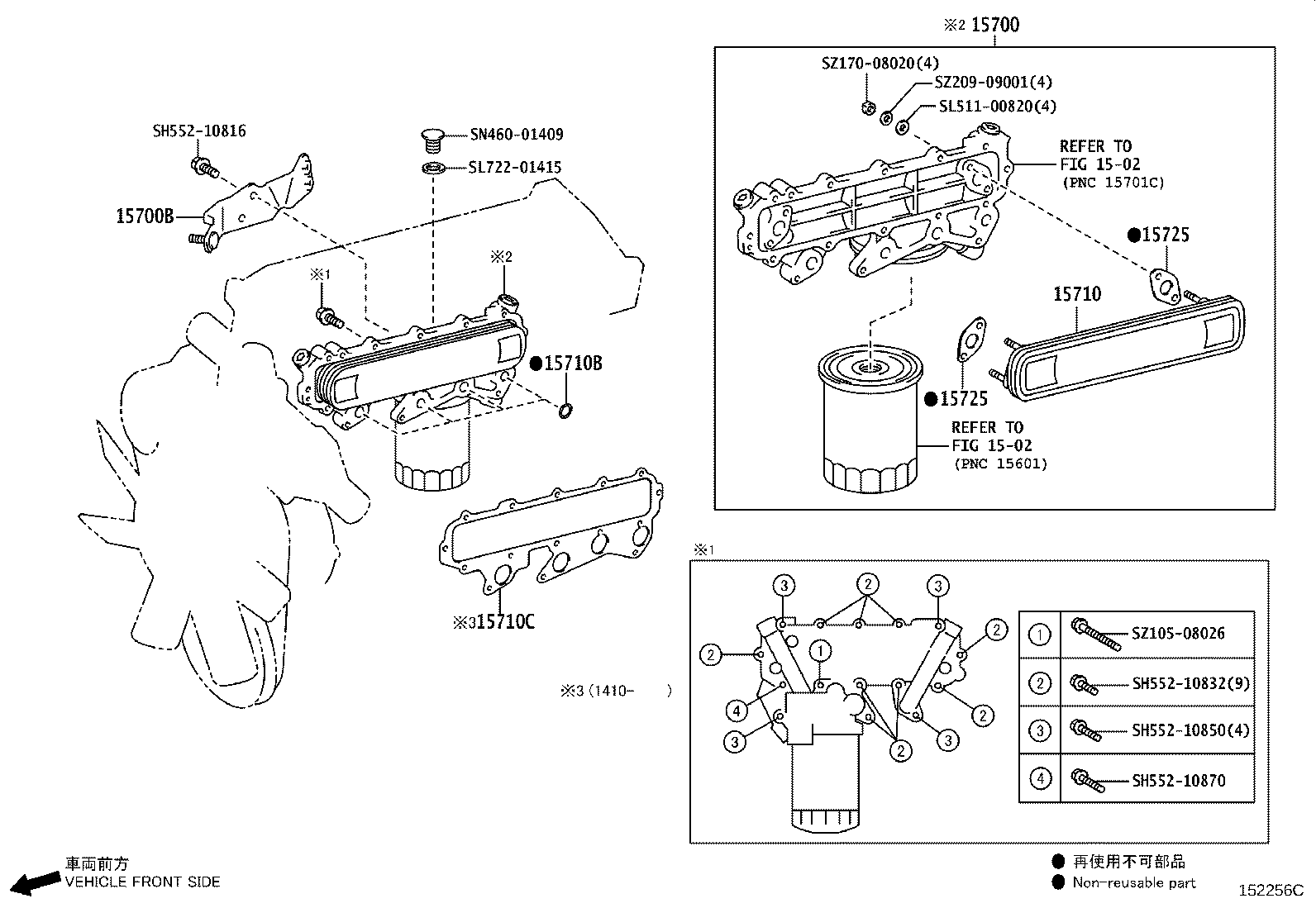

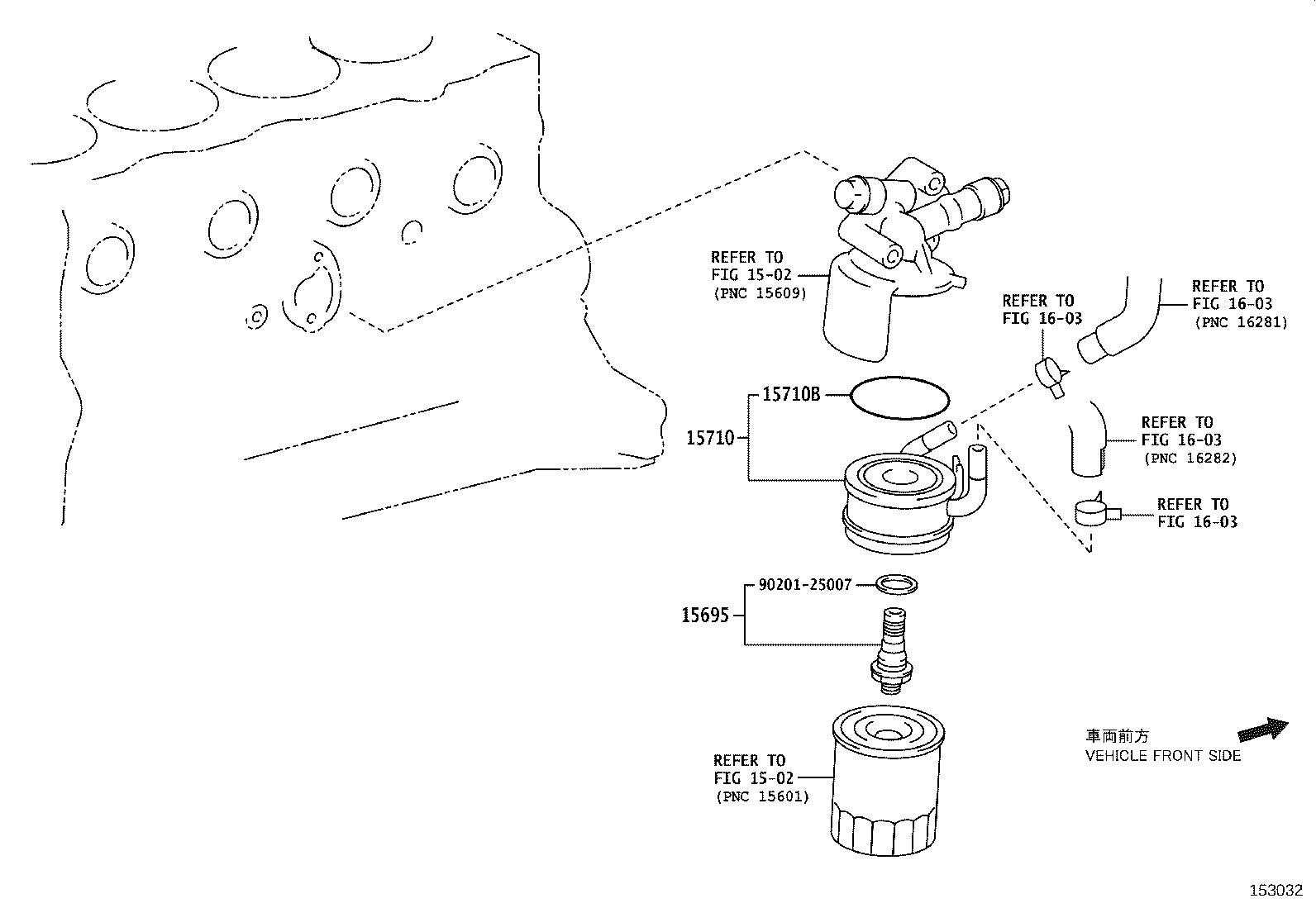

Figure 152051B 152051B 2013-01 → — Figure 153032 153032 2013-01 → — Figure 152256C 152256C 2014-03 → —

Part groups

PNCDescription
15695 Bolt, Oil Cooler Union
15700 Cooler Assy, Oil W/Bracket
15700B Bracket(FOR OIL COOLER)
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15725 Gasket, Oil Cooler Cover
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772A Union(FOR OIL PIPE)
15772E Gasket(FOR OIL PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
