Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

33 part groups · 3 illustrations

Illustrations

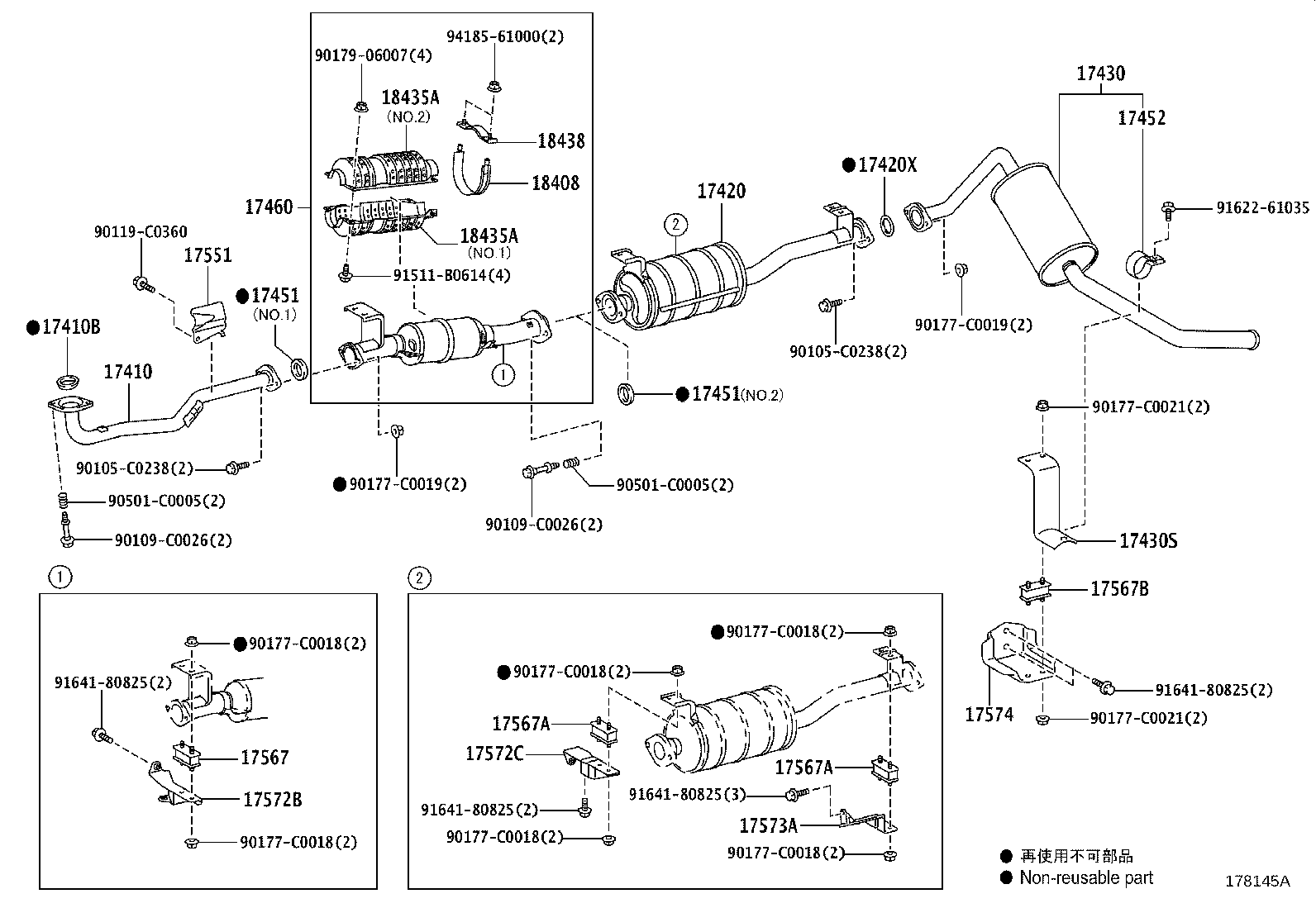

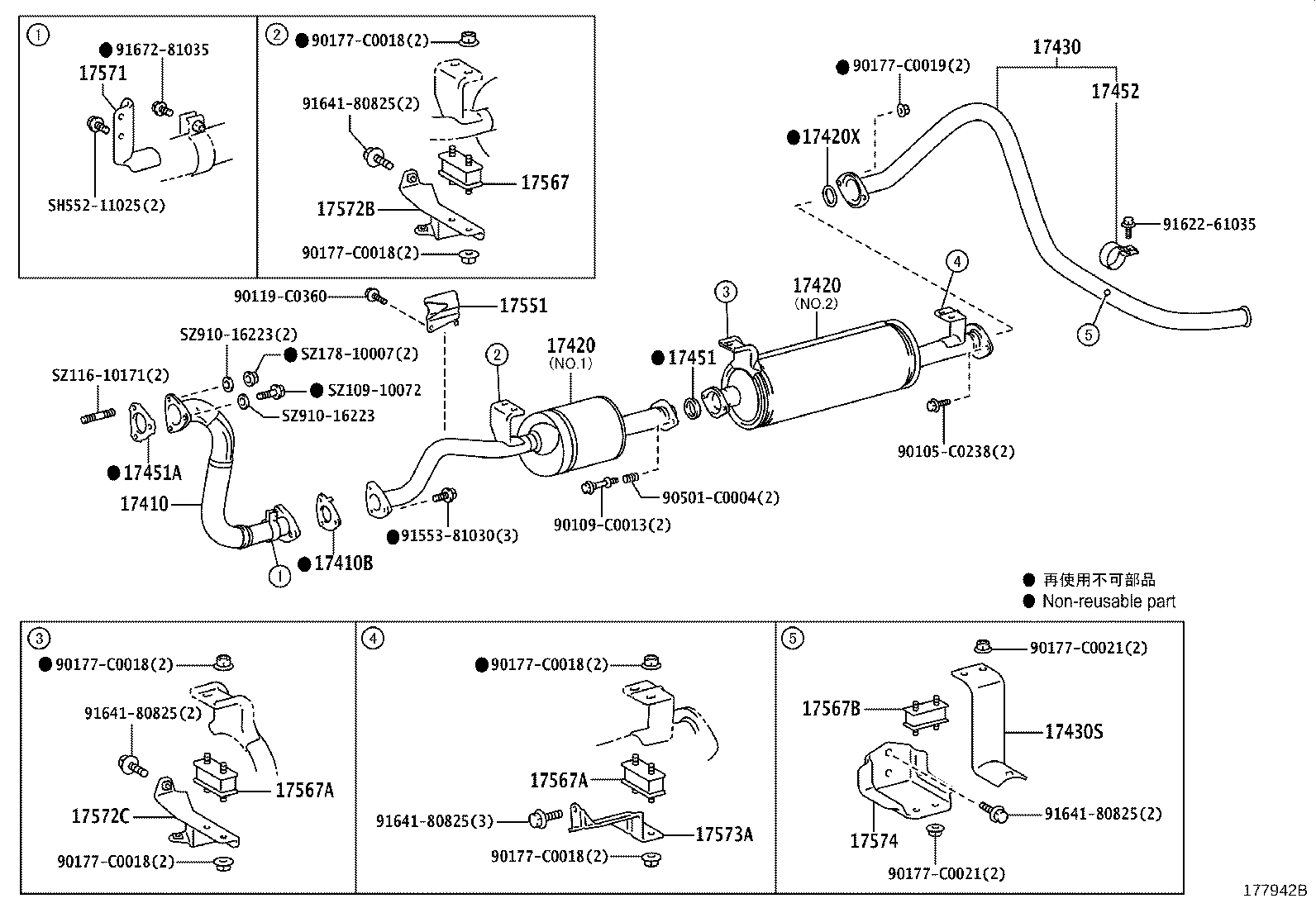

Figure 177943E 177943E 2013-01 → — Figure 177942B 177942B 2013-01 → 2015-07 Figure 178145A 178145A 2013-01 → —

Part groups

PNCDescription
17402 Pipe Sub-assy, Exhaust, Front NO.2
17403 Pipe Sub-assy, Exhaust, Front NO.3
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420K Pipe Assy, Exhaust, Center NO.2
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17440 Pipe, Exhaust Tail, LH
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17452 Clamp, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17551 Insulator, Exhaust Pipe Heat, NO.1
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17572D Bracket, Exhaust Pipe Support, NO.1
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
18408 Band Sub-assy, Convertor Protector Support
18421B Stay, Converter Protector, NO.2
18422 Stay, Converter Protector, NO.2
18422A Stay, Converter Protector, NO.3
18435A Protector, Monolithic Converter
18436 Protector, Monolithic Converter, NO.1
18438 Bracket, Connector Protector, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
