Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

28 part groups · 3 illustrations

Illustrations

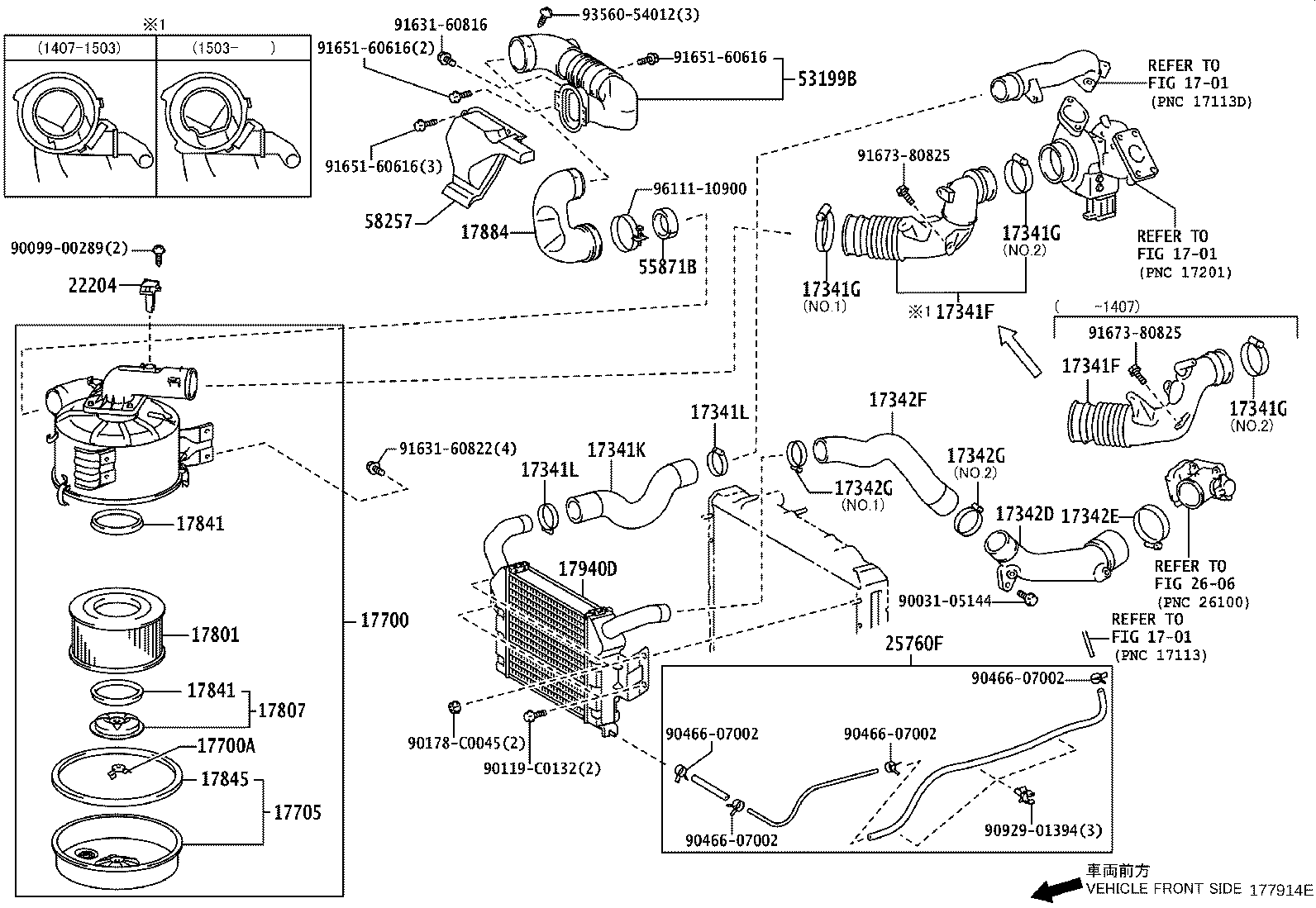

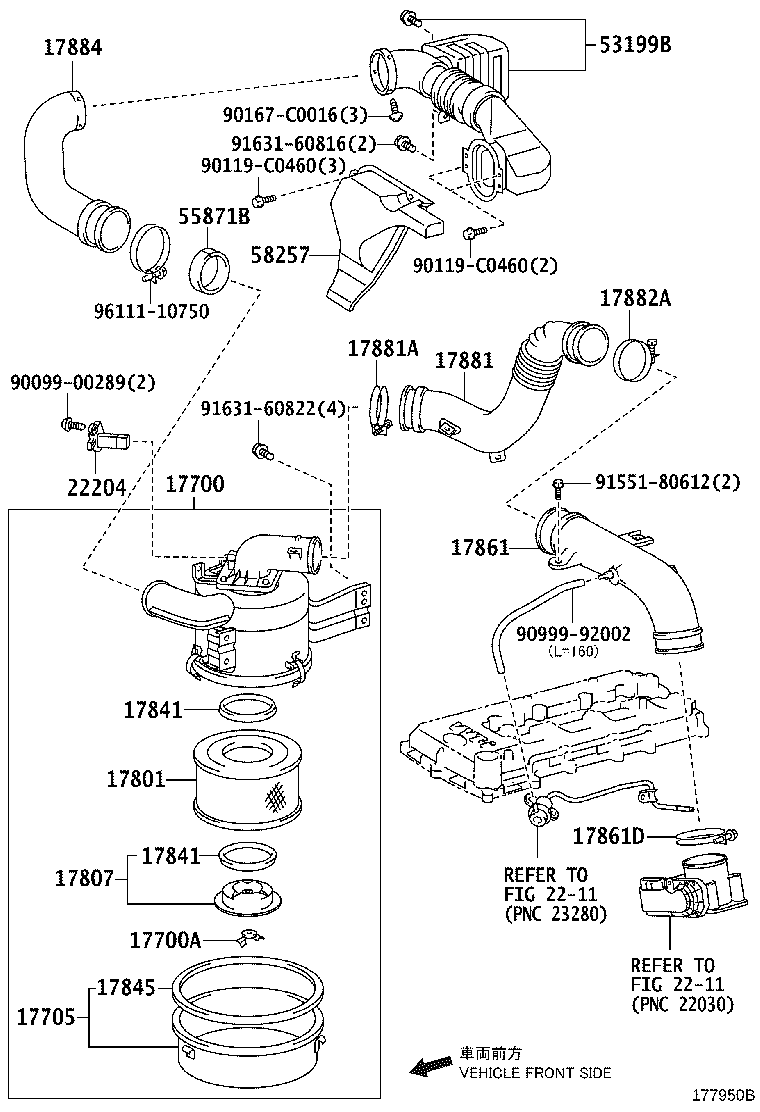

Figure 177954B 177954B 2013-01 → — Figure 177950B 177950B 2013-01 → — Figure 177914E 177914E 2014-03 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17884 Hose, Air Cleaner, NO.4
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
25760F Hose Assy, Vacuum Transmitting
53199B Duct Sub-assy, Cool Air Intake
55871B Seal, Air Duct
58257 Plate, Air Cleaner House
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
