Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

6 part groups · 3 illustrations

Illustrations

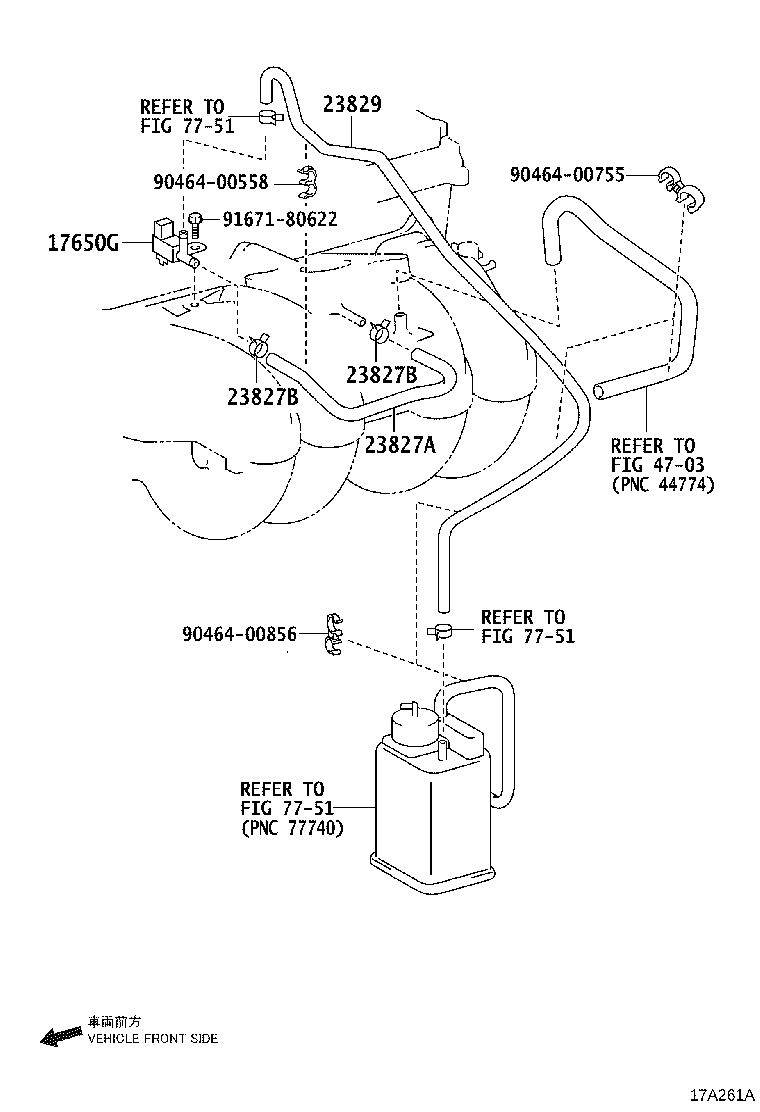

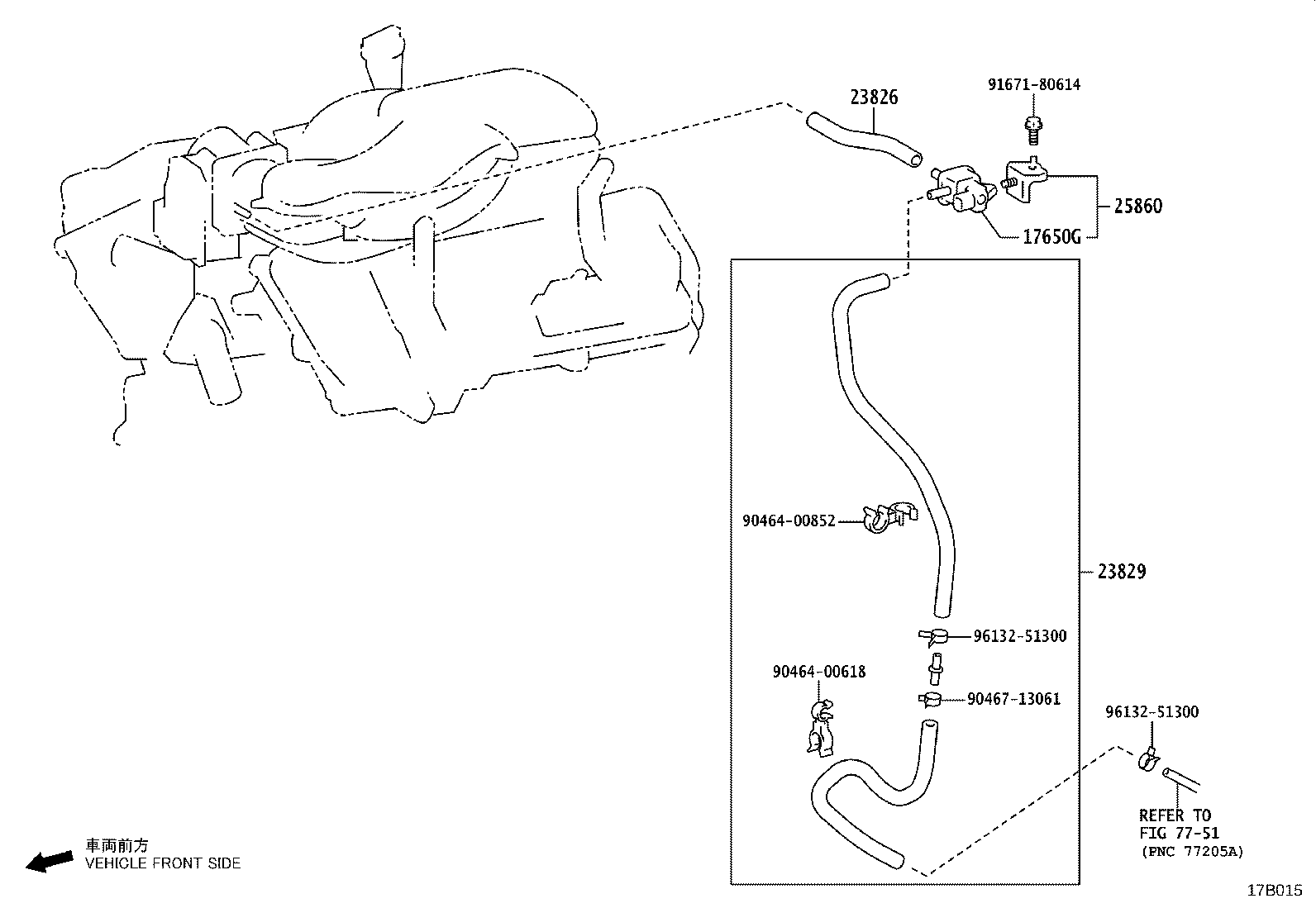

Figure 177953A 177953A 2013-01 → 2019-11 Figure 17B015 17B015 2019-11 → — Figure 17A261A 17A261A 2013-01 → —

Part groups

PNCDescription
17650G Valve, Duty Vacuum Switching
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829 Hose, Fuel Vapor Feed, NO.3
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
