Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

13 part groups · 3 illustrations

Illustrations

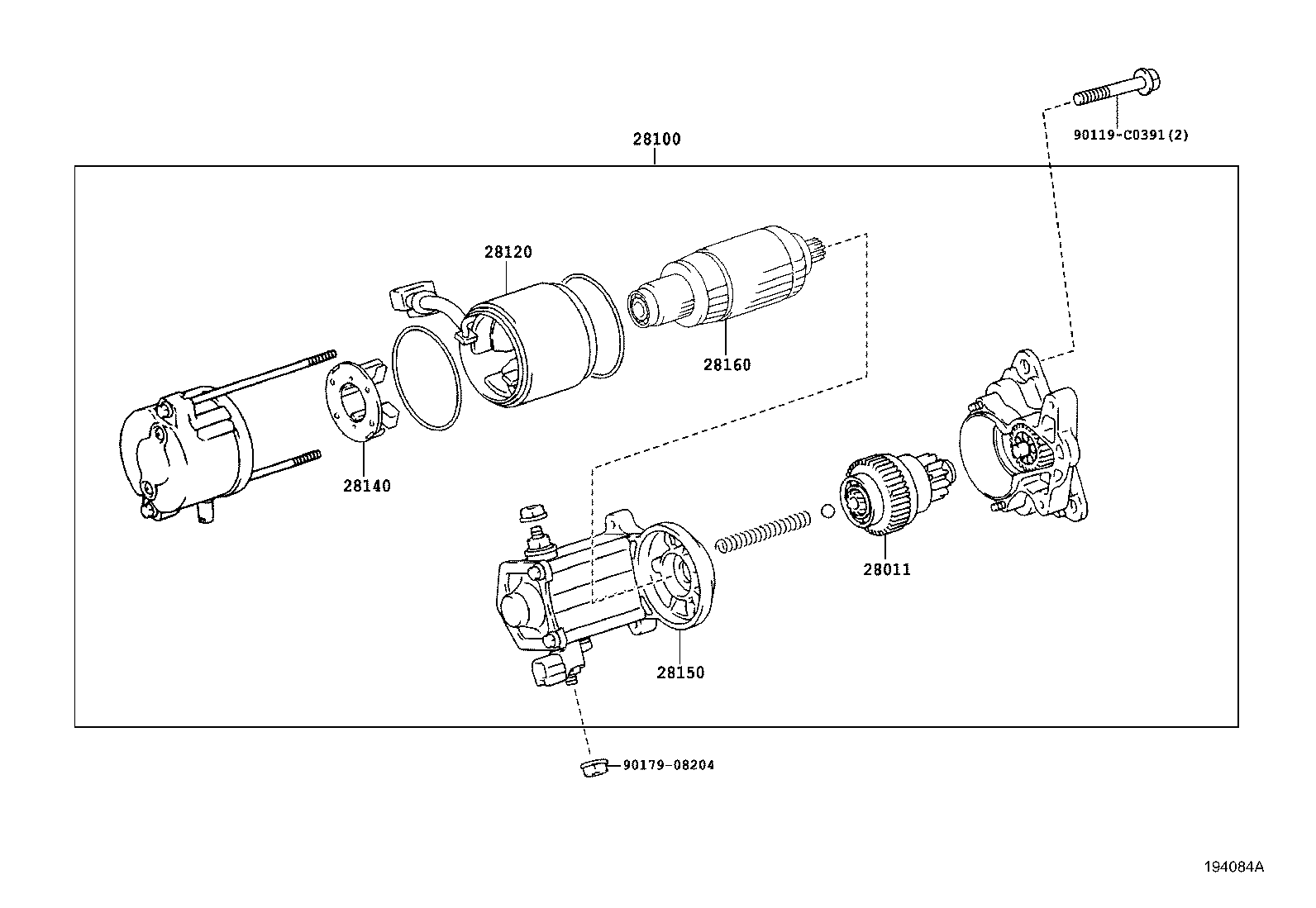

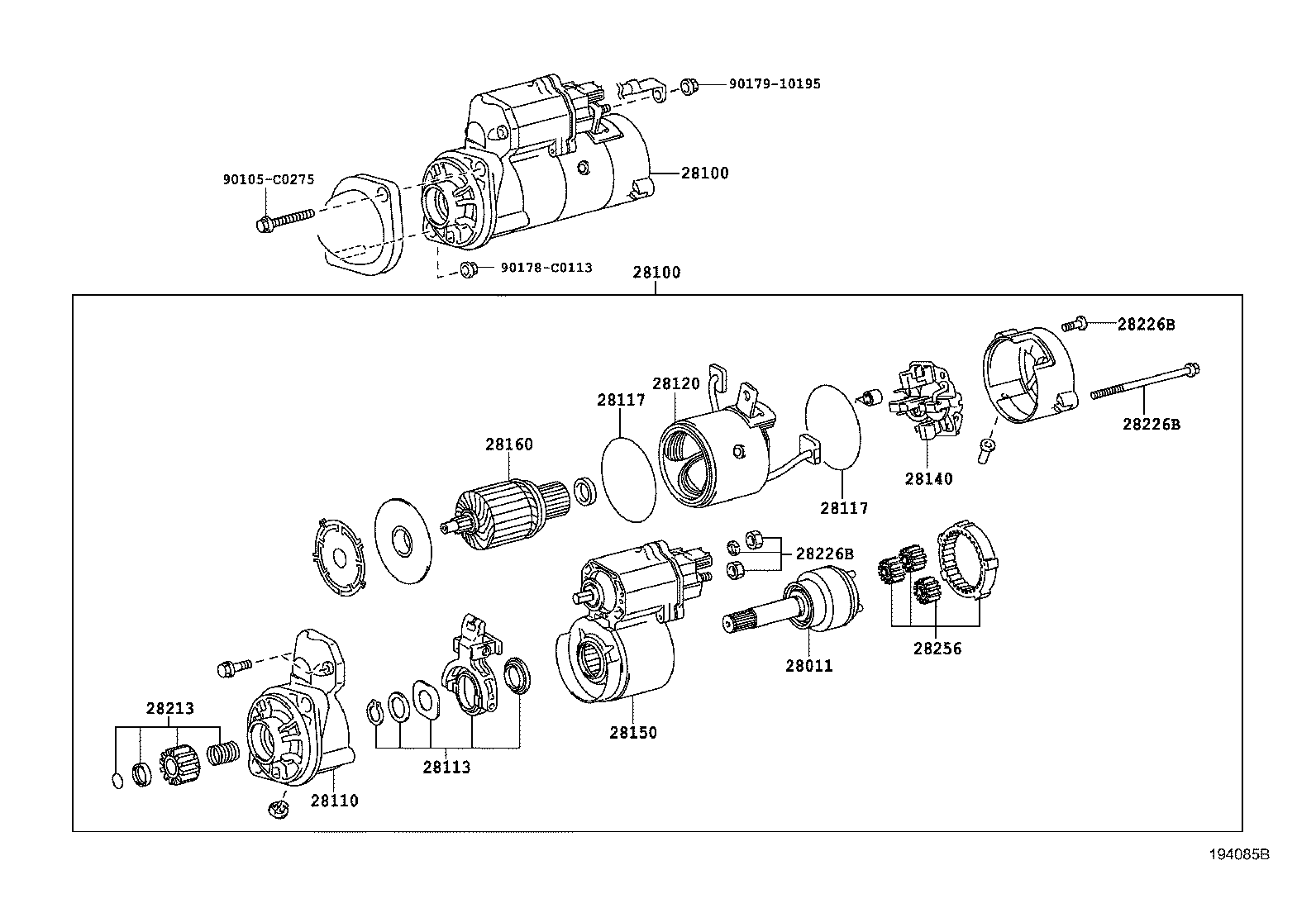

Figure 194086C 194086C 2013-01 → — Figure 194084A 194084A 2013-01 → — Figure 194085B 194085B 2014-03 → 2015-07

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28117 Rubber(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28213 Pinion, Starter Clutch
28226B Starter Kit, Repair Service
28256 Gear, Starter Internal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
