Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

11 part groups · 2 illustrations

Illustrations

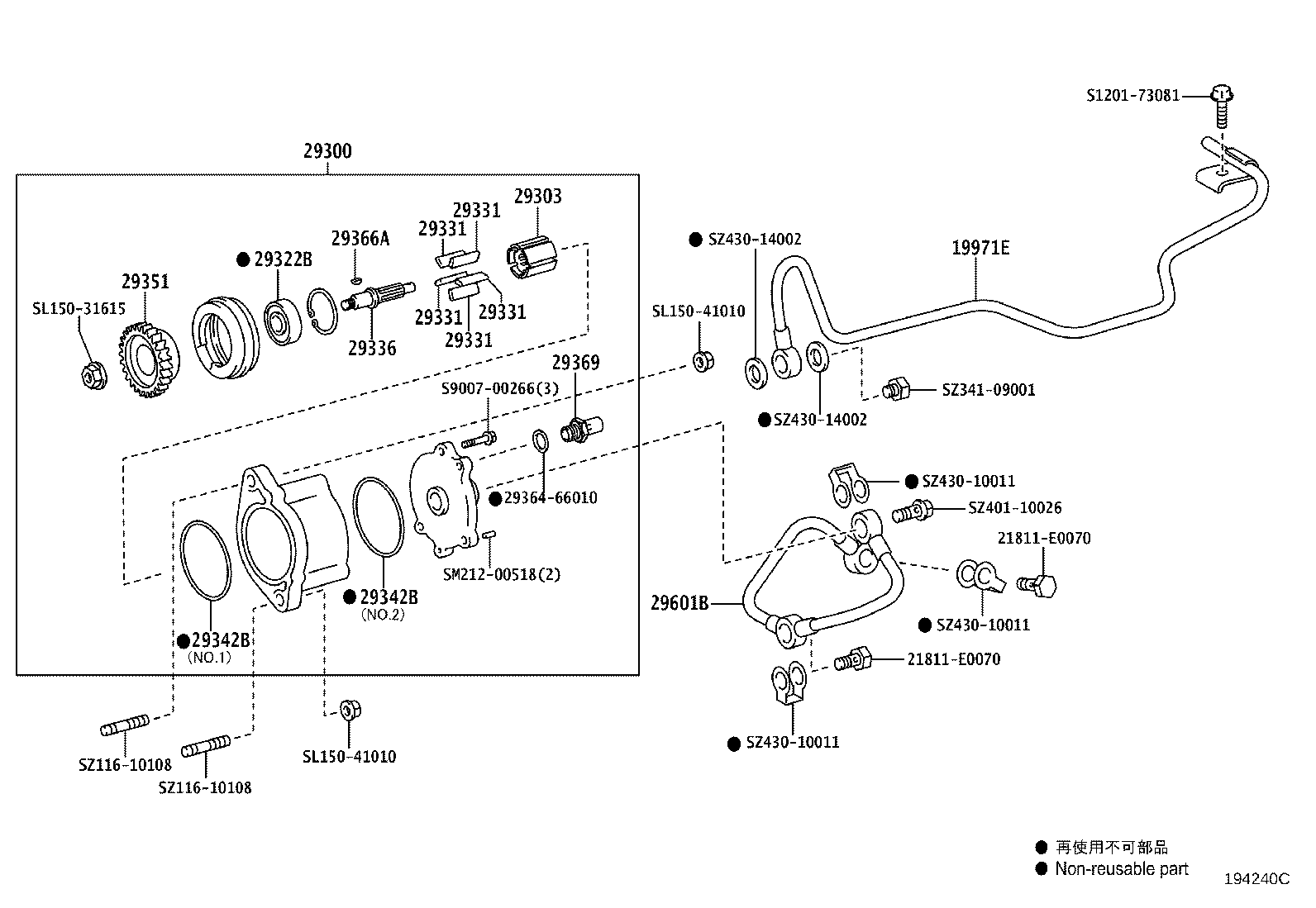

Figure 194241A 194241A 2013-01 → — Figure 194240C 194240C 2014-03 → —

Part groups

PNCDescription
19971E Pipe, Vacuum
29300 Pump Assy, Vacuum
29303 Rotor Sub-assy, Vacuum Pump
29322B Bearing, Vacuum Pump
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29342B Ring, O
29351 Gear, Vacuum Pump
29366A Key, Vacuum Pump
29369 Valve Sub-assy, Check
29601B Pipe Sub-assy, Oil(FOR VACUUM PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
