Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

19 part groups · 3 illustrations

Illustrations

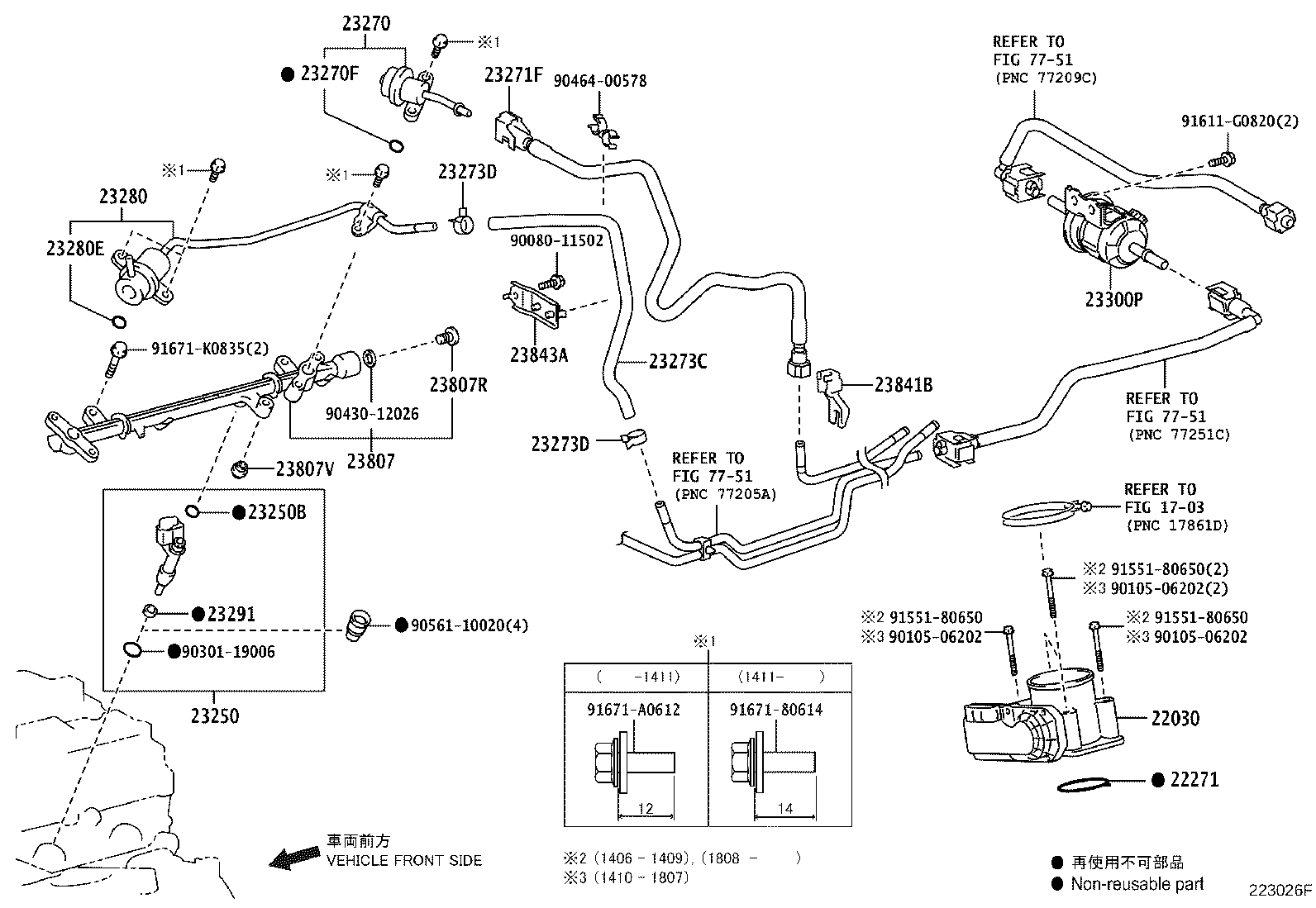

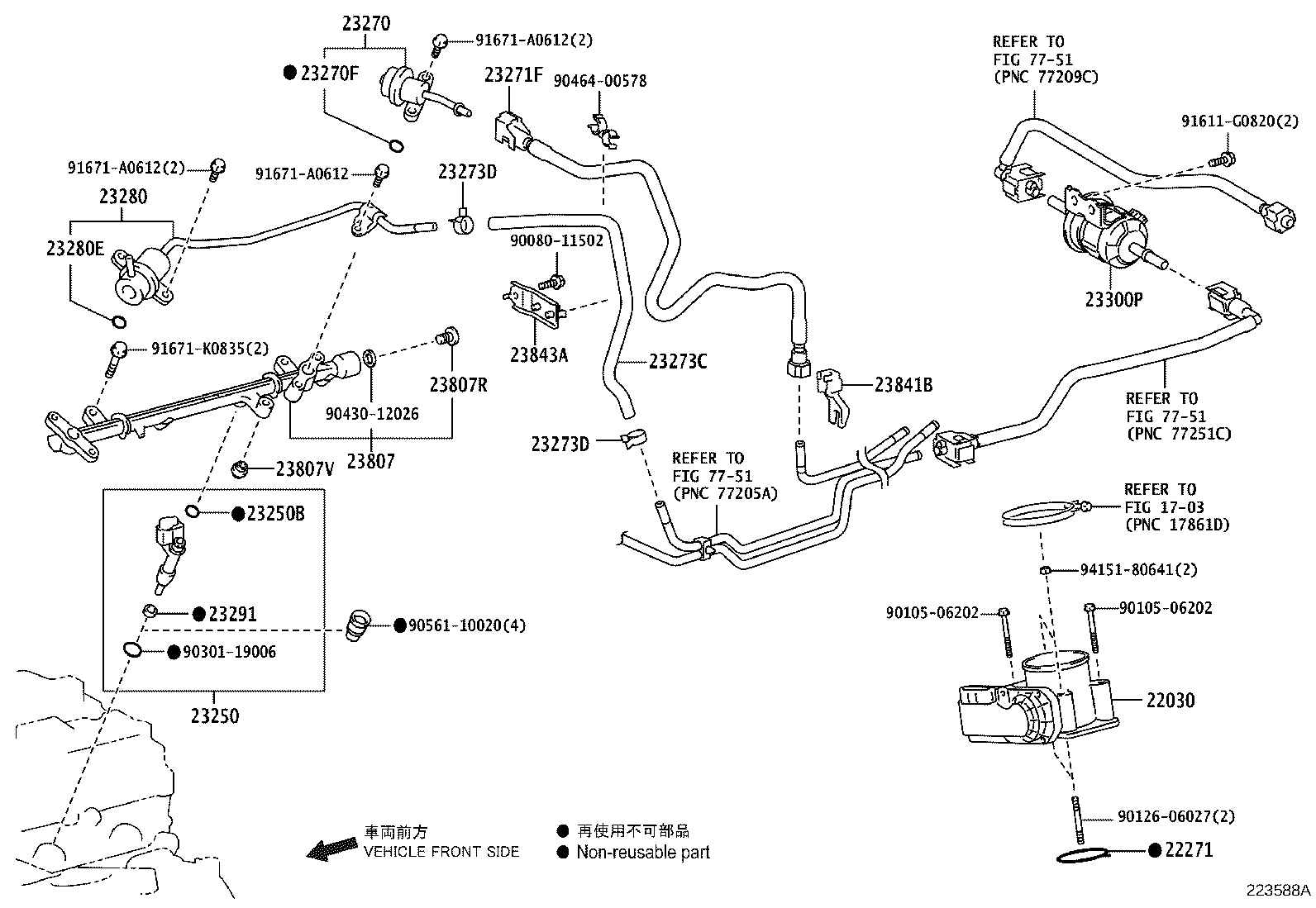

Figure 222881D 222881D 2013-01 → — Figure 223588A 223588A 2013-01 → 2014-06 Figure 223026F 223026F 2014-06 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23270F Ring, O(FOR PULSATION DAMPER)
23271F Hose, Fuel
23273C Hose, Fuel, NO.2
23273D Clip(FOR FUEL HOSE NO.2)
23280 Regulator Assy, Fuel Pressure
23280E Ring, O(FOR FUEL PRESSURE REGULATOR)
23283A Holder, Fuel Pressure Regulator
23291 Insulator, Injector Vibration
23300P Filter, Fuel(FOR EFI)
23807 Pipe Sub-assy, Fuel Delivery
23807R Plug, Fuel Delivary Pipe
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23843A Clamp,Fuel Pipe, NO.3(FOR EFI)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
