Toyota Coaster (CHINA)
2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General
Discontinued model
Data version 2020-07

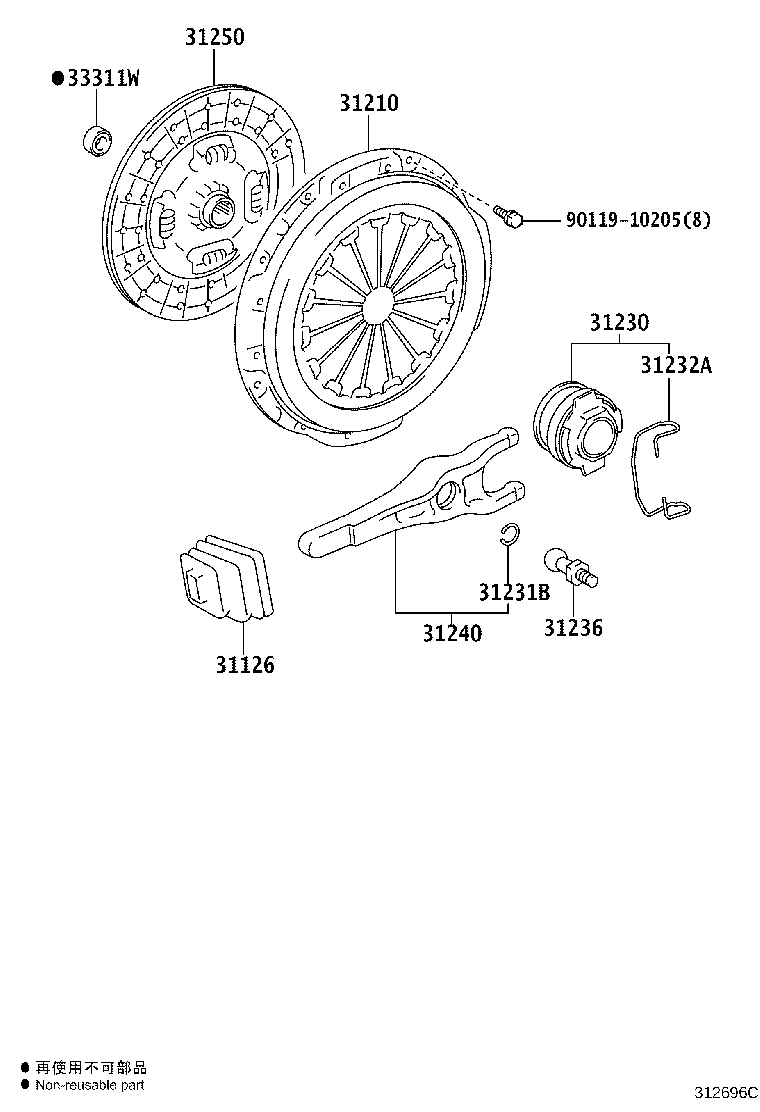

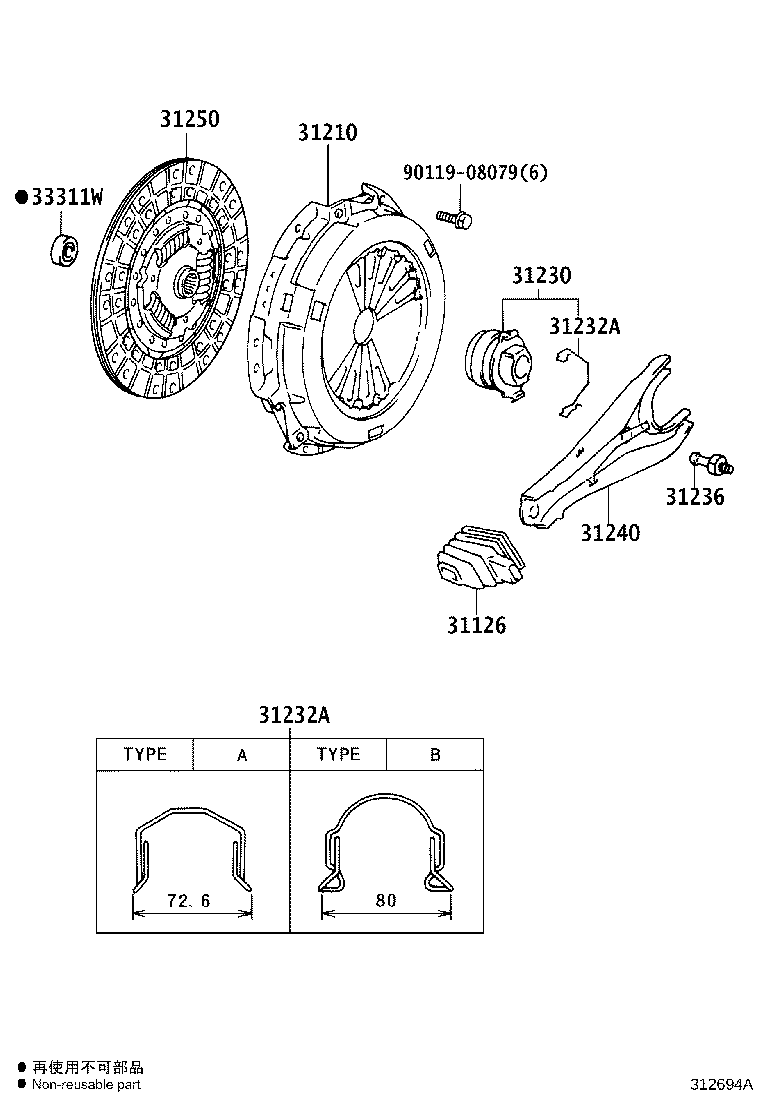

Clutch & Release Fork
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 31126 | Boot, Clutch Release Fork |
| 31210 | Cover Assy, Clutch |
| 31230 | Bearing Assy, Clutch Release |
| 31231B | Ring, Snap(FOR CLUTCH RELEASE HUB) |
| 31232A | Clip, Release Bearing Hub |
| 31236 | Ball, Release Fork |
| 31240 | Fork Assy, Clutch Release |
| 31250 | Disc Assy, Clutch |
| 33311W | Bearing (FOR INPUT SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
