Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

32 part groups · 3 illustrations

Illustrations

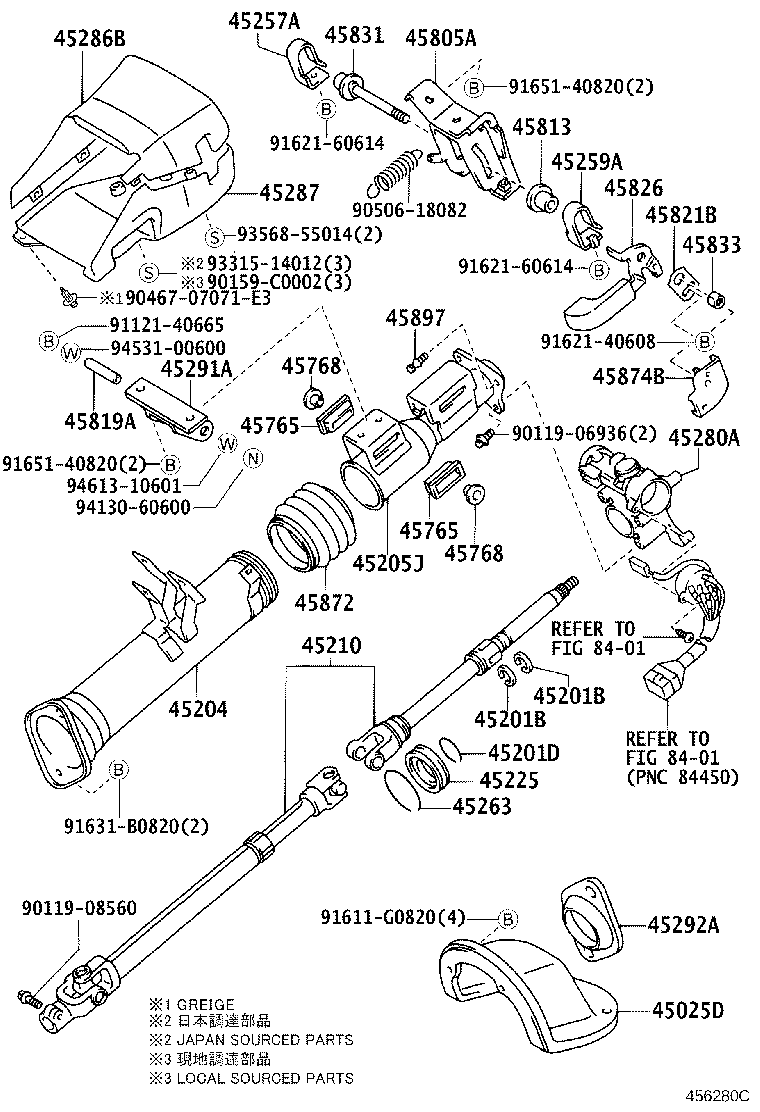

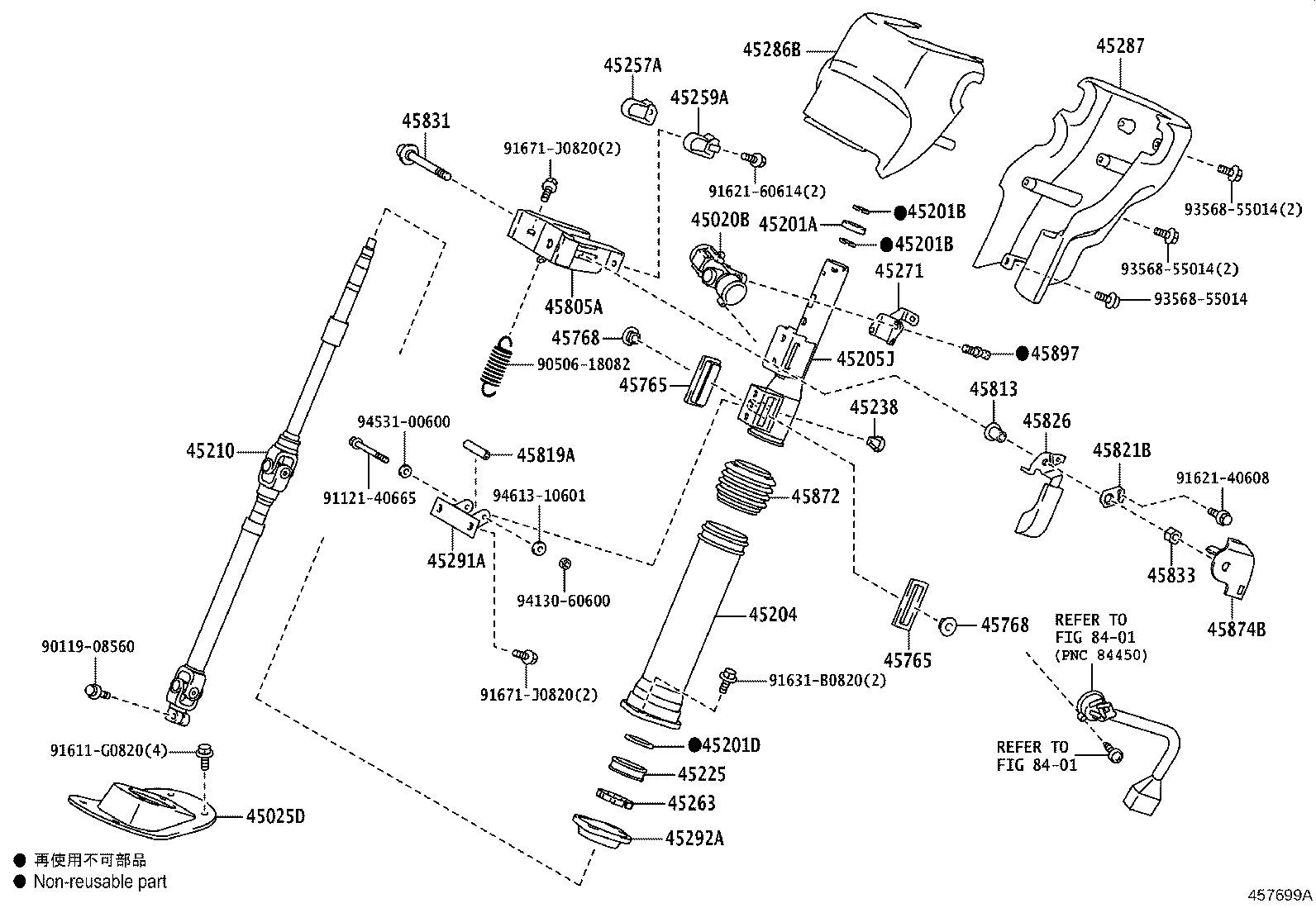

Figure 456279C 456279C 2013-01 → — Figure 456280C 456280C 2013-01 → — Figure 457699B 457699B 2019-11 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45204 Tube Assy, Steering Column, Lower
45205J Tube Sub-assy, Steering Column, Upper
45210 Shaft Assy, Steering Main
45225 Block, Bearing
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45257A Plate, Steering Column Energy Absorbing
45259A Sheet, Column Hole Cover Silencer
45263 Ring, Steering Column, NO.1
45271 Clamp, Steering Column, Upper
45275 Bracket, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45291A Support, Steering Column Tube
45292A Cover, Main Shaft Lower Dust
45765 Guide, Telescopic Steering
45768 Bush, Telescopic Steering
45805A Support Sub-assy, Tilt Steering
45813 Collar, Tilt Steering Support, NO.1
45819A Collar(FOR TILT LEVER RETAINER)
45821B Reinforce, Tilt Steering Support, NO.1
45826 Lever, Steering Tilt
45831 Bolt, Tilt Lever Lock, NO.1
45833 Nut, Tilt Steering Adjusting, NO.1
45872 Cover, Steering Column Tube
45874B Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
