Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

15 part groups · 3 illustrations

Illustrations

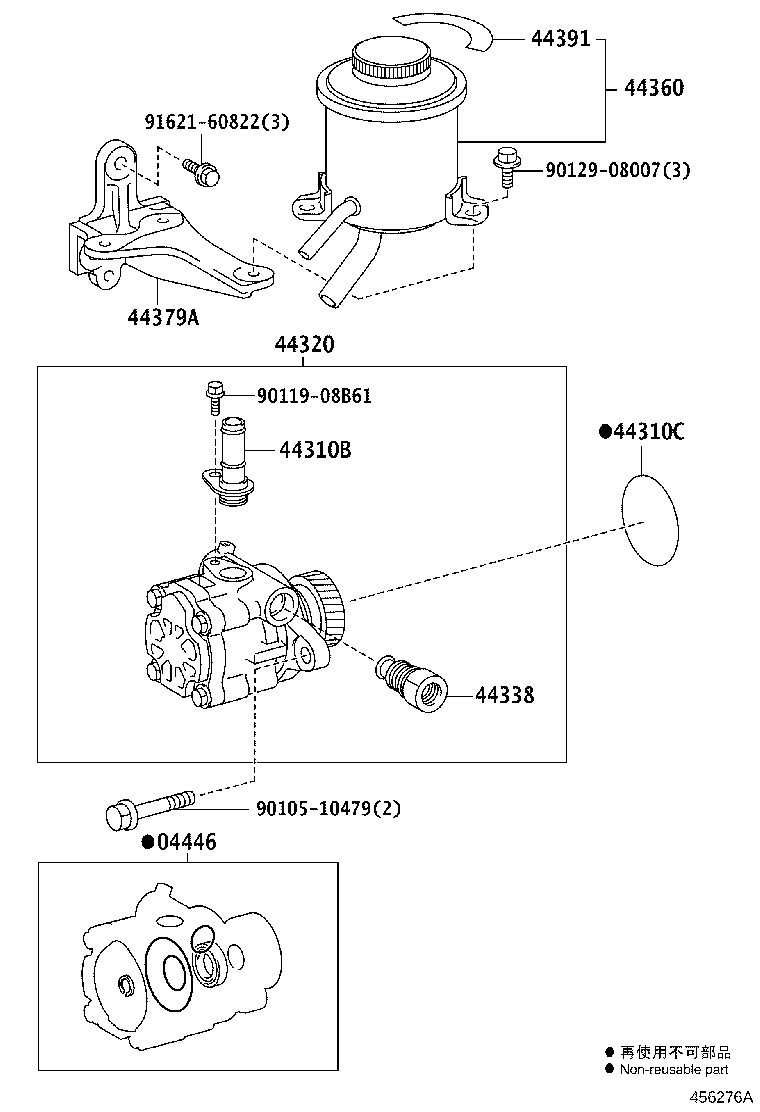

Figure 456281B 456281B 2013-01 → — Figure 456275B 456275B 2013-01 → — Figure 456276A 456276A 2014-03 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44302A Seal, Oil, NO.1(FOR VANE PUMP HOUSING)
44303A Shaft Sub-assy, W/Pulley
44308 Union Sub-assy, Pressure Port
44310B Union(FOR VANE PUMP)
44310C Ring, O(FOR VANE PUMP)
44312B Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
44320 Pump Assy, Vane
44327C Gasket, Vane Pump Housing
44328D Bolt(FOR VANE PUMP HOUSING END)
44337 Union, Power Steering Suction Port
44338 Union, Pressure Port
44360 Reservoir Assy, Vane Pump Oil
44379A Bracket, Oil Reservoir, NO.2
44391 Plate, Power Steering Oil Reservoir Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
