Toyota Coaster (CHINA)
2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General
Discontinued model
Data version 2020-07

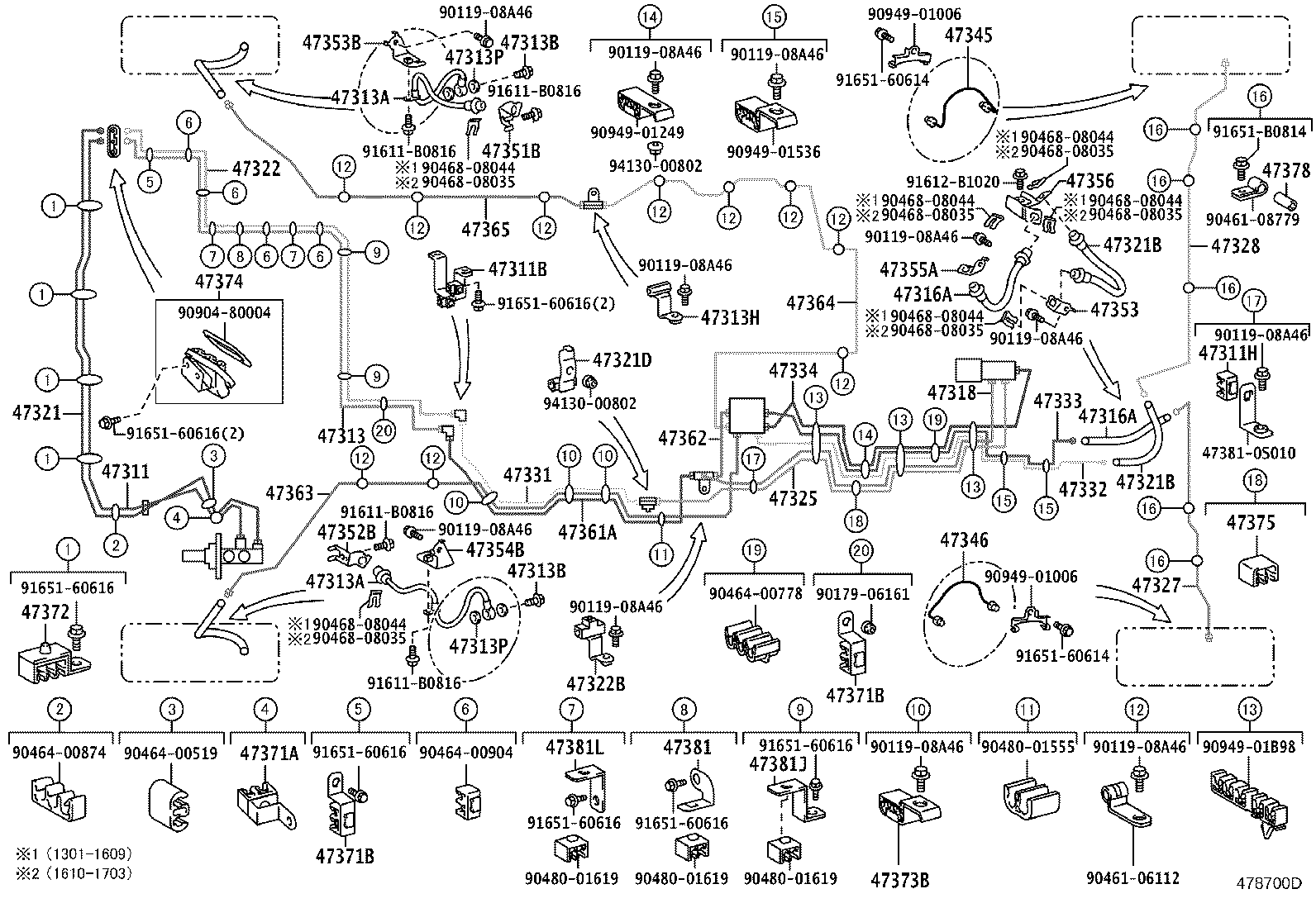

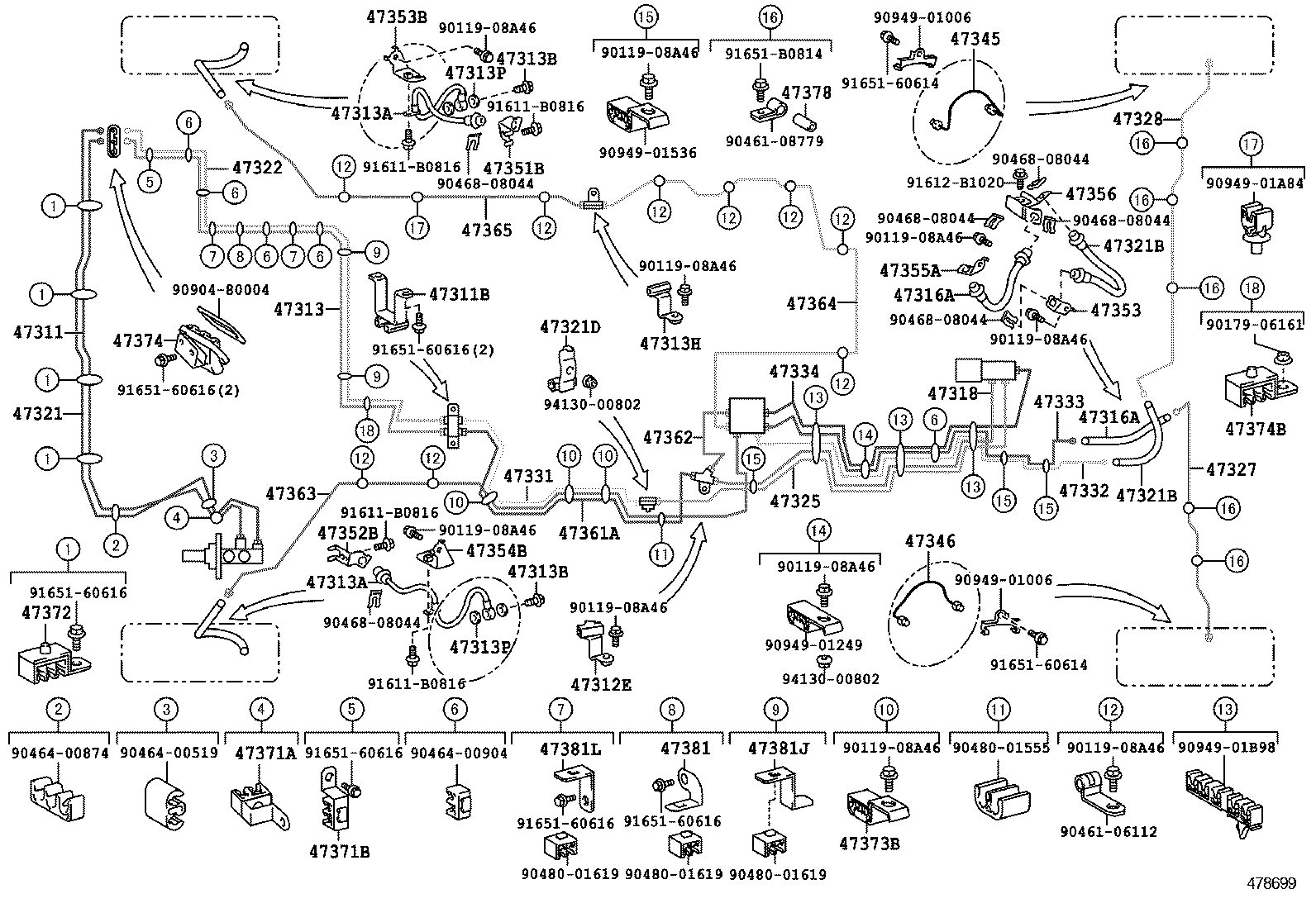

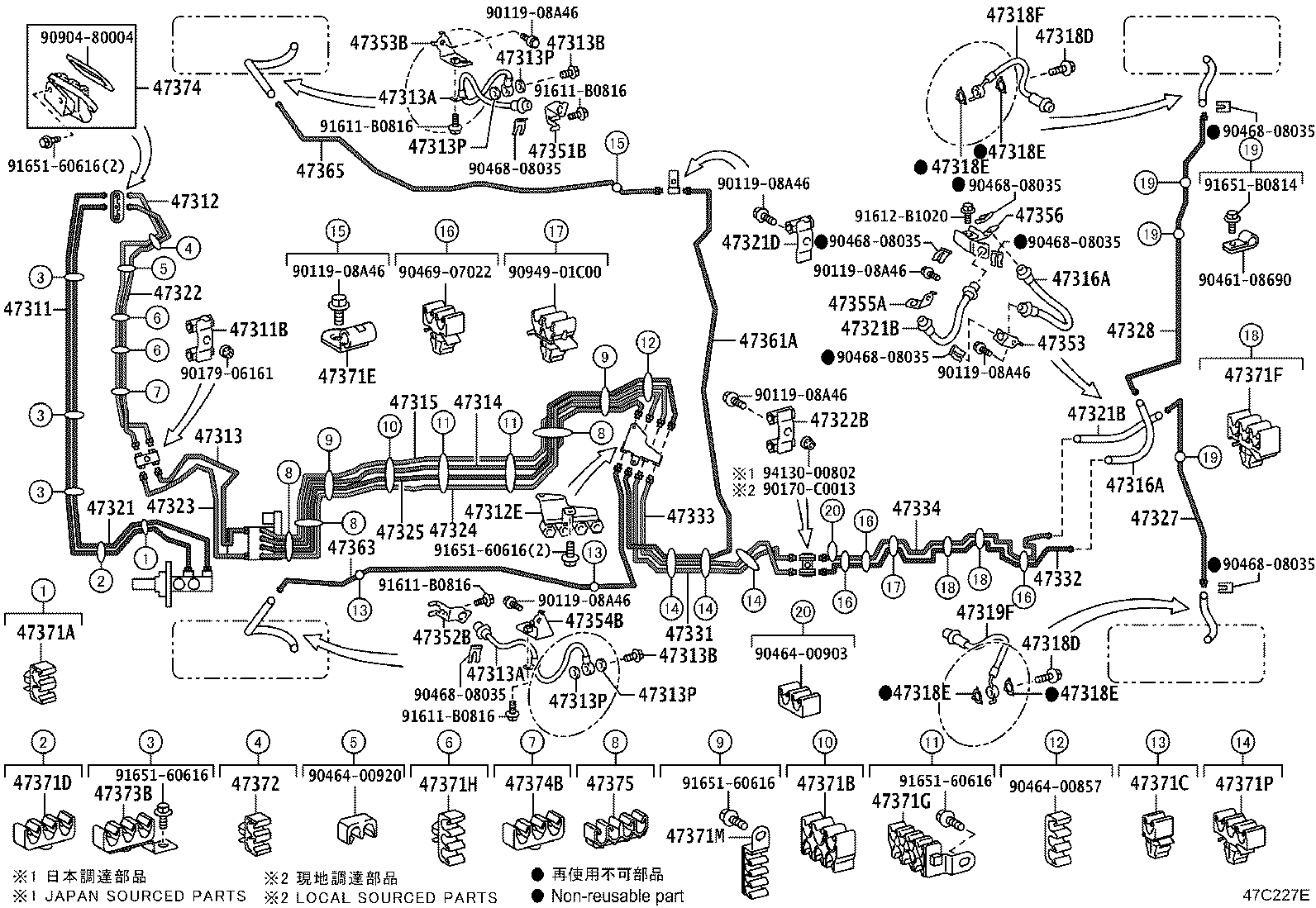

Brake Tube & Clamp
84 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 04477 | Bush & Boot Kit, Load Sensing Spring |
| 31478D | Cap, Bleeder Plug(FOR LSPV) |

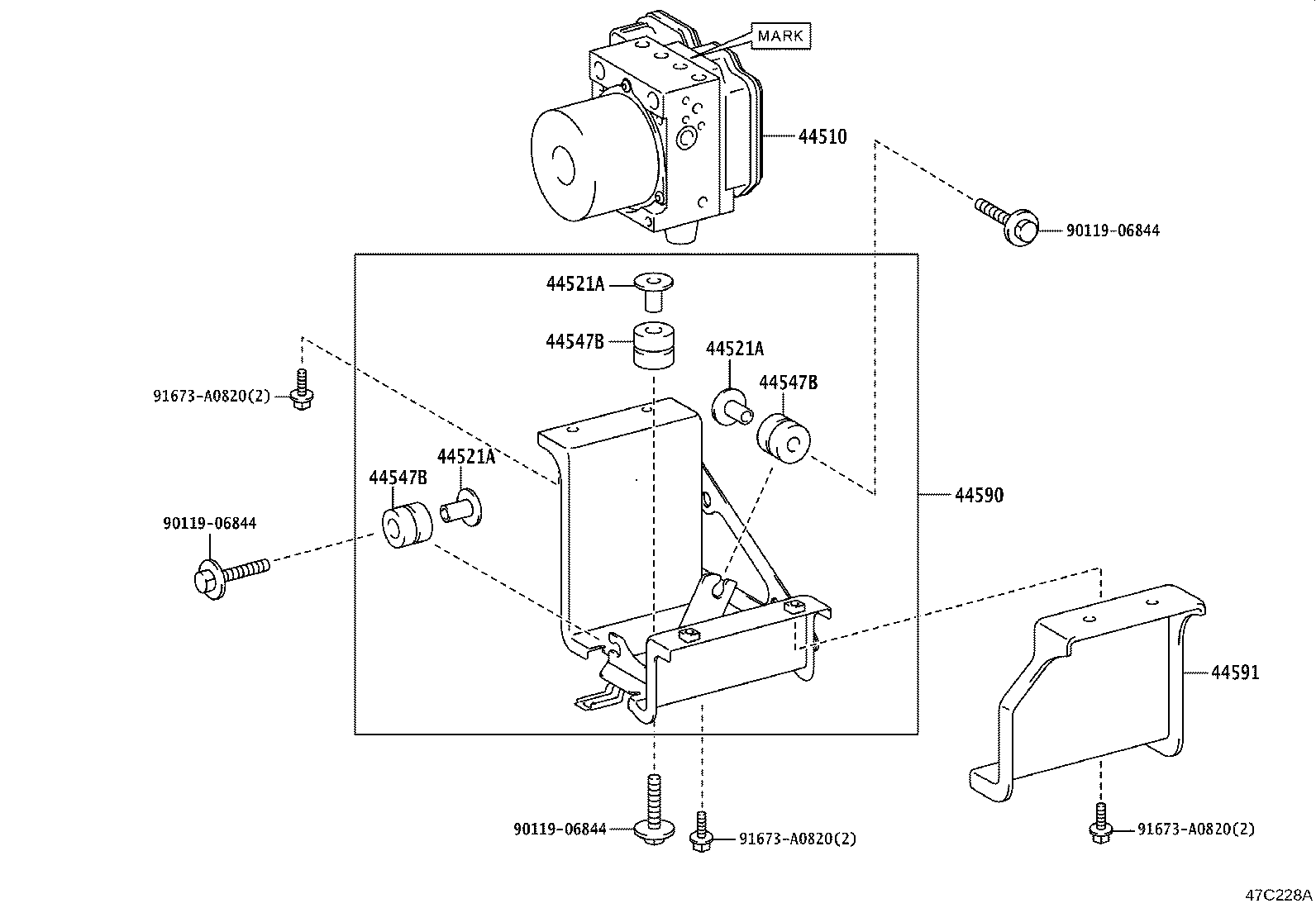

| 44510 | Actuator Assy, Brake |
| 44521A | Collar, Brake Actuator Case, NO.1 |
| 44547B | Cushion, Brake Actuator Bracket |
| 44590 | Bracket Assy, Brake Actuator |
| 44591 | Bracket, Brake Actuator, NO.1 |
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47311H | Grommet(FOR BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312E | Way, NO.2(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313H | Way, NO.3(FOR FRONT BRAKE TUBE) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47318 | Tube, Front Brake, NO.8 |
| 47318D | Bolt, Union(FOR REAR FLEXIBLE HOSE) |
| 47318E | Gasket(FOR REAR FLEXIBLE HOSE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321B | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47327 | Tube, Rear Brake, NO.7 |
| 47328 | Tube, Rear Brake, NO.8 |
| 47331 | Tube, Rear Brake, NO.10 |
| 47332 | Tube, Rear Brake, NO.11 |
| 47333 | Tube, Rear Brake, NO.12 |
| 47334 | Tube, Rear Brake, NO.13 |
| 47345 | Tube, Wheel Cylinder, Rear RH |
| 47346 | Tube, Wheel Cylinder, Rear LH |
| 47351B | Bracket, Flexible Hose, NO.1 |
| 47352B | Bracket, Flexible Hose, NO.2 |
| 47353 | Bracket, Flexible Hose(FOR REAR) |
| 47353B | Bracket, Flexible Hose, NO.3 |
| 47354B | Bracket, Flexible Hose, NO.4 |
| 47355A | Bracket, Flexible Hose, NO.5 |
| 47356 | Bracket, Flexible Hose, NO.6 |
| 47361A | Tube, Front Brake, NO.10 |
| 47362 | Tube, Front Brake, NO.11 |
| 47363 | Tube, Front Brake, NO.12 |
| 47364 | Tube, Front Brake, NO.13 |
| 47365 | Tube, Front Brake, NO.14 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371C | Clamp, Brake Tube, NO.7 |
| 47371D | Clamp, Brake Tube, NO.8 |
| 47371E | Clamp, Brake Tube, NO.9 |
| 47371F | Clamp, Brake Tube, NO.10 |
| 47371G | Clamp, Brake Tube, NO.11 |
| 47371H | Clamp, Brake Tube, NO.12 |
| 47371M | Clamp, Brake Tube, NO.13 |
| 47371P | Clamp, Brake Tube, NO.14 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374 | Connector, Tube |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 47378 | Protector, Brake Tube |
| 47381 | Bracket, Brake Tube Clamp NO.1 |
| 47381J | Bracket, Brake Tube Clamp, NO.2 |
| 47381L | Bracket, Brake Tube Clamp, NO.3 |

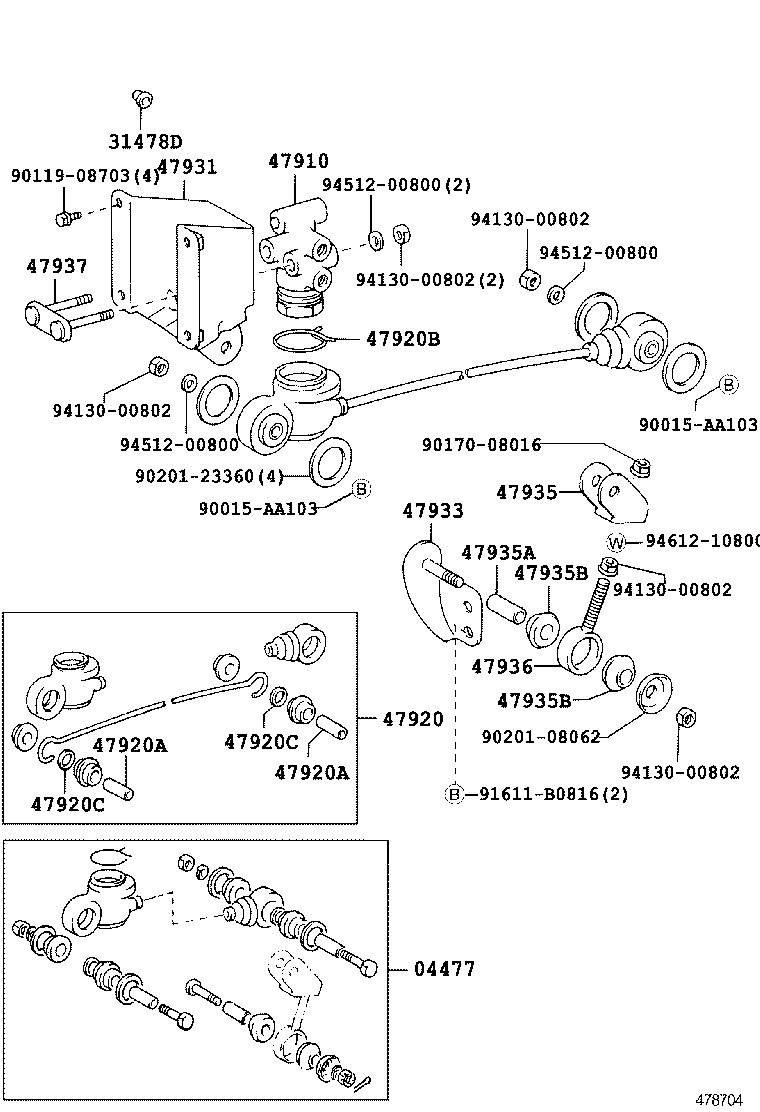

| 47910 | Valve Assy, Load Sensing Proportioning |
| 47920 | Spring Assy, Load Sensing |
| 47920A | Collar(FOR LOAD SENSING SPRING) |
| 47920B | Clip(FOR LOAD SENSING VALVE BOOT) |
| 47920C | Washer(FOR LOAD SENSING SPRING) |
| 47931 | Bracket, Load Sensing Valve |
| 47933 | Bracket, Load Sensing Shackle, NO.1 |
| 47935 | Shackle, Load Sensing Spring, NO.1 |
| 47935A | Collar(FOR LOAD SENSING SPRING SHACKLE) |
| 47935B | Bush(FOR LOAD SENSING SPRING SHACKLE) |
| 47936 | Shackle, Load Sensing Spring, NO.2 |
| 47937 | Plate, Load Sensing Valve Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
