Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

29 part groups · 2 illustrations

Illustrations

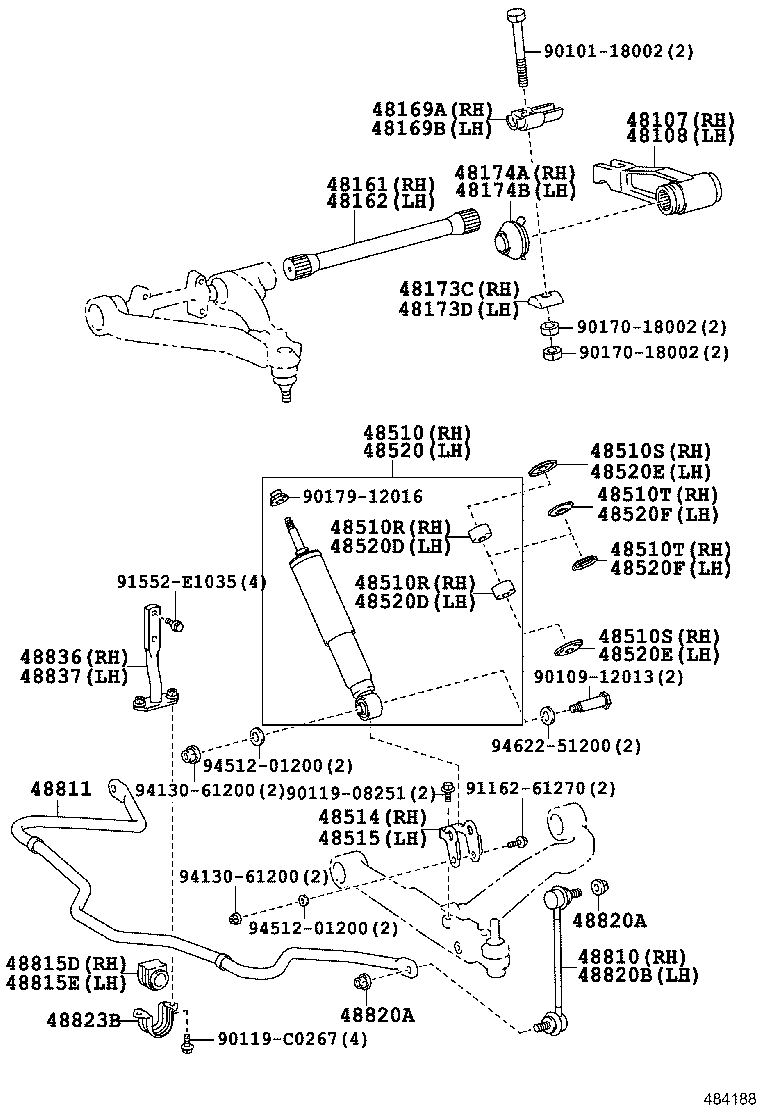

Figure 483820A 483820A 2013-01 → 2015-07 Figure 484188 484188 2015-07 → —

Part groups

PNCDescription
48107 Arm Sub-assy, Anchor, RH
48108 Arm Sub-assy, Anchor, LH
48161 Spring, Torsion Bar, RH
48162 Spring, Torsion Bar, LH
48169A Swivel, Anchor Arm, RH
48169B Swivel, Anchor Arm, LH
48173C Seat, Anchor Arm Adjuster, RH
48173D Seat, Anchor Arm Adjuster, LH
48174A Cover, Torsion Bar Dust, RH
48174B Cover, Torsion Bar Dust, LH
48510 Absorber Assy, Shock, Front RH
48510R Cushion, Front Shock Absorber, NO.1 RH
48510S Retainer, Front Shock Absorber Cushion, NO.1 RH
48510T Retainer, Front Shock Absorber Cushion, NO.2 RH
48514 Bracket, Front Shock Absorber, Lower RH
48515 Bracket, Front Shock Absorber, Lower LH
48520 Absorber Assy, Shock, Front LH
48520D Cushion, Front Shock Absorber, NO.1 LH
48520E Retainer, Front Shock Absorber Cushion, NO.1 LH
48520F Retainer, Front Shock Absorber Cushion, NO.2 LH
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815D Bush, Front Stabilizer Bar, RH
48815E Bush, Front Stabilizer Bar, LH
48820A Nut(FOR FRONT STABILIZER LINK)
48820B Link Assy, Front Stabilizer, RH
48823B Cover, Front Stabilizer Bracket
48836 Bracket, Front Stabilizer End, RH
48837 Bracket, Front Stabilizer End, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
