Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

7 part groups · 2 illustrations

Illustrations

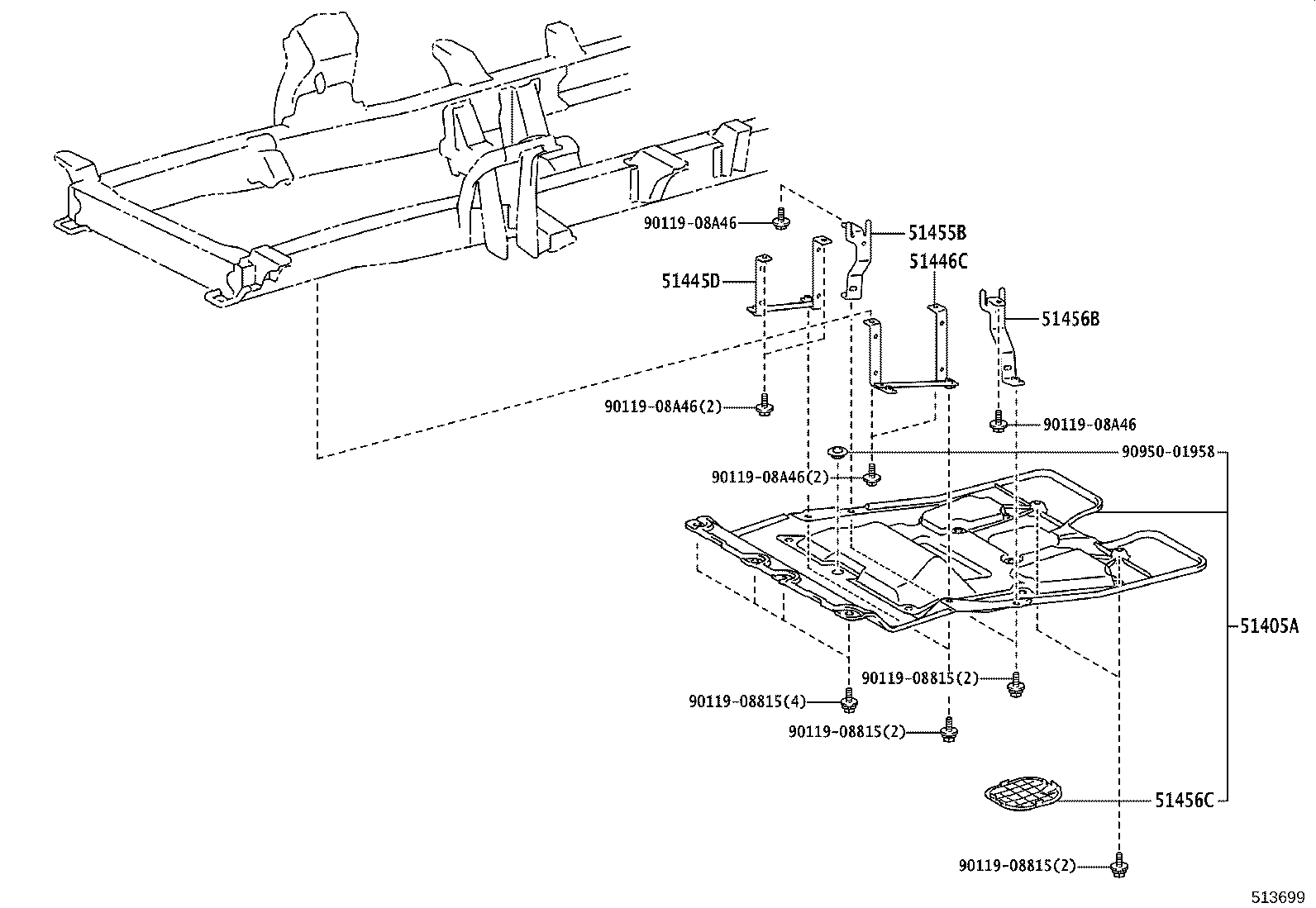

Figure 512876 512876 2013-01 → 2019-11 Figure 513699 513699 2019-11 → —

Part groups

PNCDescription
51405A Cover Sub-assy, Engine Under, NO.1
51441D Cover, Engine Under
51445D Bracket, Engine Under Cover, RH
51446C Bracket, Engine Under Cover, LH
51455B Bracket, Engine Under Cover, Rear RH
51456B Bracket, Engine Under Cover, Rear LH
51456C Seal, Engine Under Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
