Toyota Coaster (CHINA)
2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General
Discontinued model
Data version 2020-07

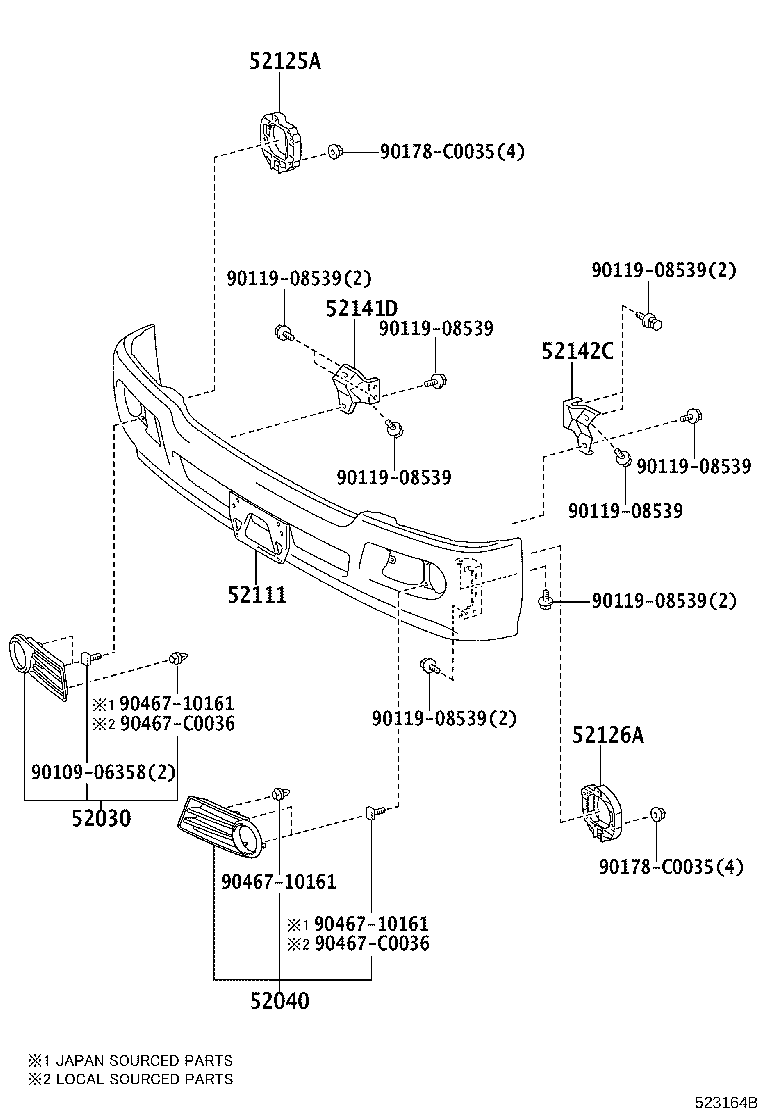

Front Bumper & Bumper Stay
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52030 | Cover Assy, Front Bumper Hole, RH |
| 52040 | Cover Assy, Front Bumper Hole, LH |
| 52111 | Bumper Assy, Front |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126A | Bracket, Fog Lamp Mounting, LH |
| 52141D | Stay, Front Bumper, RH |
| 52142C | Stay, Front Bumper, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
