Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Panel & Windshield Glass

12 part groups · 2 illustrations

Illustrations

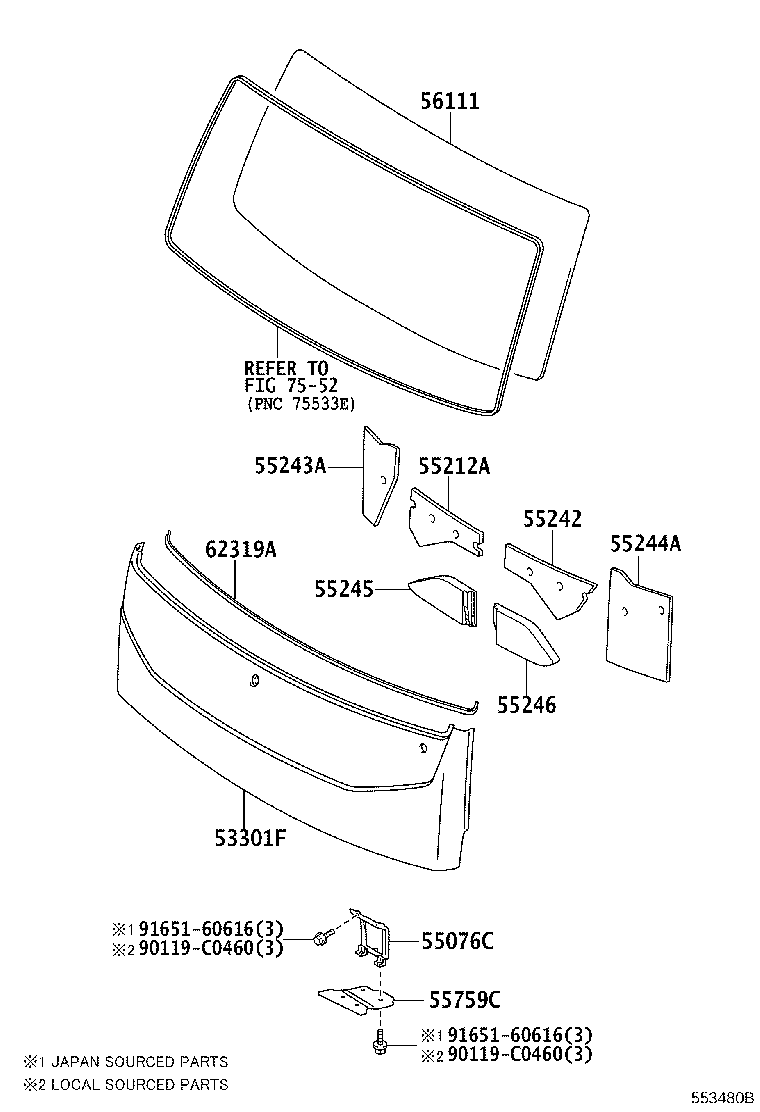

Figure 553092A 553092A 2013-01 → 2015-07 Figure 553480B 553480B 2015-07 → —

Part groups

PNCDescription
53301F Panel Sub-assy, Front
55076C Net Sub-assy, Air Duct
55212A Silencer, Front Panel, Lower
55242 Silencer, Front Panel Side, NO.1 LH
55243A Silencer, Front Panel Side, NO.2 RH
55244A Silencer, Front Panel Side, NO.2 LH
55245 Silencer, Front Panel Side, NO.3 RH
55246 Silencer, Front Panel Side, NO.3 LH
55759C Cover, Heater Air Duct
56111 Glass, Windshield
56121 Weatherstrip, Windshield
62319A Protector, Front Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
