Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Door Lock & Hinge

30 part groups · 5 illustrations

Illustrations

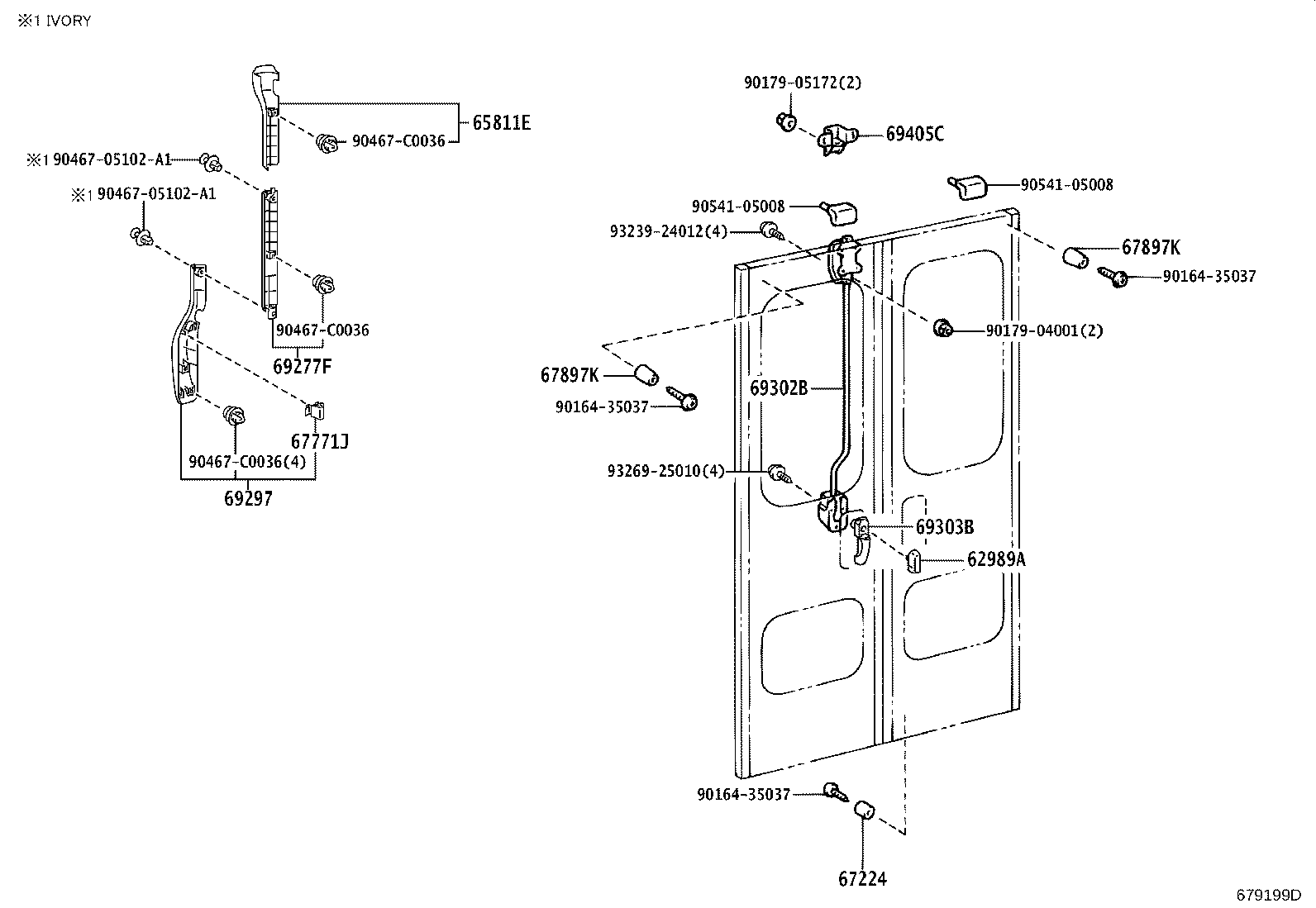

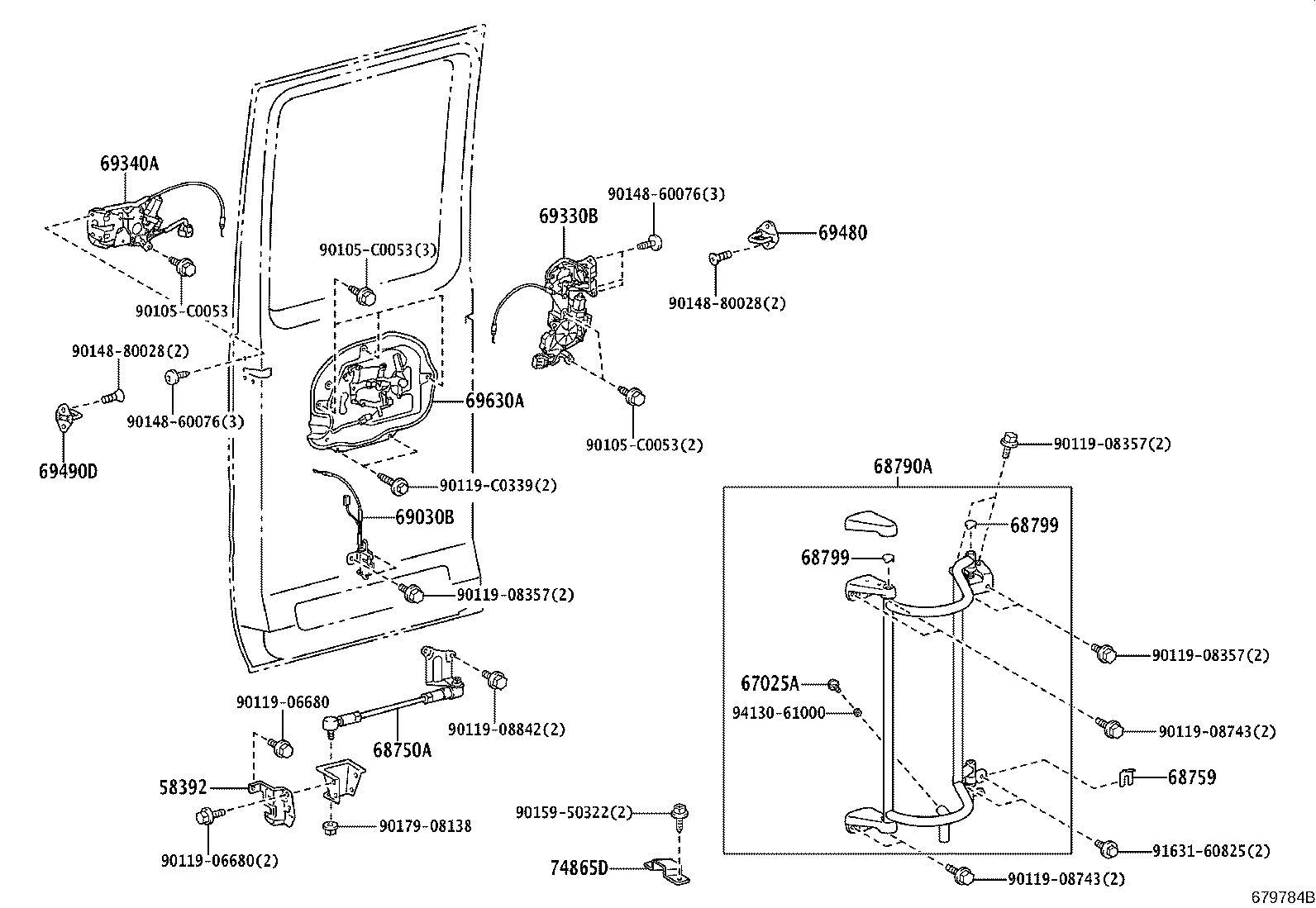

Figure 677775A 677775A 2013-01 → 2018-01 Figure 677775A 677775A 2015-07 → 2018-01 Figure 679784B 679784B 2018-01 → — Figure 677776B 677776B 2013-01 → 2018-01 Figure 679199D 679199D 2018-01 → —

Part groups

PNCDescription
58392 Mudguard, Glide Door Link, Front
62989A Cover, Center Door Lock
65811E Cover, Top
67025A Stopper Sub-assy, Slide Door, Front
67224 Gum, Door Cushion, NO.2
67255 Stopper, Center Inside Lock
67771J Retainer, Door Trim
67897K Cushion, Rear Door
68750A Link Assy, Glide Door
68759 Spacer, Glide Door Arm
68790A Arm Assy, Glide Door
68799 Cap, Glide Door Arm
69030B Lock Assy, Glide Door Open
69230A Handle Assy, Glide Door Outside
69272C Plate, Glide Door Inside Handle
69277F Bezel, Door Inside Handle, NO.1 RH
69281 Handle, Glide Door Inside
69290E Base Assy, Glide Door Inside Handle
69297 Bezel, Door Inside Handle, NO.2 RH
69302B Lock Sub-assy, Center Door Inside Handle
69303B Handle Sub-assy, Center Door Lock, Outside
69330B Lock Assy, Glide Door, Front
69340A Lock Assy, Glide Door, Rear
69405C Stopper Sub-assy, Center Door Inside Look
69480 Plate Assy, Glide Door Lock Striker, Front
69490D Plate Assy, Glide Door Lock Striker, Rear
69630A Control Assy, Glide Door Lock Remote
69741E Knob, Door Lock Control
69751C Holder, Door Lock Control Knob(FOR GLIDE DOOR)
74865D Cover, Center Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
