Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

433 part groups · 19 illustrations

Illustrations

71F9TTA 2013-01 → —

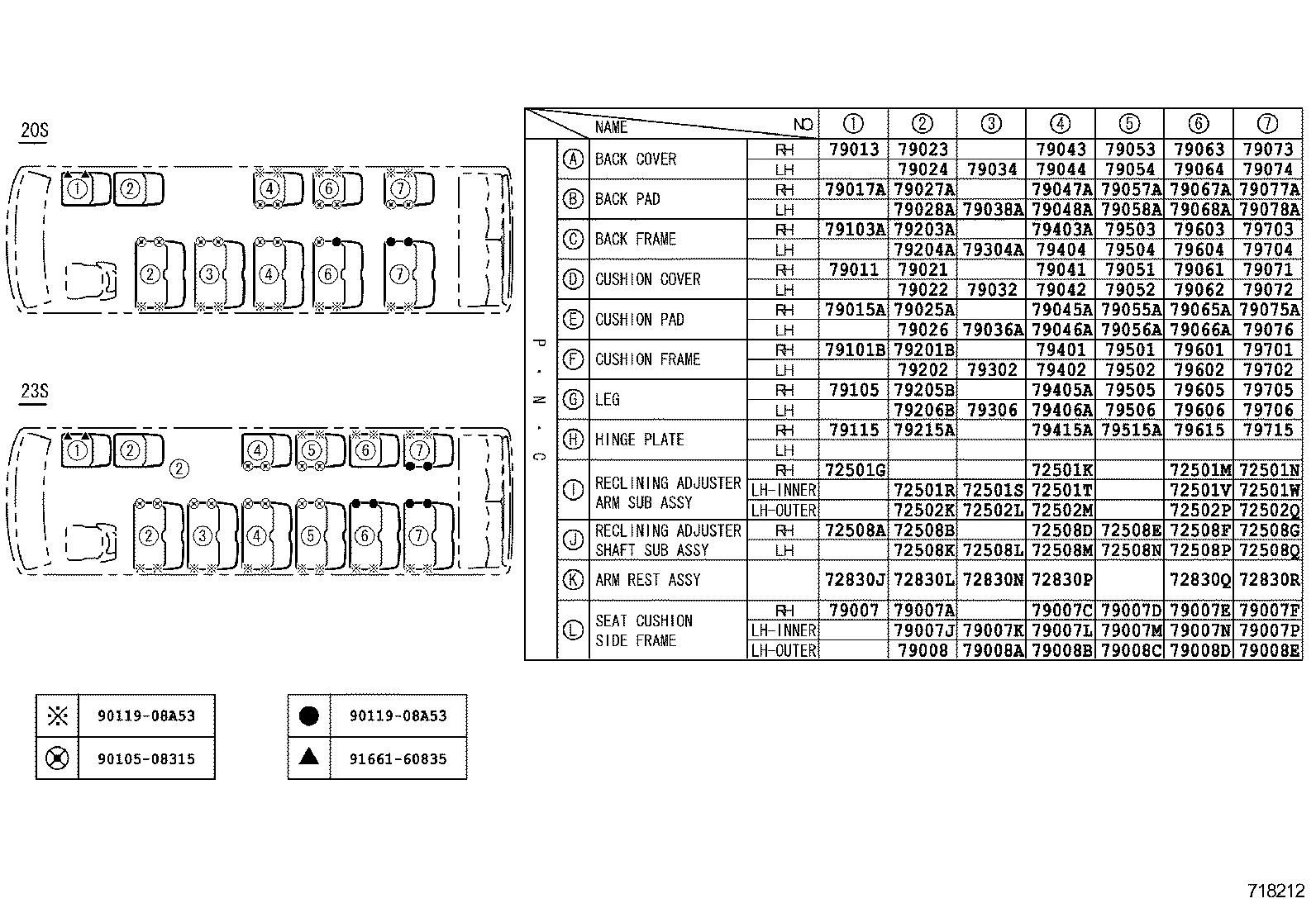

718212 2013-01 → 2015-07

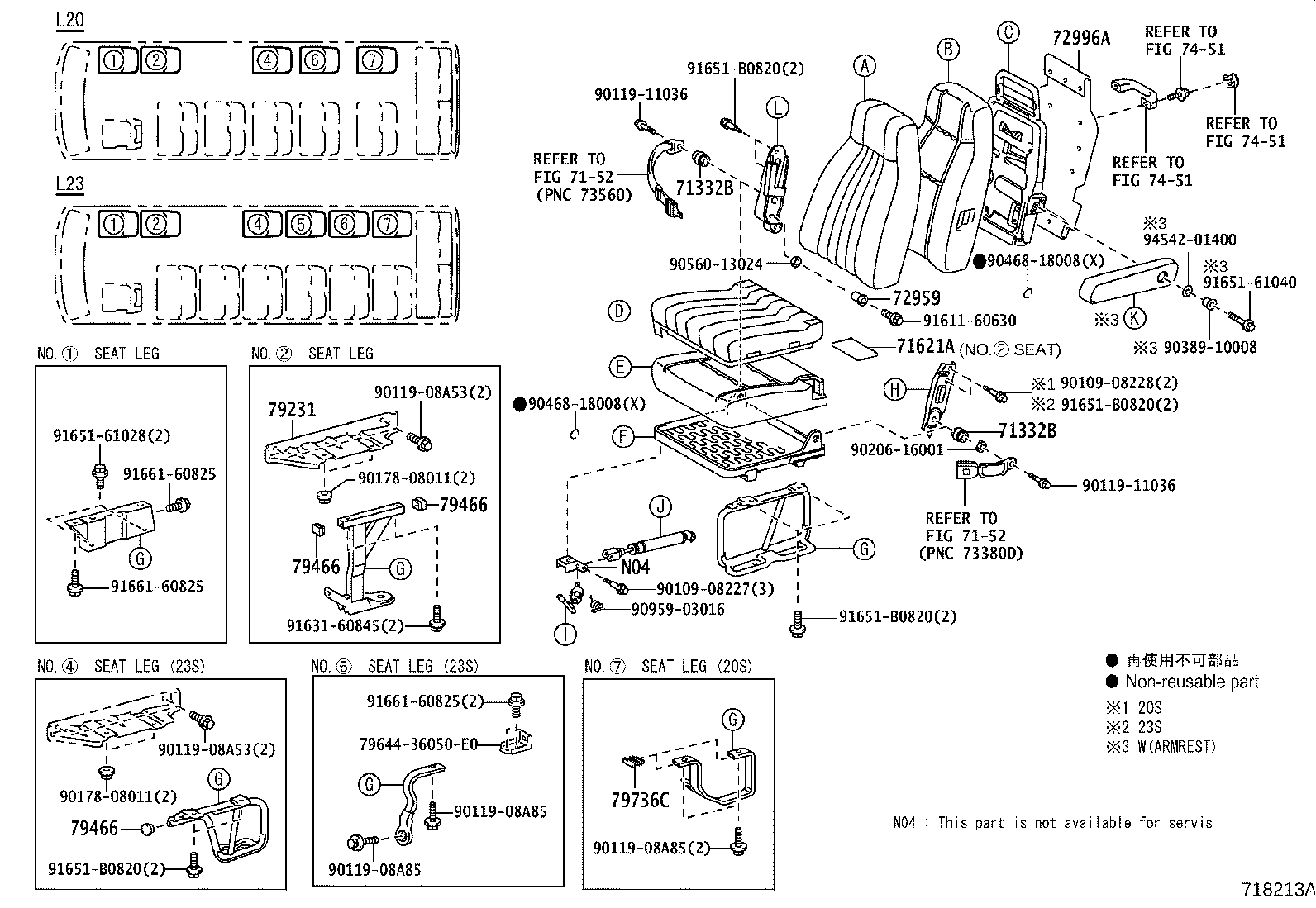

718213A 2013-01 → 2015-07

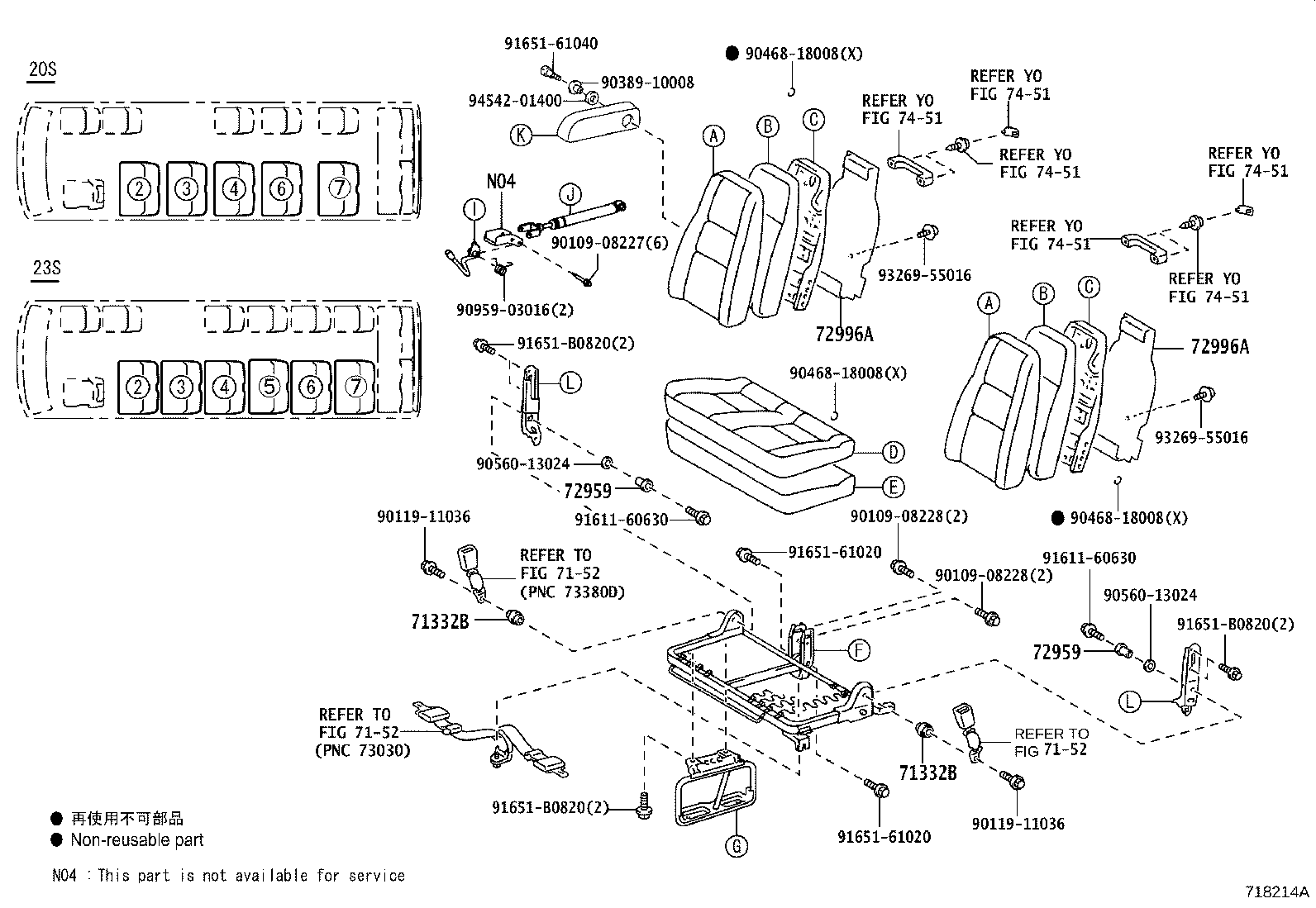

718214A 2013-01 → 2015-07

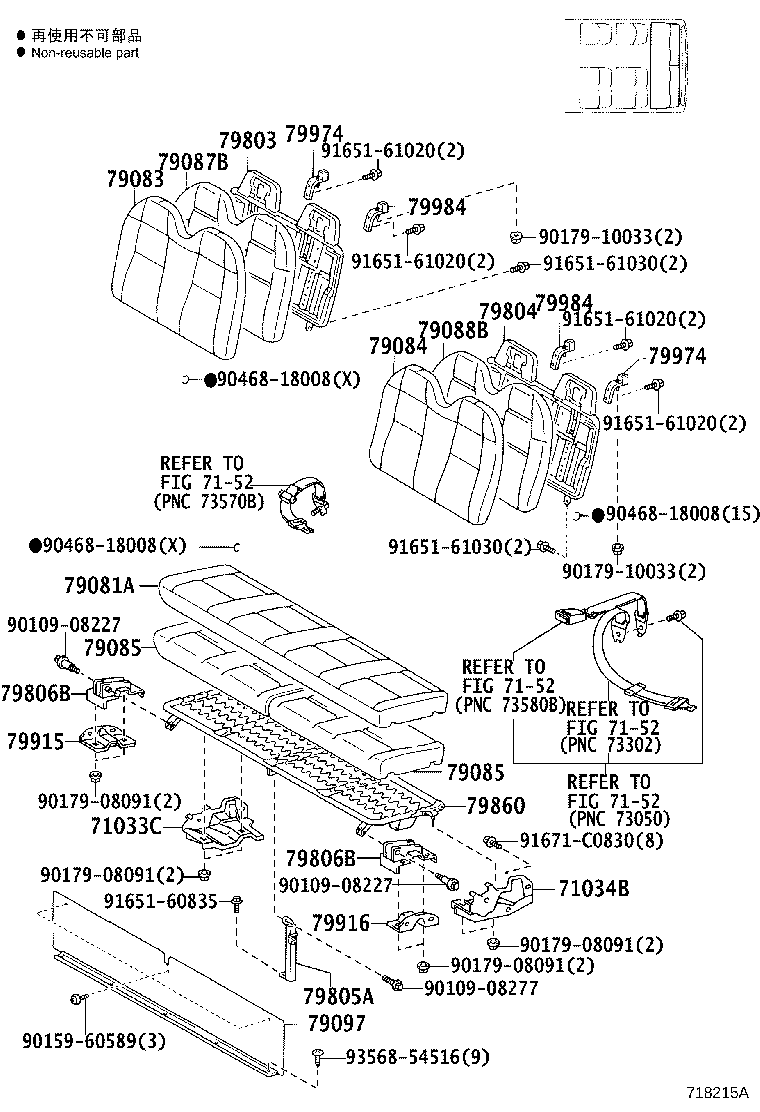

718215A 2013-01 → 2015-07

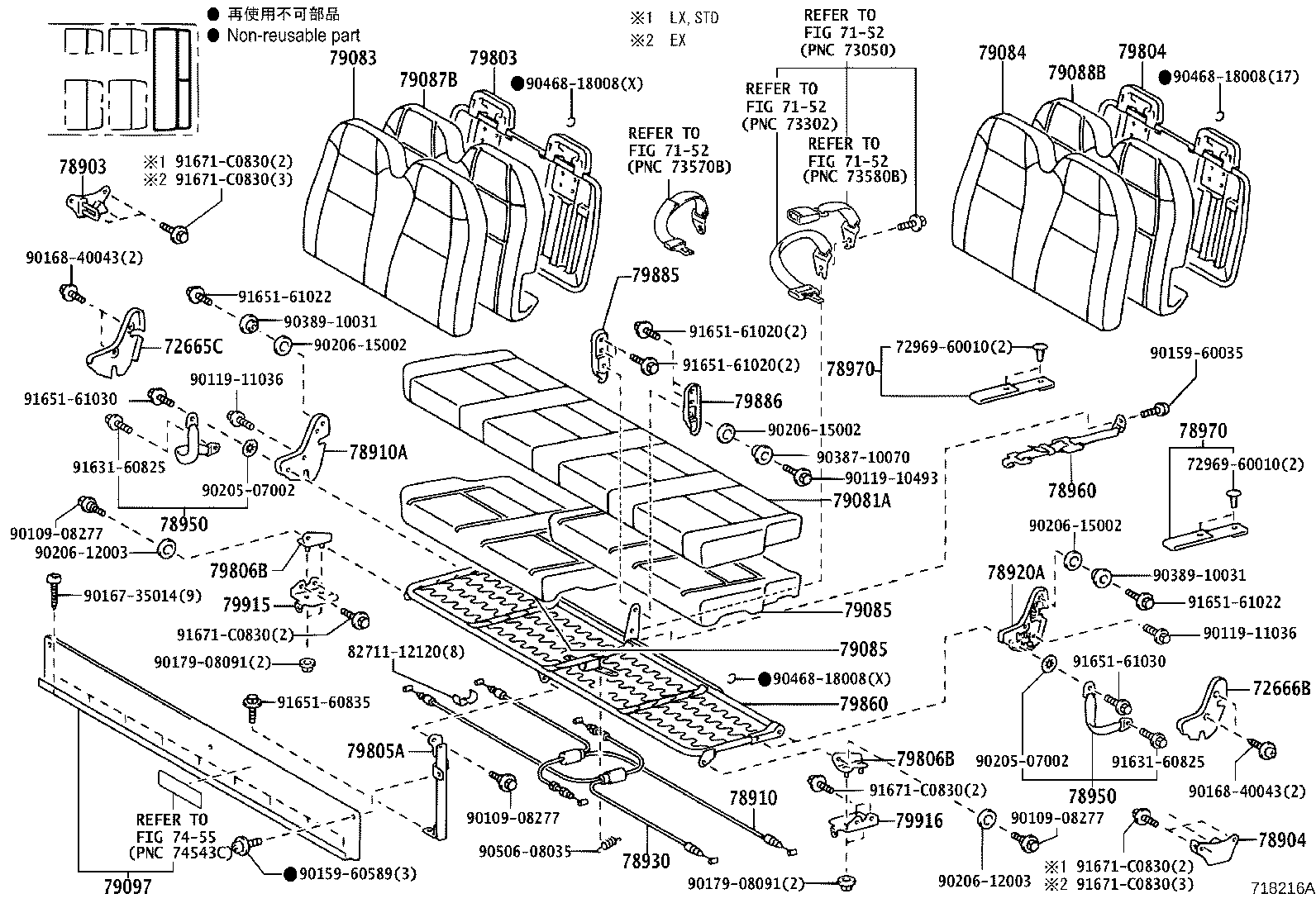

718216A 2013-01 → 2015-07

719714B 2015-07 → 2021-09

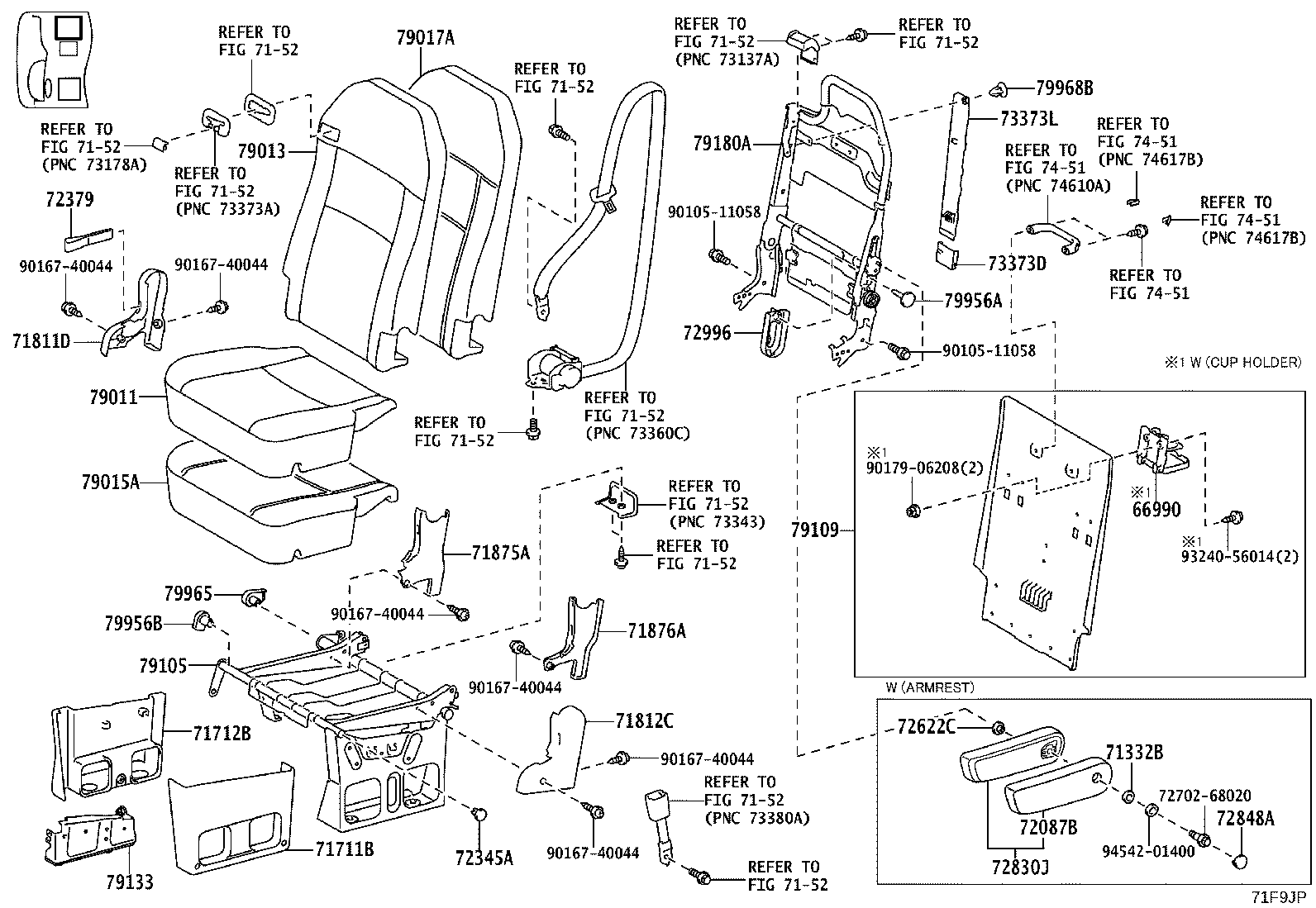

71F9JP 2021-08 → —

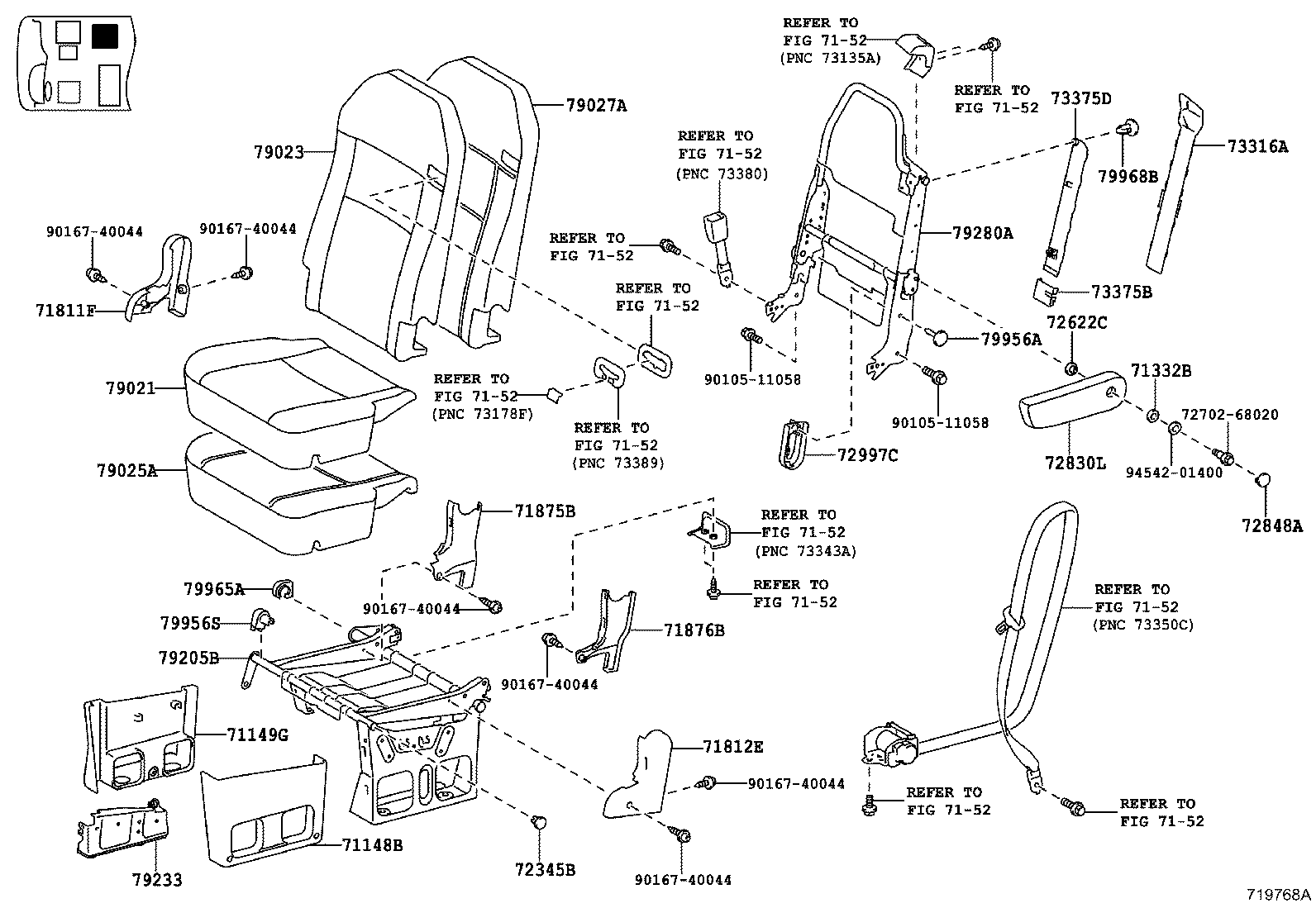

719768A 2015-07 → 2021-08

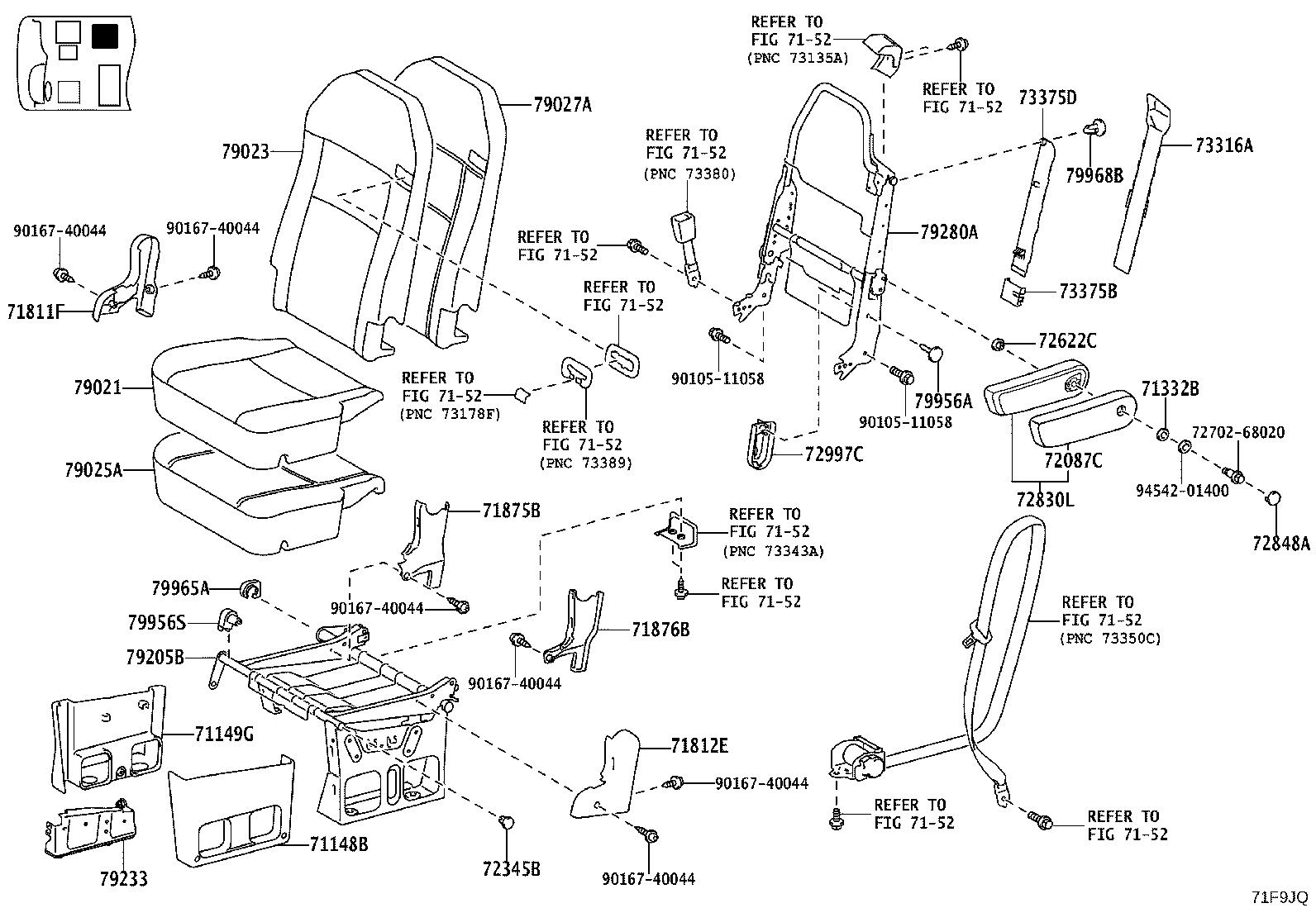

71F9JQ 2021-08 → —

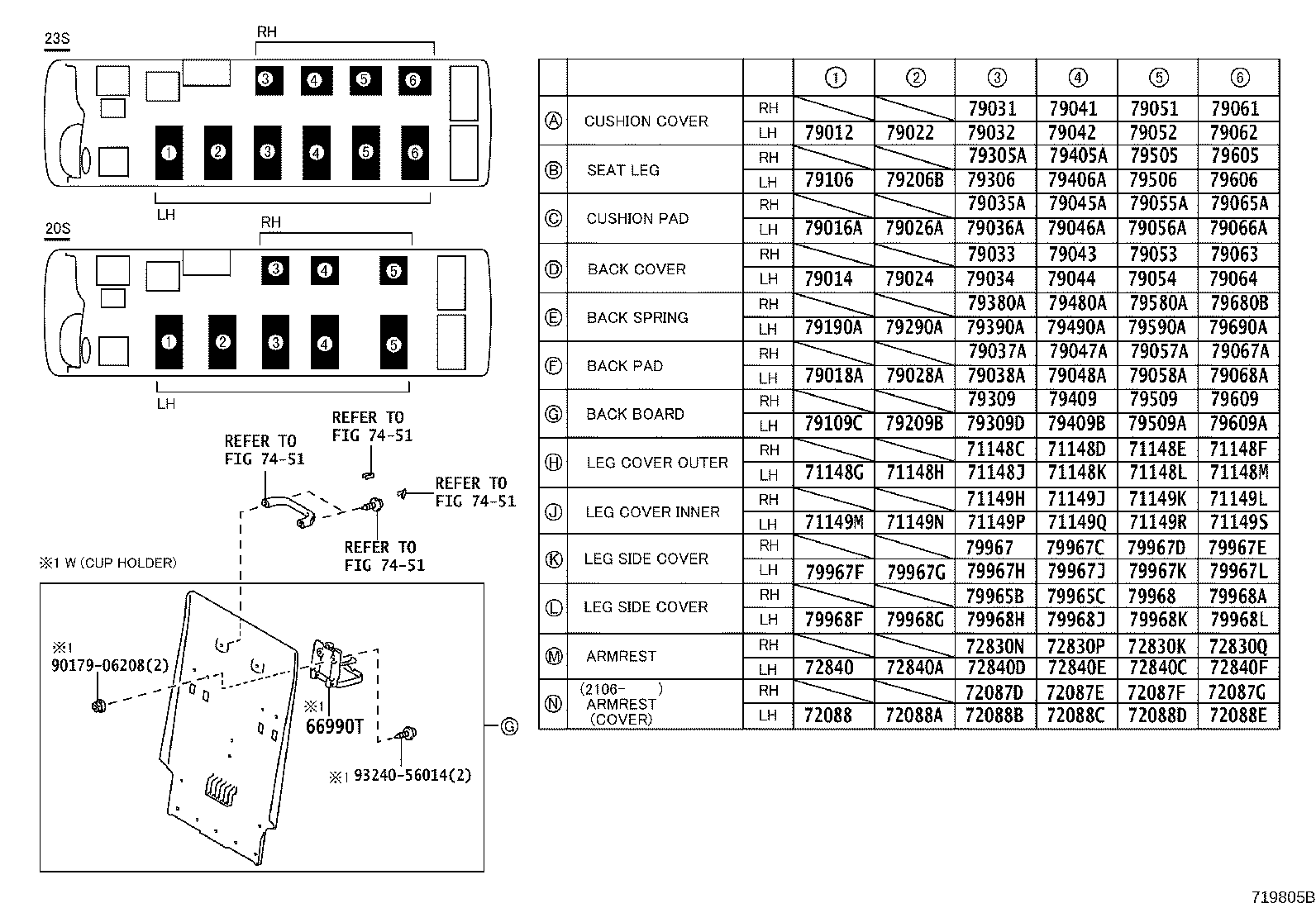

719805B 2015-07 → —

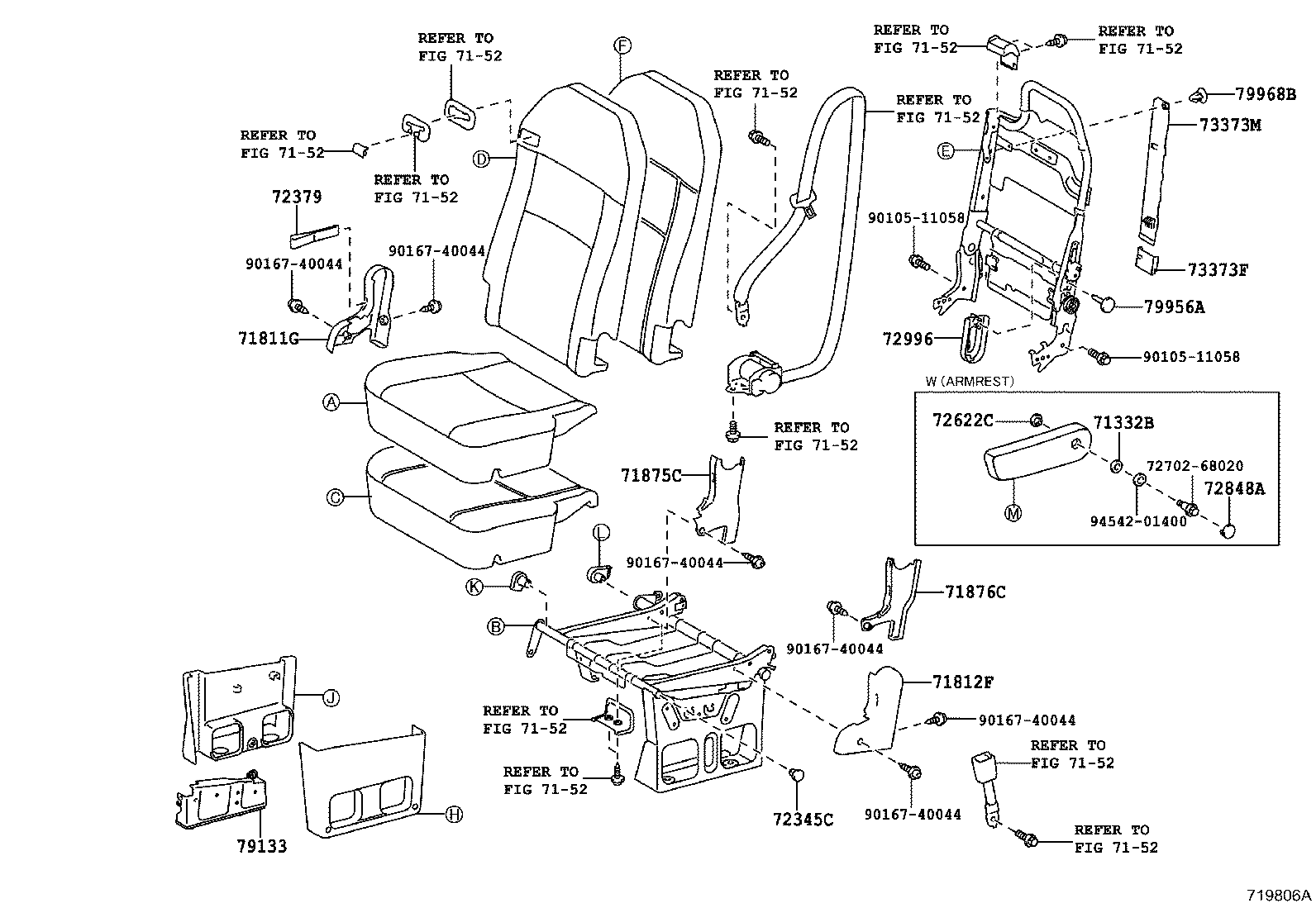

719806A 2015-07 → 2021-06

Part groups

PNC	Description
55560D	Lock Assy, Seat Under Tray
66990	Holder Assy, Cup
66990T	Holder Assy, Cup

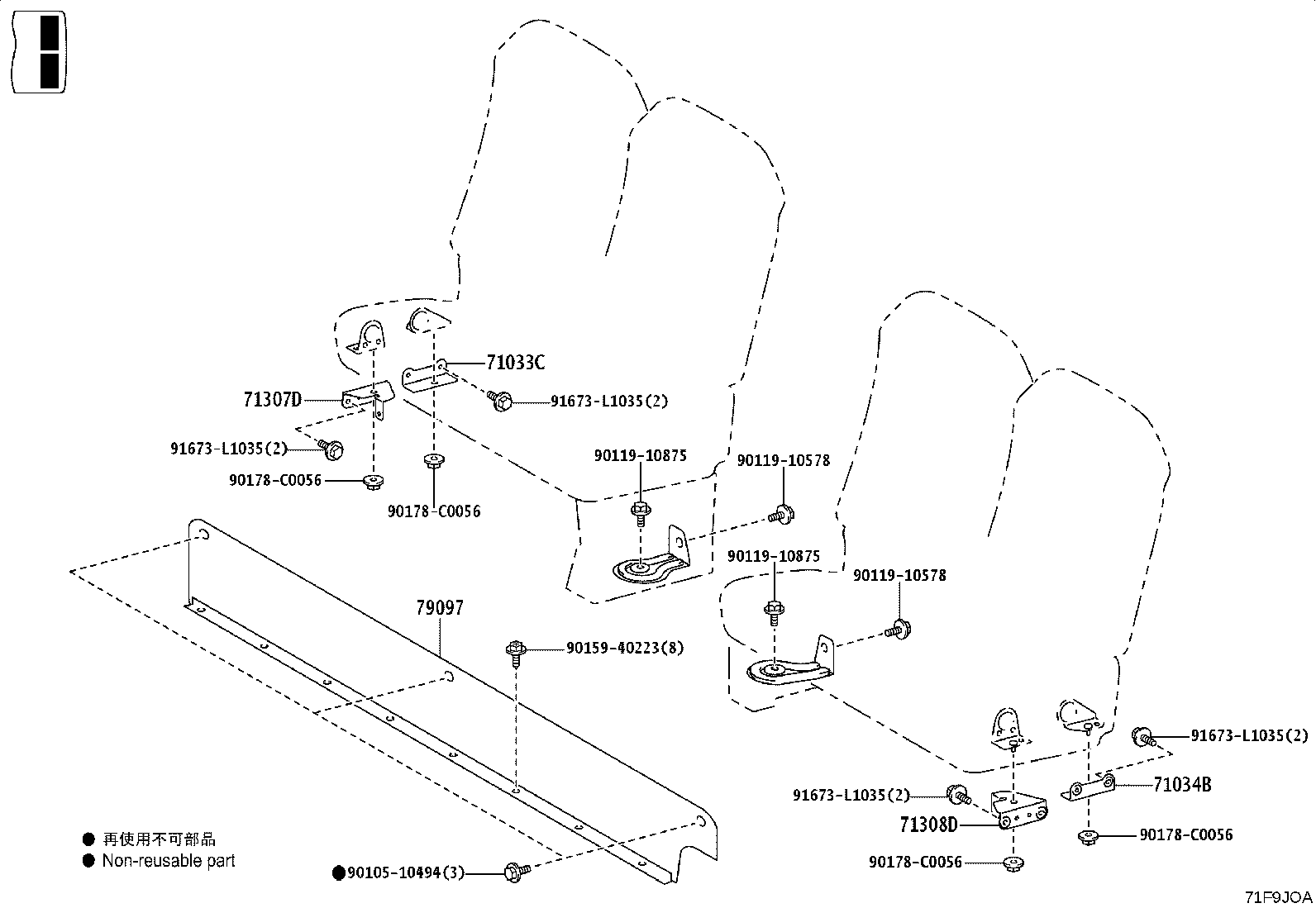

71033C	Leg Sub-assy, Rear Side Seat Cushion, NO.2 RH
71034B	Leg Sub-assy, Rear Side Seat Cushion, NO.2 LH
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71109B	Leg Sub-assy, Front Seat, LH
71148B	Cover, Rear Seat Leg, Outer
71148C	Cover, Rear Seat Leg, Outer
71148D	Cover, Rear Seat Leg, Outer
71148E	Cover, Rear Seat Leg, Outer
71148F	Cover, Rear Seat Leg, Outer
71148G	Cover, Rear Seat Leg, Outer
71148H	Cover, Rear Seat Leg, Outer
71148J	Cover, Rear Seat Leg, Outer
71148K	Cover, Rear Seat Leg, Outer
71148L	Cover, Rear Seat Leg, Outer
71148M	Cover, Rear Seat Leg, Outer
71148N	Cover, Rear Seat Leg, Outer
71148P	Cover, Rear Seat Leg, Outer
71148Q	Cover, Rear Seat Leg, Outer
71148S	Cover, Rear Seat Leg, Outer
71149	Wire, Front Seat Cushion Connecting
71149G	Cover, Rear Seat Leg, Inner
71149H	Cover, Rear Seat Leg, Inner
71149J	Cover, Rear Seat Leg, Inner
71149K	Cover, Rear Seat Leg, Inner
71149L	Cover, Rear Seat Leg, Inner
71149M	Cover, Rear Seat Leg, Inner
71149N	Cover, Rear Seat Leg, Inner
71149P	Cover, Rear Seat Leg, Inner
71149Q	Cover, Rear Seat Leg, Inner
71149R	Cover, Rear Seat Leg, Inner
71149S	Cover, Rear Seat Leg, Inner
71149T	Cover, Rear Seat Leg, Inner
71149U	Cover, Rear Seat Leg, Inner
71149V	Cover, Rear Seat Leg, Inner
71149W	Cover, Rear Seat Leg, Inner
71149X	Cover, Rear Seat Leg, Inner
71307D	Bracket Sub-assy, Rear Seat Cushion Support, RH
71308D	Bracket Sub-assy, Rear Seat Cushion Support, LH
71332B	Spacer, Rear Seatback Hinge
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71524	Pad, Front Seat Cushion Silencer, D
71538B	Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71621A	Pad, Rear Seat Cushion Silencer, A
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71695	Protector, Rear Seatback
71711B	Cover, Side Seat Cushion, Front NO.1
71711C	Cover, Side Seat Cushion, Front NO.2
71711D	Cover, Side Seat Cushion, Front NO.3
71711E	Cover, Side Seat Cushion, Front NO.4
71711F	Cover, Side Seat Cushion, Front NO.5
71711G	Cover, Side Seat Cushion, Front NO.6
71711J	Cover, Side Seat Cushion, Front NO.8, RH
71711K	Cover, Side Seat Cushion, Front NO.8, LH
71711L	Cover, Side Seat Cushion, Front NO.3, RH
71711M	Cover, Side Seat Cushion, Front NO.1, LH
71711N	Cover, Side Seat Cushion, Front NO.2, LH
71711P	Cover, Side Seat Cushion, Front NO.3, LH
71711Q	Cover, Side Seat Cushion, Front NO.4, LH
71711R	Cover, Side Seat Cushion, Front NO.5, LH
71712B	Cover, Rear Side Seat Cushion, RH
71712C	Cover, Rear NO.2 Side Seat Cushion, Rear
71712G	Cover, Side Seat Cushion, Rear NO.1
71712H	Cover, Side Seat Cushion, Rear NO.2
71712J	Cover, Side Seat Cushion, Rear NO.3
71712K	Cover, Side Seat Cushion, Rear NO.4
71712L	Cover, Side Seat Cushion, Rear NO.5
71712M	Cover, Side Seat Cushion, Rear NO.6
71712P	Cover, Side Seat Cushion, Rear NO.1, LH
71712Q	Cover, Side Seat Cushion, Rear NO.2, LH
71712R	Cover, Side Seat Cushion, Rear NO.3, LH
71712S	Cover, Side Seat Cushion, Rear NO.4, LH
71712T	Cover, Side Seat Cushion, Rear NO.5, LH
71750A	Tray Assy, Front Seat Under
71811D	Shield, Front Seat Cushion, RH
71811F	Cover, Reclining Adjuster, RH
71811G	Shield, Rear Seat Cushion, RH
71811H	Cover, Reclining Adjuster, RH
71811M	Cover, Reclining Adjuster, RH
71811N	Cover, Reclining Adjuster, RH
71812C	Cover, Reclining Adjuster, LH
71812D	Shield, Front Seat Cushion, LH
71812E	Cover, Reclining Adjuster, LH
71812F	Shield, Rear Seat Cushion, LH
71812K	Cover, Reclining Adjuster, LH
71812M	Cover, Reclining Adjuster, LH
71812N	Cover, Reclining Adjuster, LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875C	Cover, Reclining Adjuster Inside, RH
71875E	Cover, Reclining Adjuster Inside, RH
71875J	Cover, Reclining Adjuster Inside, RH
71875K	Cover, Reclining Adjuster Inside, RH
71876A	Cover, Reclining Adjuster Inside, LH
71876B	Cover, Reclining Adjuster Inside, LH
71876C	Cover, Reclining Adjuster Inside, LH
71876E	Cover, Reclining Adjuster Inside, LH
71876J	Cover, Reclining Adjuster Inside, LH
71876K	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72087B	Cover Sub-assy, Rear NO.1 Seat Armrest, RH
72087C	Cover Sub-assy, Rear NO.2 Seat Armrest, RH
72087D	Cover Sub-assy, Rear NO.3 Seat Armrest, RH
72087E	Cover Sub-assy, Rear NO.4 Seat Armrest, RH
72087F	Cover Sub-assy, Rear NO.5 Seat Armrest, RH
72087G	Cover Sub-assy, Rear NO.6 Seat Armrest, RH
72088	Cover Sub-assy, Rear NO.1 Seat Armrest, LH
72088A	Cover Sub-assy, Rear NO.2 Seat Armrest, LH
72088B	Cover Sub-assy, Rear NO.3 Seat Armrest, LH
72088C	Cover Sub-assy, Rear NO.4 Seat Armrest, LH
72088D	Cover Sub-assy, Rear NO.5 Seat Armrest, LH
72088E	Cover Sub-assy, Rear NO.6 Seat Armrest, LH
72120	Track Assy, Front Seat, Outer LH
72140A	Track Assy, Front Seat,Inner LH
72301	Wire Sub-assy, Seat Track Equalizing
72345A	Pipe, Reclining Connecting
72345B	Pipe, Reclining Connecting
72345C	Pipe,Reclining Connecting, RH
72345D	Pipe, Reclining Connecting, LH
72345F	Pipe, Reclining Connecting, RH
72345G	Pipe, Reclining Connecting, LH
72379	Belt, Seat Reclining Handle
72501G	Arm Sub-assy, NO.1 Seat Reclining Adjuster, Upper NO.1 RH
72501K	Arm Sub-assy, NO.4 Seat Reclining Adjuster, Upper NO.1 RH
72501M	Arm Sub-assy, NO.6 Seat Reclining Adjuster, Upper NO.1 RH
72501N	Arm Sub-assy, NO.7 Seat Reclining Adjuster, Upper NO.1 RH
72501R	Arm Sub-assy, NO.2 Seat Reclining Adjuster, Upper NO.2 RH
72501S	Arm Sub-assy, NO.3 Seat Reclining Adjuster, Upper NO.2 RH
72501T	Arm Sub-assy, NO.4 Seat Reclining Adjuster, Upper NO.2 RH
72501V	Arm Sub-assy, NO.6 Seat Reclining Adjuster, Upper NO.2 RH
72501W	Arm Sub-assy, NO.7 Seat Reclining Adjuster, Upper NO.2 RH
72502K	Arm Sub-assy, NO.2 Seat Reclining Adjuster, Upper NO.2 LH
72502L	Arm Sub-assy, NO.3 Seat Reclining Adjuster, Upper NO.2 LH
72502M	Arm Sub-assy, NO.4 Seat Reclining Adjuster, Upper NO.2 LH
72502P	Arm Sub-assy, NO.6 Seat Reclining Adjuster, Upper NO.2 LH
72502Q	Arm Sub-assy, NO.7 Seat Reclining Adjuster, Upper NO.2 LH
72508A	Shaft Sub-assy, NO.1 Reclining Adjusting, RH
72508B	Shaft Sub-assy, NO.2 Seat Reclining Adjusting, RH
72508D	Shaft Sub-assy, NO.4 Seat Reclining Adjusting, RH
72508E	Shaft Sub-assy, NO.5 Seat Reclining Adjusting, RH
72508F	Shaft Sub-assy, NO.6 Seat Reclining Adjusting, RH
72508G	Shaft Sub-assy, NO.7 Seat Reclining Adjusting, RH
72508K	Shaft Sub-seat, NO.2 Seat Reclining Adjusting, LH
72508L	Shaft Sub-seat, NO.3 Seat Reclining Adjusting, LH
72508M	Shaft Sub-seat, NO.4 Seat Reclining Adjusting, LH
72508N	Shaft Sub-seat, NO.5 Seat Reclining Adjusting, LH
72508P	Shaft Sub-seat, NO.6 Seat Reclining Adjusting, LH
72508Q	Shaft Sub-seat, NO.7 Seat Reclining Adjusting, LH
72520	Adjuster Assy, Reclining Seatback, LH
72526	Handle, Reclining Adjuster Release, LH
72622C	Bush, Rear Seatback Protector Shaft
72665C	Cover, Rear Seat Lock, RH
72666B	Cover, Rear Seat Lock, LH
72830J	Armrest Assy, Rear NO.1 Seat, RH
72830K	Armrest Assy, NO.5 Seat, RH
72830L	Armrest Assy, Rear NO.2 Seat, RH
72830N	Armrest Assy, NO.3 Seat, RH
72830P	Armrest Assy, NO.4 Seat, RH
72830Q	Armrest Assy, NO.6 Seat, RH
72830R	Armrest Assy, NO.7 Seat, NO.1 RH
72840	Armrest Assy, Rear NO.1 Seat, LH
72840A	Armrest Assy, Rear NO.2 Seat, LH
72840C	Armrest Assy, NO.5 Seat, LH
72840D	Armrest Assy, Rear Seat, LH
72840E	Armrest Assy, NO.4 Seat, LH
72840F	Armrest Assy, NO.6 Seat, LH
72848A	Cap, Seat Armrest, NO.1
72849	Cap, Seat Armrest, NO.2
72890	Armrest Assy, Seat, C LH
72927	Cover, Rear Seat Cushion Under, RH
72927C	Cover, Rear Seat Cushion Under RH
72928	Cover, Rear Seat Cushion Under, LH
72928C	Cover, Rear Seat Cushion Under, LH
72959	Spacer, Rear Seat Turn Side
72993A	Cover, Front Seatback
72993B	Cover, Front Seatback, RH
72994B	Cover, Front Seatback, LH
72995	Cover, Rear Seat Cushion, RH
72995E	Cover, Rear Seat Cushion
72996	Cover, Rear Seatback, RH
72996A	Cover, Rear Seatback
72996B	Cover, Rear Seatback, Inner RH
72997	Cover, Rear Seatback, LH
72997B	Cover, Rear Seatback
72997C	Cover, Rear NO.2 Seatback, LH
72998	Cover, Rear Seat Cushion, LH
73315A	Cover, RR Seat Belt, Inner RH
73316A	Cover, RR Seat Belt, Inner LH
73373D	Cover, Rear Seat Shoulder Belt Hole, RH
73373F	Cover, Rear Seat Shoulder Belt Hole
73373K	Cover, Rear Seat Shoulder Belt Hole
73373L	Cover, Rear Seat Shoulder Belt, RH
73373M	Cover, Rear Seat Shoulder Belt, RH
73373N	Cover, Rear Seat Shoulder Belt, RH
73373P	Cover, Rear Seat Shoulder Belt, RH
73373Q	Cover, Rear Seat Shoulder Belt, RH
73373R	Cover, Rear Seat Shoulder Belt, RH
73373S	Cover, Rear Seat Shoulder Belt, RH
73375B	Cover, Rear Seat Shoulder Belt Hole, LH
73375D	Cover, Rear Seat Shoulder Belt, LH
73375E	Cover, Rear Seat Shoulder Belt, LH
73375H	Cover, Rear Seat Shoulder Belt, LH
73375J	Cover, Rear Seat Shoulder Belt, LH
73375K	Cover, Rear Seat Shoulder Belt, LH
73375L	Cover, Rear Seat Shoulder Belt, LH
73375M	Cover, Rear Seat Shoulder Belt Hole
78903	Striker Sub-assy, Fold Seat Leg Lock
78904	Striker Sub-assy, Fold Seat Lock, NO.2
78910	Cable Assy, Fold Seat Lock Control, NO.1
78910A	Lock Assy, Fold Seat, RH
78920A	Lock Assy, Fold Seat, LH
78930	Cable Assy, Fold Seat Lock Control, NO.3
78950	Band Assy, Fold Seat Stopper, NO.1
78960	Band Assy, Fold Seat Stopper, NO.2
78970	Band Assy, Seat Lock
79007	Frame, Seat Cushion Side, RH Outer NO.1
79007A	Frame, Seat Cushion Side, RH Outer NO.2
79007C	Frame, Seat Cushion Side, RH Outer NO.4
79007D	Frame, Seat Cushion Side, RH Outer NO.5
79007E	Frame, Seat Cushion Side, RH Outer NO.6
79007F	Frame, Seat Cushion Side, RH Outer NO.7
79007J	Frame, Seat Cushion Side, LH Inner NO.2
79007K	Frame, Seat Cushion Side, LH Inner NO.3
79007L	Frame, Seat Cushion Side, LH Inner NO.4
79007M	Frame, Seat Cushion Side, LH Inner NO.5
79007N	Frame, Seat Cushion Side, LH Inner NO.6
79007P	Frame, Seat Cushion Side, LH Inner NO.7
79008	Frame, Seat Cushion Side, LH Outer NO.2
79008A	Frame, Seat Cushion Side, LH Outer NO.3
79008B	Frame, Seat Cushion Side, LH Outer NO.4
79008C	Frame, Seat Cushion Side, LH Outer NO.5
79008D	Frame, Seat Cushion Side, LH Outer NO.6
79008E	Frame, Seat Cushion Side, LH Outer NO.7
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79014	Cover Sub-assy, NO.1 Seatback, LH
79015A	Pad Sub-assy, NO.1 Seat Cushion, RH
79016A	Pad Sub-assy, NO.1 Seat Cushion, LH
79017A	Pad Sub-assy, NO.1 Seatback, RH
79018A	Pad Sub-assy, NO.1 Seatback, LH
79021	Cover Sub-assy, NO.2 Seat Cushion, RH
79022	Cover Sub-assy, NO.2 Seat Cushion, LH
79023	Cover Sub-assy, NO.2 Seatback, RH
79024	Cover Sub-assy, NO.2 Seatback, LH
79025A	Pad Sub-assy, NO.2 Seat Cushion, RH
79026	Pad Sub-assy, NO.2 Seat Cushion, LH
79026A	Pad Sub-assy, NO.2 Seat Cushion, LH
79027A	Pad Sub-assy, NO.2 Seatback, RH
79028A	Pad Sub-assy, NO.2 Seatback, LH
79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79034	Cover Sub-assy, NO.3 Seatback, LH
79035A	Pad Sub-assy, NO.3 Seat Cushion, RH
79036A	Pad, Sub-assy, NO.3 Seat Cushion, LH
79037A	Pad Sub-assy, NO.3 Seatback, RH
79038A	Pad Sub-assy, NO.3 Seatback, LH
79041	Cover Sub-assy, NO.4 Seat Cushion, RH
79042	Cover Sub-assy, NO.4 Seat Cushion, LH
79043	Cover Sub-assy, NO.4 Seatback, RH
79044	Cover Sub-assy, NO.4 Seatback, LH
79045A	Pad Sub-assy, NO.4 Seat Cushion, RH
79046A	Pad Sub-assy, NO.4 Seat Cushion, LH
79047A	Pad Sub-assy, NO.4 Seatback, RH
79048A	Pad Sub-assy, NO.4 Seatback, LH
79051	Cover Sub-assy, NO.5 Seat Cushion, RH
79052	Cover Sub-assy, NO.5 Seat Cushion, LH
79053	Cover Sub-assy, NO.5 Seatback, RH
79054	Cover Sub-assy, NO.5 Seatback, LH
79055A	Pad Sub-assy, NO.5 Seat Cushion, RH
79056A	Pad Sub-assy, NO.5 Seat Cushion, LH
79057A	Pad Sub-assy, NO.5 Seatback, RH
79058A	Pad Sub-assy, NO.5 Seatback, LH
79061	Cover Sub-assy, NO.6 Seat Cushion, RH
79062	Cover Sub-assy, NO.6 Seat Cushion, LH
79063	Cover Sub-assy, NO.6 Seatback, RH
79064	Cover Sub-assy, NO.6 Seatback, LH
79065A	Pad Sub-assy, NO.6 Seat Cushion, RH
79066A	Pad Sub-assy, NO.6 Seat Cushion, LH
79067A	Pad Sub-assy, NO.6 Seatback, RH
79068A	Pad Sub-assy, NO.6 Seatback, LH
79071	Cover Sub-assy, NO.7 Seat Cushion, RH
79072	Cover Sub-assy, NO.7 Seat Cushion, LH
79073	Cover Sub-assy, NO.7 Seatback, RH
79074	Cover Sub-assy, NO.7 Seatback, LH
79075A	Pad Sub-assy, NO.7 Seat Cushion, RH
79076	Pad Sub-assy, NO.7 Seat Cushion, LH
79077A	Pad Sub-assy, NO.7 Seatback, RH
79078A	Pad Sub-assy, NO.7 Seatback, LH
79081	Cover Sub-assy, NO.8 Seat Cushion, RH
79081A	Cover Sub-assy, NO.8 Seat Cushion
79082	Cover Sub-assy, NO.8 Seat Cushion, LH
79083	Cover Sub-assy, NO.8 Seatback, RH
79084	Cover Sub-assy, NO.8 Seatback, LH
79085	Pad Sub-assy, NO.8 Seat Cushion
79085B	Pad Sub-assy, NO.8 Seat Cushion, RH
79086B	Pad Sub-assy, NO.8 Seat Cushion, LH
79087B	Pad Sub-assy, NO.8 Seatback, RH
79088B	Pad Sub-assy, NO.8 Seatback, LH
79097	Partition Sub-assy, Luggage Compartment Wall
79101B	Frame Sub-assy, NO.1 Seat Cushion, RH
79103A	Frame Sub-assy, NO.1 Seatback, RH
79105	Leg Sub-assy, NO.1 Seat, RH
79106	Leg Sub Assy, NO.1 Seat, LH
79109	Board Sub-assy, NO.1 Seatback
79109C	Board Sub-assy, NO.1 Seatback, LH
79115	Plate, NO.1 Seat Cushion Hinge, NO.1 RH
79133	Leg, NO.1 Seat, Inner
79180A	Spring Assy, NO.1 Seatback, RH
79190A	Spring Assy, NO.1 Seatback, LH
79201B	Frame Sub-assy, NO.2 Seat Cushion, RH
79202	Frame Sub-assy, NO.2 Seat Cushion, LH
79203A	Frame Sub-assy, NO.2 Seatback, RH
79204A	Frame Sub-assy, NO.2 Seatback, LH
79205B	Leg Sub-assy, NO.2 Seat, RH
79206B	Leg Sub-assy, NO.2 Seat, LH
79209B	Board Sub-assy, NO.2 Seatback, LH
79215A	Plate, NO.2 Seat Cushion Hinge, NO.1 RH
79231	Leg, NO.2 Seat, Outer Front
79233	Leg, NO.2 Seat, Inner
79280A	Spring Assy, NO.2 Seatback, RH
79290A	Spring Assy, NO.2 Seatback, LH
79302	Frame Sub-assy, NO.3 Seat Cushion, LH
79304A	Frame Sub-assy, NO.3 Seatback, LH
79305A	Leg Sub-assy, NO.3 Seat, RH
79306	Leg Sub Assy, NO.3 Seat, LH
79309	Board Sub-assy, NO.3 Seatback
79309D	Board Sub-assy, NO.3 Seatback, LH
79374	Cover, NO.3 Seat Leg, Rear RH
79380A	Spring Assy, NO.3 Seatback, RH
79384	Cover, NO.3 Seat Leg, Rear LH
79390A	Spring Assy, NO.3 Seatback, LH
79401	Frame Sub-assy, NO.4 Seat Cushion, RH
79402	Frame Sub-assy, NO.4 Seat Cushion, LH
79403A	Frame Sub-assy, NO.4 Seatback, RH
79404	Frame Sub-assy, NO.4 Seatback, LH
79405A	Leg Sub-assy, NO.4 Seat, RH
79406A	Leg Sub-assy, NO.4 Seat, LH
79409	Board Sub-assy, NO.4 Seatback
79409B	Board Sub-assy, NO.4 Seatback, LH
79415A	Plate, NO.4 Seat Cushion Hinge, NO.1 RH
79466	Cover, NO.4 Seat Leg, NO.1
79480A	Spring Assy, NO.4 Seatback, RH
79490A	Spring Assy, NO.4 Seatback, LH
79501	Frame Sub-assy, NO.5 Seat Cushion, RH
79502	Frame Sub-assy, NO.5 Seat Cushion, LH
79503	Frame Sub-assy, NO.5 Seatback, RH
79504	Frame Sub-assy, NO.5 Seatback, LH
79505	Leg Sub-assy, NO.5 Seat, RH
79506	Leg Sub-assy, NO.5 Seat, LH
79509	Board Sub-assy, NO.5 Seatback, RH
79509A	Board Sub-assy, NO.5 Seatback, LH
79515A	Plate, NO.5 Seat Cushion Hinge, NO.1 RH
79544	Leg, NO.5 Seat, Inner Rear
79580A	Spring Assy, NO.5 Seatback, RH
79590A	Spring Assy, NO.5 Seatback, LH
79601	Frame Sub-assy, NO.6 Seat Cushion, RH
79602	Frame Sub-assy, NO.6 Seat Cushion, LH
79603	Frame Sub-assy, NO.6 Seatback, RH
79604	Frame Sub-assy, NO.6 Seatback, LH
79605	Leg Sub-assy, NO.6 Seat, RH
79606	Leg Sub-assy, NO.6 Seat, LH
79609	Board Sub-assy, NO.6 Seatback, RH
79609A	Board Sub-assy, NO.6 Seatback, LH
79615	Plate, NO.6 Seat Cushion Hinge, NO.1 RH
79680B	Spring Assy, NO.6 Seatback, RH
79690A	Spring Assy, NO.6 Seatback, LH
79701	Frame Sub-assy, NO.7 Seat Cushion, RH
79702	Frame Sub-assy, NO.7 Seat Cushion, LH
79703	Frame Sub-assy, NO.7 Seatback, RH
79704	Frame Sub-assy, NO.7 Seatback, LH
79705	Leg Sub-assy, NO.7 Seat, RH
79706	Leg Sub-assy, NO.7 Seat, LH
79715	Plate, NO.7 Seat Cushion Hinge, NO.1 RH
79736C	Cover, NO.7 Seat Leg, RH
79803	Frame Sub-assy, NO.8 Seatback, RH
79804	Frame Sub-assy, NO.8 Seatback, LH
79805	Leg Sub-assy, NO.8 Seat, RH
79805A	Leg Sub-assy, Fold Seat, Front
79806A	Leg Sub-assy, NO.8 Seat, LH
79806B	Leg Sub Assy, Fold Seat Rear
79860	Spring Assy, NO.8 Seat Cushion
79880B	Spring Assy, NO.8 Seatback, RH
79885	Hinge, Fold Seatback Set, RH
79886	Hinge, Fold Seatback Set, LH
79890B	Spring Assy, NO.8 Seatback, LH
79915	Bracket, Seat Leg
79916	Bracket, Seat Leg, NO.2
79937	Cover, Rear Seat Leg, NO.2
79956A	Clip (FOR REAR SEAT LEG BRACKET COVER)
79956B	Cover, Rear Seat Leg Side, RH
79956S	Cover, Rear Seat Leg Side
79959	Cover, RR Seat Leg
79959A	Cover, Rear Seat Leg, RH
79959B	Cover, Rear Seat Leg, LH
79959C	Cover, Rear Seat Leg
79965	Cover, Rear Seat Leg Side, NO.2
79965A	Cover, Rear Seat Leg Side, NO.2
79965B	Cover, Rear Seat Leg Side, NO.2
79965C	Cover, Rear Seat Leg Side, NO.2
79966A	Cover, Rear Seat Leg, RH(FOR RH SEAT)
79966B	Cover, Rear Seat Leg, LH(FOR RH SEAT)
79966D	Cover, Rear Seat Leg(FOR LH SEAT)
79967	Cover, Rear Seat Leg Side, NO.4
79967A	Cover, Rear Seat Leg Side, NO.7
79967C	Cover, Rear Seat Leg Side, NO.4
79967D	Cover, Rear Seat Leg Side, NO.4
79967E	Cover, Rear Seat Leg Side, NO.4
79967F	Cover, Rear Seat Leg Side, NO.4
79967G	Cover, Rear Seat Leg Side, NO.4
79967H	Cover, Rear Seat Leg Side, NO.4
79967J	Cover, Rear Seat Leg Side, NO.4
79967K	Cover, Rear Seat Leg Side, NO.4
79967L	Cover, Rear Seat Leg Side, NO.4
79968	Cover, Rear Seat Leg Side, NO.5
79968A	Cover, Rear Seat Leg Side, NO.5
79968B	Clip
79968C	Cover, Rear Seat Leg Side, NO.8
79968F	Cover, Rear Seat Leg Side, NO.5
79968G	Cover, Rear Seat Leg Side, NO.5
79968H	Cover, Rear Seat Leg Side, NO.5
79968J	Cover, Rear Seat Leg Side, NO.5
79968K	Cover, Rear Seat Leg Side, NO.5
79968L	Cover, Rear Seat Leg Side, NO.5
79974	Bracket, Seatback Assist, RH
79984	Bracket, Seatback Assist, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
