Toyota Coaster (CHINA)
2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General
Discontinued model
Data version 2020-07

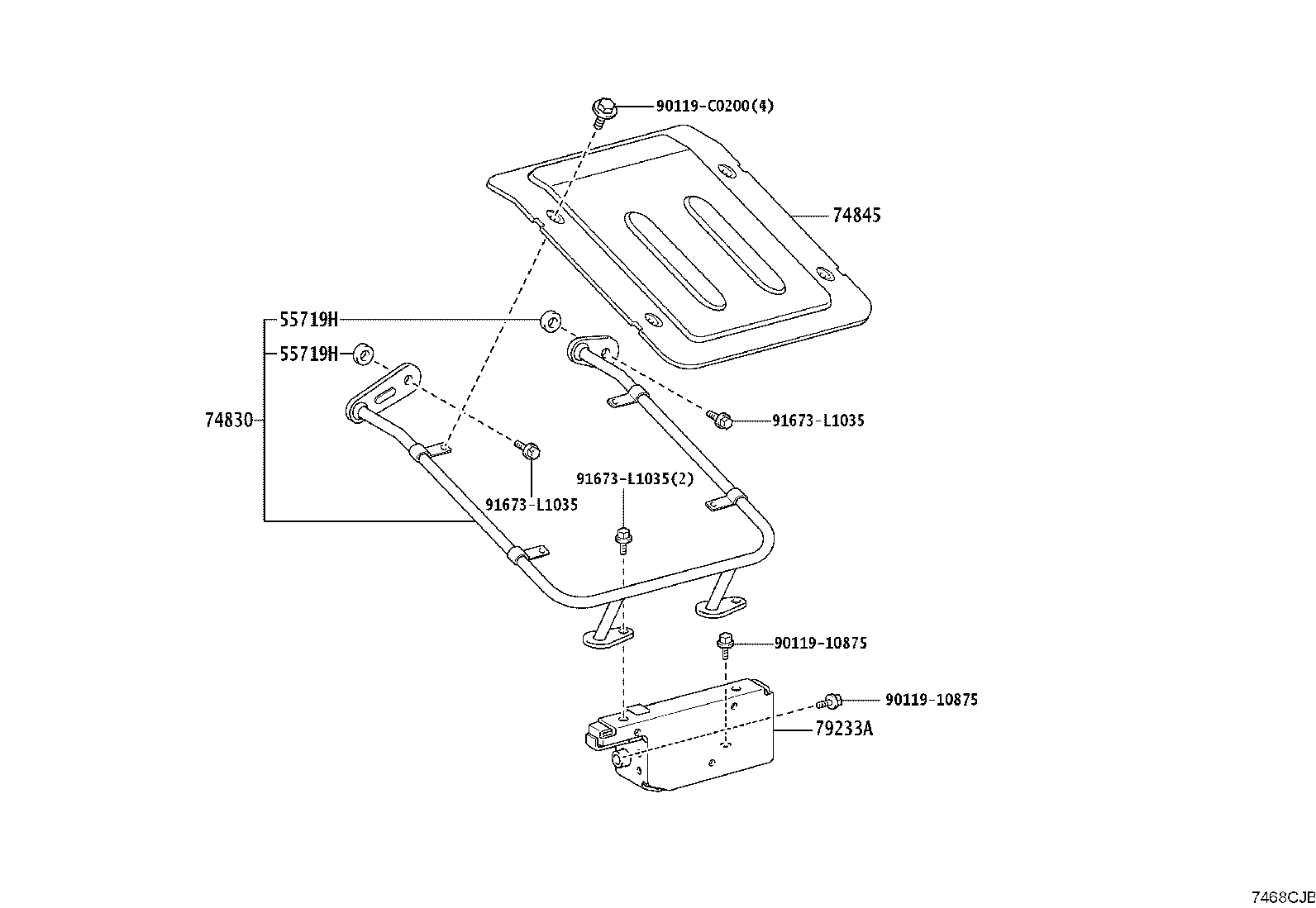

Protector Pipe, Roll Bar & Handrail
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55719H | Packing, Front Lower Panel |
| 74730 | Frame Assy, Hand Grip |
| 74830 | Pipe Assy, Front Protector, RH |
| 74845 | Cover, Front Protector Pipe Horizontal, RH |
| 79233A | Leg, NO.2 Seat, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
