Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

29 part groups · 4 illustrations

Illustrations

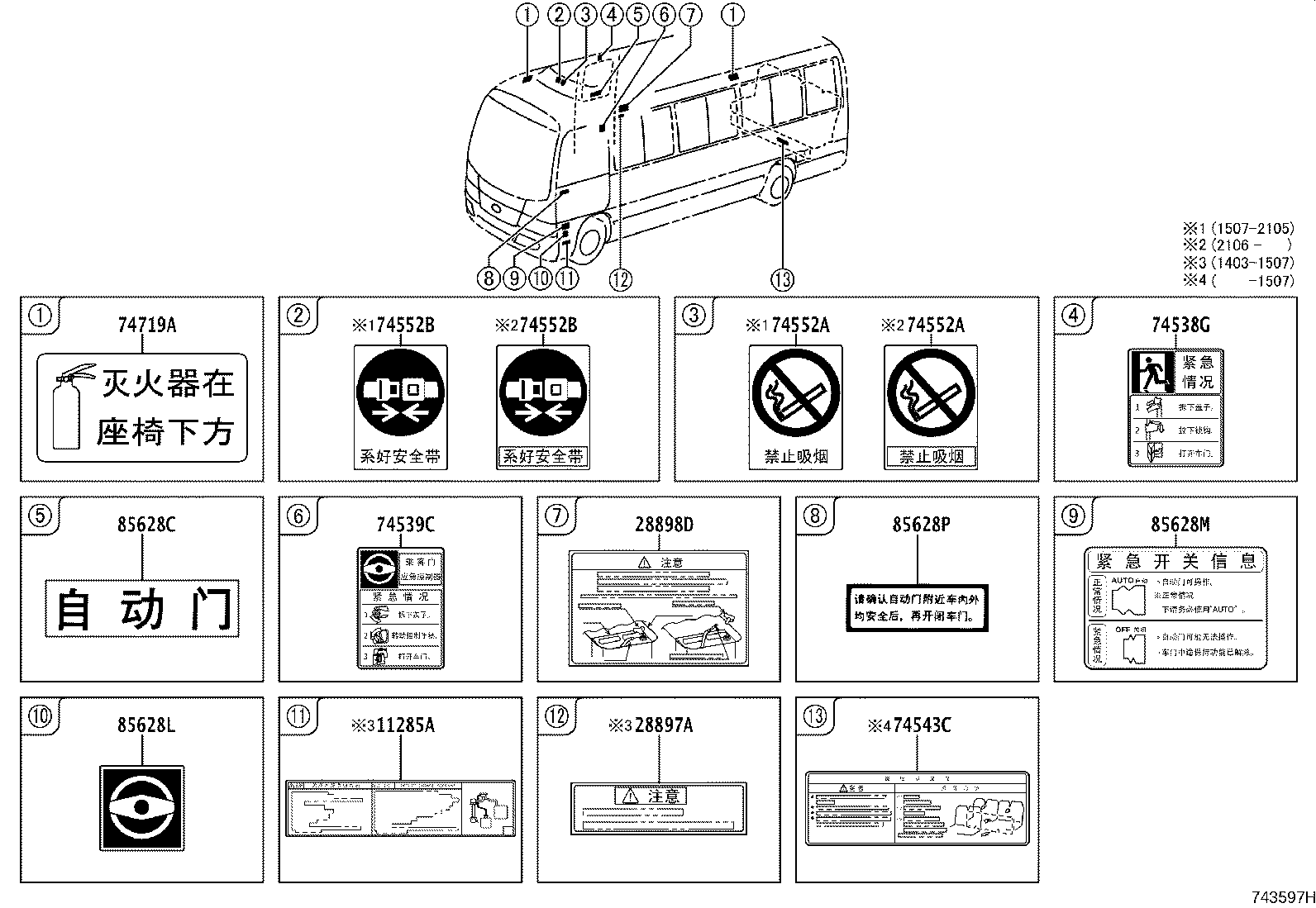

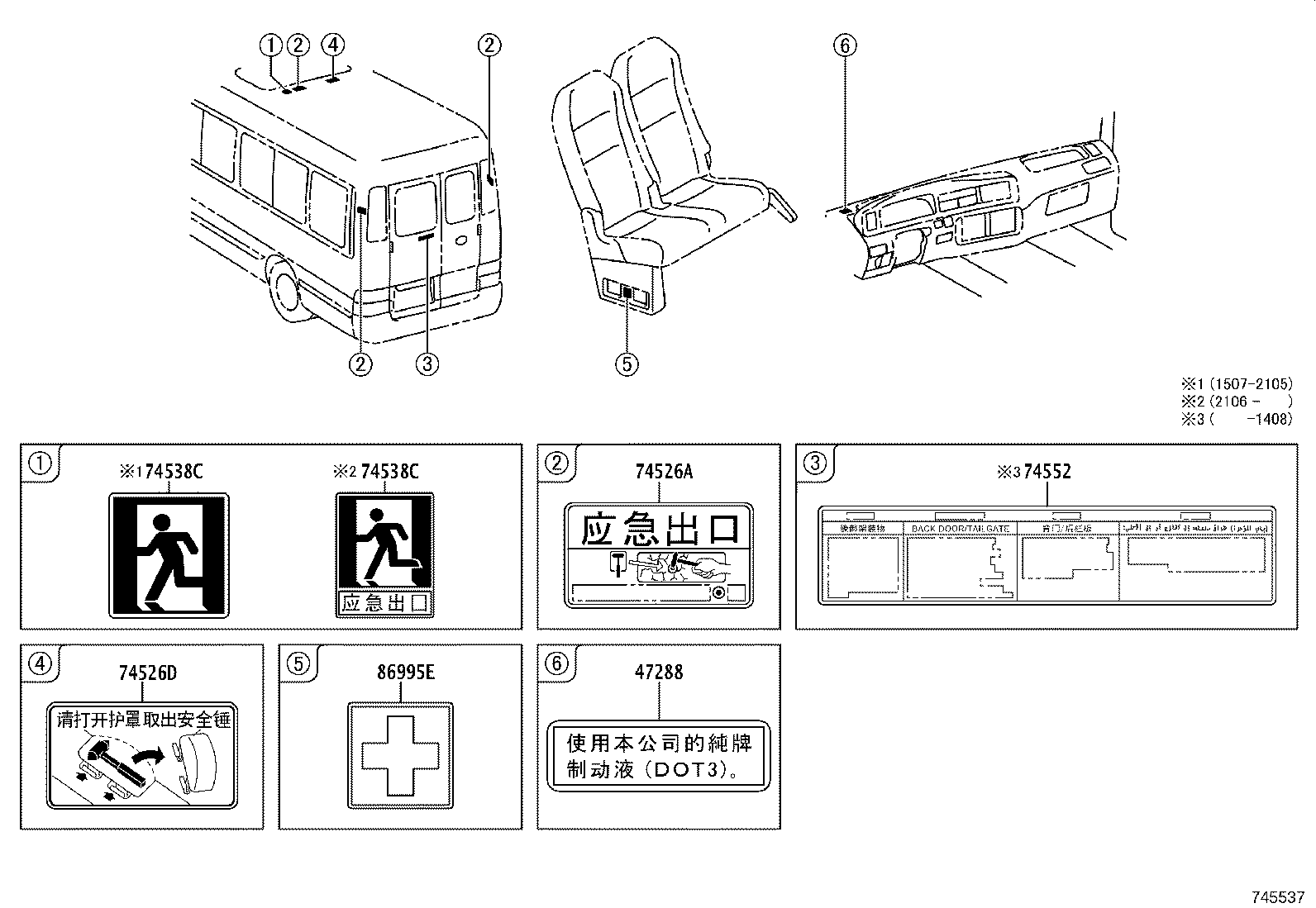

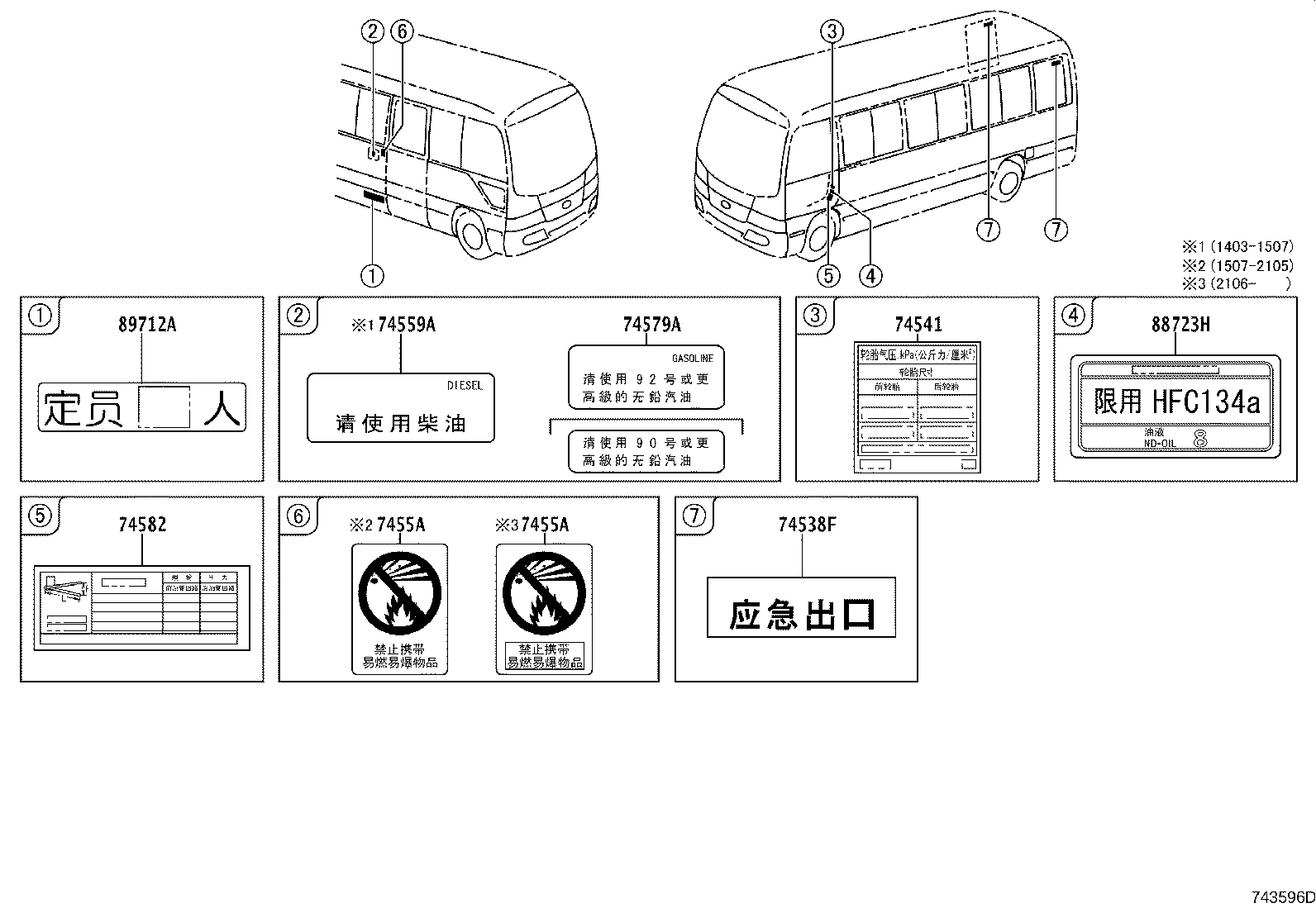

Figure 745975A 745975A 2013-01 → — Figure 743596D 743596D 2013-01 → — Figure 743597H 743597H 2013-01 → — Figure 745537 745537 2013-01 → —

Part groups

PNCDescription
11278B Label, Engine Emission Compliance Information
11285A Label, Coolant System Notice
28897A Plate, Battery Caution
28898D Label, Battery Information
47288 Label, Brake Fluid Notice
74526A Plate, Emergency Hammer Caution
74526D Label, Emergency Hammer Caution, NO.2
74538C Label, Emergency Exit Caution
74538F Label, Emergency Exit Caution, NO.2
74538G Label, Emergency Exit Caution, NO.3
74539C Label, Emergency Exit Side Caution
74541 Plate, Tire Pressure Caution
74543C Label, Rear Seat Information
74552 Plate, Safety Caution
74552A Label, Safety Caution
74552B Label, Safety Caution
74559A Plate, Fuel Caution
7455A Label, Carry-on Baggage Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
74582 Plate, Load Sensing Valve Marking
74719A Label, Extinguisher Notice
85628C Label, Automatic Door
85628L Label, Automatic Door, NO.2
85628M Label, Automatic Door, NO.3
85628P Label, Automatic Door, NO.5
86995E Label, Caution
88723H Label, Cooler Service Caution
89712A Label, Seat Control Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
