Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

6 part groups · 2 illustrations

Illustrations

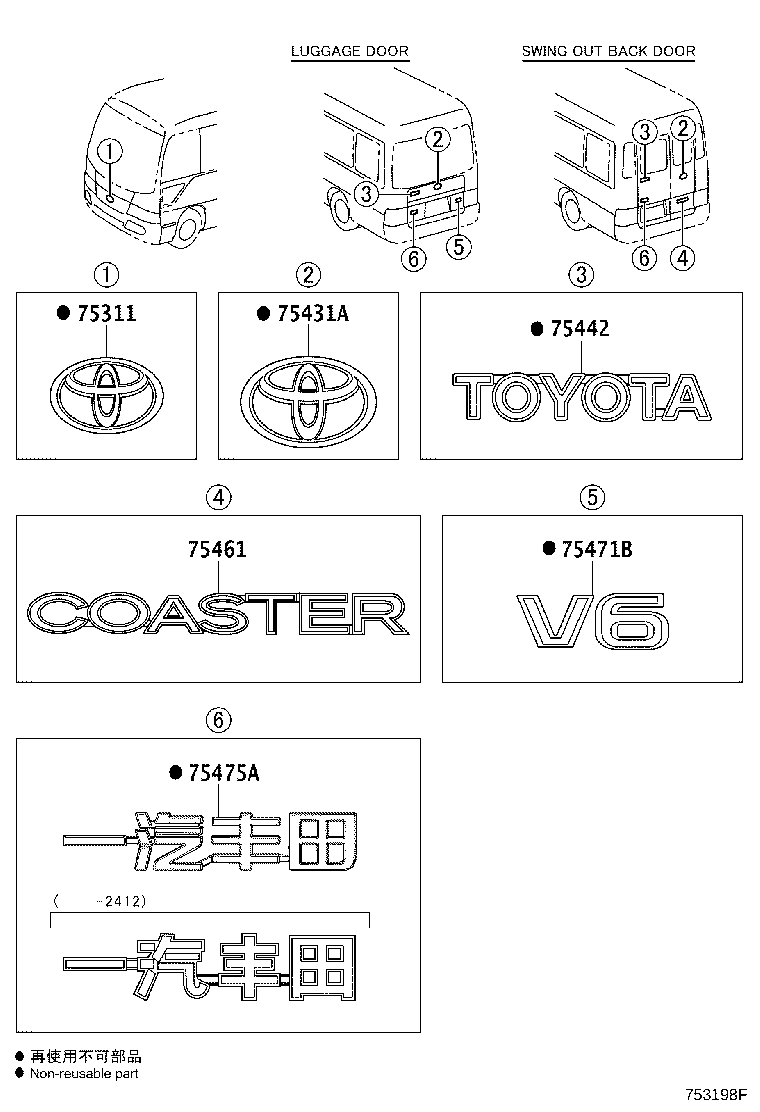

Figure 752833D 752833D 2013-01 → 2015-07 Figure 753198F 753198F 2015-07 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75431A Emblem, Back Door, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75471B Plate, Rear Body Name, NO.1
75475A Plate, Rear Body Name, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
