Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

50 part groups · 21 illustrations

Illustrations

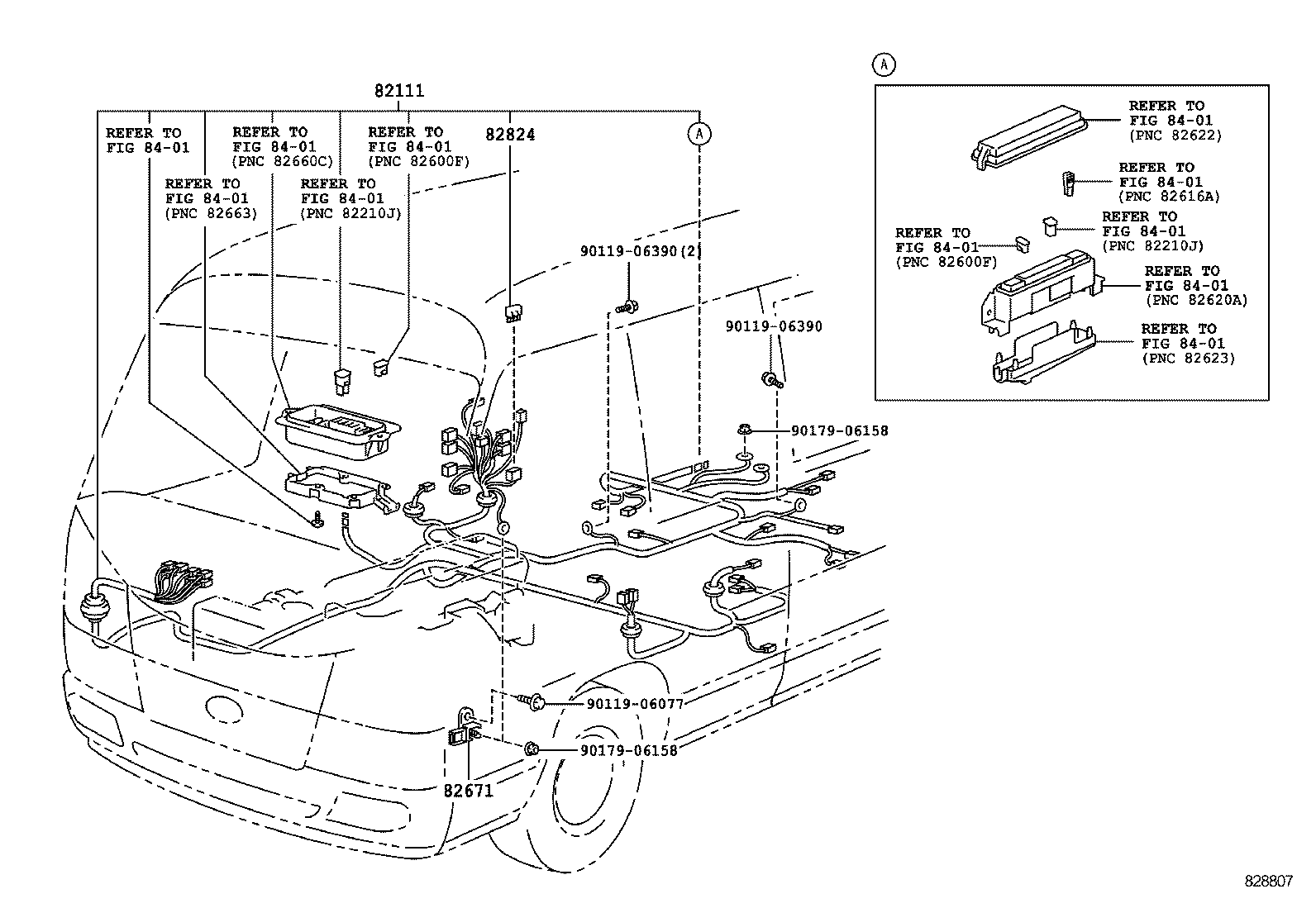

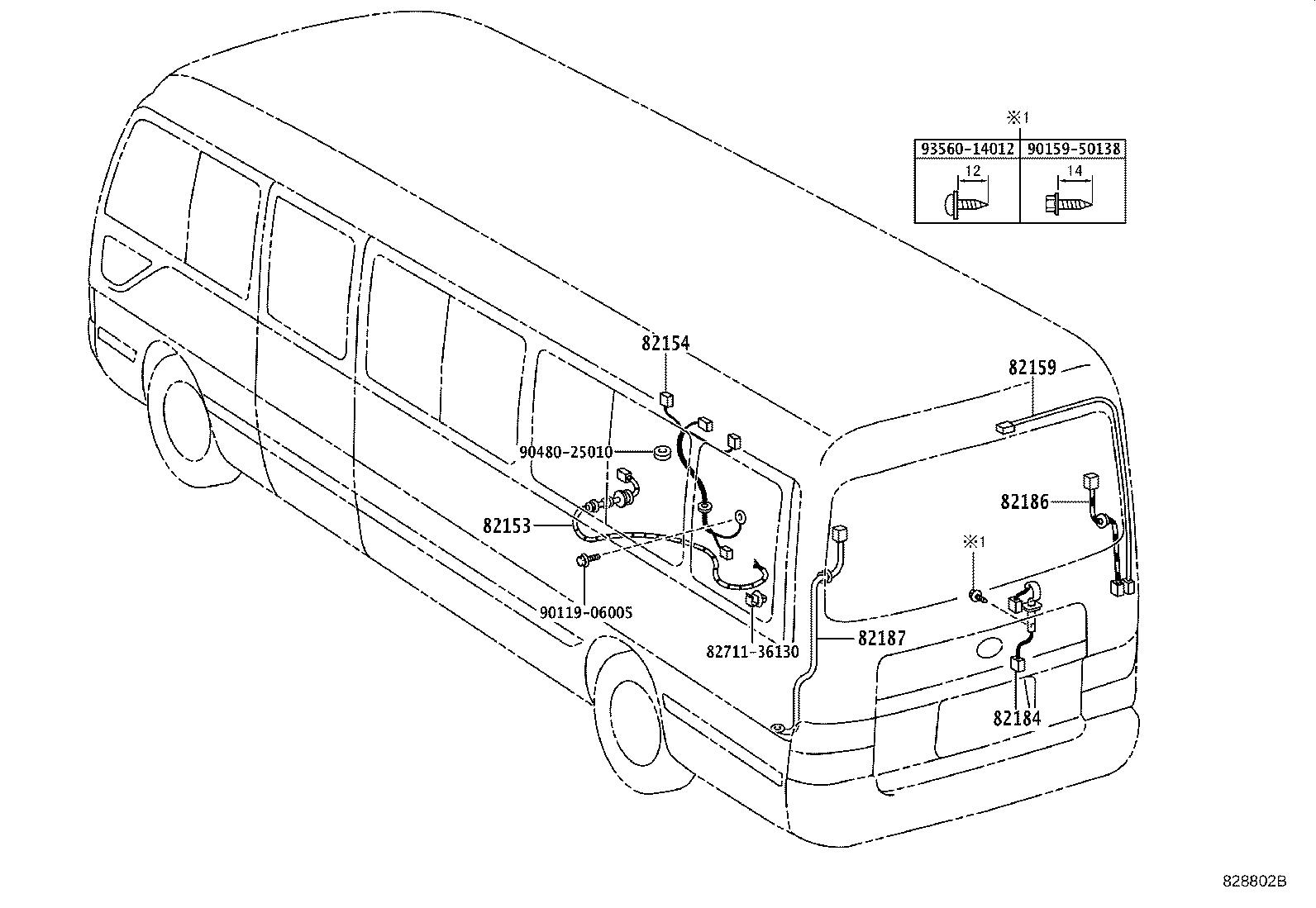

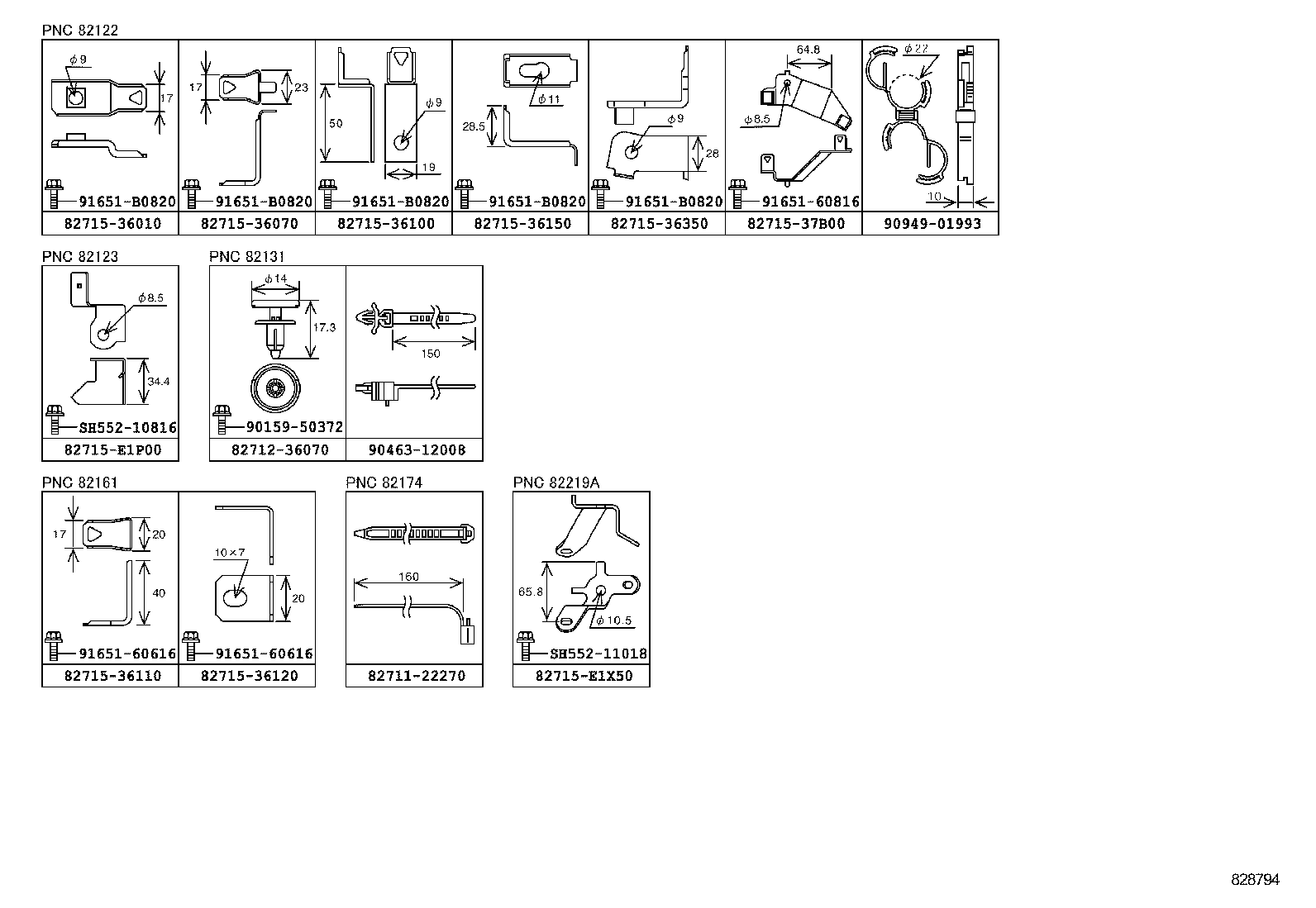

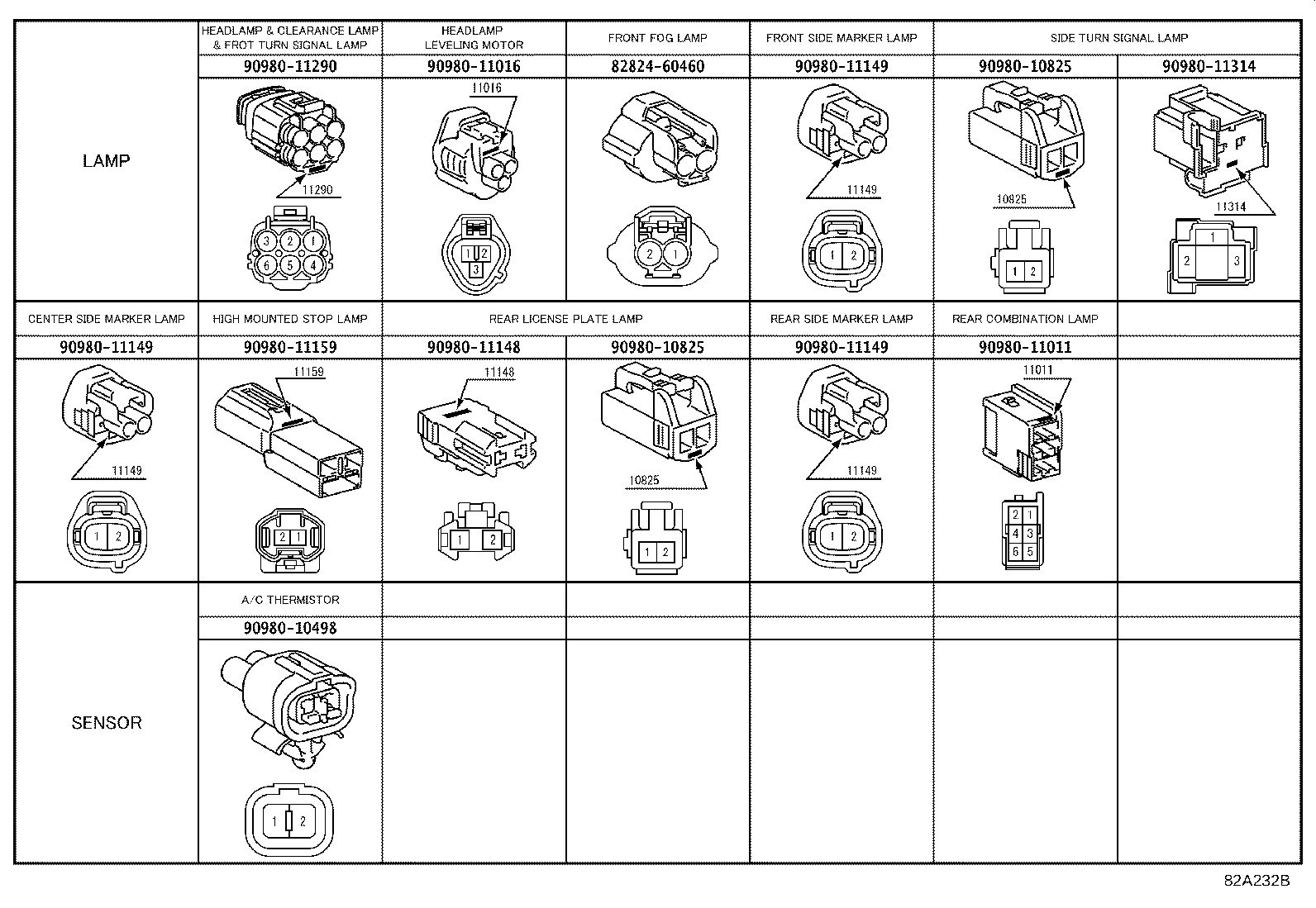

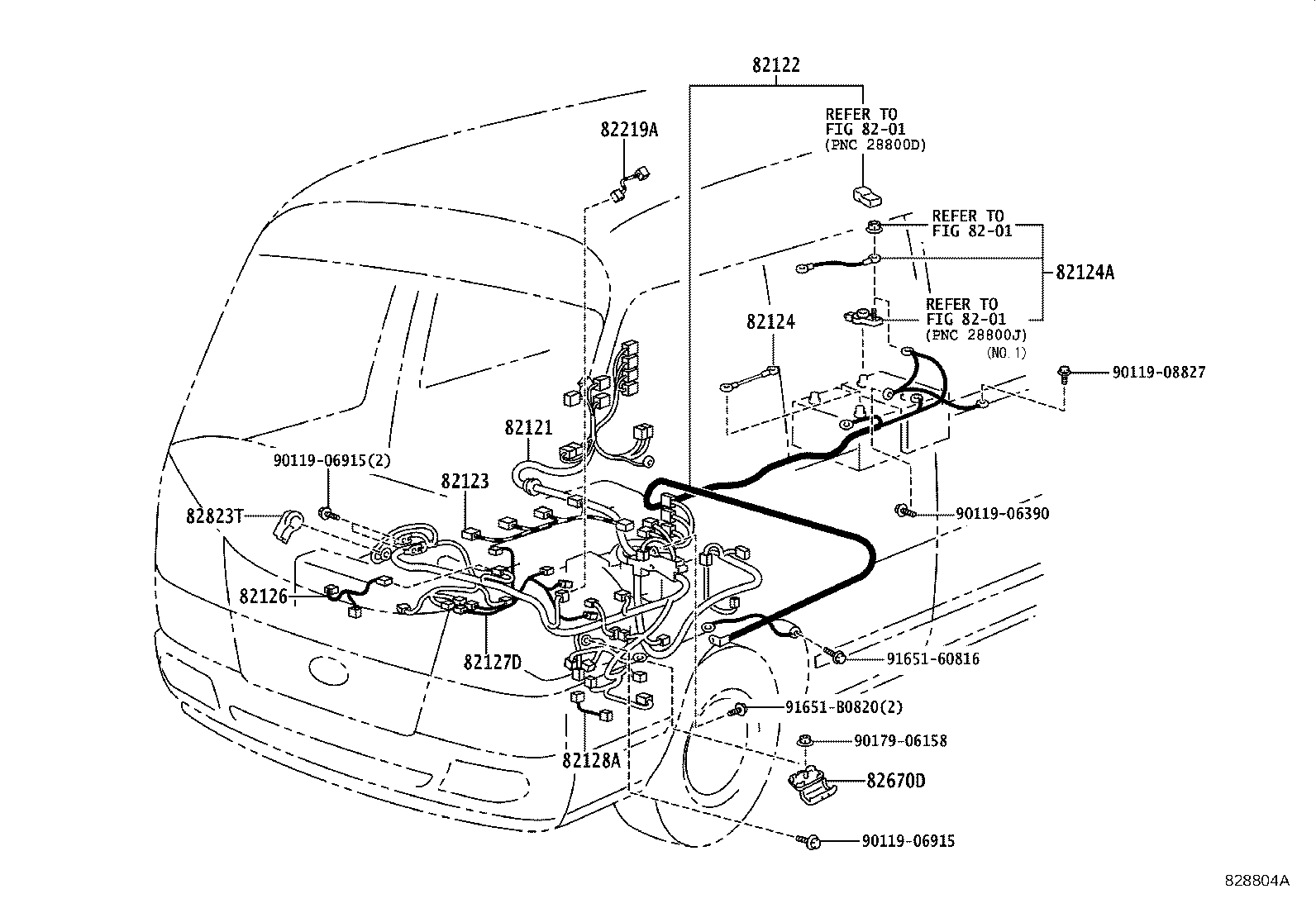

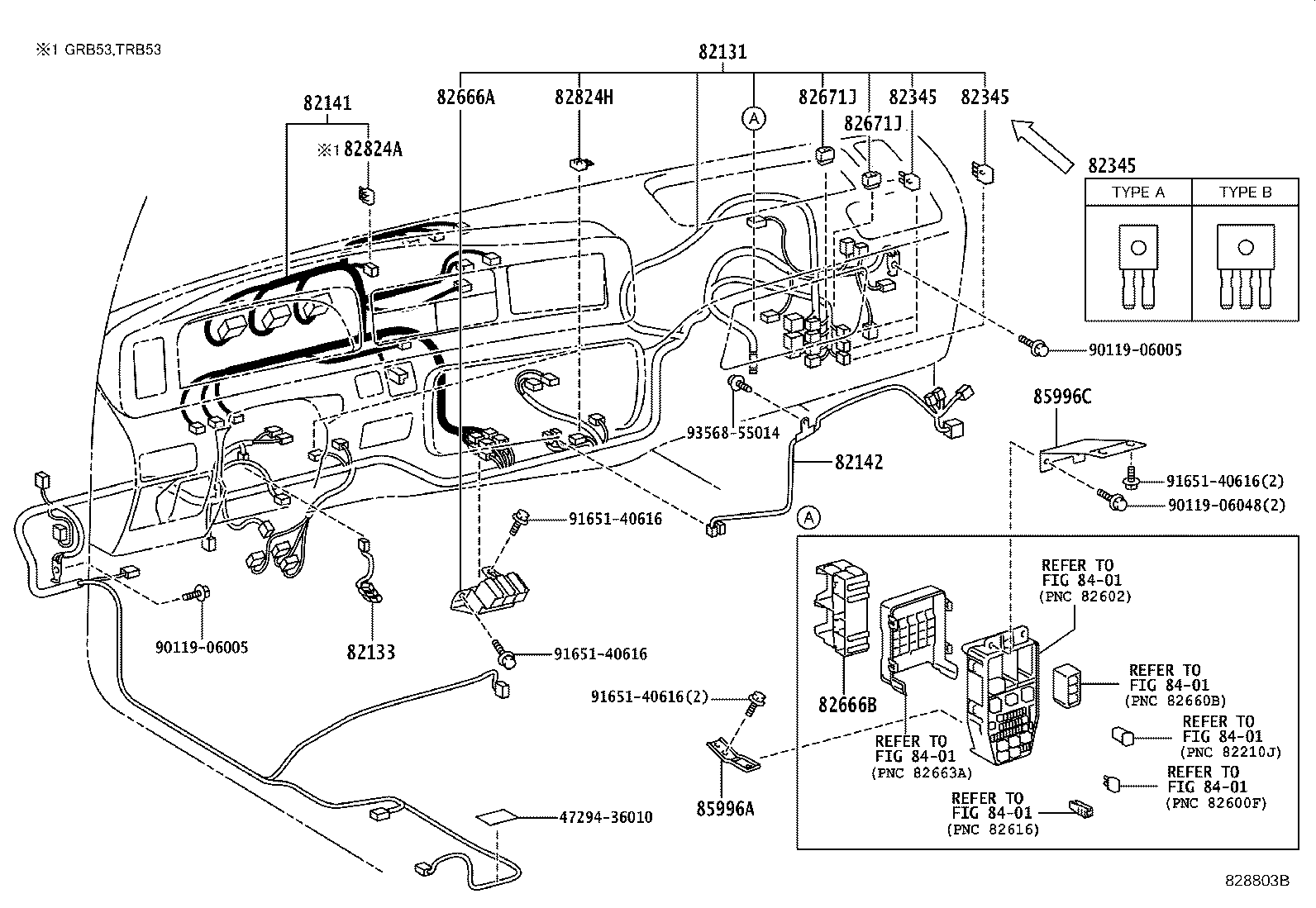

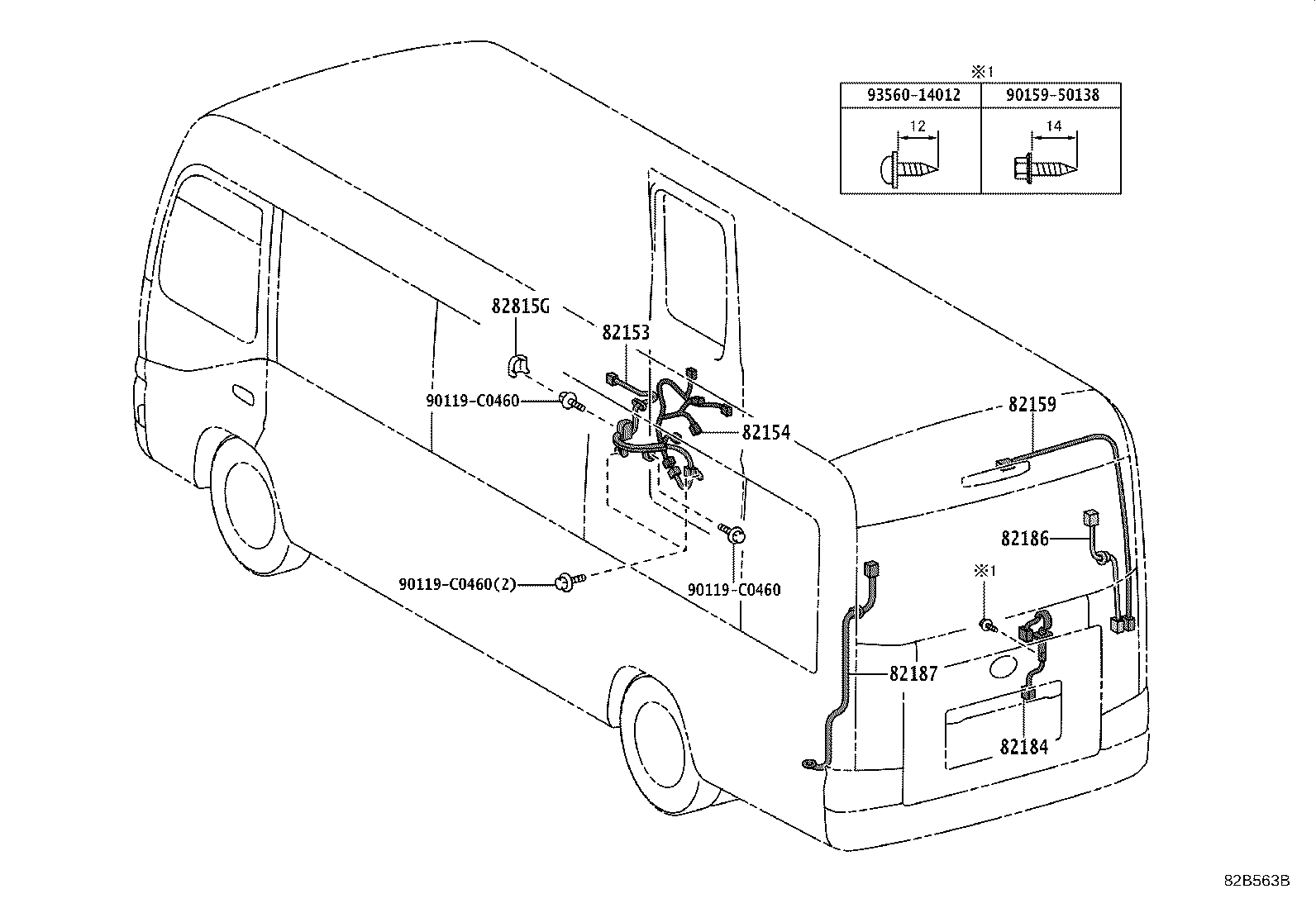

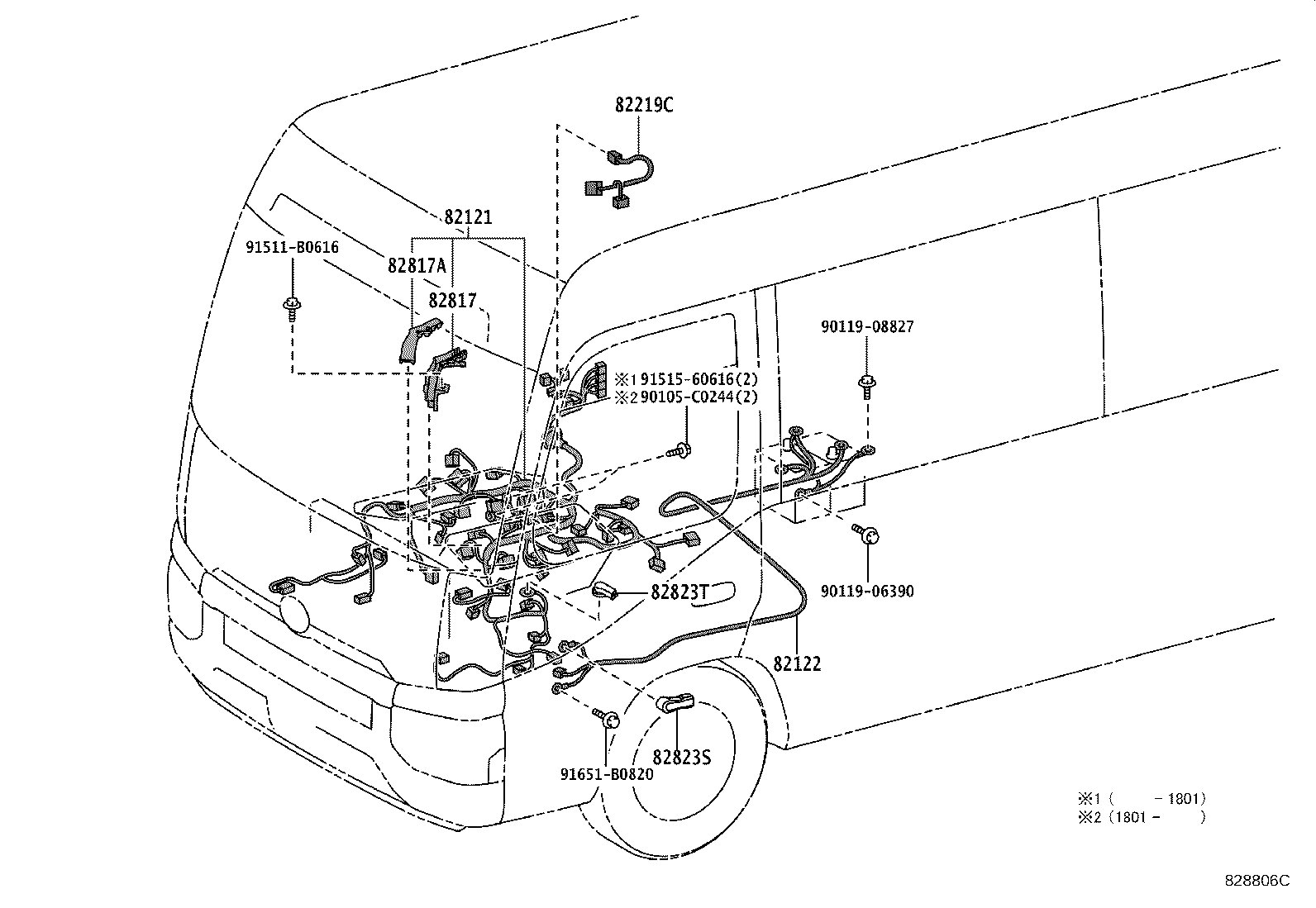

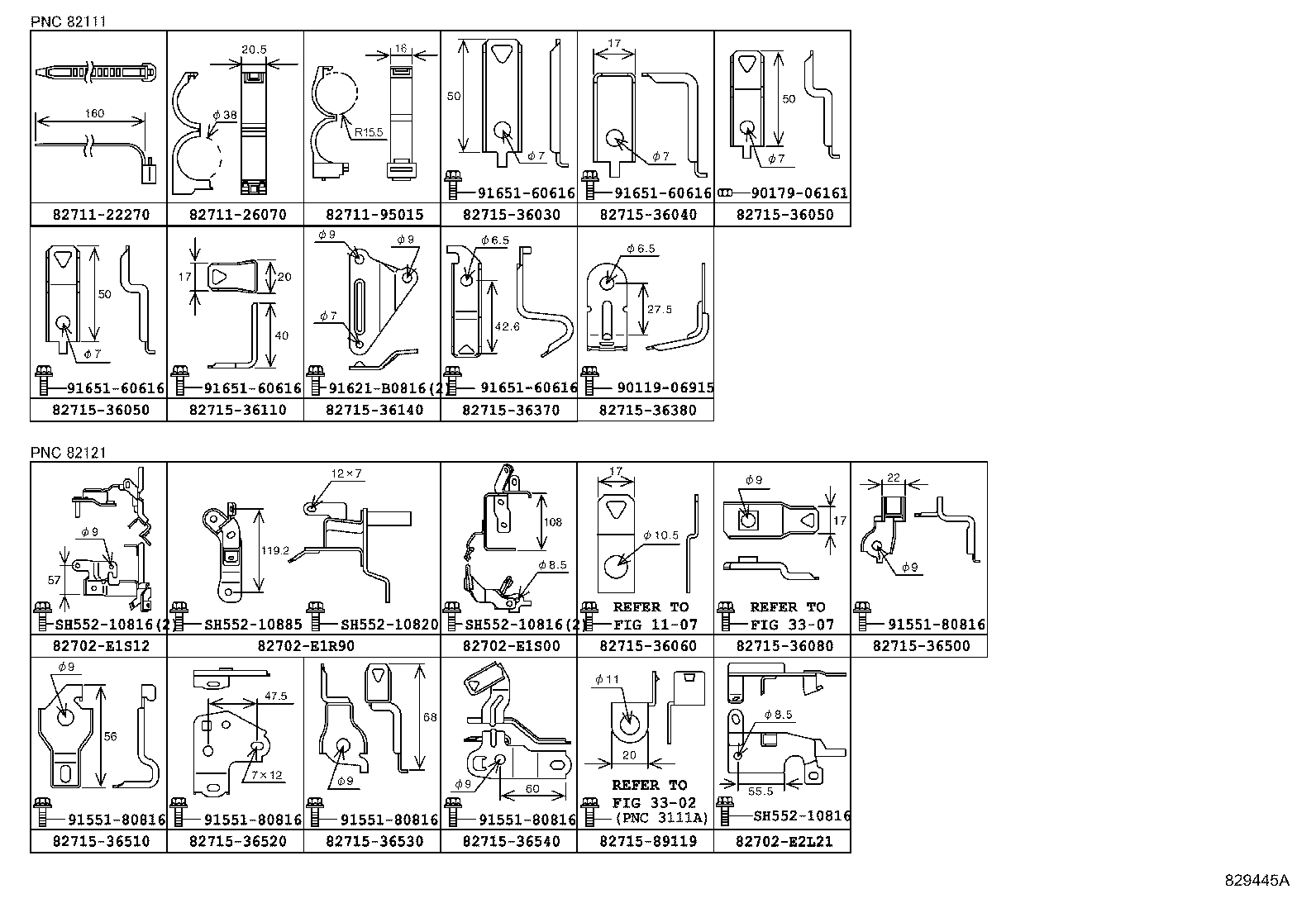

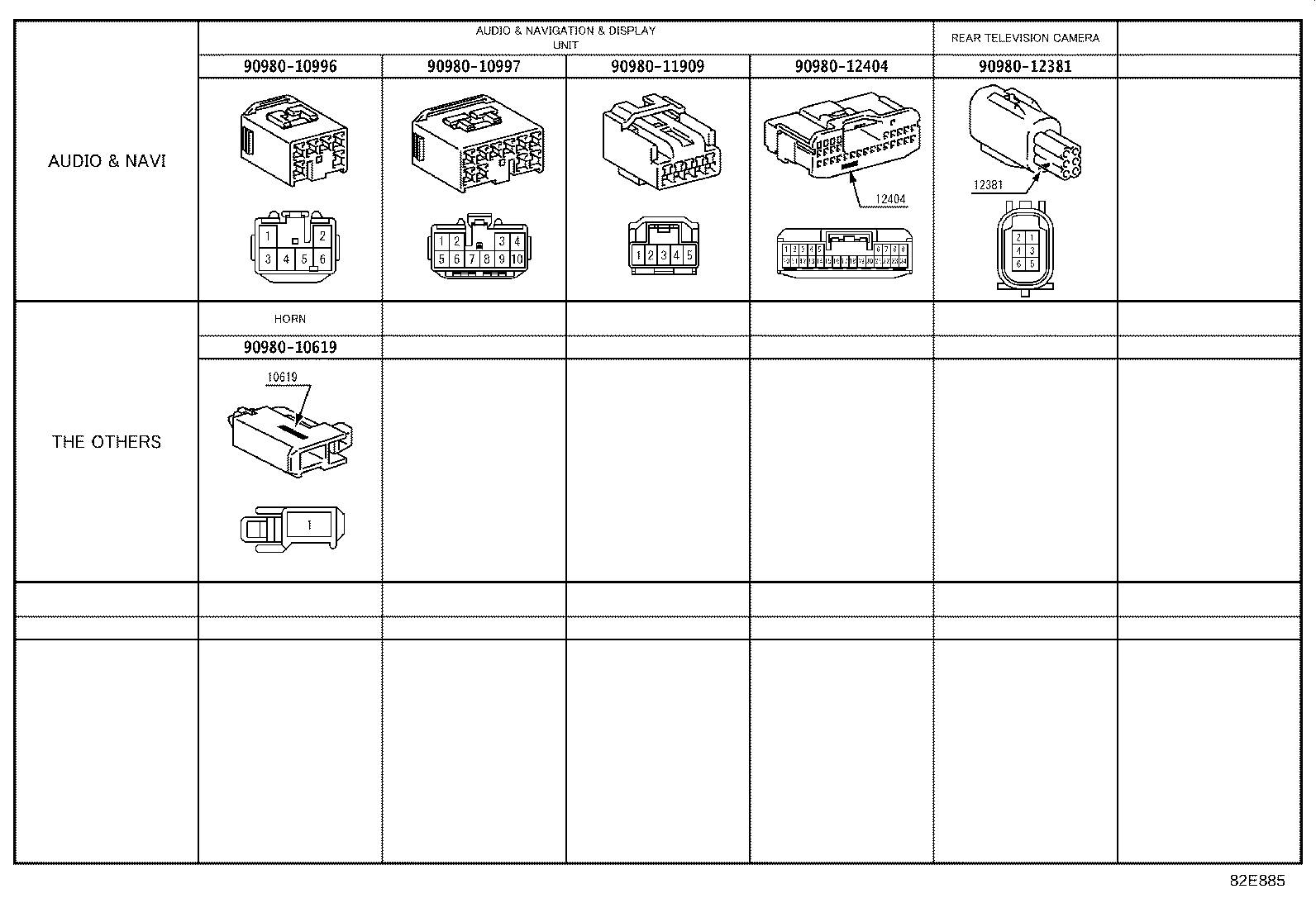

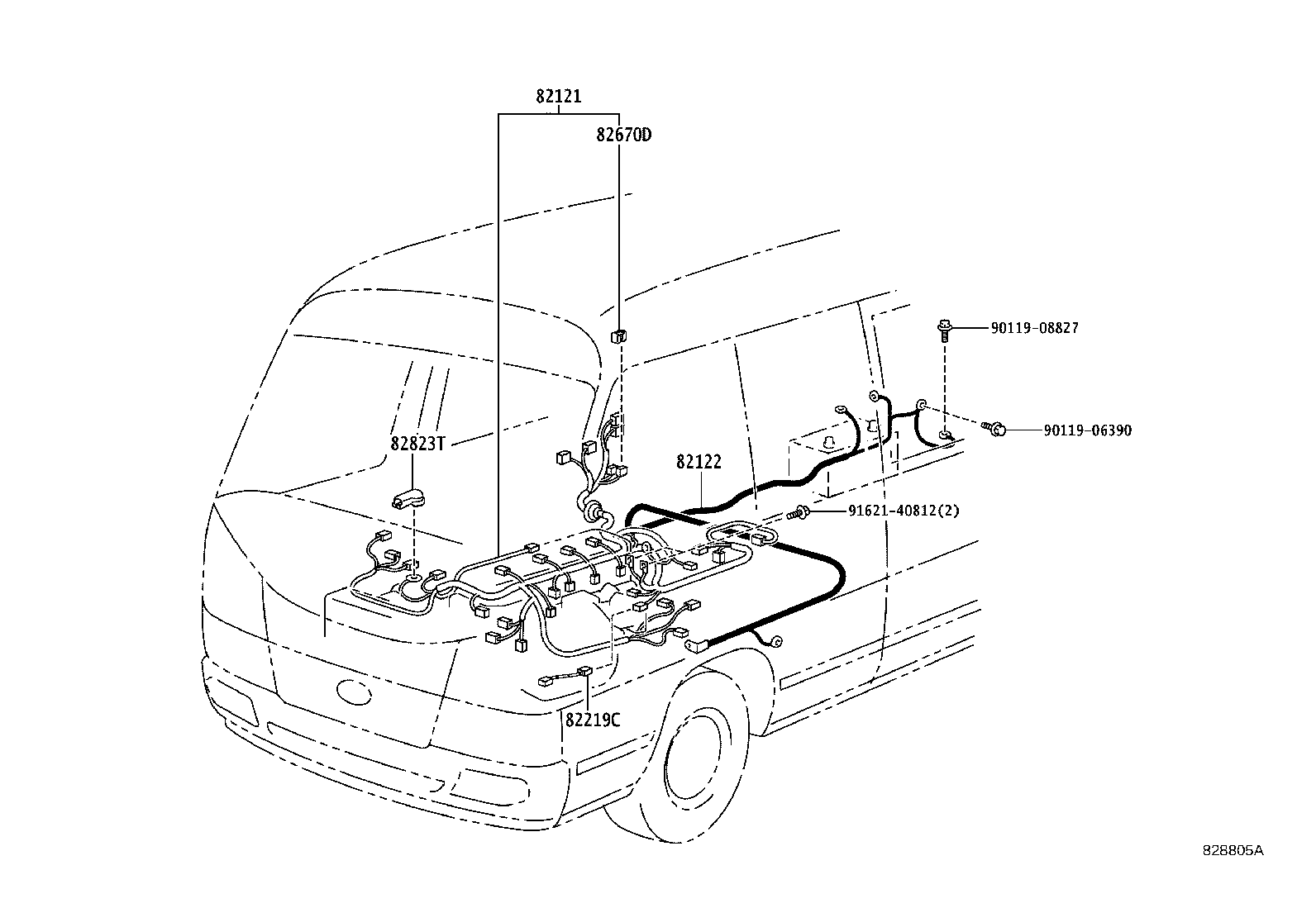

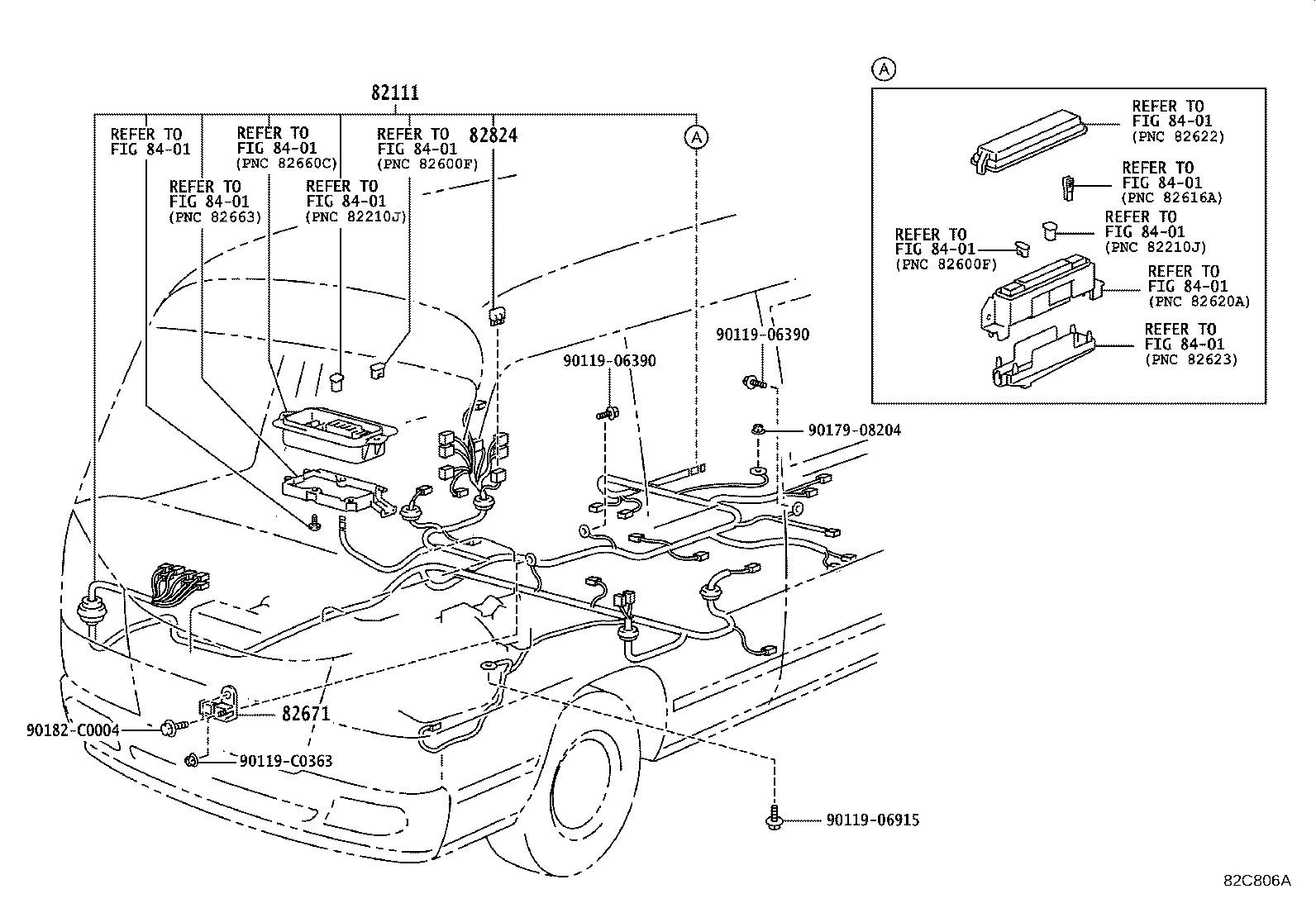

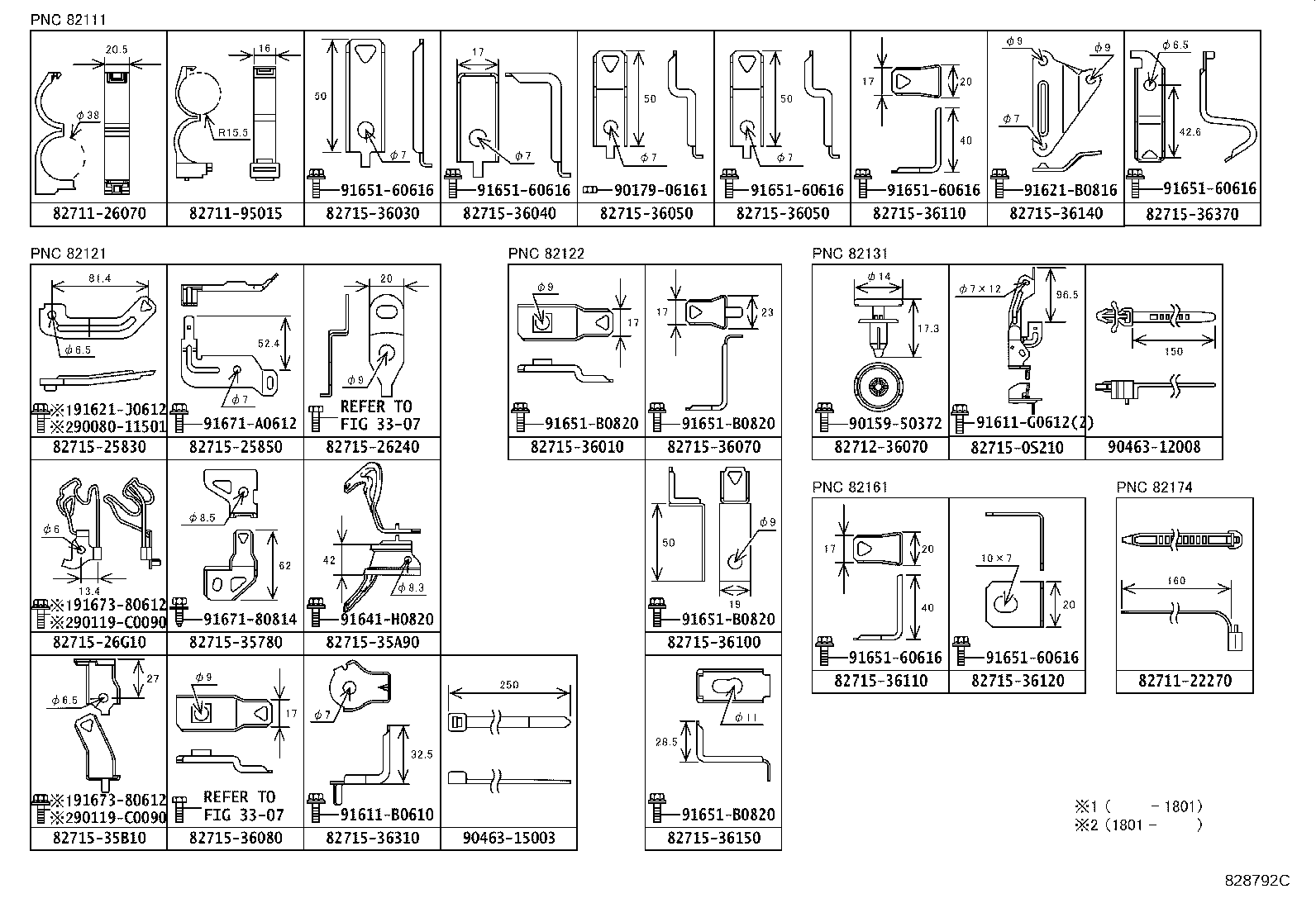

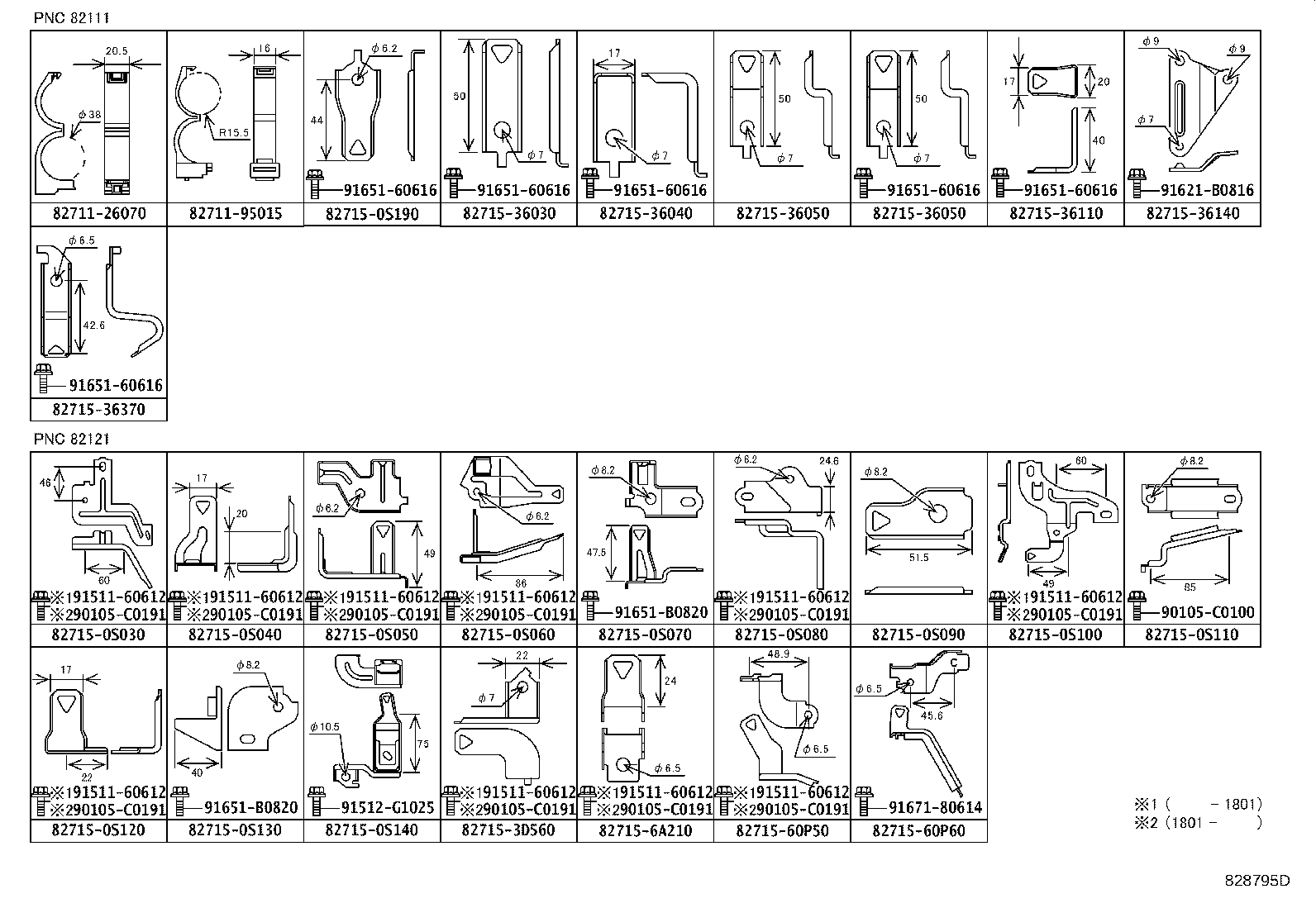

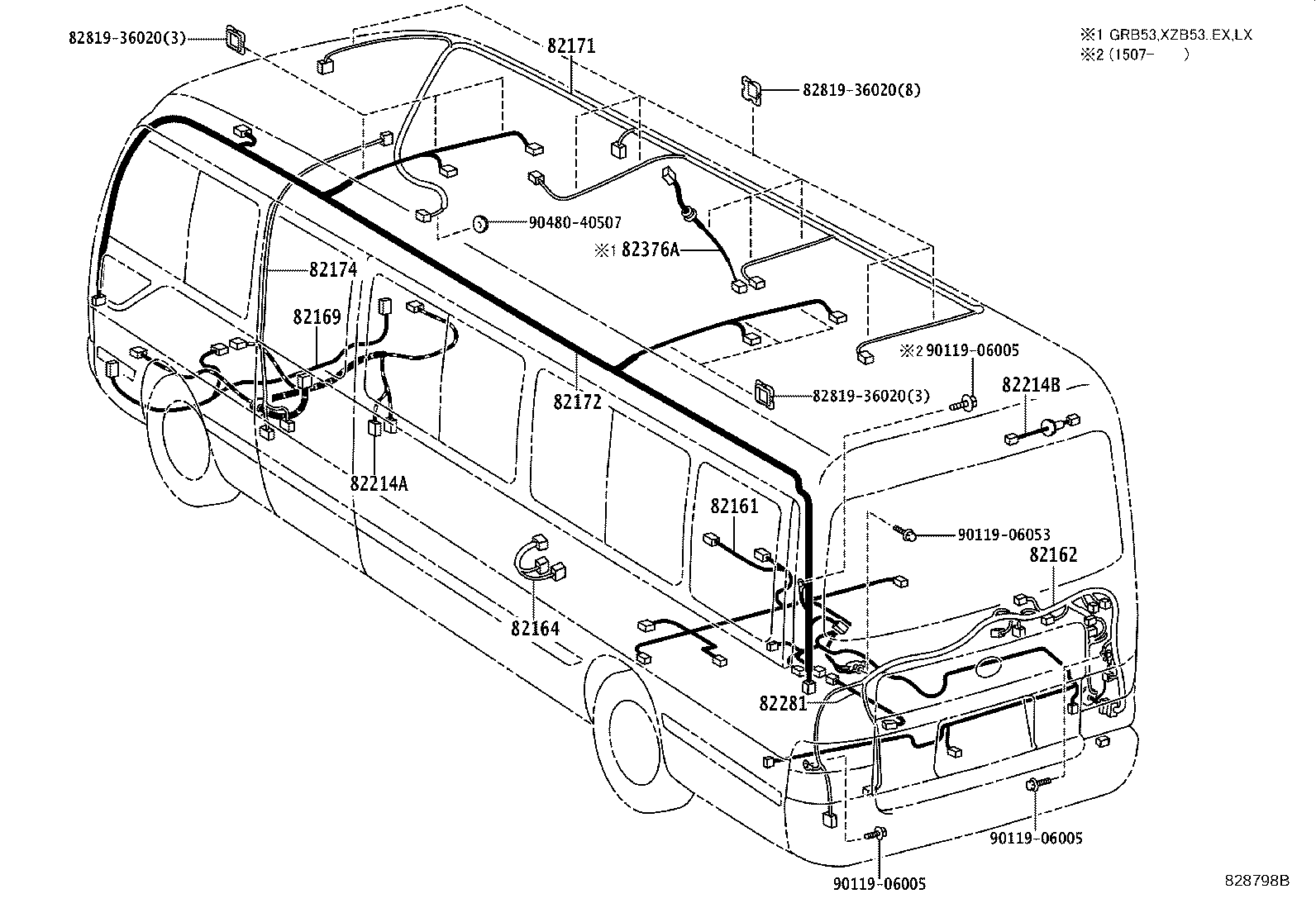

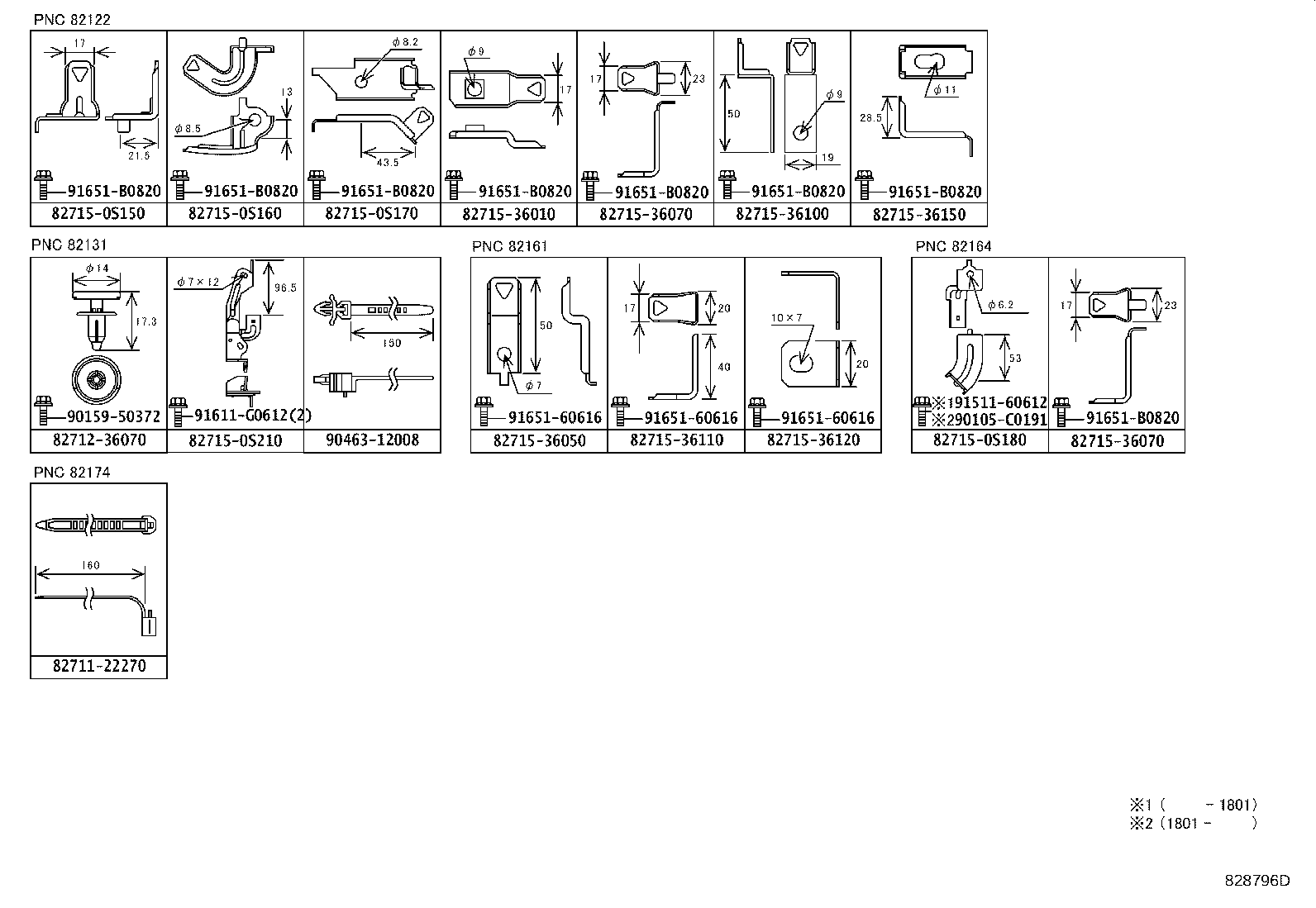

Figure 828808A 828808A 2013-01 → 2019-02 Figure 828807 828807 2014-03 → 2015-07 Figure 82C806A 82C806A 2019-02 → — Figure 828806C 828806C 2013-01 → — Figure 828805A 828805A 2013-01 → — Figure 828804A 828804A 2014-03 → 2015-07 Figure 828803B 828803B 2013-01 → — Figure 828803B 828803B 2014-03 → 2015-07 Figure 828802B 828802B 2013-01 → 2018-01 Figure 828802B 828802B 2014-03 → 2015-07 Figure 82B563B 82B563B 2018-01 → — Figure 828798B 828798B 2013-01 → — Figure 828798B 828798B 2014-03 → 2015-07 Figure 828795D 828795D 2013-01 → — Figure 828796D 828796D 2013-01 → — Figure 828792C 828792C 2013-01 → — Figure 829445A 829445A 2014-03 → 2015-07 Figure 828794 828794 2014-03 → 2015-07 Figure 825336A 825336A 2013-01 → — Figure 82A232B 82A232B 2015-07 → — Figure 82E885 82E885 2015-07 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82131 Wire, Cowl
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82159 Wire, Pillar, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82174 Wire, Roof, NO.4
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82214A Wire, Lamp
82214B Wire, Lamp, Rear
82219A Wire, Sensor
82219C Wire, Sensor
82281 Wire, Gage
82345 Diode
82376A Wire, Auto Fan
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82670D Block Assy, Junction,NO.2
82671 Block, Junction
82671J Block, Junction, NO.2
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824H Connector, Wiring Harness
85996A Bracket, Relay, NO.2
85996C Bracket, Relay
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
