Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

14 part groups · 5 illustrations

Illustrations

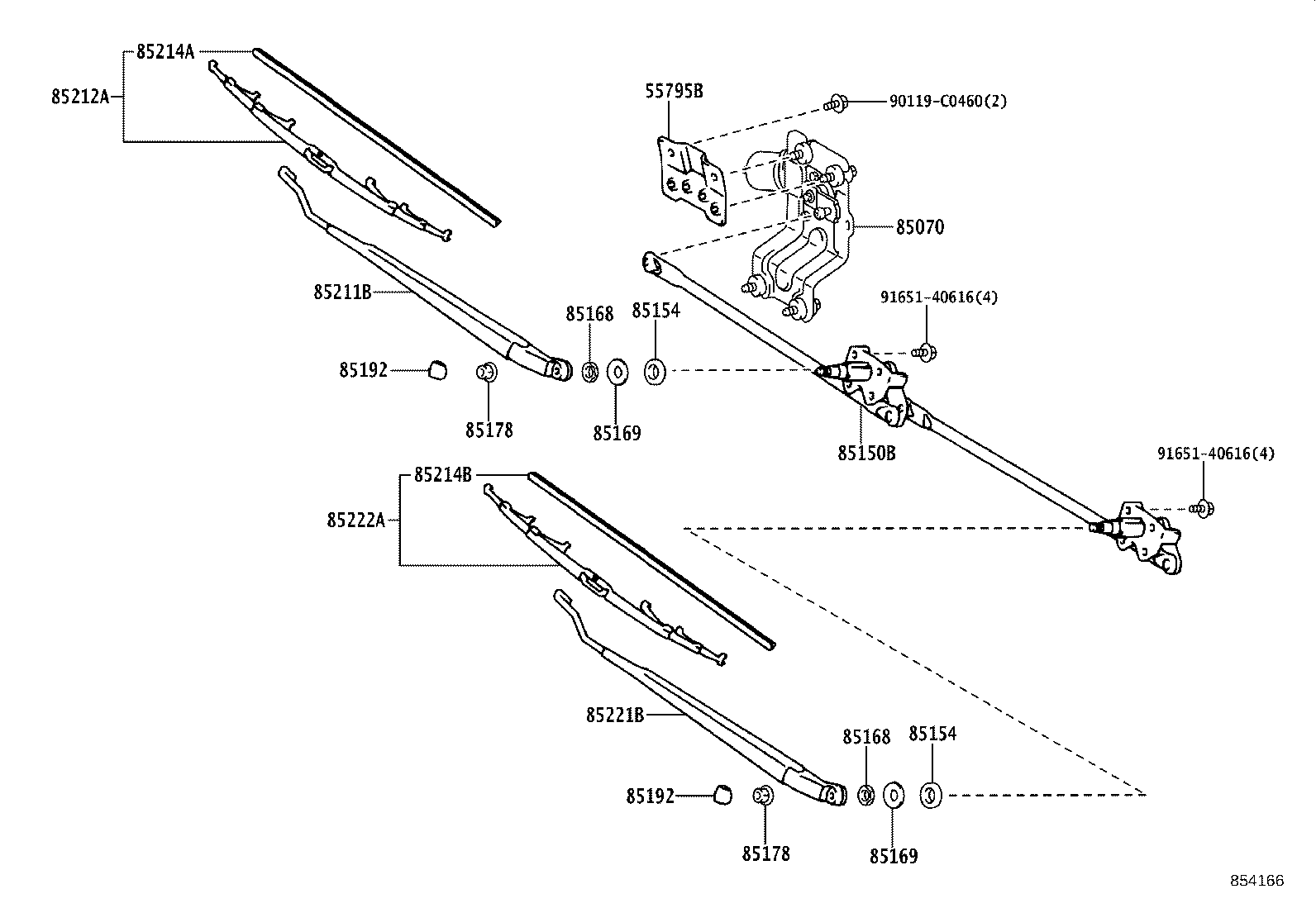

Figure 852991 852991 2013-01 → 2015-07 Figure 852991 852991 2013-01 → 2018-01 Figure 852991 852991 2014-03 → 2015-07 Figure 853866 853866 2018-01 → 2019-12 Figure 854166 854166 2019-12 → —

Part groups

PNCDescription
55795B Bracket, Front Wiper Motor
85070 Motor & Bracket Assy, Front Wiper
85150B Link Assy, Wiper
85154 Packing, Front Wiper Shaft
85168 Nut, Windshield Wiper Link Pivot
85169 Washer, Windshield Wiper Link Pivot, NO.1
85178 Nut (FOR FRONT WIPER ARM SETTING)
85192 Cover, Windshield Wiper Arm
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
