Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Automatic Door

48 part groups · 19 illustrations

Illustrations

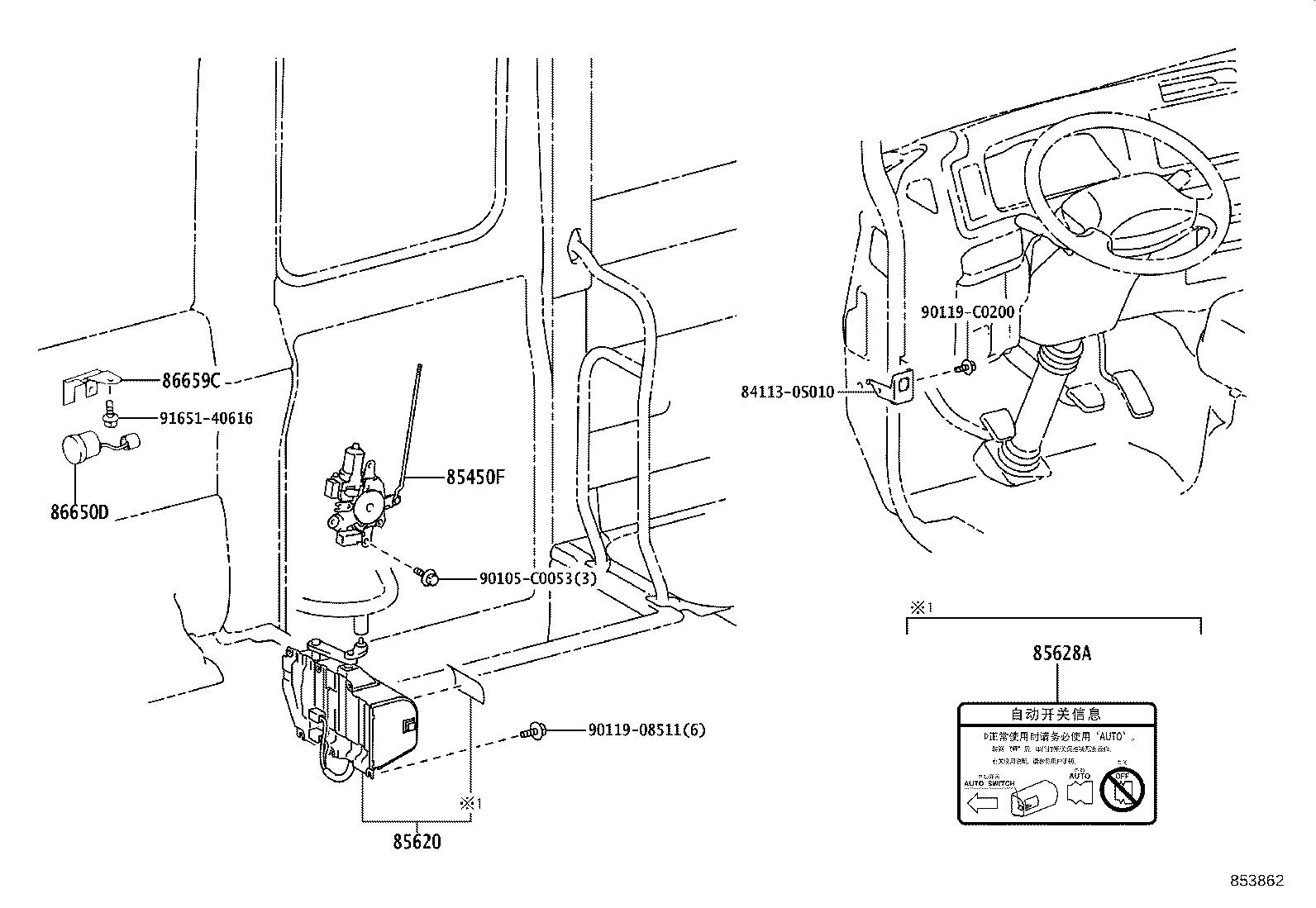

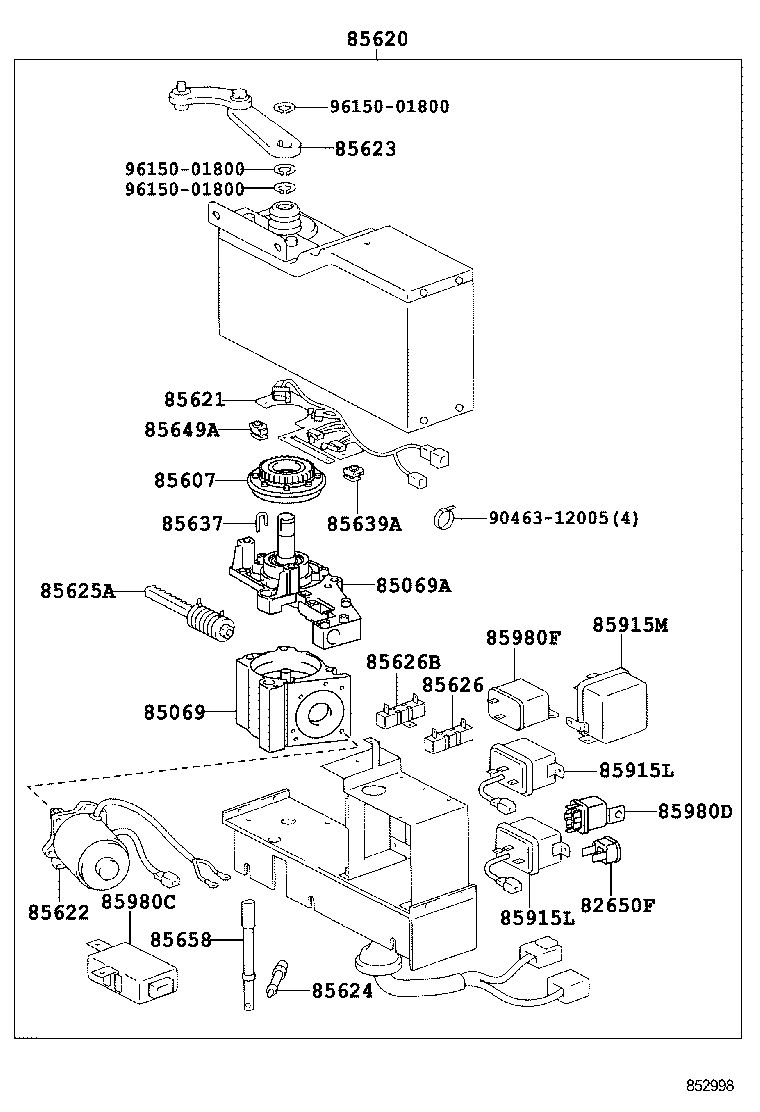

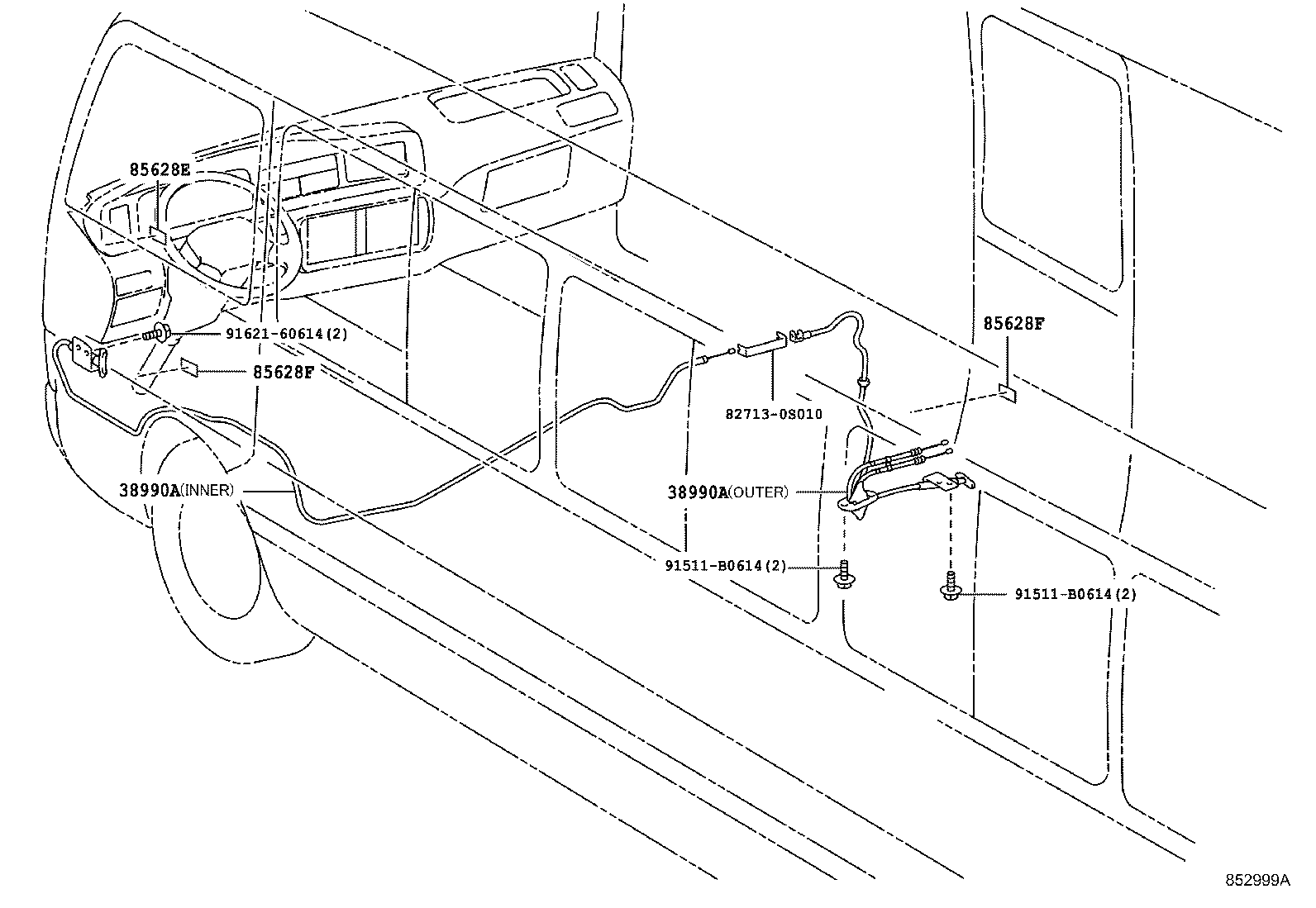

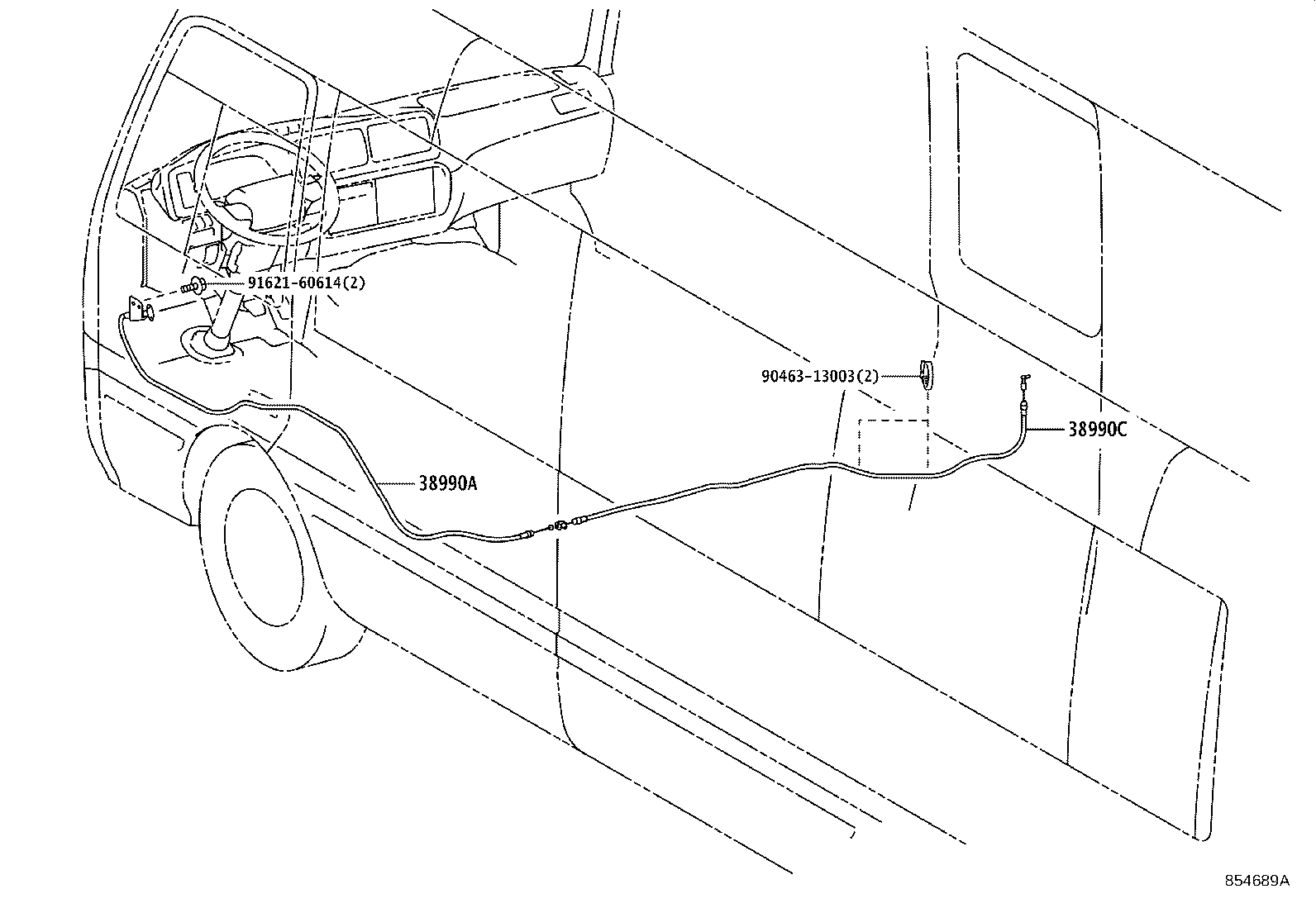

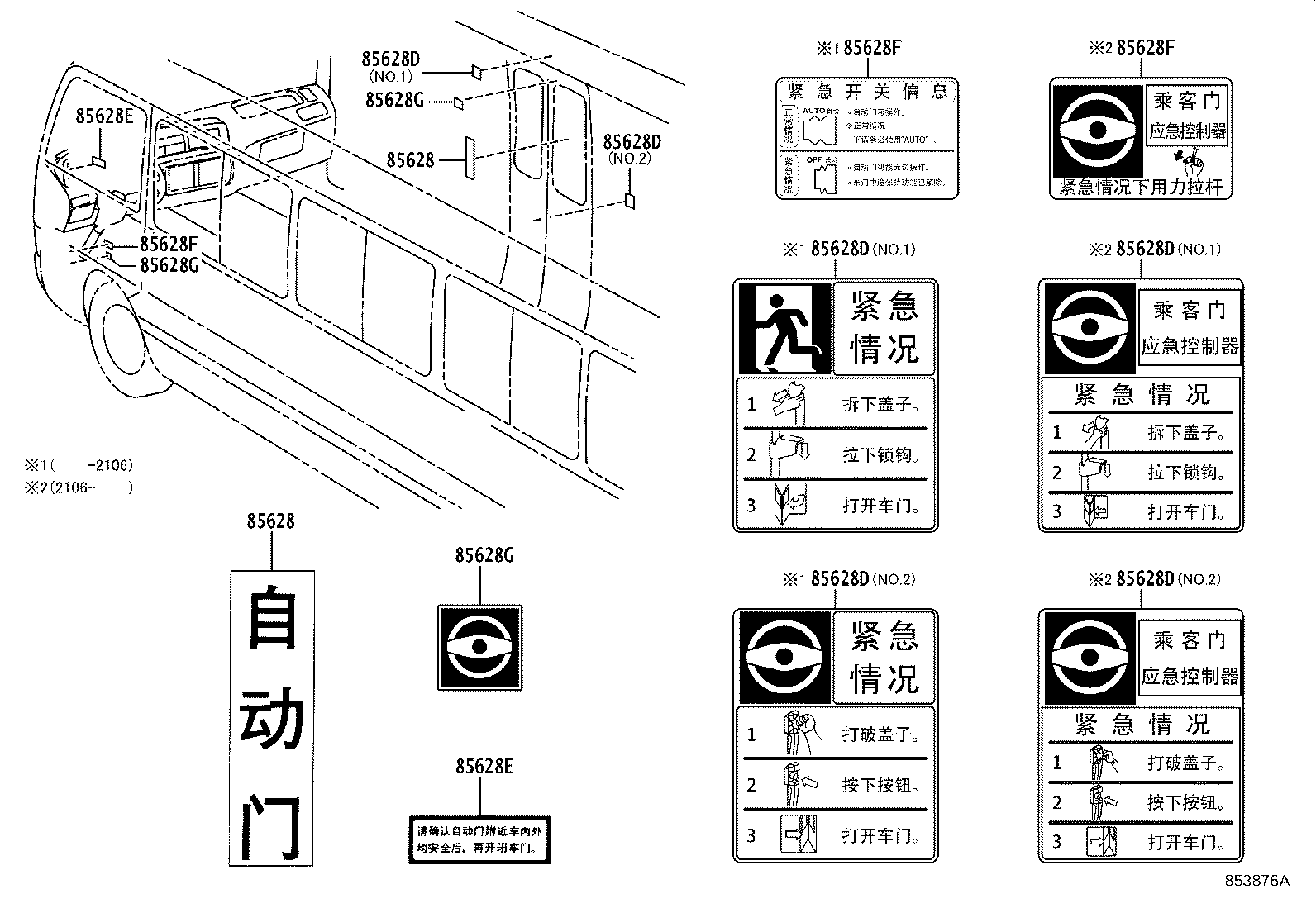

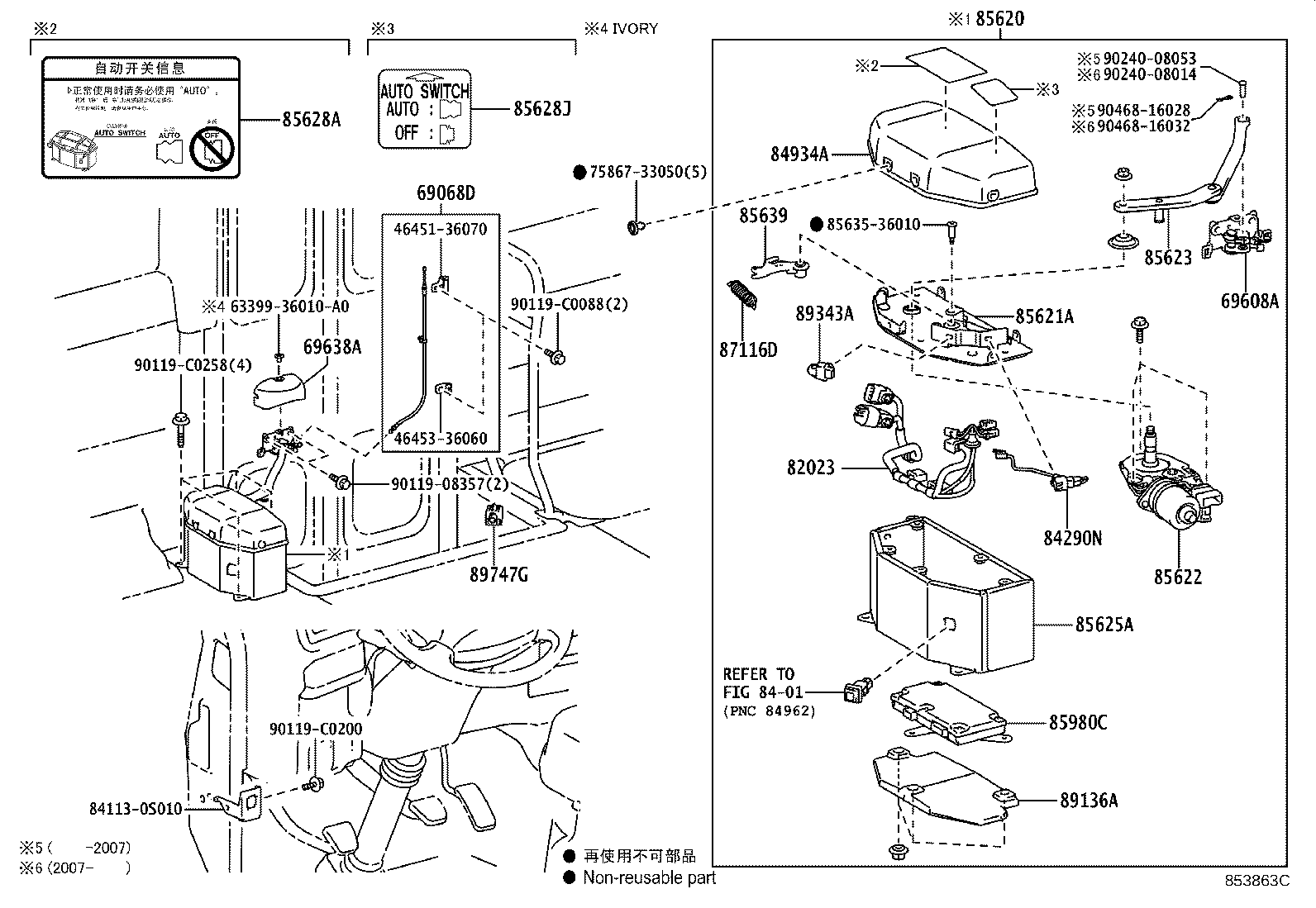

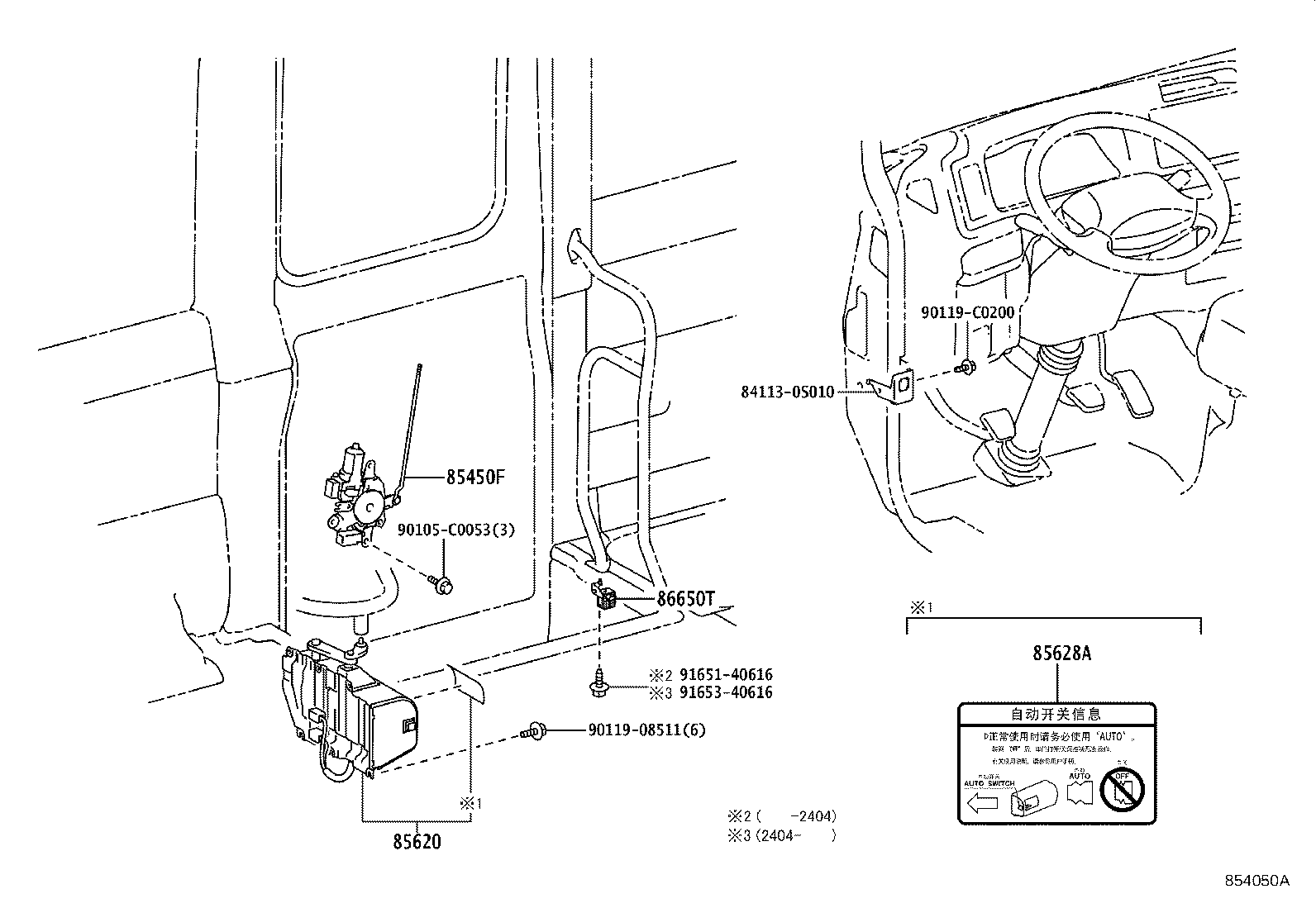

Figure 852997 852997 2013-01 → — Figure 852997 852997 2014-03 → 2015-07 Figure 852997 852997 2015-07 → — Figure 852998 852998 2013-01 → — Figure 852998 852998 2014-03 → 2015-07 Figure 852998 852998 2015-07 → — Figure 854050A 854050A 2019-11 → — Figure 853862 853862 2018-01 → 2019-12 Figure 853863C 853863C 2018-01 → — Figure 852999A 852999A 2013-01 → 2021-06 Figure 852999A 852999A 2014-03 → 2015-07 Figure 852999A 852999A 2015-07 → 2021-06 Figure 854689A 854689A 2021-06 → — Figure 854691 854691 2021-06 → — Figure 853002B 853002B 2013-01 → 2018-01 Figure 853002B 853002B 2014-03 → 2015-07 Figure 853002B 853002B 2015-07 → 2018-01 Figure 853864A 853864A 2018-01 → — Figure 853876A 853876A 2018-01 → —

Part groups

PNCDescription

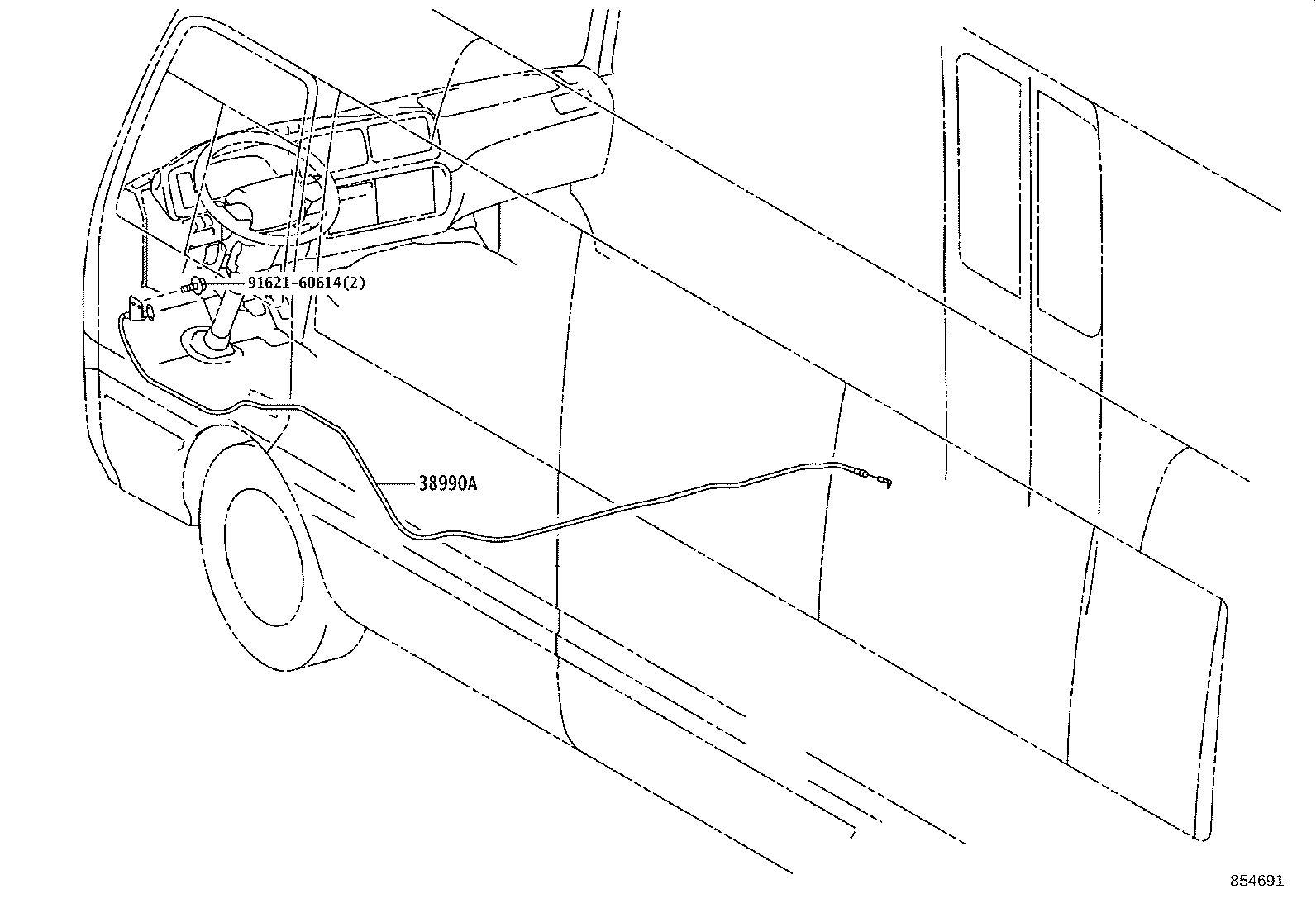

38990A Lever Assy, Select Control
38990C Lever Assy, Select Control, NO.2
69068D Cable Sub-assy, Center Door Remote Control, NO.2
69608A Link Sub-assy, Center Door Remote Control
69638A Cover, Center Door Remote Control, NO.1
82023 Wiring Sub-assy, Auto Door
82650F Breaker Assy, Wiring Circuit
84290N Switch Assy, Limit
84934A Cover, Door Control Switch
85069 Housing Sub-assy, Auto Door
85069A Housing Sub-assy, Auto Door NO.2
85450F Motor Assy, Door Control
85607 Gear Sub-assy, Idle
85620 Motor Assy, Automatic Door Regulator
85621 Motor & Link, Automatic Door Regulator
85621A Switch & Base, Auto Door
85622 Motor & Gear, Automatic Door Regulator
85623 Link, Automatic Door Regulator
85624 Lever, Automatic Door Regulator, NO.1
85625A Rack, Automatic Door
85626 Resister, Automatic Door
85626B Resister, Automatic Door NO.3

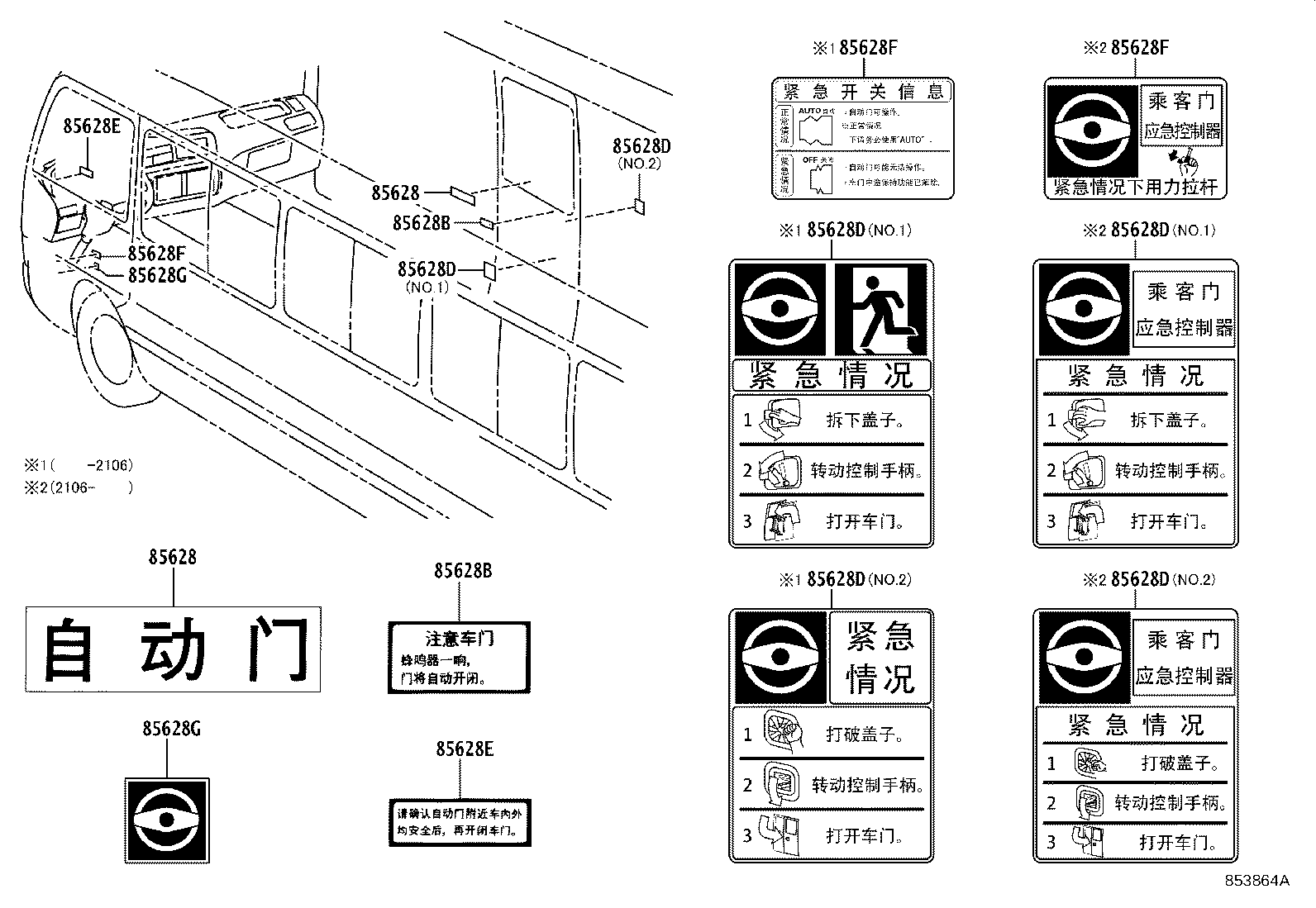

85628 Label, Automatic Door, NO.1
85628A Label, Automatic Door, NO.2
85628B Label, Automatic Door, NO.3
85628D Lavel, Automatic Door, NO.4
85628E Lavel, Automatic Door, NO.5
85628F Label, Automatic Door
85628G Label, Automatic Door NO.7
85628J Label, Automatic Door NO.6
85637 Remover, Automatic Door
85638A Spacer, Automatic Door
85639 Plate, Automatic Door
85639A Cam, Auto Door Stopper, NO.1
85649A Cam, Auto Door Stopper, NO.2
85658 Shaft, Guide Roller
85915L Relay, Main Automatic Door, NO.1
85915M Relay, Main Automatic Door, NO.2
85980C Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
85980D Relay Assy, Door Control, NO.3 (FOR AUTOMATIC DOOR)
85980F Relay Assy Door Control, NO.4(FOR AUTOMATIC DOOR)
86650D Buzzer Assy
86650T Buzzer Assy, NO.2
86659C Bracket, Buzzer, Automatic Door
87116D Spring, Holding
89136A Cover, Ecu Aggregation, NO.1
89343A Buzzer, Clearance Warning
89747G Buzzer, Wireless Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
