Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 3 illustrations

Illustrations

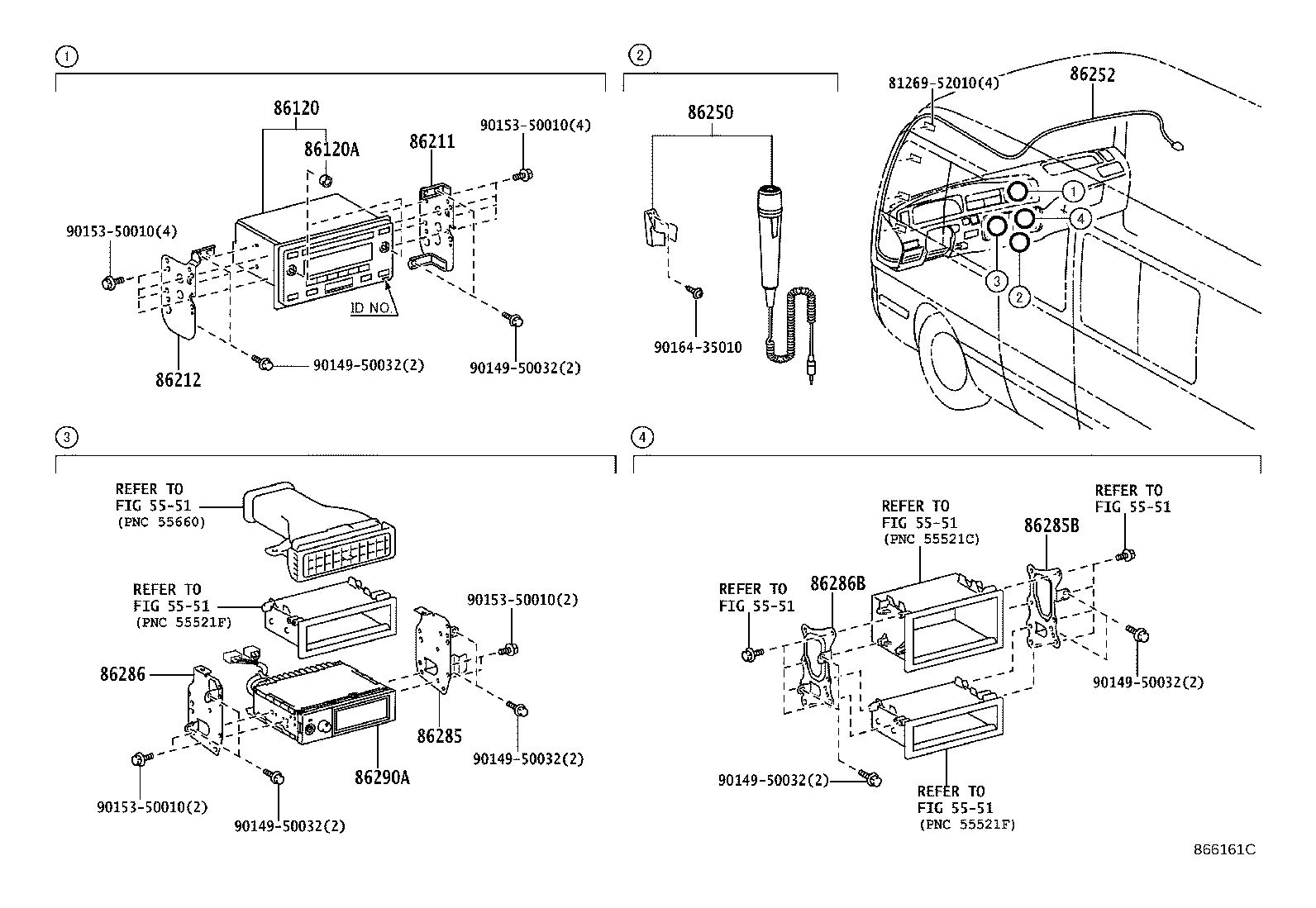

Figure 865348B 865348B 2013-01 → 2015-07 Figure 866161C 866161C 2015-07 → 2018-01 Figure 867017A 867017A 2018-01 → —

Part groups

PNCDescription
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86250 Microphone Assy, Amplifier
86252 Code, Microphone, NO.1
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86286B Bracket, Amplifier, NO.2
86290A Amplifier Assy, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
