Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

14 part groups · 7 illustrations

Illustrations

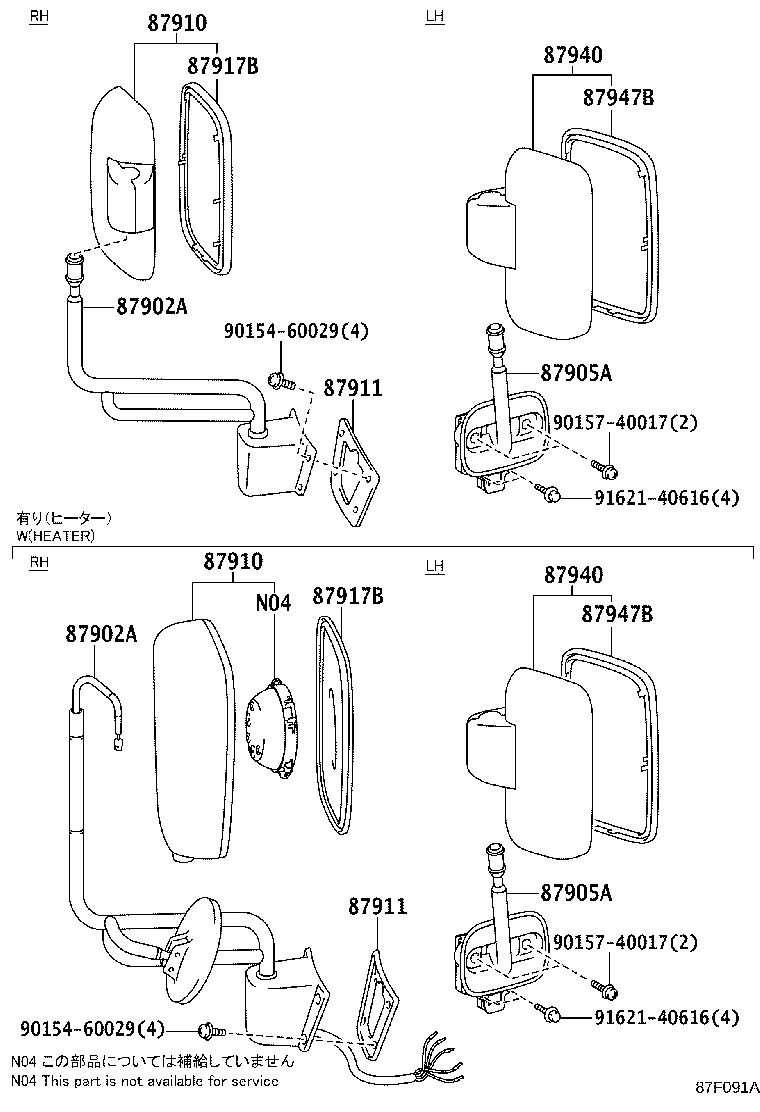

Figure 87D426D 87D426D 2013-01 → 2015-07 Figure 87F091A 87F091A 2015-07 → 2018-01 Figure 87G866A 87G866A 2018-01 → — Figure 87D425 87D425 2013-01 → — Figure 87F090A 87F090A 2015-07 → 2018-01 Figure 87G867 87G867 2018-01 → — Figure 87D427A 87D427A 2013-01 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87827 Absorber, Inner Rear View Mirror
87901 Mirror Sub-assy, Outer Under View
87902A Arm Sub-assy, Outer Rear View Mirror, RH
87905A Arm Sub-assy, Outer Rear View Mirror, LH
87907 Mirror Sub-assy, Outer Under View
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87917B Mirror, Outer Rear View, RH
87930A Mirror Assy, Outer Under View
87940 Mirror Assy, Outer Rear View, LH
87947B Mirror, Outer Rear View, LH
87950 Mirror Assy, Outer Under Rear View
87951 Gasket, Outer Under Rear View Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
