Heating & Air Conditioning - Control & Air Duct

48 part groups · 7 illustrations

Illustrations

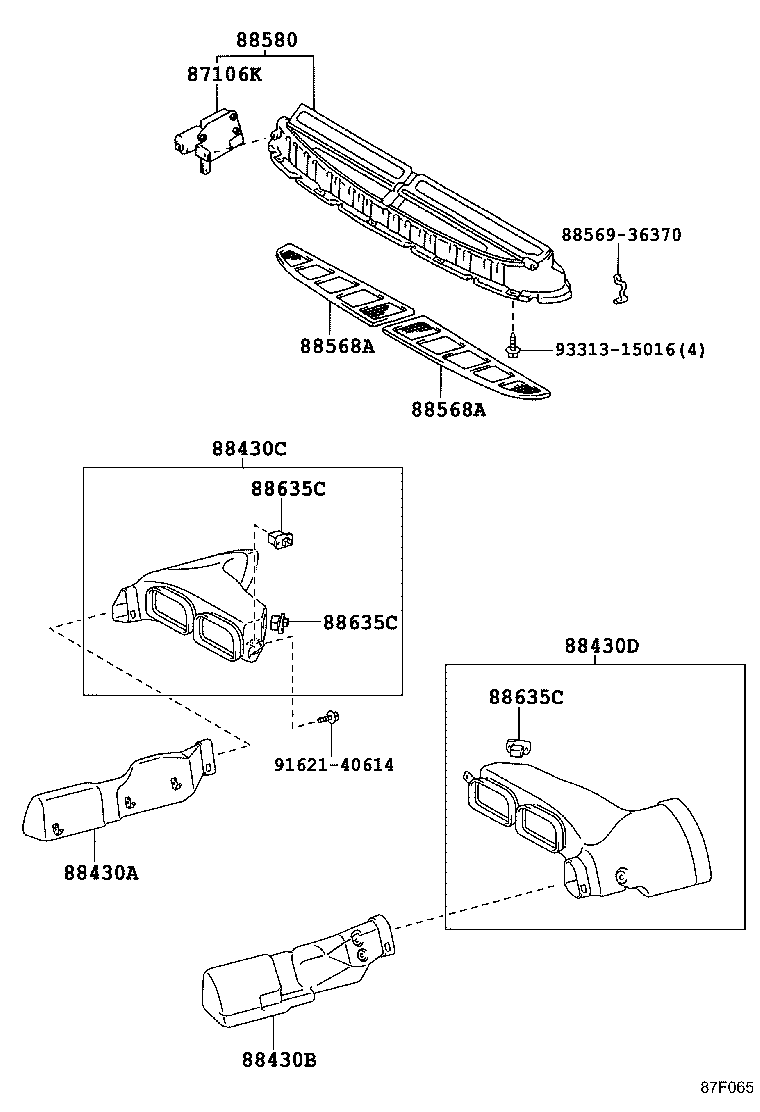

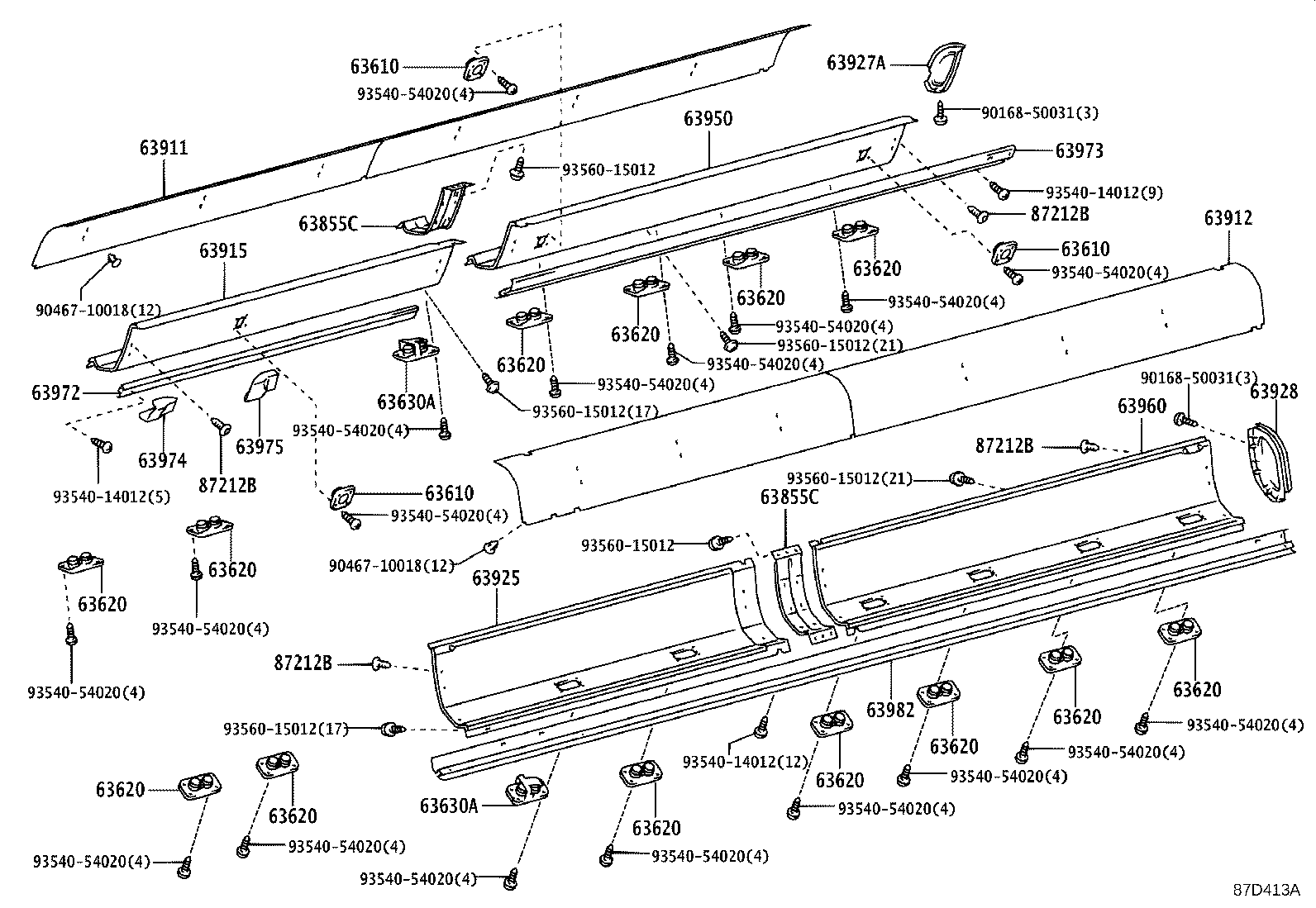

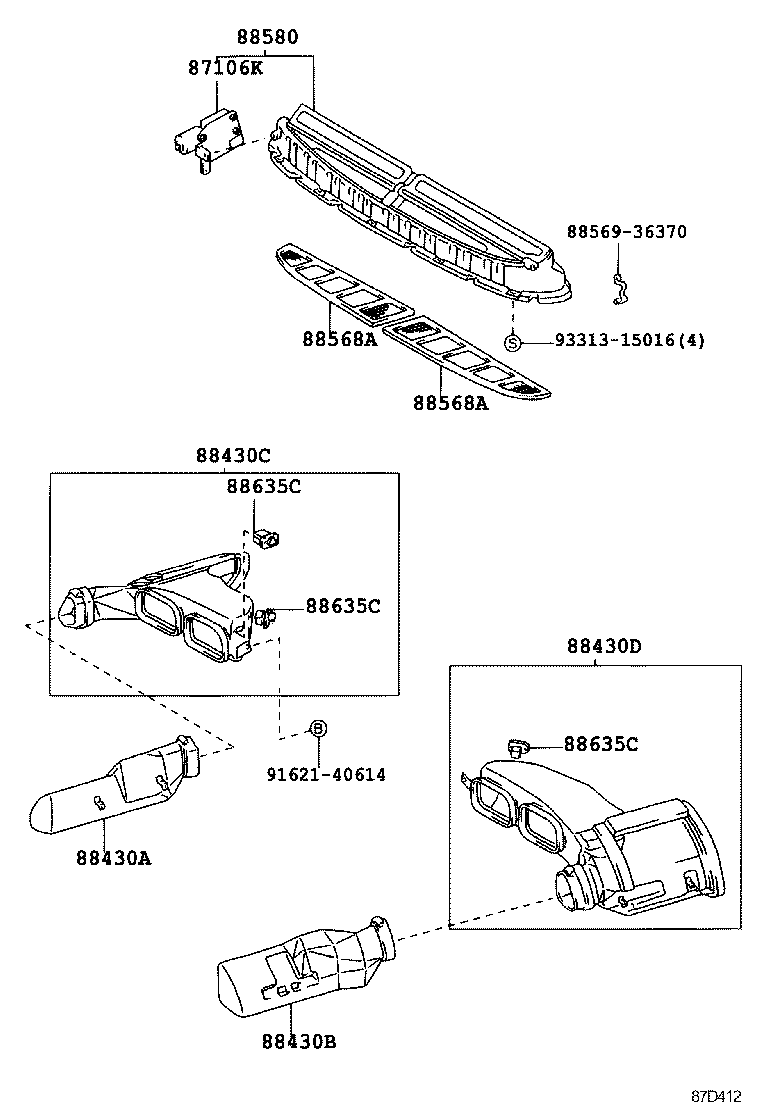

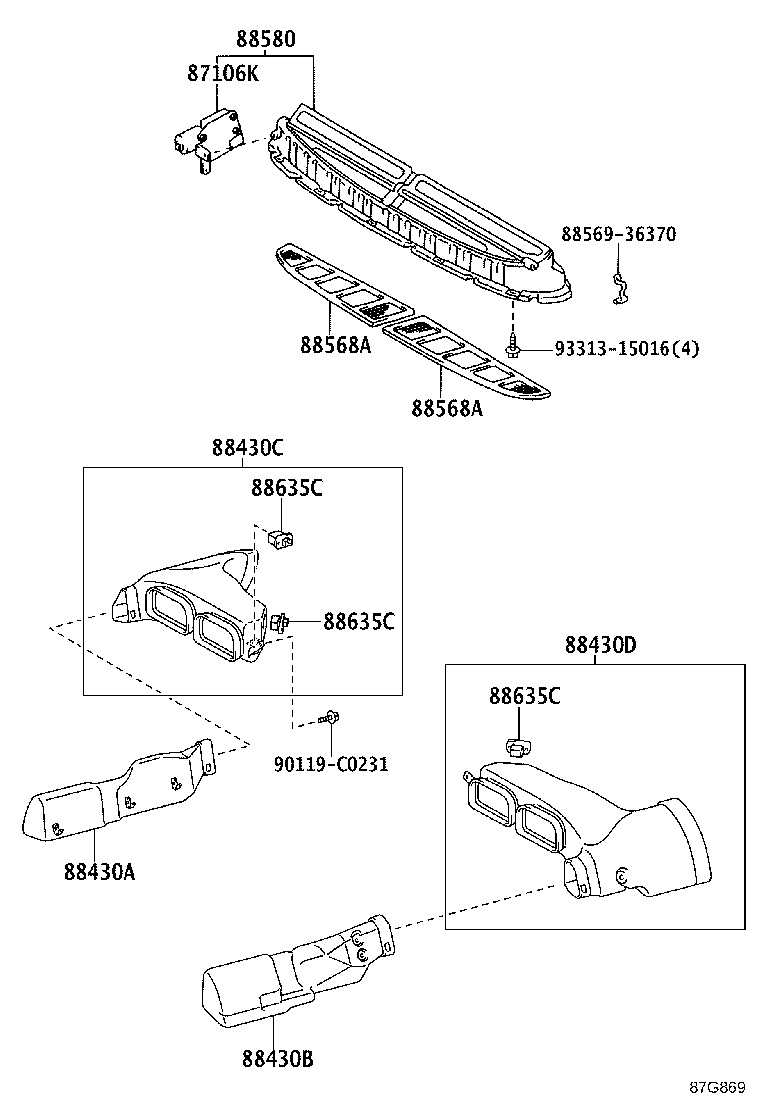

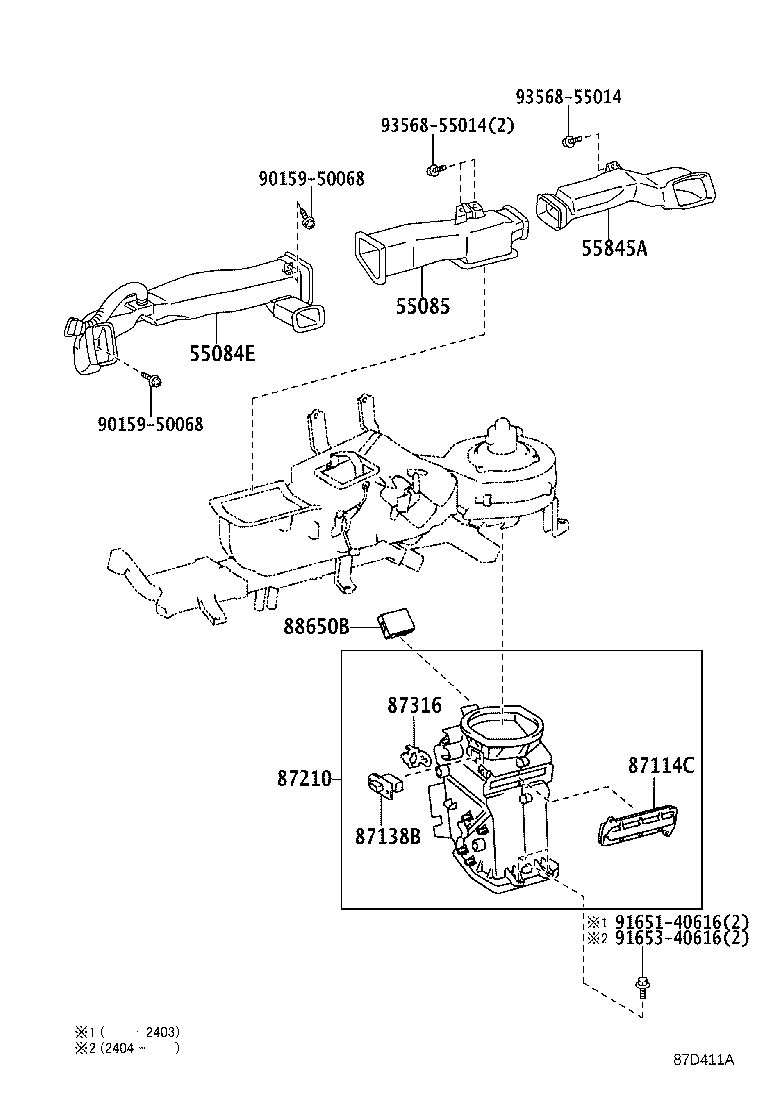

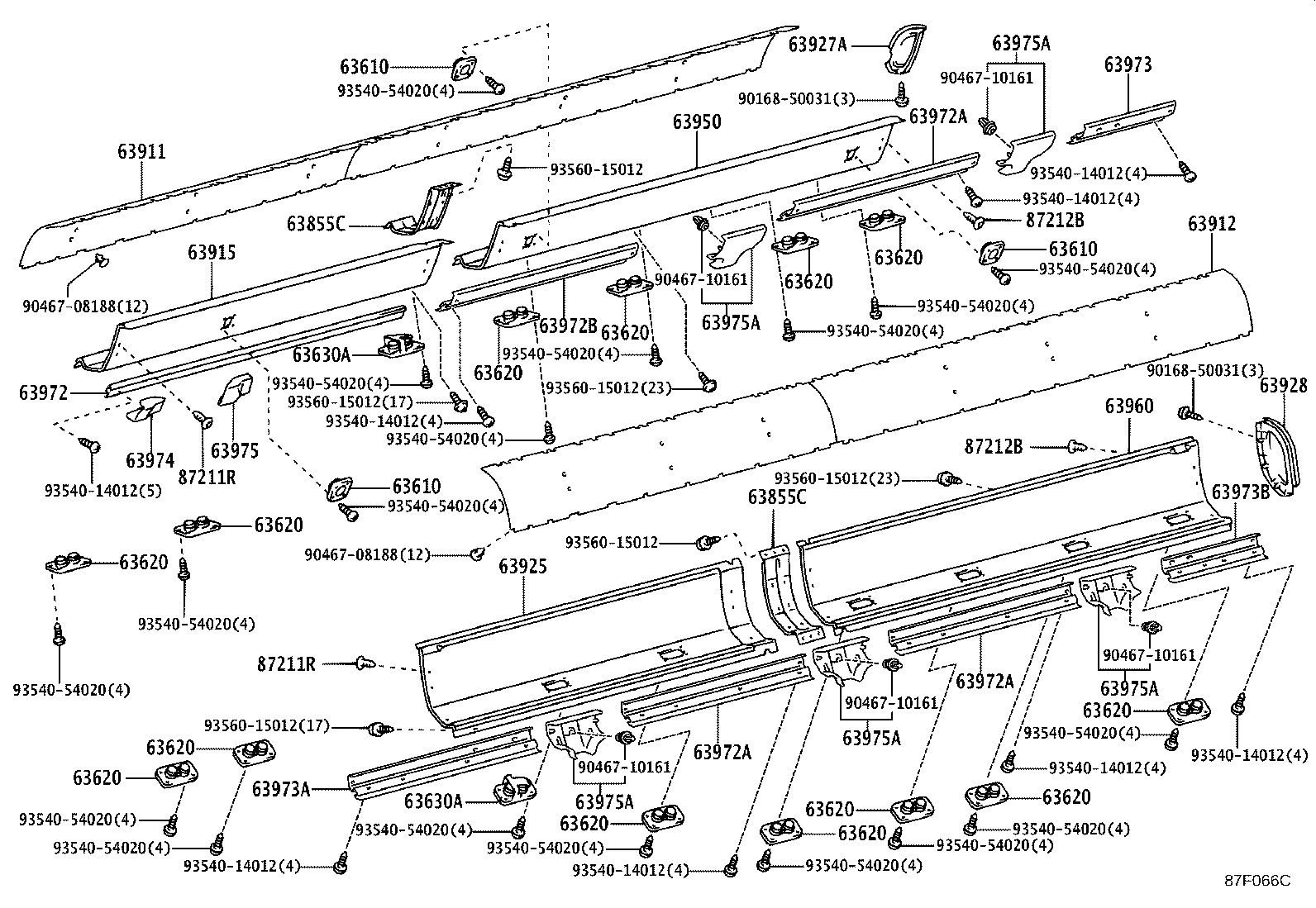

Figure 87D410B 87D410B 2013-01 → — Figure 87D411A 87D411A 2013-01 → — Figure 87D412 87D412 2013-01 → 2015-07 Figure 87F065 87F065 2015-07 → 2018-01 Figure 87G869 87G869 2018-01 → — Figure 87D413A 87D413A 2013-01 → 2015-07 Figure 87F066C 87F066C 2015-07 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55519 Plate, Heater Control Name
55845A Duct, Heater TO Register, NO.3
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55907F Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910 Control Assy, Heater OR Boost Ventilator
63610 Register Assy, Air Outlet, NO.1
63620 Register Assy, Air Outlet, NO.2
63630A Register Assy, Air Duct, NO.3
63855C Retainer, Roof Ventilator Duct
63911 Duct, Cooler, Outer RH
63912 Duct, Cooler, Outer LH
63915 Duct, Cooler, Inner NO.1 RH
63925 Duct, Cooler, Inner NO.1 LH
63927A Cover, Cooler Duct End, NO.1
63928 Cover, Cooler Duct End, NO.2
63950 Duct Assy, Cooler, Inner NO.2 RH
63960 Duct Assy, Cooler, Inner NO.2 LH
63972 Moulding, Cooler Duct Side, NO.1 RH
63972A Moulding, Cooler Duct Side, NO.2 RH
63972B Moulding, Cooler Duct Side, NO.3 RH
63973 Moulding, Cooler Duct Side, NO.2 RH
63973A Moulding, Cooler Duct Side, NO.1 LH
63973B Moulding, Cooler Duct Side, NO.2 LH
63974 Moulding, Cooler Duct Side, NO.3 RH
63975 Moulding, Cooler Duct Side, NO.4 RH
63975A Moulding, Cooler Duct Side, NO.5 RH
63982 Moulding, Cooler Duct Side, NO.1 LH
87106K Servo Sub-assy, Damper(FOR AIRMIX)
87114C Cover, Heater
87138B Resistor, Heater Blower
87190 Switch Assy, Temperature Control
87210 Damper Assy, Air
87211R Clip, Air Duct
87212B Clip, Air Duct
87316 Bracket, Heater Relay, NO.1
88430A Duct Assy, Air, NO.1
88430B Duct Assy, Air, NO.2
88430C Duct Assy, Air, NO.3
88430D Duct Assy, Air, NO.4
88568A Filter, Air
88580 Damper Assy, Air
88635C Resistor, Cooler Air Duct, NO.1
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
